| DR-120 Din Rail Switching Power Supply | ||||
| Project | Technical indicators | |||
| Output | DC voltage | 12V | 24V | 48V |
| Rated current | 10A | 5A | 2.5A | |
| Rated power | 120W | 120W | 120W | |
| Efficiency | >86% | >88% | >90% | |
| Ripple and noise | <120mV | <150mV | <240mV | |
| Voltage regulation range | ±10% | |||
| Voltage accuracy | ±2% | ±1% | ||
| Liner adjustment rate | ±0.5% | |||
| Load adjustment rate | ±1% | |||
| Input | Voltage range/frequency | 85-264VAC 47Hz~63Hz(120VDC~370VDC) | ||
| Impulse current | 110VAC 20A 220VAC 40A | |||
| Leakage current | ≤1mA 240VAC | |||

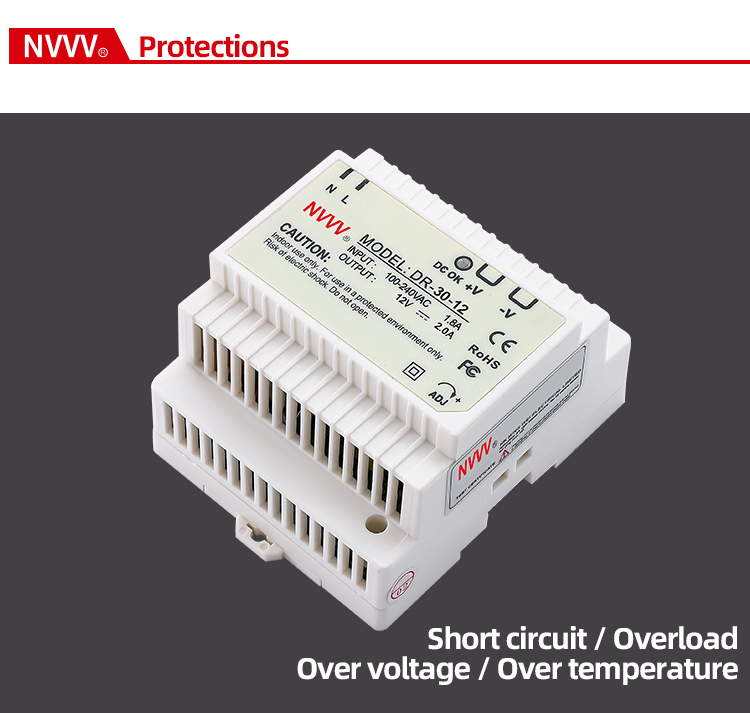

| Protection characteristics | Overload protection | ≥105%-150%type:protection mode:hiccup mode automatic recovery after abnormal conditions are removed | ||
| Short circuit protection | +VO drops to the undervoltage point and the output is closed After the abnormal condition is removed | |||
| Environment | operating temperature,humidity | -10ºC~50ºC;20%~90RH | ||
| storage temperature,humidity | -20ºC~+85ºC;10%~95RH | |||
| Security | Withstand voltage | Input-output:1.5KVAC input-case:1.5KVAC output-case:0.5KVAC duration: 1 minute | ||
| Isolation resistor | Input-output and input-shell,output-shell:500VDC/100mΩ | |||
| Other | Size | 55.5*100*125.2mm | ||
| Net weight/gross weight | 600g/650g | |||
Yes, absolutely. We offer both OEM (your brand, logo, packaging) and ODM (we help design/develop products based on your ideas or samples).
We have experience working with well-known companies in the industry, and we are confident we can bring that same quality and reliability to your projects. Your brand and ideas are safe with us.
We offer standard voltages including 12V, 24V, 36V, 48V, 60V, 68V, and 110V depending on the specific item.
Yes, sample orders are welcome to test quality. Mixed samples are acceptable. We also have overseas warehouses, so you can receive samples faster.
Our MOQ is low. For sample checking, 30 pieces are available.

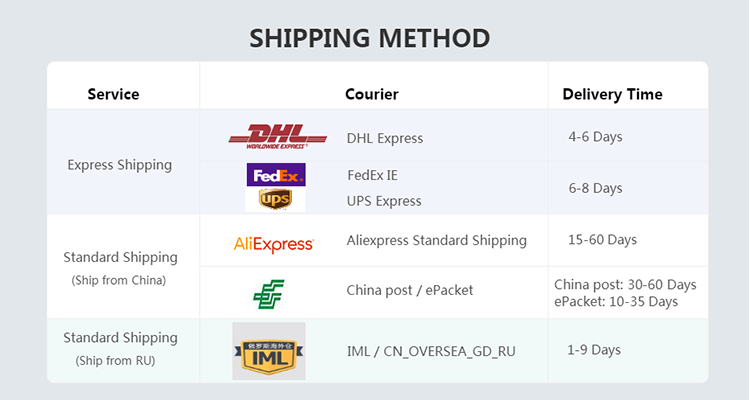

We work with reliable shipping logistics partners. Depending on your country, our sales team can recommend dedicated shipping routes for better service and lower prices. Specific delivery times can be provided upon request.
First, all our products go through a strict quality control system, so the defect rate is very low. Second, during the warranty period:
For small quantities, we will include new products with your next order.
For defective batches, we will repair and resend the products, or we can discuss a solution (including a credit or replacement) based on the actual situation.
