NVVV TDR-480 AI Intelligent High Efficiency Saving Power Light Easy Disassembly Din Rail Type Power Supply Transformer

Product Description

Product Description
TDR-480 AI Intelligent High Efficiency Saving Power Light Easy Disassembly Din Rail Type Power Supply Transformer
TDR-480 AI Intelligent High Efficiency Saving Power Light Easy Disassembly Din Rail Type Power Supply Transformer
TDR-480 AI Intelligent High Efficiency Saving Power Light Easy Disassembly Din Rail Type Power Supply Transformer
Specification

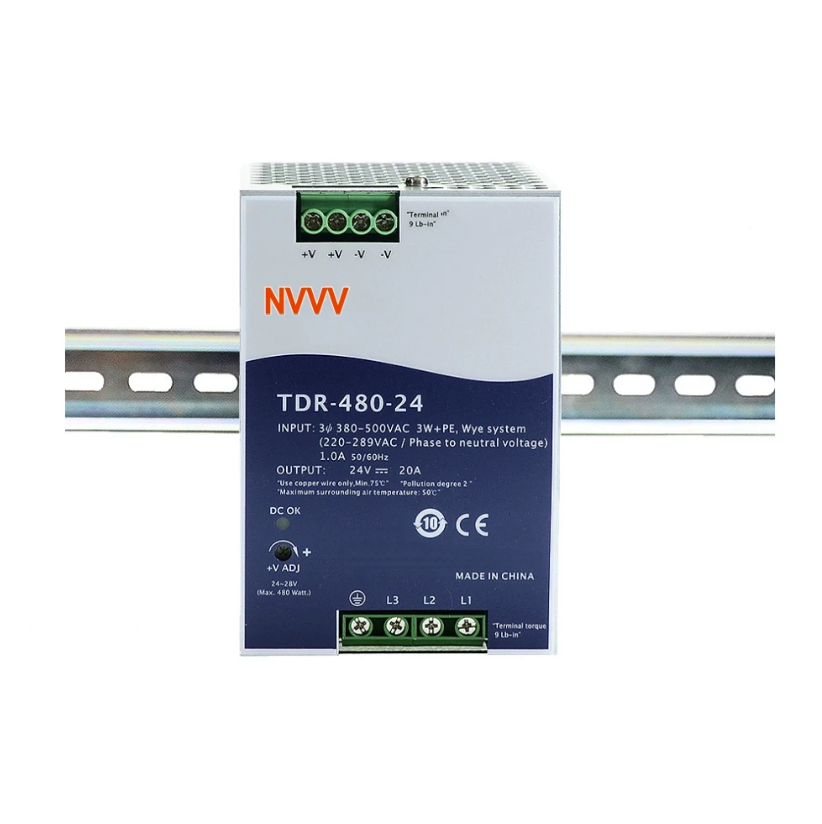

TDR-480 Din Rail Switching Power Supply
Project Technical indicators
Output DC voltage 24V 48V
Rated current 20A 10A
Rated power 480W
Ripple and noise <240MV <240MV
Voltage accuracy ±1% ±1%
Input Voltage range 200-500VAC 47Hz~63Hz; 254VDC-370VDC
Efficiency >92% >92%
Working current 1A 400VAC / 2A 230VAC
Impulse current Cold start 50A
Start, rise, hold time 800ms, 150ms/400VAC; 1500ms, 150ms/230VAC
Protection Overload protection ≥105%-150% type: hiccup mode, automatic recovery after abnormal release
Short circuit protection +VO decrease to undervoltage point to close output
Environment Operating temp, humidity -20ºC~95ºC; 20%~90RH
Storage temp, humidity -40ºC~+85ºC; 10%~95RH
Security Withstand voltage Input-output: 3KVAC; input-case: 1.5KVAC; output-case: 0.5KVAC; duration: 1 minute
Leakage current <3.5mA/500VAC
Isolation resistor Input-output, input-shell, output-shell: 500VDC/100mΩ

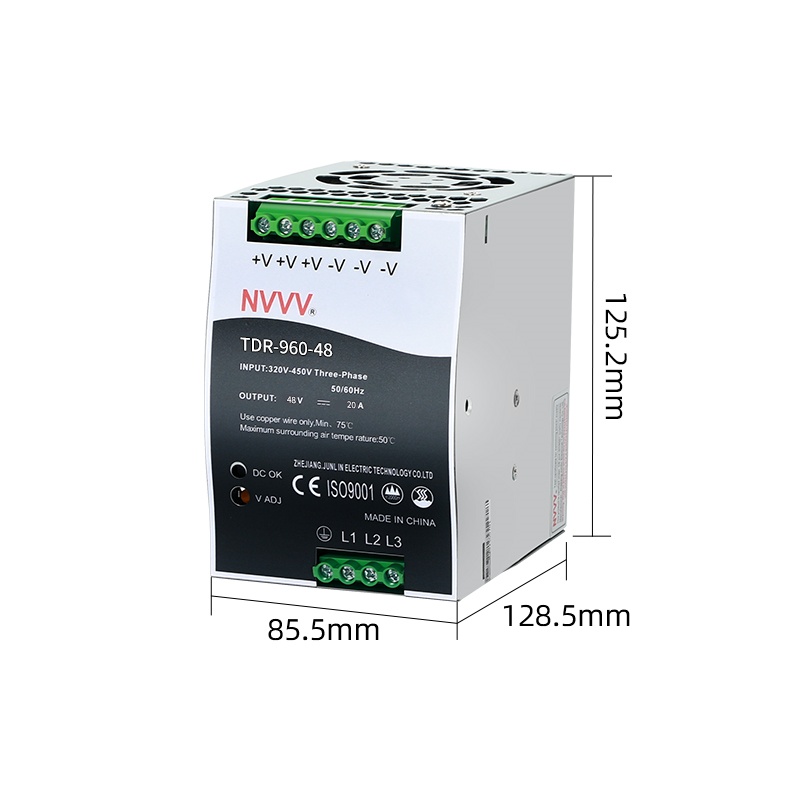

Other Size 85.5*125.2*128.5mm (L*W*H)
Net weight 1.51KG
Production Facility
Production Facility Facility Area
Production Line Machinery
Team
Professional Staff Team
Packaging & Shipping
Product Packaging and Storage
Shipping and Logistics Distribution
Frequently Asked Questions

Q1Do you offer OEM/ODM custom service for power products?

Yes, absolutely. We offer both OEM (your brand, logo, packaging) and ODM (we help design/develop products based on your ideas or samples). We have experience working with well-known companies in the industry, and we are confident we can bring that same quality and reliability to your projects. Your brand and ideas are safe with us.

Q2What voltage options can you supply for power supplies? Can you customize voltage?

We offer standard voltages including 12V, 24V, 36V, 48V, 60V, 68V, and 110V depending on the specific item.

Q3Can I get a sample order for quality testing?

Yes, sample orders are welcome to test quality. Mixed samples are acceptable. We also have overseas warehouses, so you can receive samples faster.

Q4What is your minimum order quantity (MOQ) for sample and bulk orders?

Our MOQ is low. For sample checking, 30 pieces are available.

Q5What are your shipping methods, delivery time, and logistics options?

We work with reliable shipping logistics partners. Depending on your country, our sales team can recommend dedicated shipping routes for better service and lower prices. Specific delivery times can be provided upon request.

Q6How do you handle defective products under warranty?

First, all our products go through a strict quality control system, so the defect rate is very low. Second, during the warranty period: For small quantities, we will include new products with your next order. For defective batches, we will repair and resend the products, or we can discuss a solution (including a credit or replacement) based on the actual situation.
