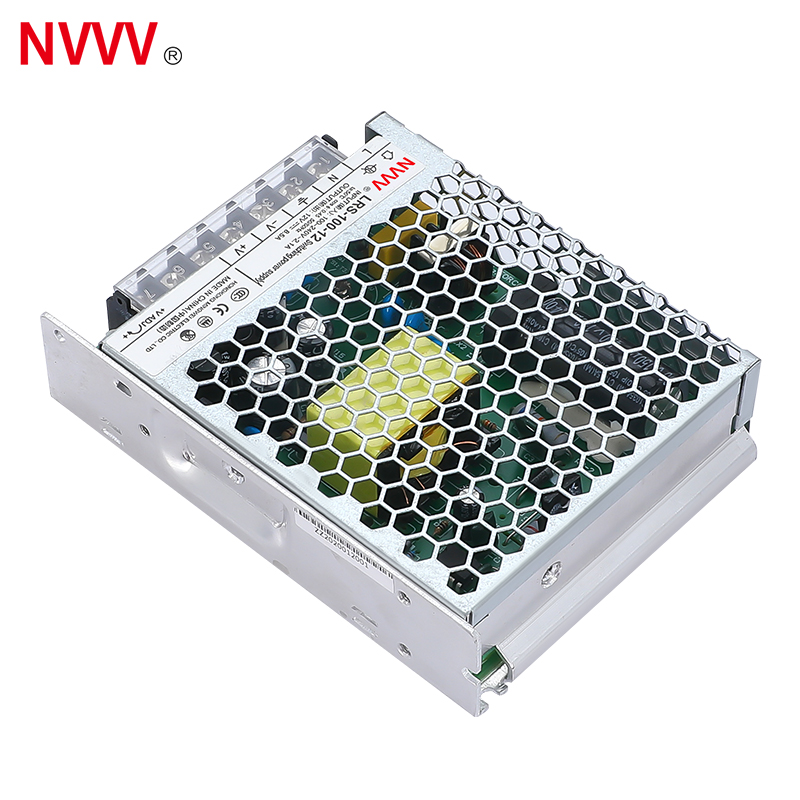

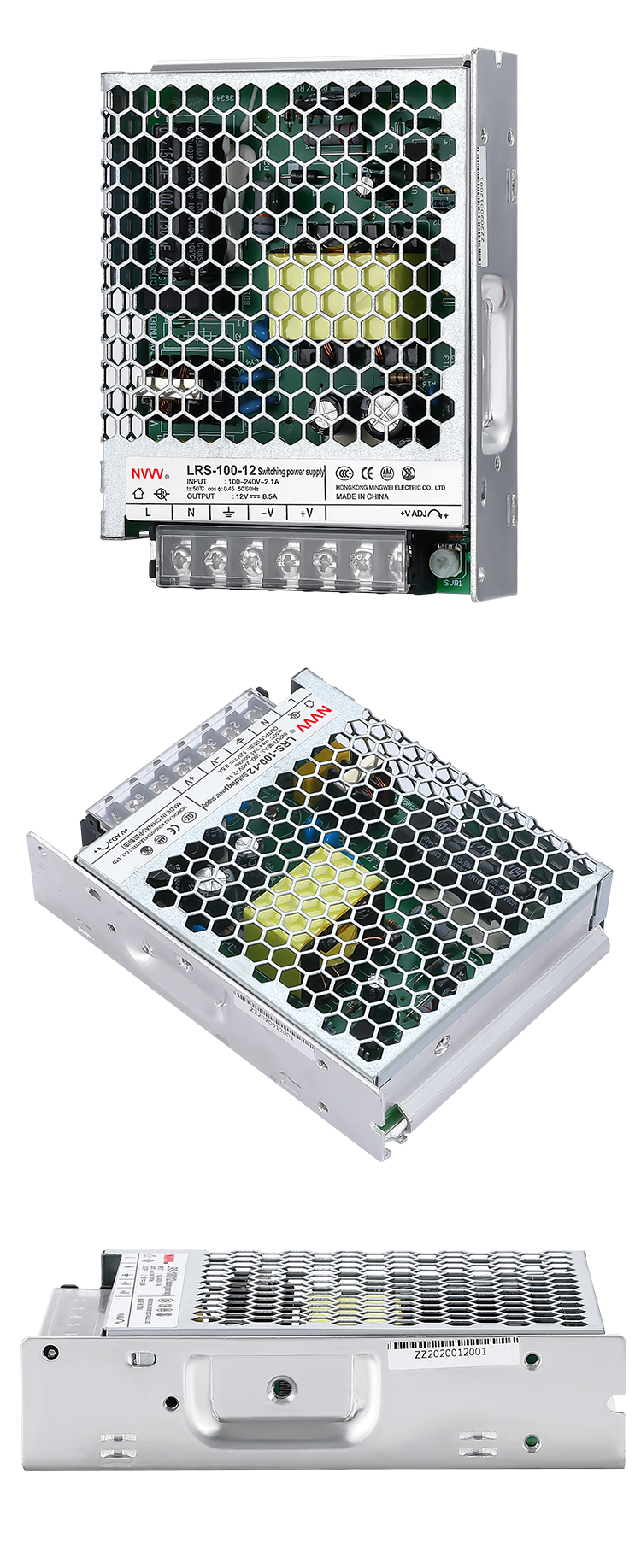

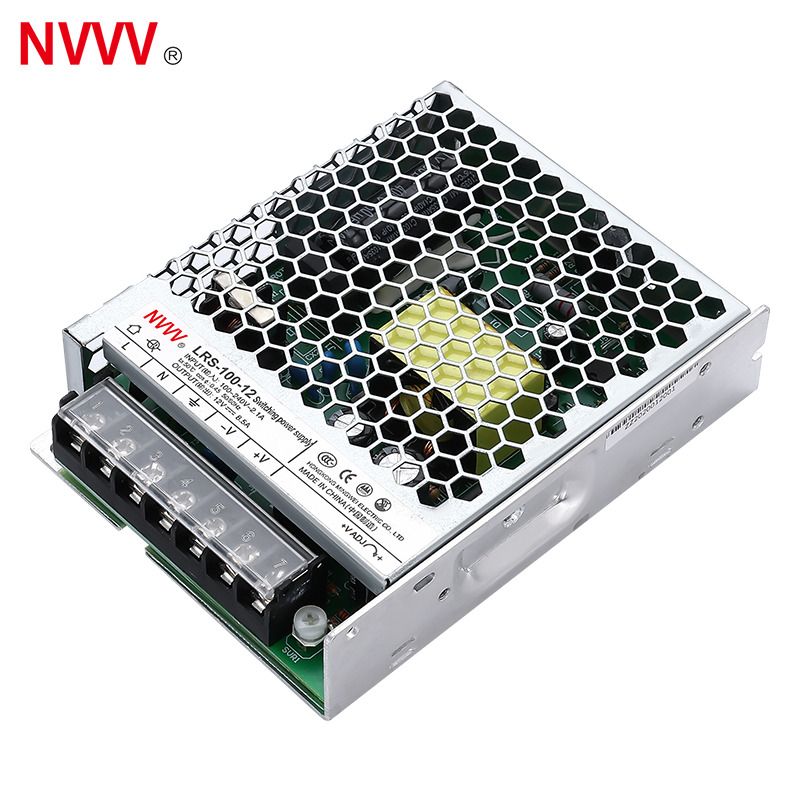

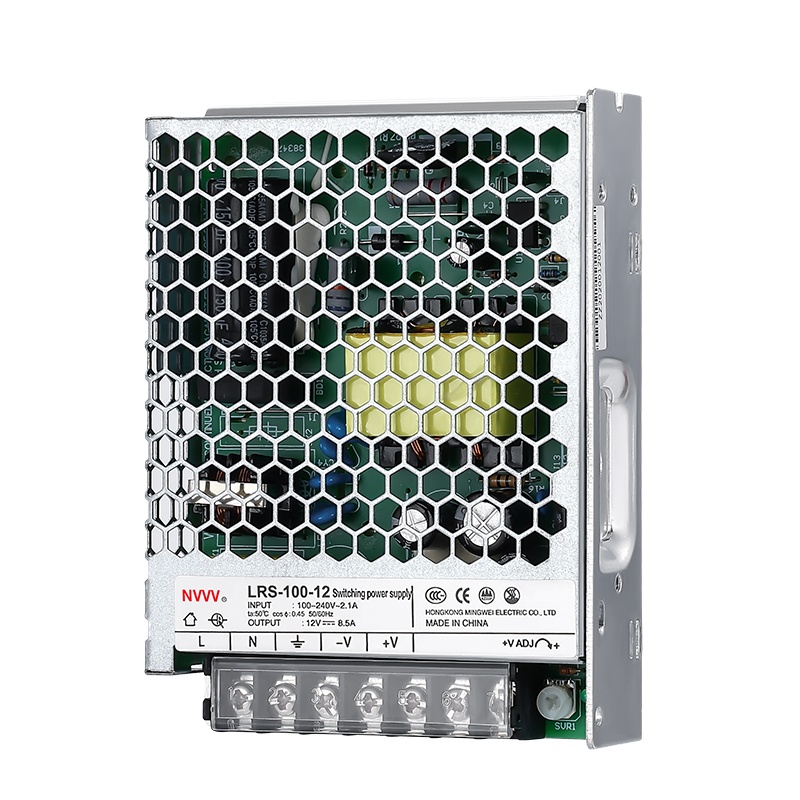

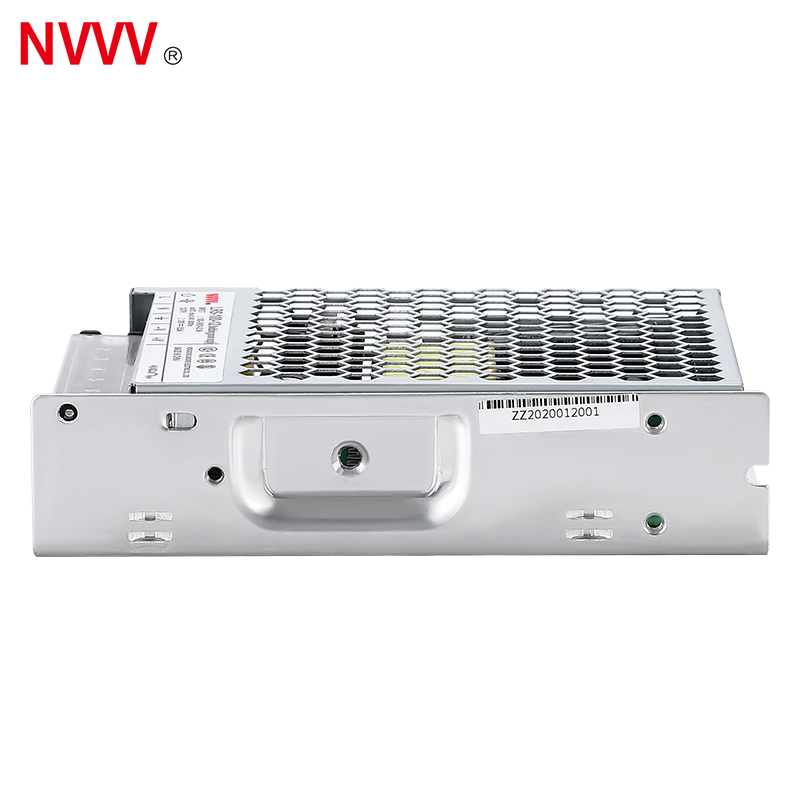

| LRS-100 Series 100W Switching Power Supply | |||||
|---|---|---|---|---|---|
| Project | Technical index | ||||
| Output | DC voltage | 5V | 12V | 24V | 48V |
| Rated current | 18A | 8.5A | 4.5A | 2.3A | |
| Rated power | 90W | 102W | 108W | 110.4W | |
| Ripple and noise ① | 100mVp-p | 120mVp-p | 150mVp-p | 200mVp-p | |
| Voltage adjustment range | ±10% | ||||
| Voltage accuracy | ±2.0% | ±1.0% | ±1.0% | ±1.0% | |
| Linear adjustment rate | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| Load adjustment rate | ±1.0% | ±0.5% | ±0.5% | ±0.5% | |
| Starting and rising time | 500ms, 30ms/230VAC 500ms, 30ms/115VAC (full load) | ||||
| Retention time | 55ms/230VAC 10ms/115VAC (full load) | ||||
| Input | Voltage range / frequency | 85-264VAC / 120-373VDC 47Hz - 63Hz | |||
| Efficiency (typical) ② | 86% | 88% | 90% | 91% | |
| Working current | 1.9A/115VAC 1.2A/230VAC | ||||
| Impulse current | Cold boot：50A/230VAC | ||||
| Leakage current | <1mA 240VAC | ||||

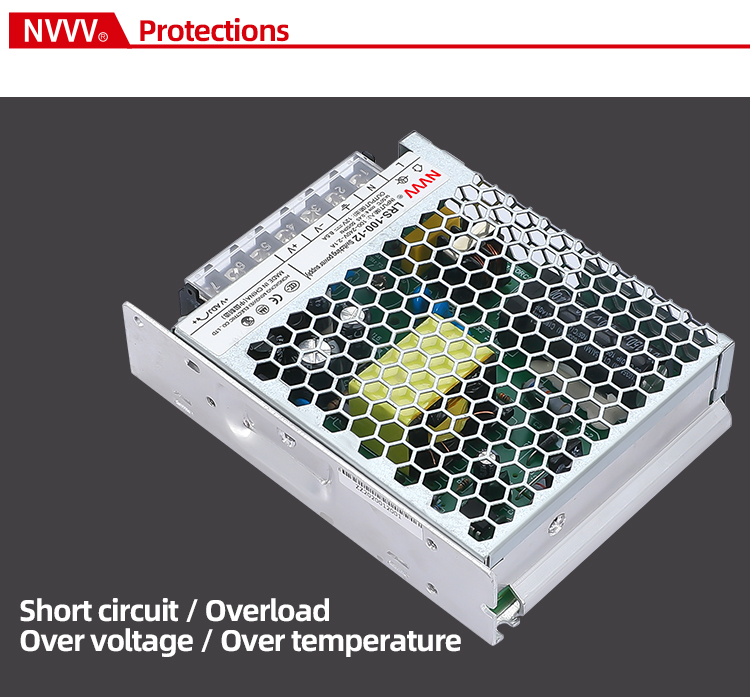

| Protect | Overload protection | 110%-130% Protection type: burping mode, automatic return to normal after removing abnormal conditions | |||
| Overvoltage protection | ≥ 115% - 145% protection type: close output, restart and automatically return to normal | ||||
| Function | Working temp. & humidity | -30℃ ~ +70℃; 20% ~ 90% RH | |||
| Storage temp. & humidity | -40℃ ~ +85℃; 10% ~ 95% RH | ||||
| Safety regulations | Withstand voltage | Input-output: 3kVac; Input-shell: 1.5kVac; Output-shell: 0.5kvac for 1 minute | |||
| Insulation impedance | Input-output, input-shell, output-shell: 500VDC / 100M Ω 25 ℃ 70% RH | ||||

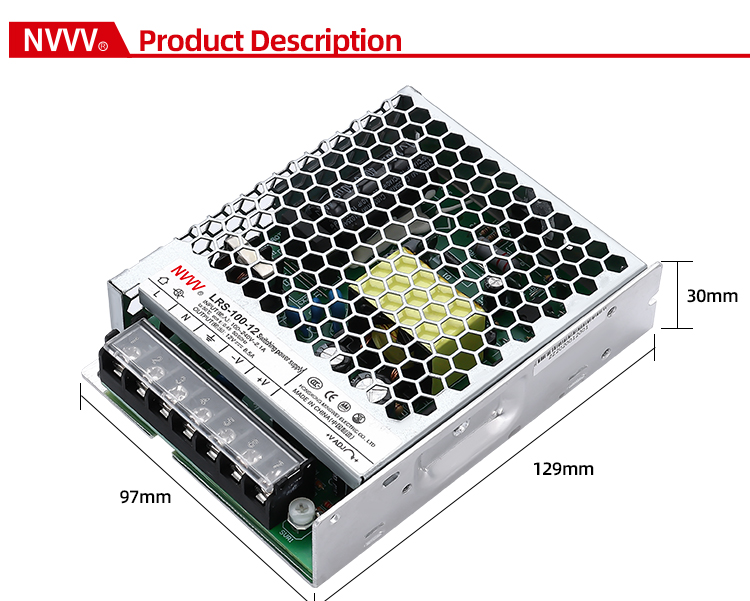

| Other | Size | 129*97*30mm(L*W*H) | |||
| Net weight / gross weight | 340g/365g | ||||
