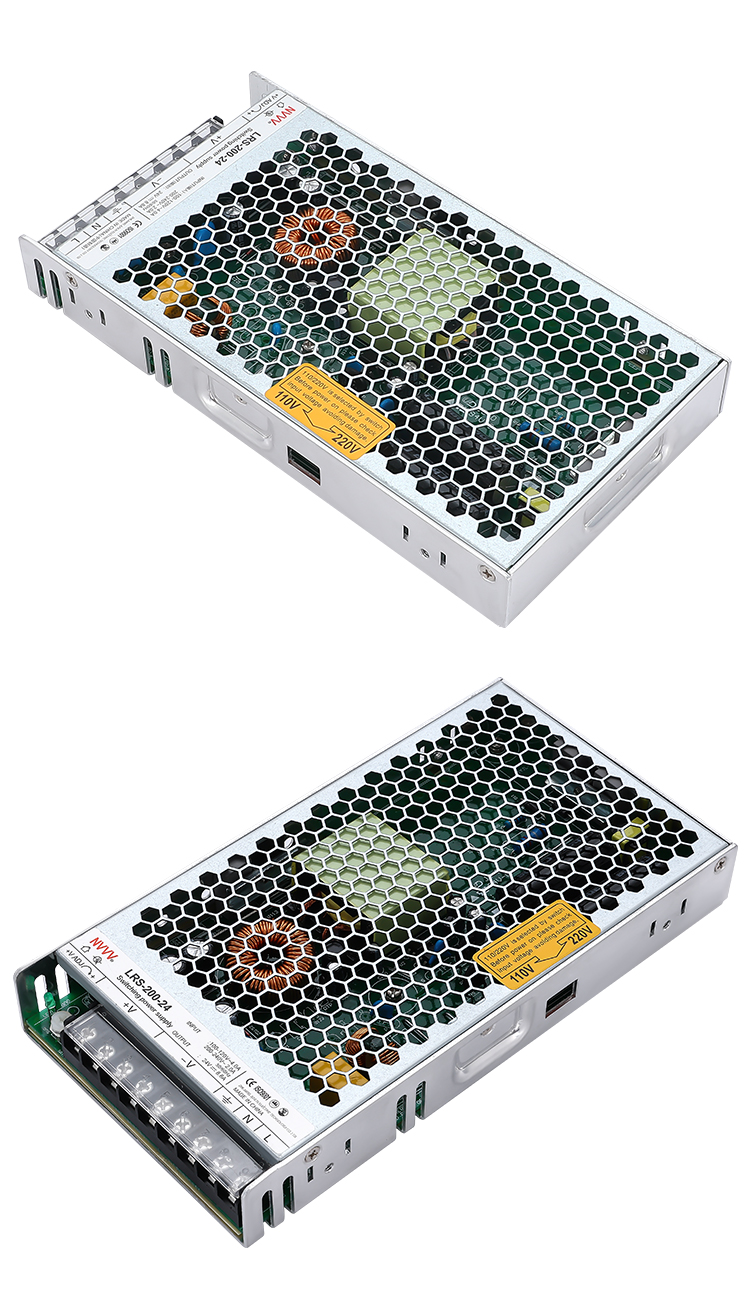

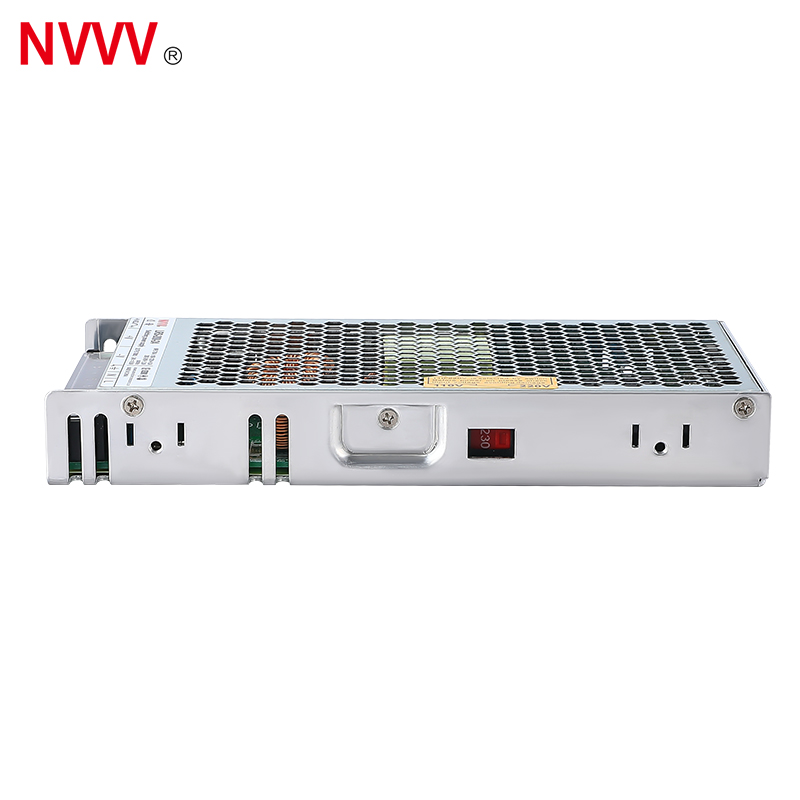

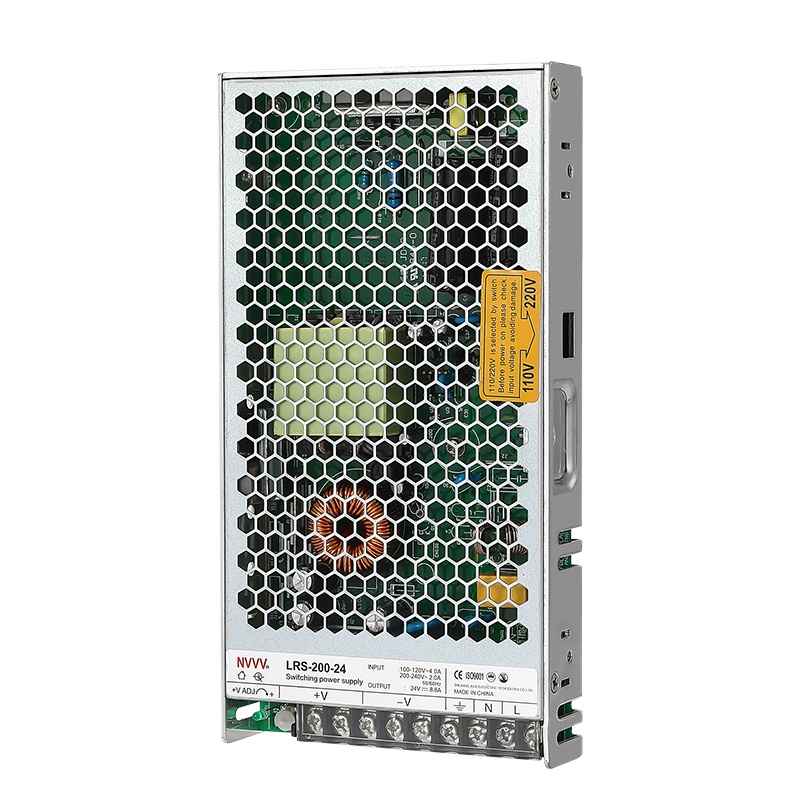

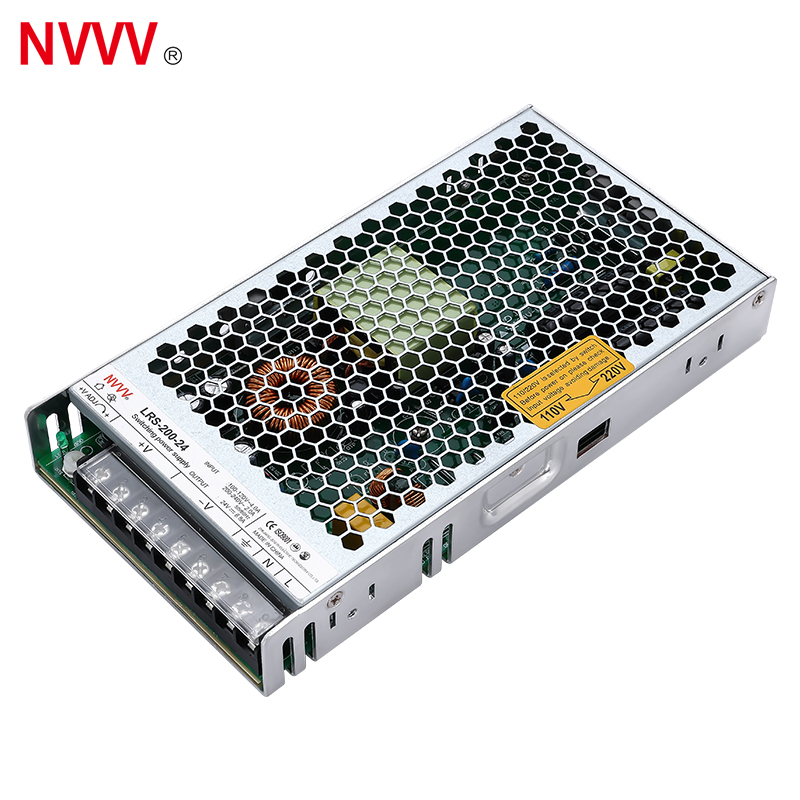

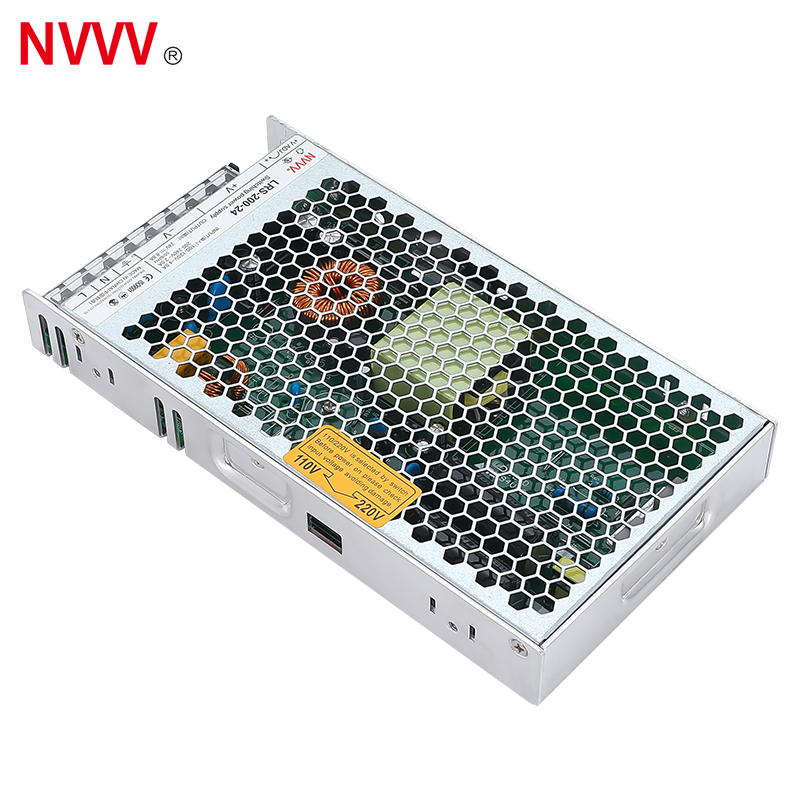

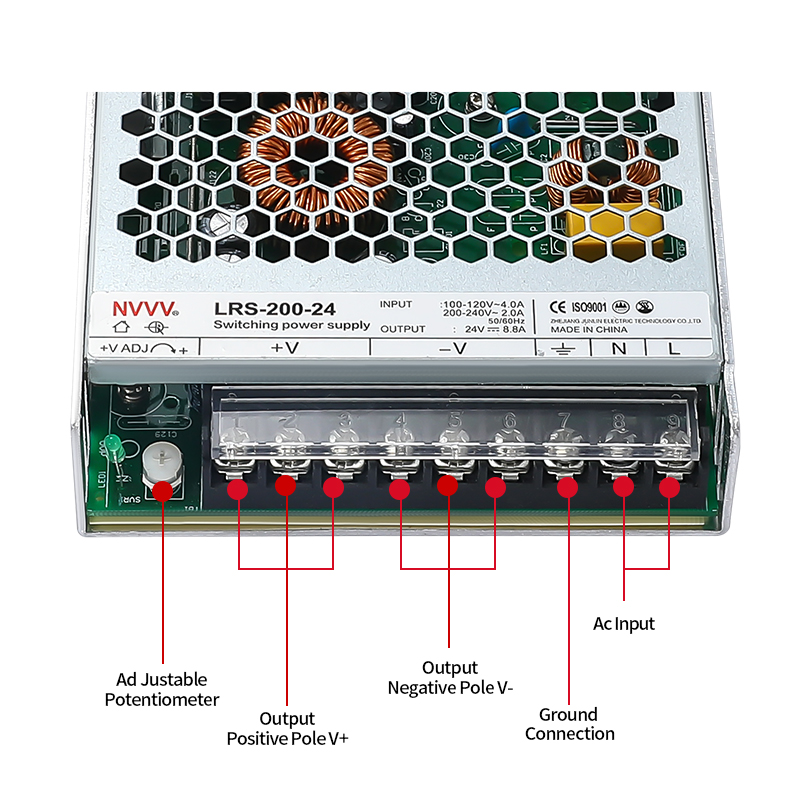

| LRS-200 Series 200W Switching Power Supply | |||||
|---|---|---|---|---|---|
| Project | Technical Indicators | ||||
| Output | DC Voltage | 5V | 12V | 24V | 48V |
| Rated Current | 40A | 17A | 8.8A | 4.4A | |
| Rated Power | 200W | 204W | 211.2W | 211.2W | |
| Ripple and Noise (1) | 150mVp-p | 150mVp-p | 150mVp-p | 200mVp-p | |
| Voltage Adj. Range | ±10% | ||||
| Voltage Accuracy | ±3.0% | ±1.5% | ±1.0% | ±1.0% | |
| Linear Regulation | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| Load Regulation | ±2.0% | ±1.0% | ±0.5% | ±0.5% | |
| Setup, Rise Time | 1500ms, 50ms/230VAC | 1500ms, 50ms/115VAC (Full load) | ||||
| Hold up Time | 16ms/230VAC | 12ms/115VAC (Full load) | ||||
| Input | Voltage Range | 90-132VAC / 180-264VAC selected by switch / 240-370VDC; 47Hz - 63Hz | |||
| Efficiency (typical) (2) | 87% | 87.5% | 89.5% | 90% | |
| Working Current | 4A/115VAC | 2.2A/230VAC | ||||
| Inrush Current | Cold start: 60A / 230VAC | ||||
| Leakage Current | <2mA / 240VAC | ||||

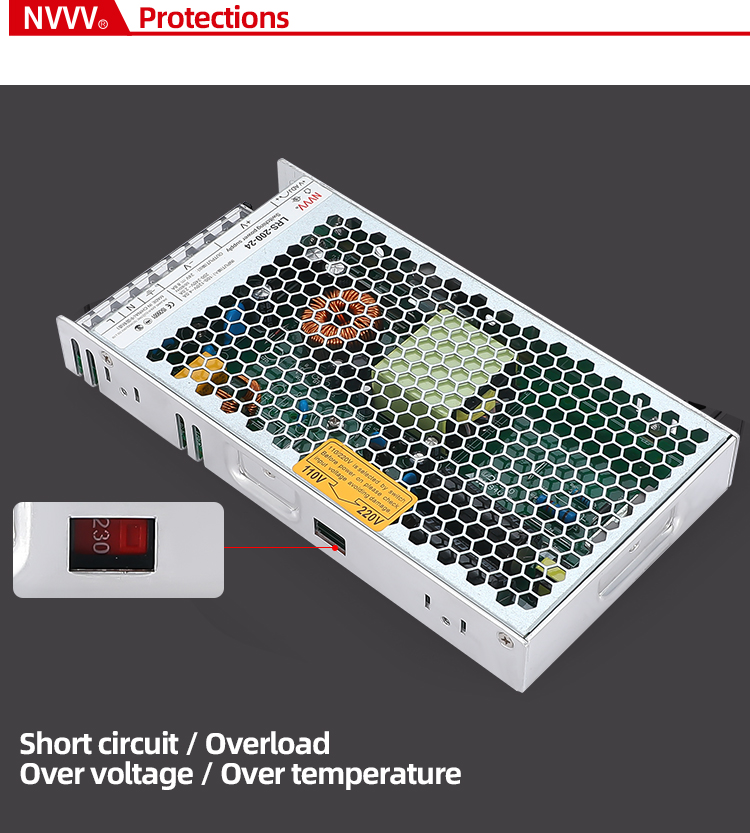

| Protection | Overload | 110%-130% Protection type: Hiccup mode, recovers automatically after fault condition is removed | |||
| Overvoltage | 115%-145% Protection type: Shut down o/p voltage, re-power on to recover | ||||
| Over Temp. | ≥90°C Protection type: Hiccup mode, recovers automatically after temperature goes down | ||||
| Environment | Working Temp. / Humid. | -25°C ~ +70°C; 20% ~ 90% RH | |||
| Storage Temp. / Humid. | -40°C ~ +85°C; 10% ~ 95% RH | ||||
| Safety & EMC | Withstand Voltage | I/P-O/P: 3kVAC | I/P-FG: 2kVAC | O/P-FG: 0.5kVAC for 1 minute | |||
| Isolation Resistance | I/P-O/P, I/P-FG, O/P-FG: 100MΩ / 500VDC / 25°C / 70% RH | ||||

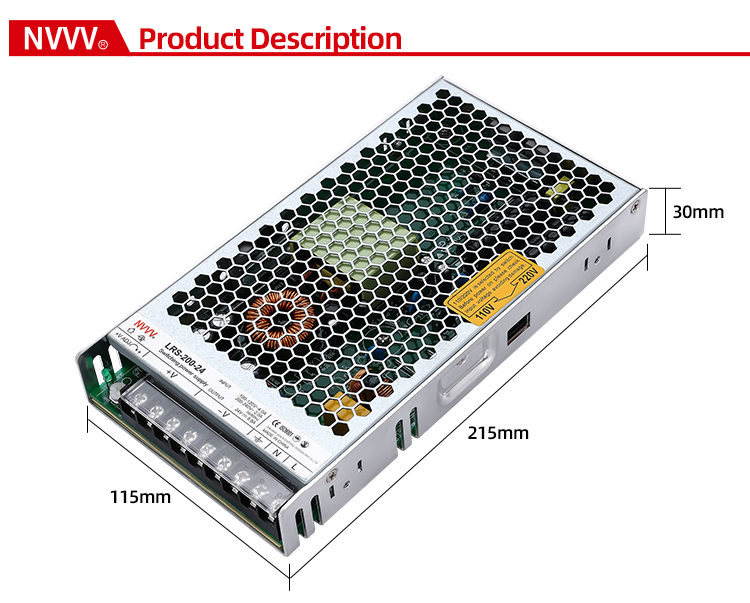

| Other | Size | 215*115*30mm (L*W*H) | |||
| Weight | Net weight: 660g | Gross weight: 727g | ||||
