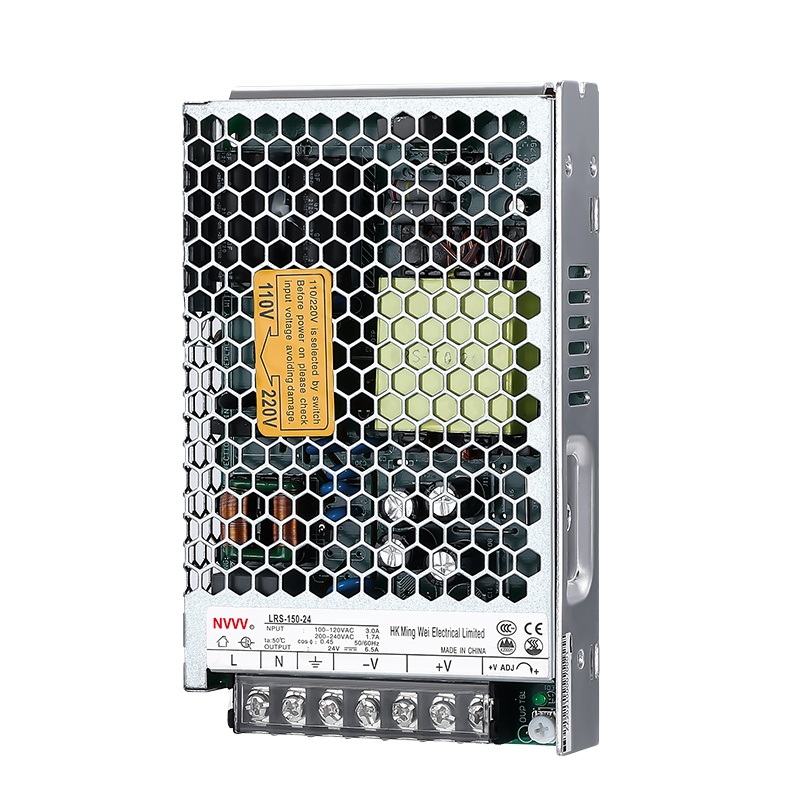

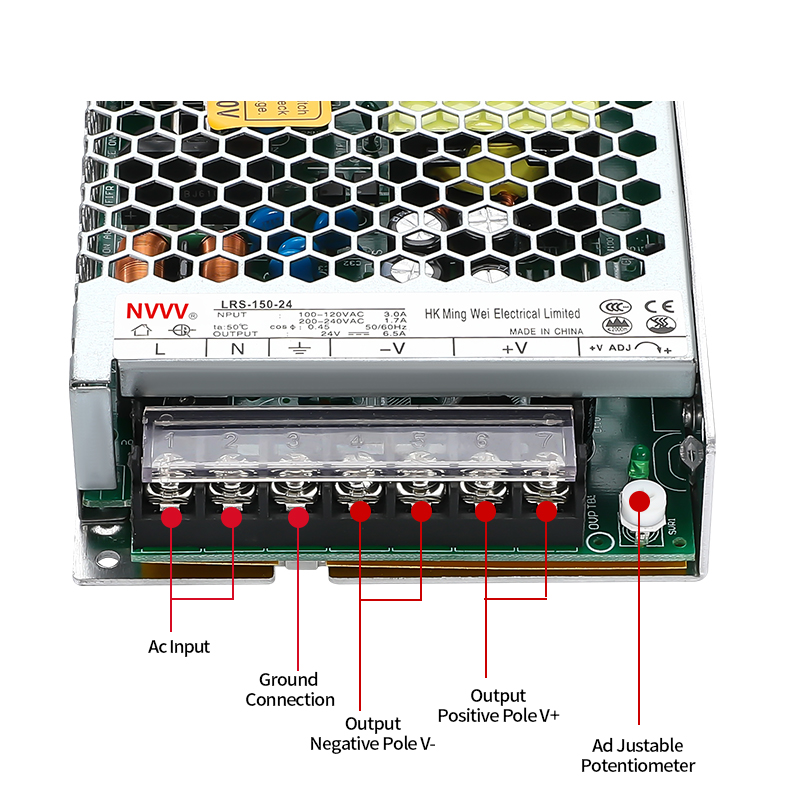

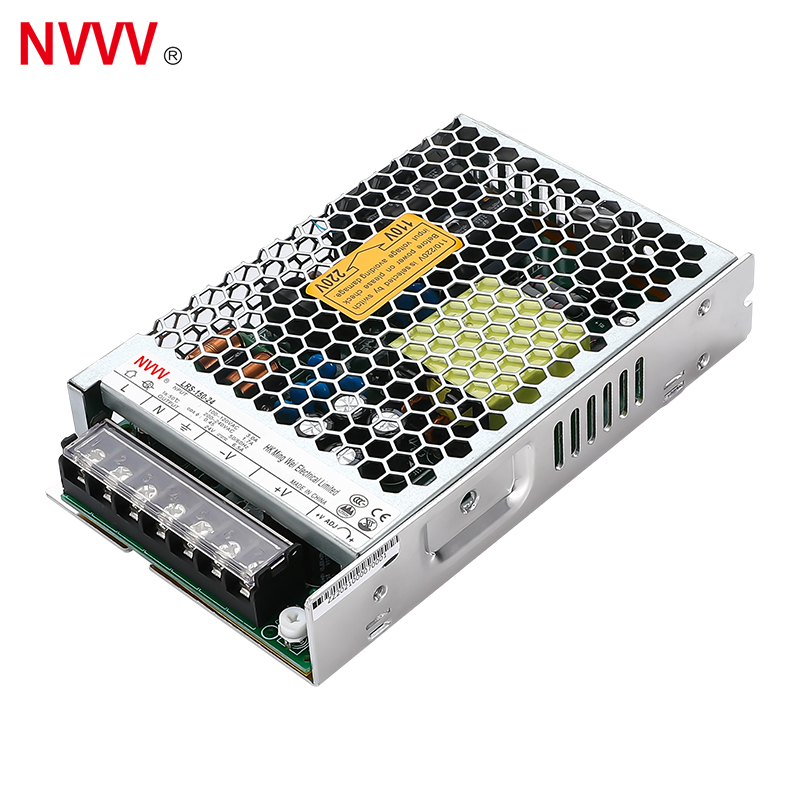

| LRS-150 Series 150W Switching Power Supply | |||||
| Project | Technical index | ||||
| Output | DC voltage | 5V | 12V | 24V | 48V |
| Rated current | 22A | 12.5A | 6.5A | 3.3A | |
| Rated power | 110W | 150W | 156W | 158.4W | |
| Ripple and noise ① | 100mVp-p | 150mVp-p | 200mVp-p | 200mVp-p | |
| Ripple and noise range | ±10% | ||||
| Voltage accuracy | ±2.0% | ±1.0% | ±1.0% | ±1.0% | |
| Linear adjustment rate | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| Load adjustment rate | ±1.0% | ±0.5% | ±0.5% | ±0.5% | |
| Starting and rising time | 500ms, 30ms/230VAC 500ms, 30ms/115VAC (full load) | ||||
| Retention time | 40ms/230VAC 35ms/115VAC (full load) | ||||
| Input | Voltage range / frequency | 85-132VAC / 170-264VAC selected by switch / 240-370VDC 47Hz ~ 63Hz | |||
| Efficiency (typical) ② | 85% | 87.50% | 89% | 90% | |
| Working current | 3A/115VAC 1.7A/230VAC | ||||
| Impulse current | Cold start: 60A / 230VAC | ||||
| Leakage current | <1mA 240VAC | ||||

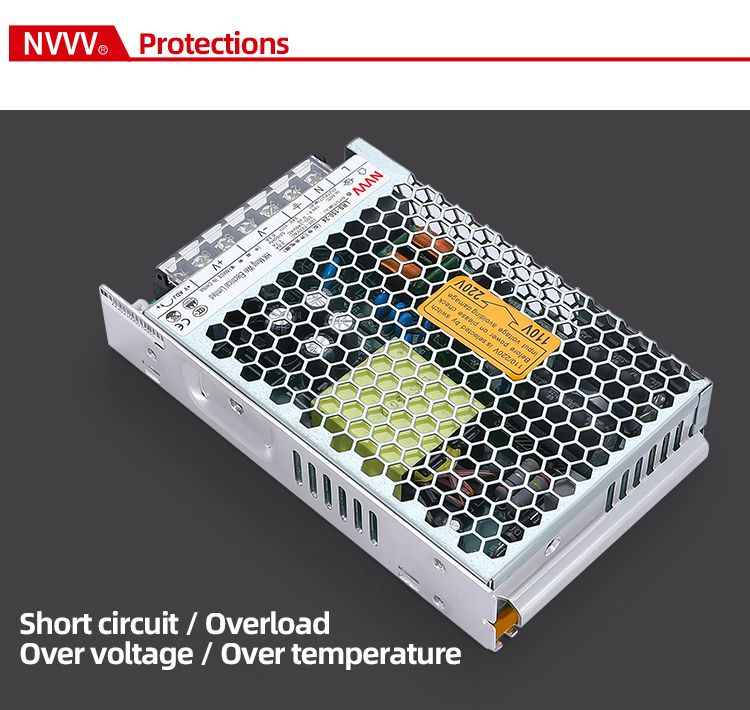

| Protect | Overload protection | 110%-130% Protection type: hiccup mode, automatic recovery | |||
| Overvoltage protection | 115%-145% Protection type: shut off output, auto-recovery after restart | ||||
| Over temperature protection | ≥90℃ Protection type: hiccup mode, auto-recovery | ||||
| Function | Working temp & humidity | -30℃ ~ +70℃, 20% ~ 90% RH | |||
| Storage temp & humidity | -40℃ ~ +85℃, 10% ~ 95% RH | ||||
| Safety | Withstand voltage | Input-Output: 4kVAC, Input-FG: 2kVAC, Output-FG: 1.25kVAC for 1 min | |||
| Insulation resistance | Input-Output, Input-FG, Output-FG: 500VDC / 100MΩ 25℃ 70% RH | ||||

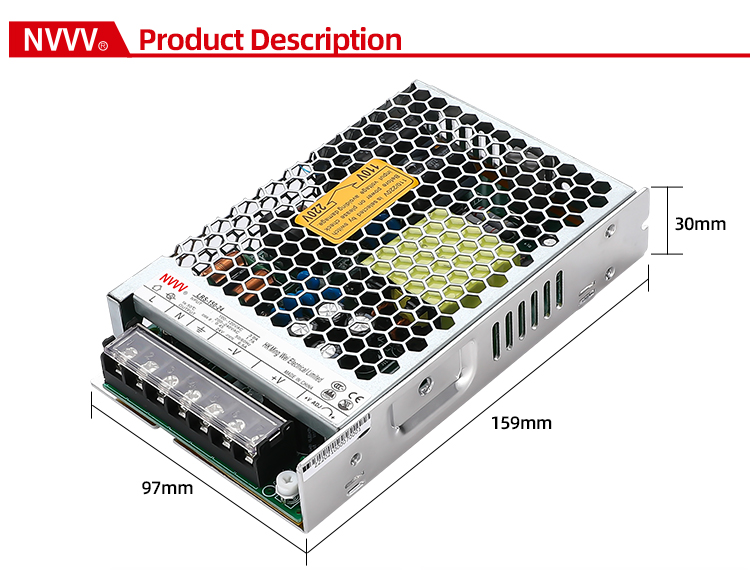

| Other | Size | 159*97*30mm (L*W*H) | |||
| Weight (Net/Gross) | 480g / 513g | ||||
