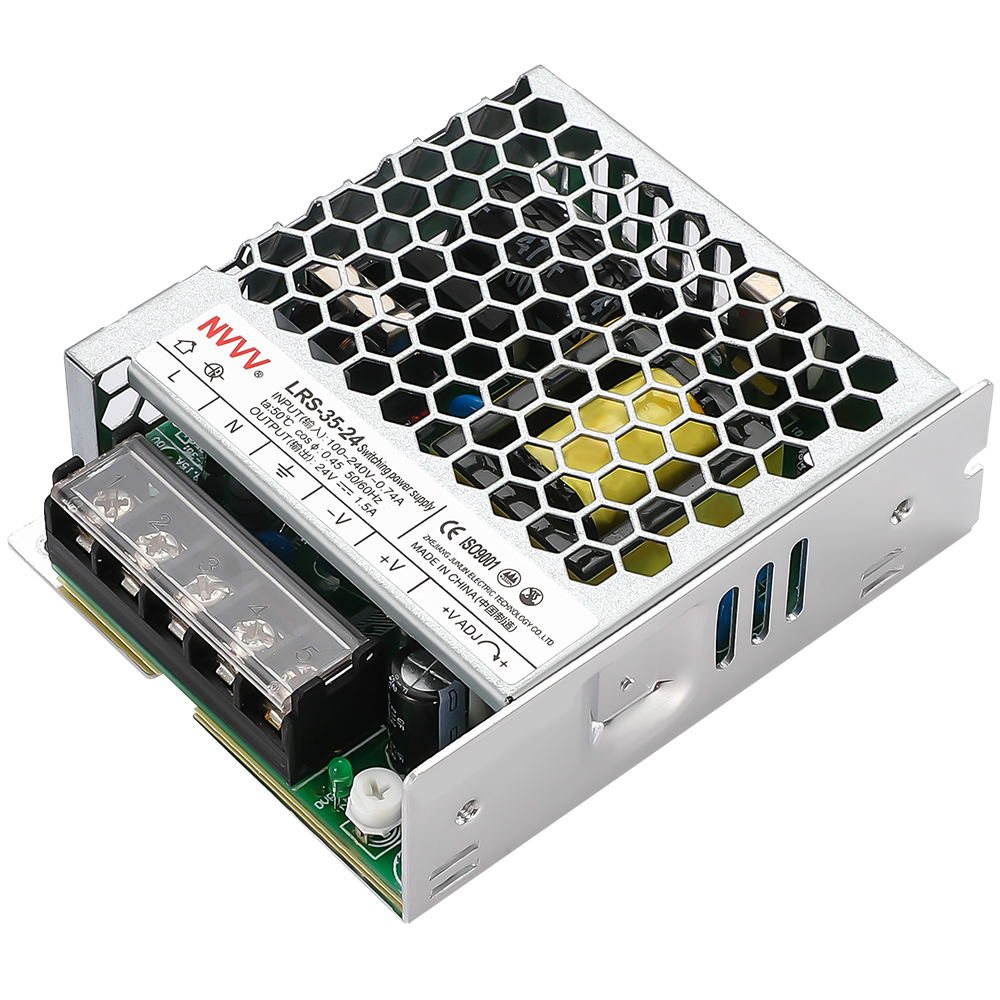

| LRS-35 Series 35W Switching Power Supply | |||||
|---|---|---|---|---|---|
| Project | Technical Index | ||||
| Output | DC Voltage | 5V | 12V | 24V | 48V |
| Rated Current | 7A | 3A | 1.5A | 0.8A | |
| Rated Power | 35W | 36W | 36W | 38.4W | |
| Ripple and Noise (1) | 80mVp-p | 120mVp-p | 150mVp-p | 200mVp-p | |
| Voltage Adj. Range | ±10% | ||||
| Voltage Accuracy | ±2.0% | ±1.0% | ±1.0% | ±1.0% | |
| Linear Adjustment Rate | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| Load Adjustment Rate | ±1.0% | ±0.5% | ±0.5% | ±0.5% | |
| Starting & Rising Time | 1000ms, 30ms / 230VAC; 2000ms, 30ms / 115VAC (full load) | ||||
| Retention Time | 30ms / 230VAC; 12ms / 115VAC (full load) | ||||
| Input | Voltage Range / Freq. | 85-264VAC / 120-373VDC 47Hz - 63Hz | |||
| Efficiency (typical) (2) | 82% | 86% | 88% | 89% | |
| Working Current | 0.7A / 115VAC; 0.42A / 230VAC | ||||
| Impulse Current | Cold boot: 45A / 230VAC | ||||
| Leakage Current | < 0.75mA / 240VAC | ||||

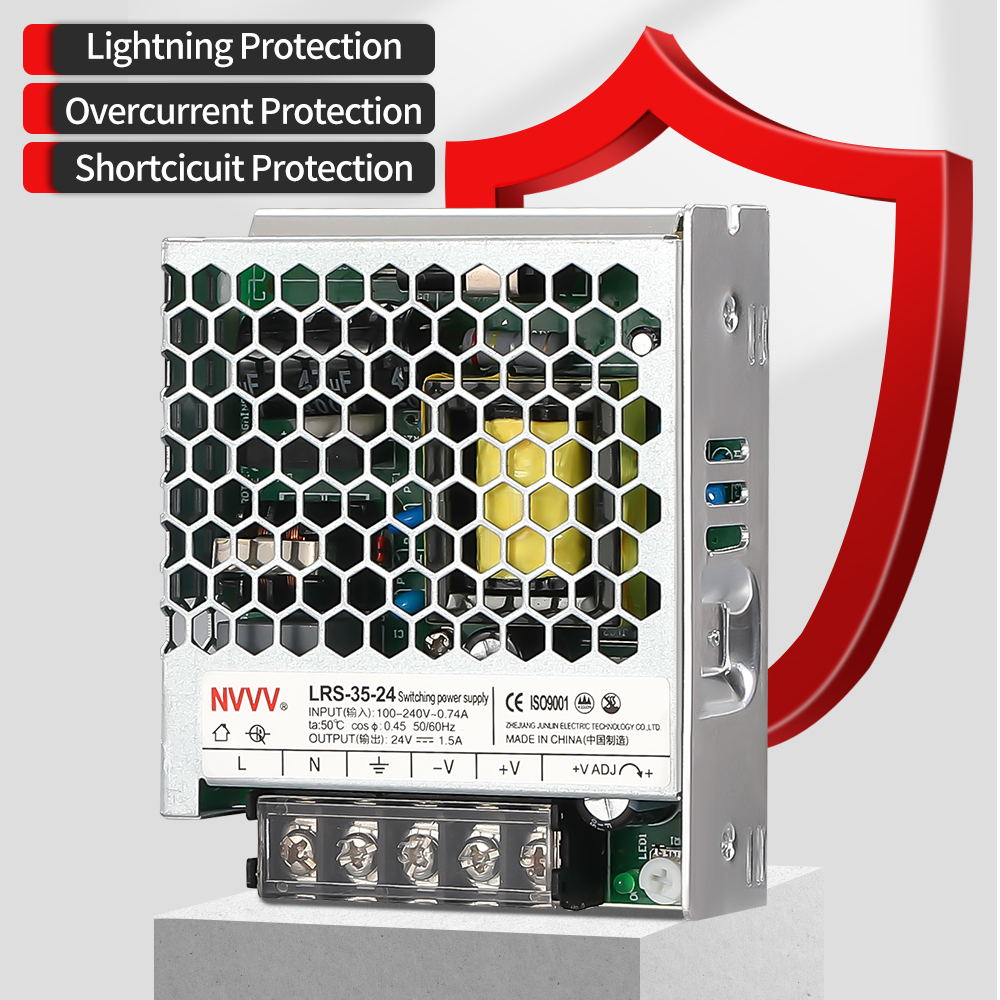

| Protect | Overload Protection | 110%-130% Protection type: hiccup mode, automatic return to normal after removing abnormal conditions | |||
| Overvoltage Protection | ≥ 115% - 145% Protection type: close output, restart and automatically return to normal | ||||
| Function | Working Temp / Humid. | -30°C ~ +70°C; 20% ~ 90% RH | |||
| Storage Temp / Humid. | -40°C ~ +85°C; 10% ~ 95% RH | ||||
| Safety Regulations | Withstand Voltage | Input-Output: 4KVAC; Input-Shell: 2KVAC; Output-Shell: 1.25KVAC for 1 minute | |||
| Insulation Impedance | Input-Output, Input-Shell, Output-Shell: 500VDC / 100M Ω, 25°C, 70% RH | ||||

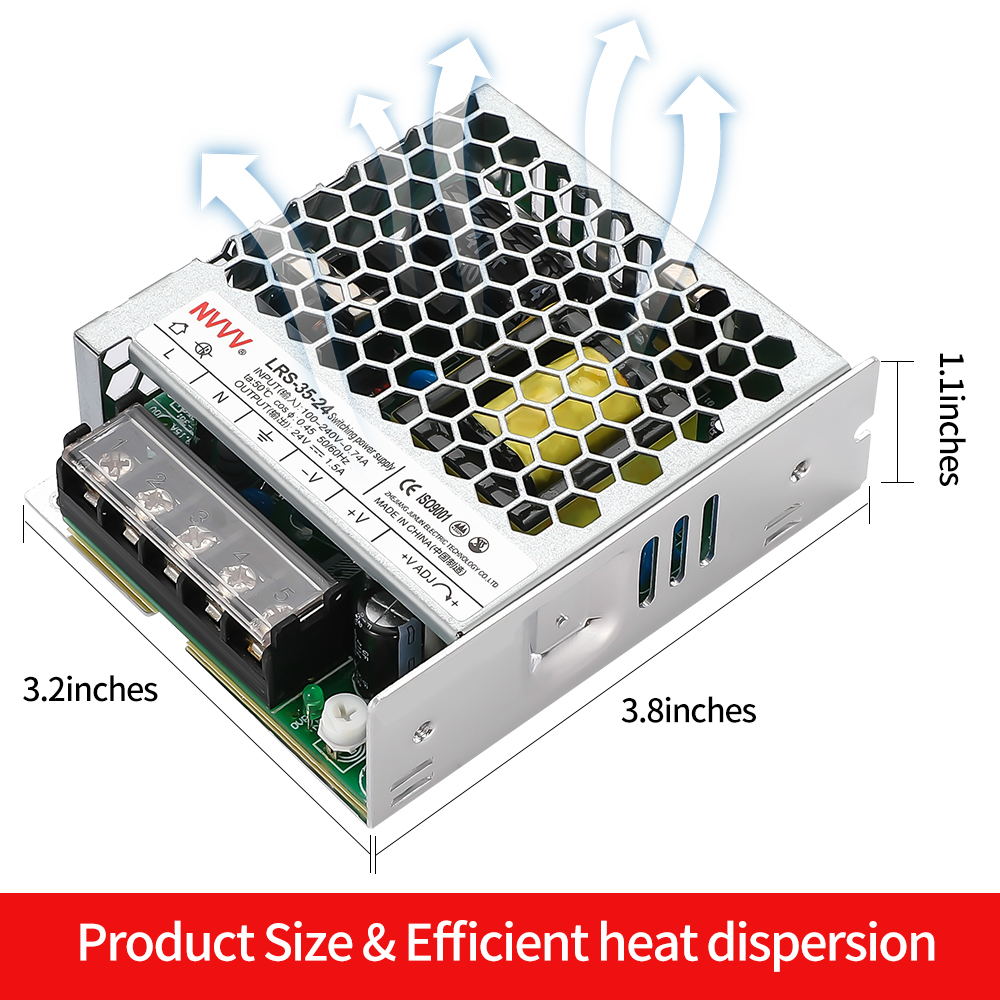

| Other | Size | 98*82*30mm (L*W*H) | |||
| Net / Gross Weight | 230g / 246g | ||||
