350W SMPS 24V Switching Power Supply for LED Lighting Driver MS-350W-24V

Product Description

Product Description
Place of Origin Zhejiang, China Model MS-350W-24V
Product Name Small Volume Switching Power Supply Output Type Single
Output Power 350W Output Voltage 24V
Input Voltage 110V/220V Output Current 14.5A
Output Frequency 50/60Hz Protection Short Circuit / Over Load / Over Voltage
Certification CE, ROHS, CCC

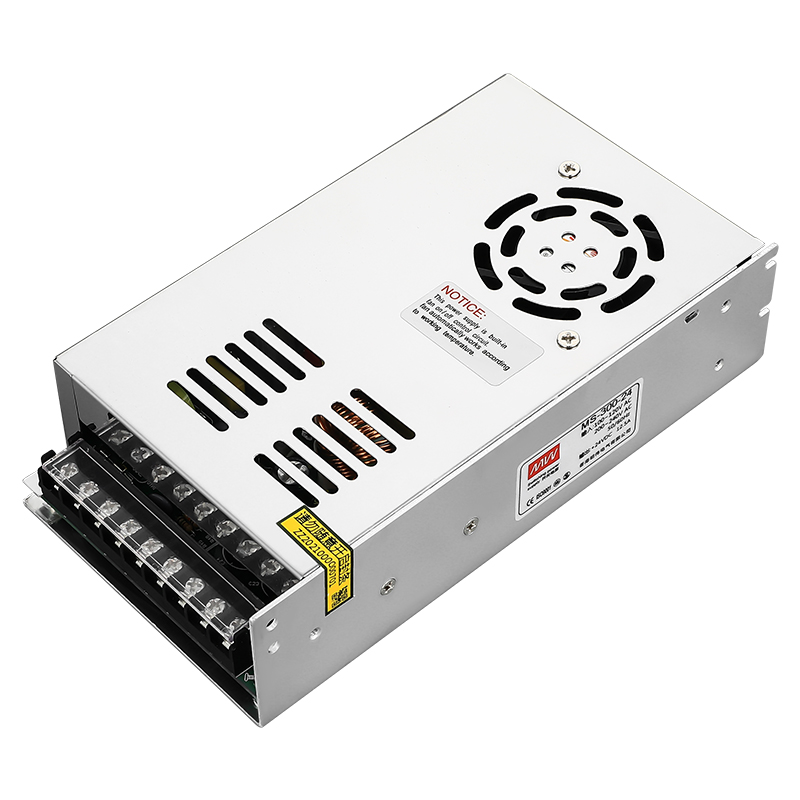

Product Image 1

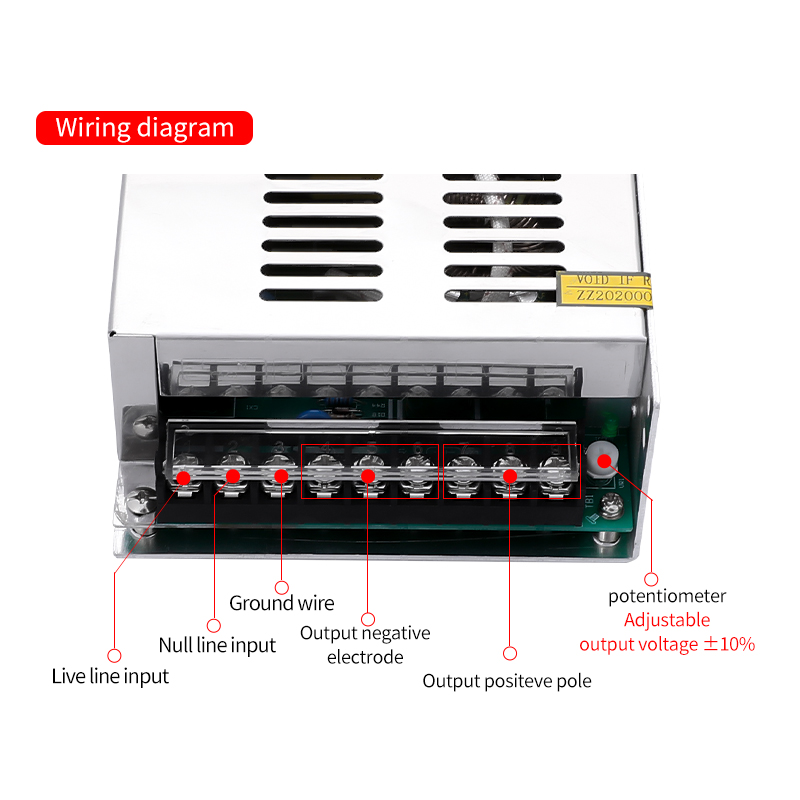

Product Image 2

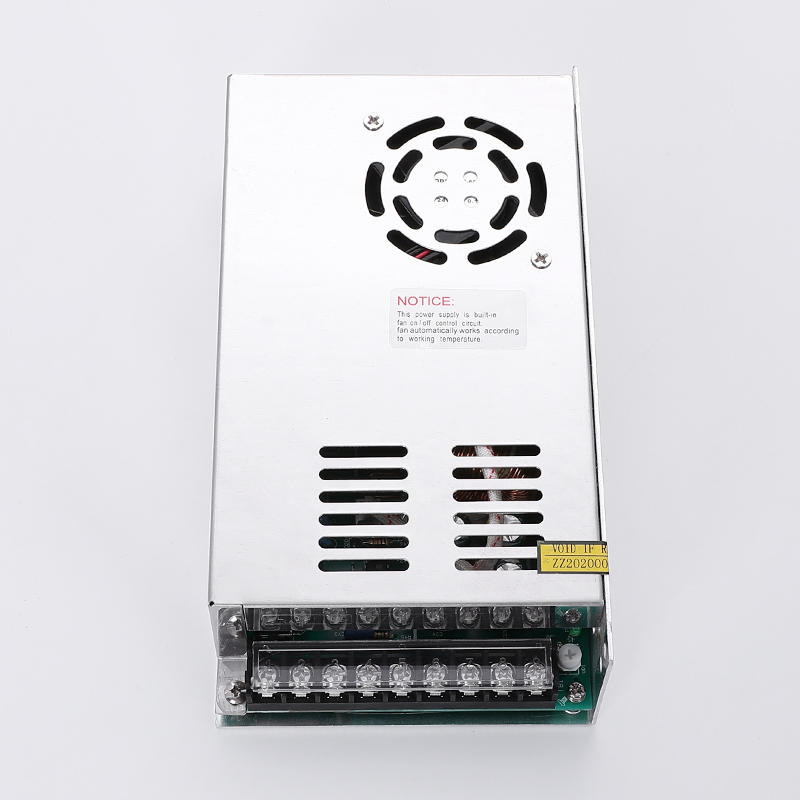

Product Image 3

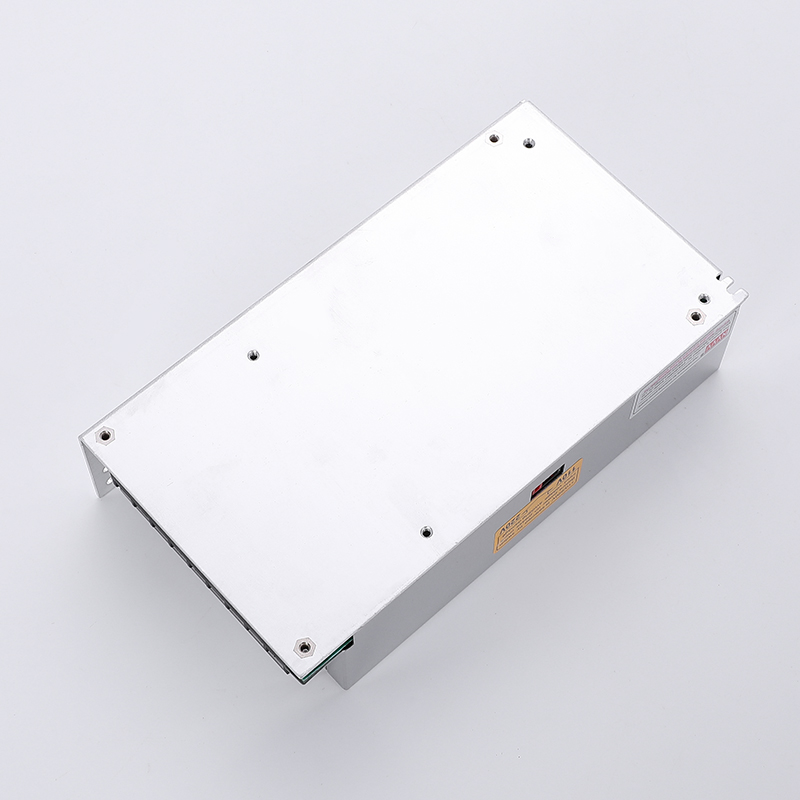

Product Image 4
Specification
MS-350 350W Switching Power Supply Technical Specifications
Project Technical Index
Output DC Voltage 12V 24V 48V
Rated Current 29A 14.5A 7.3A
Rated Power 350W 350W 350W
Ripple and Noise (1) < 120mV < 240mV < 240mV
Voltage Accuracy ±1.0%
Output Voltage Regulation Range ±10%
Load Adjustment Rate ±0.5%
Linear Adjustment Rate ±0.5%
Input Voltage Range 90-132VAC / 180-264VAC 47Hz-63Hz; 254VDC-370VDC
Efficiency (Typical) (2) > 83% > 85% > 86%
Working Current 110VAC: 25A, 220VAC: 50A
Impulse Current < 5.5A / 115VAC, < 2.9A / 230VAC
Start, Rise, Hold Time 200ms, 50ms, 20ms at 230VAC
Protect Overload Protection 105% - 135% type: constant current output + VO reduced to undervoltage point cut off output reset: power on again
Short Circuit Protection 115%-145%
Undervoltage Protection 10%-45% VOUT
Temperature Protection Rth3: ≥ 55°C fan start, ≤ 50°C fan close, ≥ 85°C close output (5V-15V)
Environment Working Temp & Humidity -10°C to +50°C, 20% to 90% RH
Storage Temp & Humidity -20°C to +85°C, 10% to 95% RH
Safety Withstand Voltage Input-Output: 1.5kVac, Input-Shell: 2.5kVac, Output-Shell: 0.5kVac for 1 minute
Leakage Current (1.5kVac) Input-Output 1.5kVac: < 6mA
Leakage Current (220VAC) Input-Output 220Vac: < 1.5mA
Isolation Resistance Input-Output, Input-Housing, Output-Housing: 500VDC / 100MΩ
Certifications
Certifications
Packaging & Shipping
Packaging Box Option 1
Packaging Material Details
Shipping Carton Pack
FAQ
Q Do you offer OEM/ODM custom service for power products?
Yes, absolutely. We offer both OEM (your brand, logo, packaging) and ODM (designing/developing products based on your ideas or samples) services. We have experience working with well-known companies in the industry, and we are confident we can bring that same quality and reliability to your projects. Your brand and ideas are safe with us.
Q What voltage options can you supply for power supplies? Can you customize voltage?
We offer standard voltages including 12V, 24V, 36V, 48V, 60V, 68V, and 110V depending on the specific item. Customized voltage is also available based on requirements.
Q Can I get a sample order for quality testing?
Yes, sample orders are welcome to test quality. Mixed samples are acceptable. We also have overseas warehouses, so you can receive samples faster.
Q What is your minimum order quantity (MOQ) for sample and bulk orders?
Our MOQ is low. For sample checking, 30 pieces are available.
Q What are your shipping methods, delivery time, and logistics options?
We work with reliable shipping logistics partners. Depending on your country, dedicated shipping routes can be recommended for better service and lower prices. Specific delivery times can be provided upon request.
Q Do you offer a warranty or guarantee on your products and how do you handle defects?
Yes, we offer a warranty on all products. If any defects occur: for small quantities, we will include new products with your next order; for defective batches, we will repair and resend them, or negotiate a solution including credit or replacement based on the actual situation.
