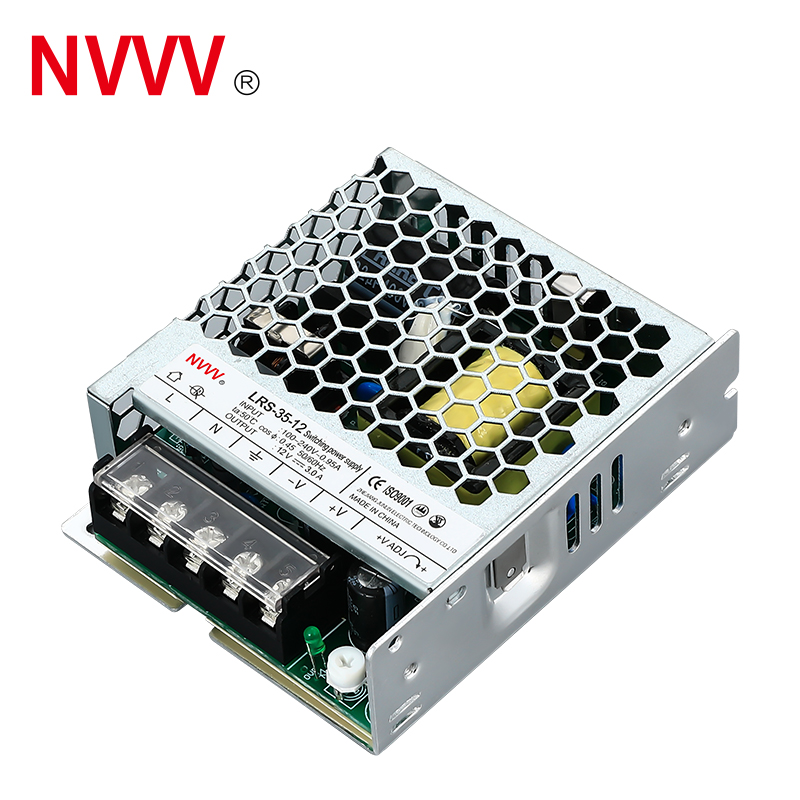

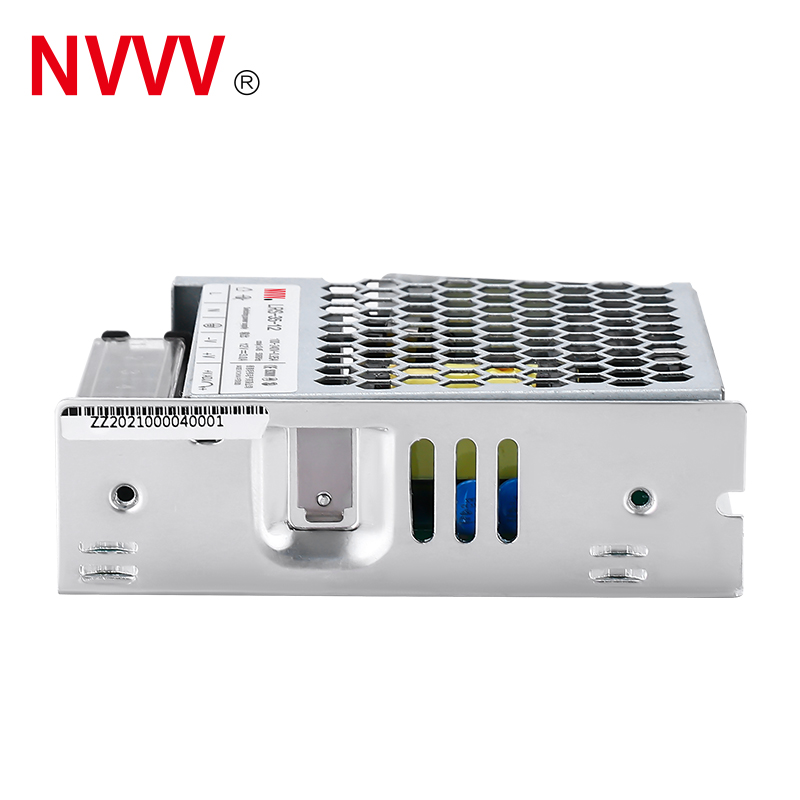

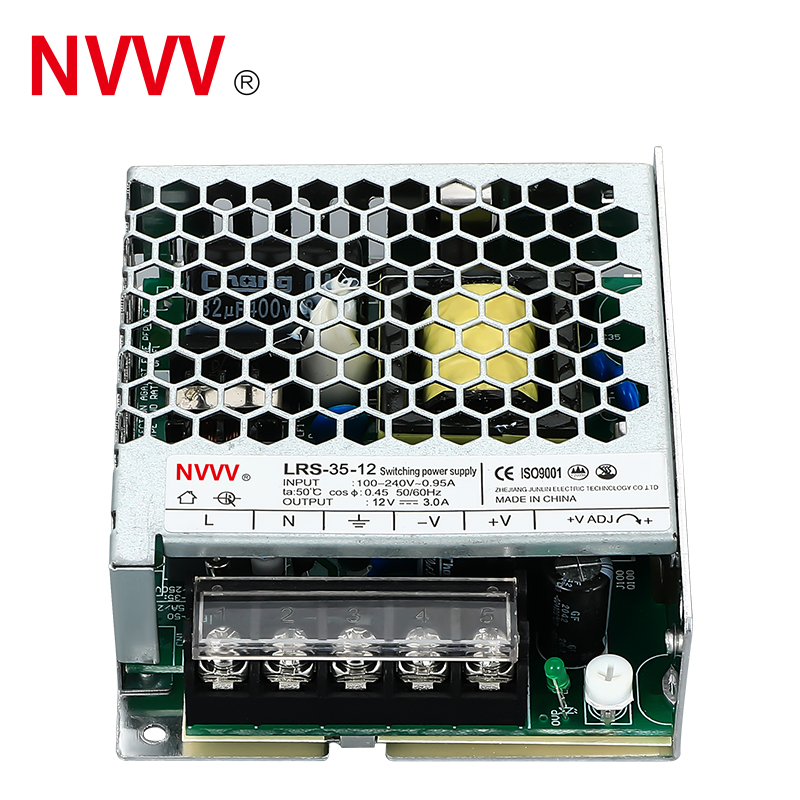

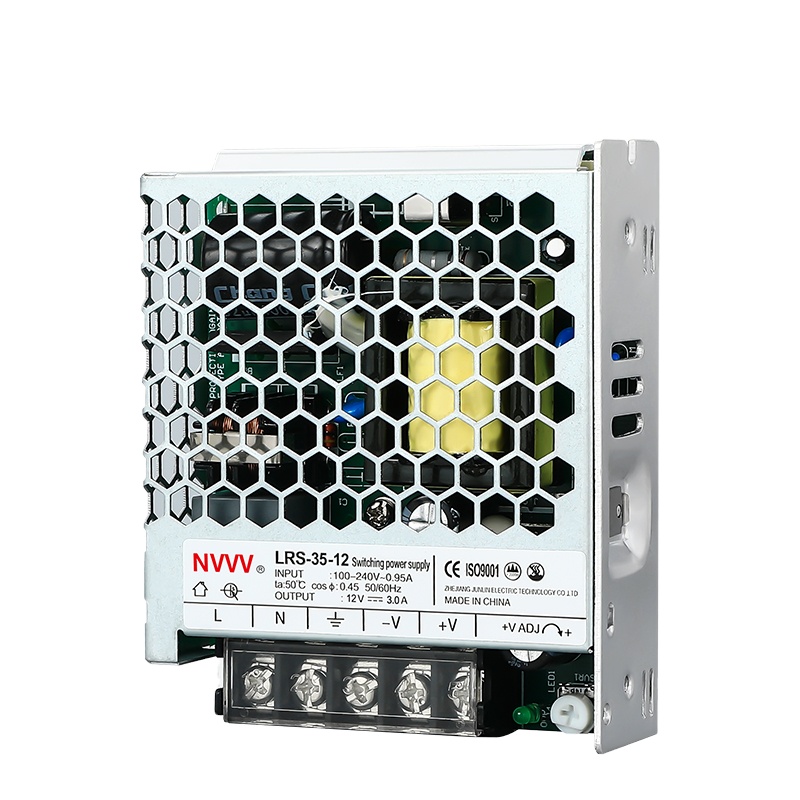

| LRS-35 Series 35W Switching Power Supply | |||||
| Project | Technical Index | ||||
| Output | DC voltage | 5V | 12V | 24V | 48V |
| Rated current | 7A | 3A | 1.5A | 0.8A | |
| Rated power | 35W | 36W | 36W | 38.4W | |
| Ripple and noise ① | 80mVp-p | 120mVp-p | 150mVp-p | 200mVp-p | |
| Ripple and noise | ±10% | ||||
| Voltage accuracy | ±2.0% | ±1.0% | ±1.0% | ±1.0% | |
| Linear adjustment rate | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| Load adjustment rate | ±1.0% | ±0.5% | ±0.5% | ±0.5% | |
| Starting and rising time | 1000ms, 30ms/230VAC 2000ms, 30ms/115VAC (full load) | ||||
| Retention time | 30ms/230VAC 12ms/115VAC (full load) | ||||
| Input | Voltage range / frequency | 85-264VAC / 120-373VDC 47Hz～63Hz | |||
| Efficiency (typical) ② | 82% | 86% | 88% | 89% | |
| Working current | 0.7A/115VAC 0.42A/230VAC | ||||
| Impulse current | Cold boot: 45A/230VAC | ||||
| Leakage current | <0.75mA 240VAC | ||||
| Protect | overload protection | 110%-130% Protection type: burping mode, automatic return to normal after removing abnormal conditions | |||
| Overvoltage protection | ≥ 115% - 145% protection type: close output, restart and automatically return to normal | ||||
| Function | Working temperature and humidity | -30℃～+70℃; 20%～90% RH | |||
| Storage temperature and humidity | -40℃～+85℃; 10%～95% RH | ||||
| Safety regulations | Withstand voltage | Input output: 4kvac input shell: 2kvac output shell: 1.25kvac for 1 minute | |||
| Insulation impedance | Input output, input shell, output shell: 500VDC / 100M Ω 25 ℃ 70% RH | ||||

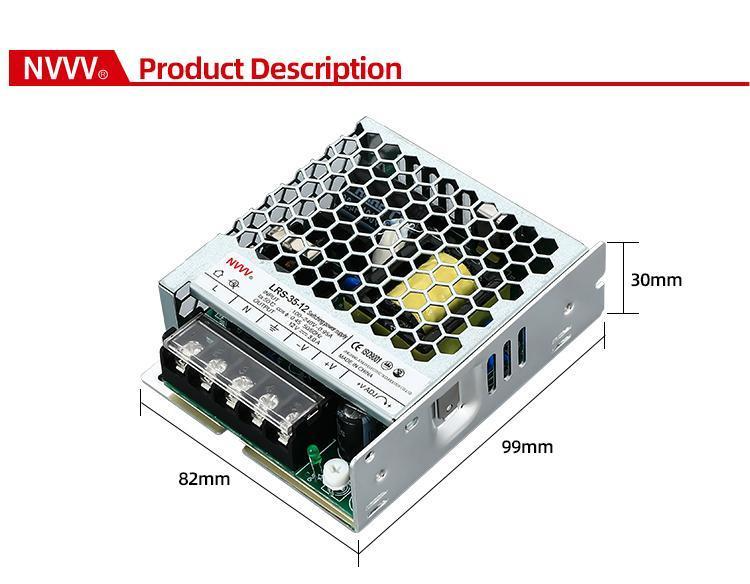

| Other | size | 98*82*30mm(L*W*H) | |||
| Net weight / gross weight | 230g/246g | ||||
