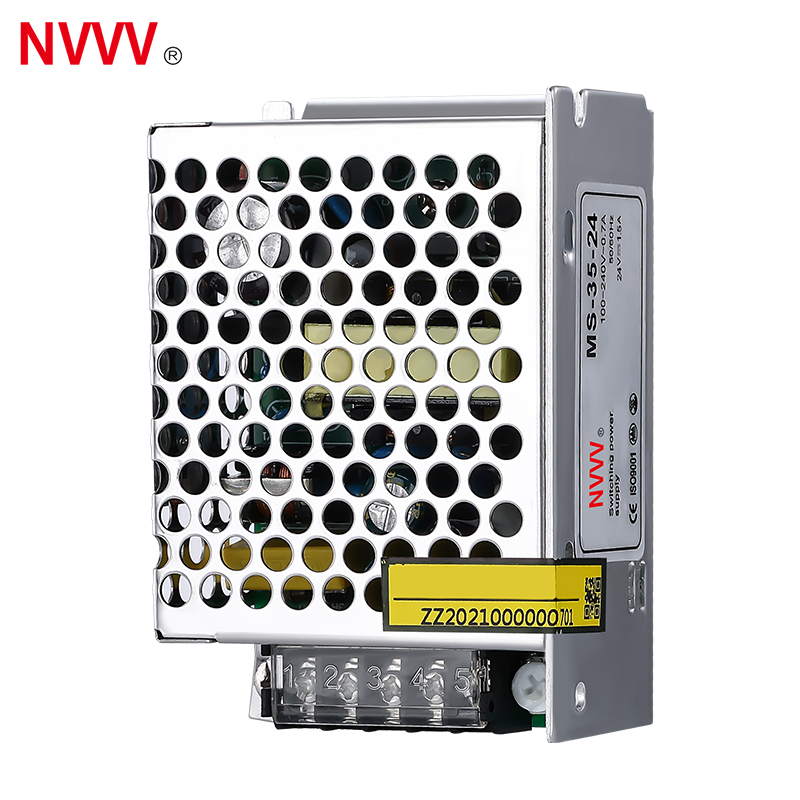

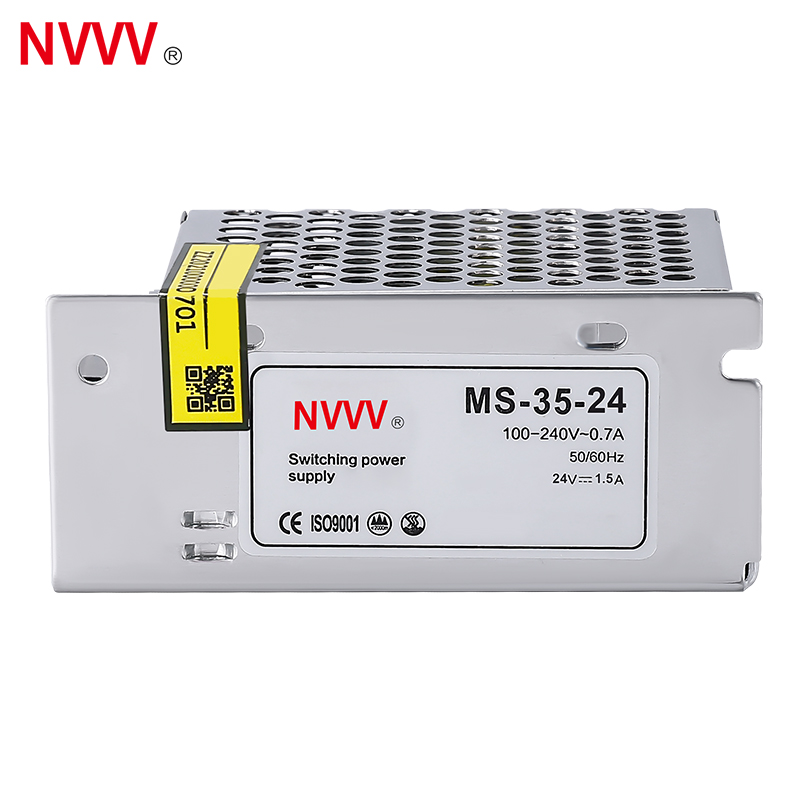

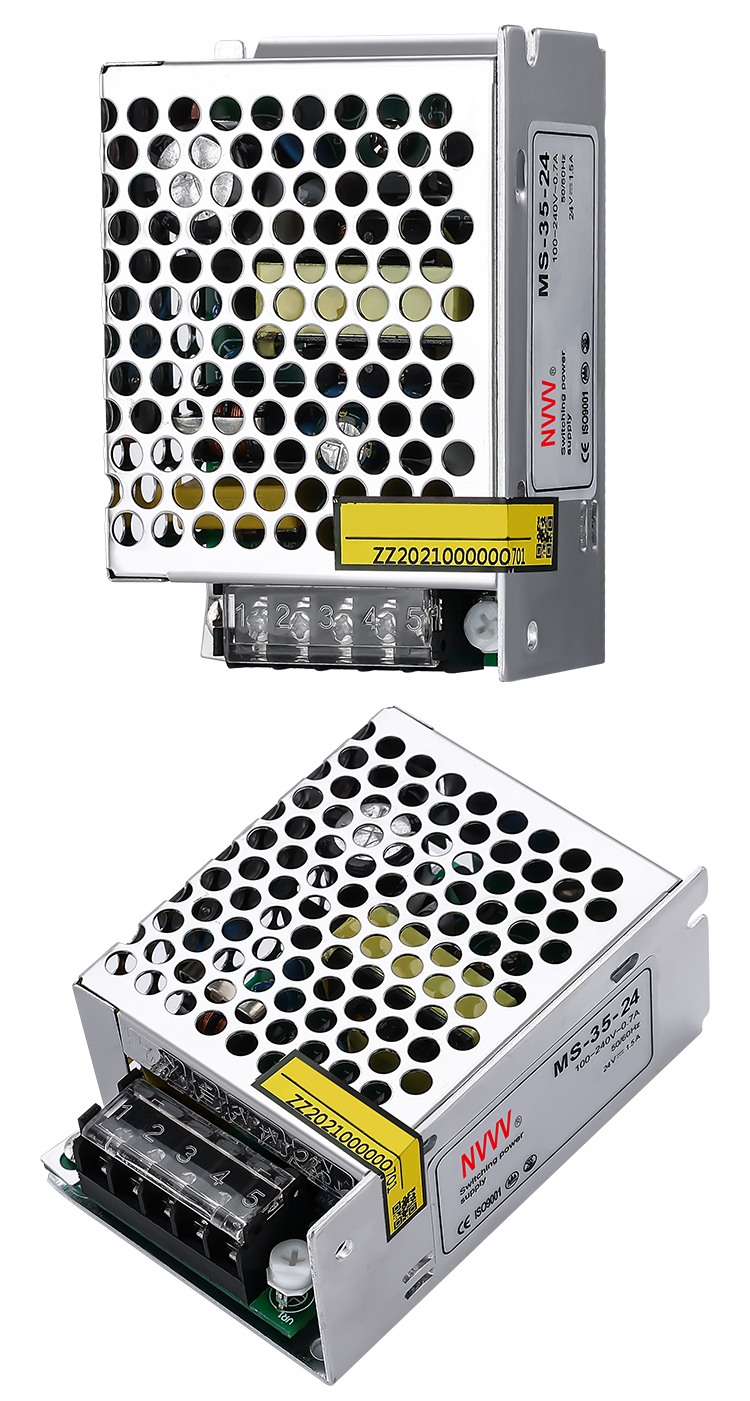

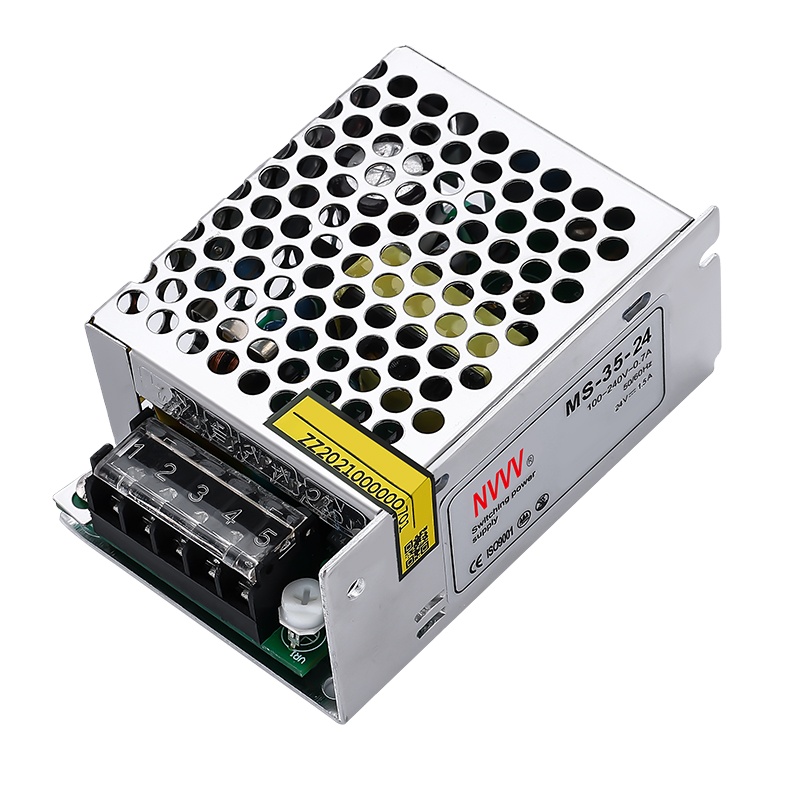

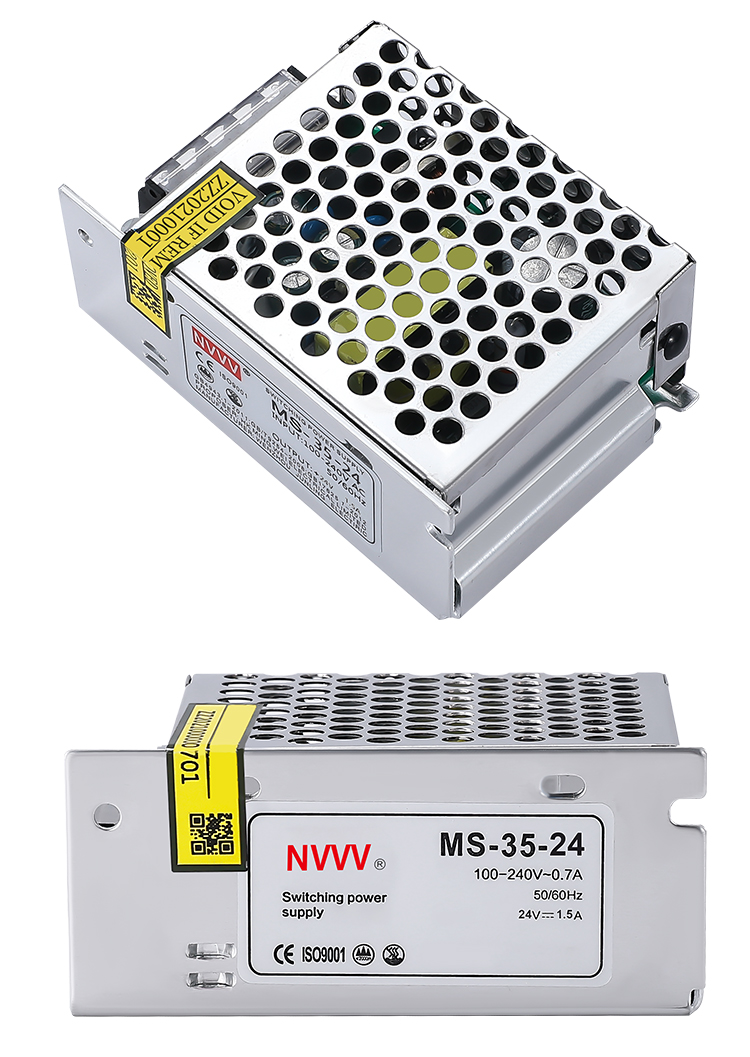

| MS-35 35W Switching Power Supply Specifications | ||||
|---|---|---|---|---|
| Project | Technical Index | |||
| Output | DC Voltage | 5V | 12V | 24V |
| Rated Current | 6A | 2.9A | 1.5A | |
| Rated Power | 30W | 34.8W | 36W | |
| Ripple and Noise ① | < 50mV | < 120mV | < 150mV | |
| Voltage Accuracy | ±2% | ±1% | ||
| Output Voltage Regulation Range | ±10% | |||
| Load Adjustment Rate | < ±1.5% | < ±0.5% | < ±0.5% | |
| Linear Adjustment Rate | < ±0.5% | |||
| Input | Voltage Range | 85-264VAC 47Hz ~ 63Hz (120VDC ~ 370VDC) | ||
| Efficiency (Typical) ② | > 78% | > 82% | > 84% | |
| Working Current | < 0.8A 110VAC / < 0.35A 220VAC | |||
| Impulse Current | 110VAC 18A, 220VAC 36A | |||
| Start, Rise, Hold Time | 200ms, 50ms, 20ms at 220VAC | |||

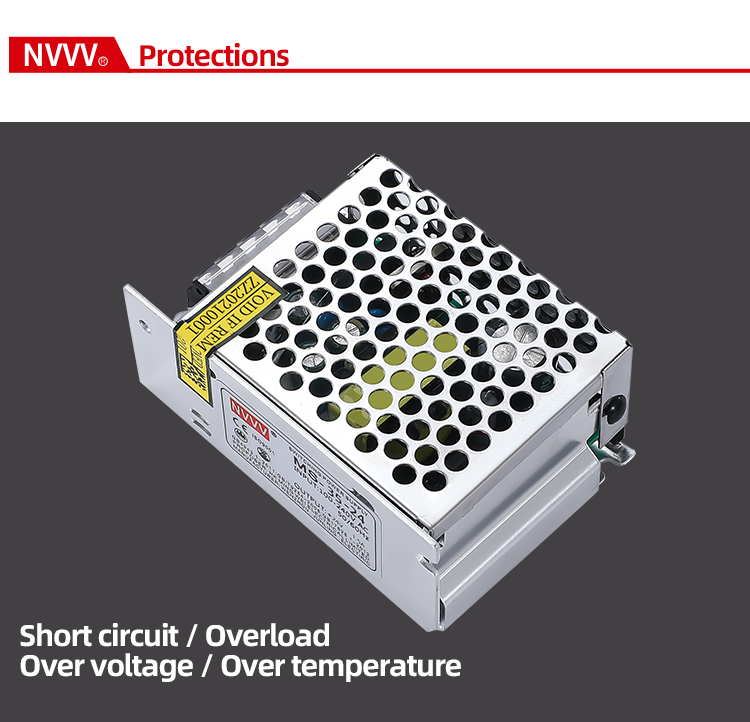

| Protect | Overload Protection | ≥ 105% - 150% type: constant current output + VO reduced to undervoltage point cut off output reset: power on again | ||
| Short Circuit Protection | +VO Drop to undervoltage point to close output | |||
| Environmental | Working Temp & Humidity | -10℃ ~ +50℃, 20% ~ 90% RH | ||
| Storage Temp & Humidity | -20℃ ~ +85℃, 10% ~ 95% RH | |||
| Safety | Withstand Voltage | Input-Output: 1.5kVac, Input-Shell: 1.5kVac, Output-Shell: 0.5kVac for 1 minute | ||
| Leakage Current (1.5kVac) | Input-Output @ 1.5KVAC: Time < 5mA | |||
| Leakage Current (220Vac) | Input-Output @ 220VAC: Time < 1mA | |||
| Isolation Resistance | Input-Output, Input-Housing, Output-Housing: 500VDC / 100MΩ | |||
Q1: How many voltages can you supply?
A: We can supply 12V, 24V, 48V, 50V, 60V, and 110V depending on specific product lines.
Q2: Can I have a sample order?
A: Yes, we welcome sample orders to test and check product quality. Mixed samples are acceptable.
Q3: Do you have any MOQ limit for the order?
A: We support low MOQ. 1pc sample is available for initial testing and quality checking.
Q4: How do you ship the goods and how long does it take to arrive?
A: We usually ship via DHL, UPS, FedEx, or EMS. It typically takes 3-5 days to arrive. Airline and sea shipping options are also available.
Q5: Do you offer a guarantee for the products?
A: Yes, we offer a comprehensive warranty policy for all our products.
Q6: How do you deal with the faulty products?
A: First, our products are manufactured under a strict quality control system resulting in a very low defect rate. Second, during the warranty period, we will send replacement units with new orders for small quantities. For defective batch products, we will repair and resend them to you, or discuss alternative solutions, including product recalls based on the actual situation.
