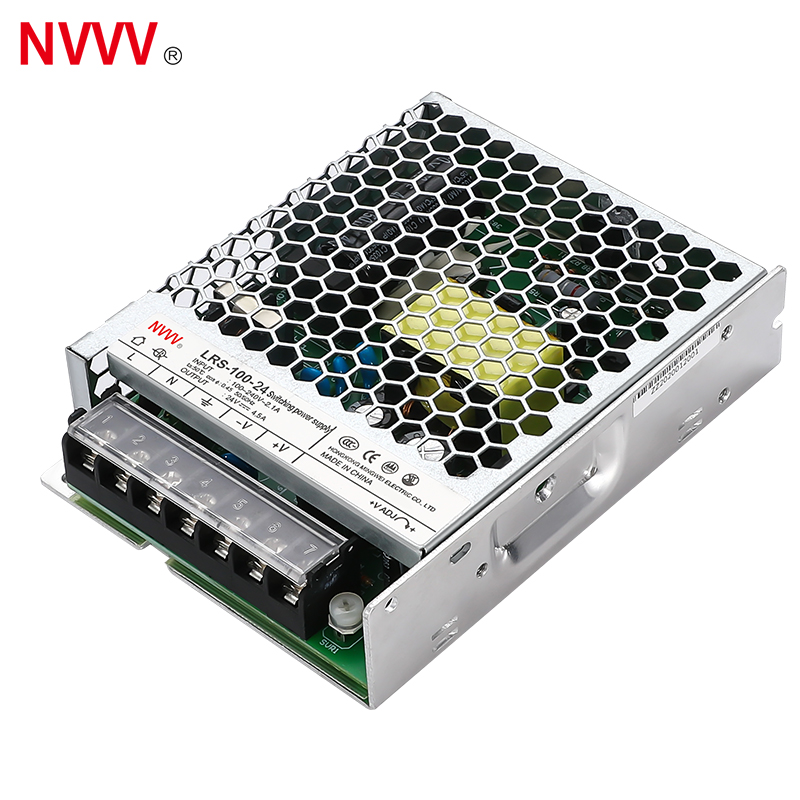

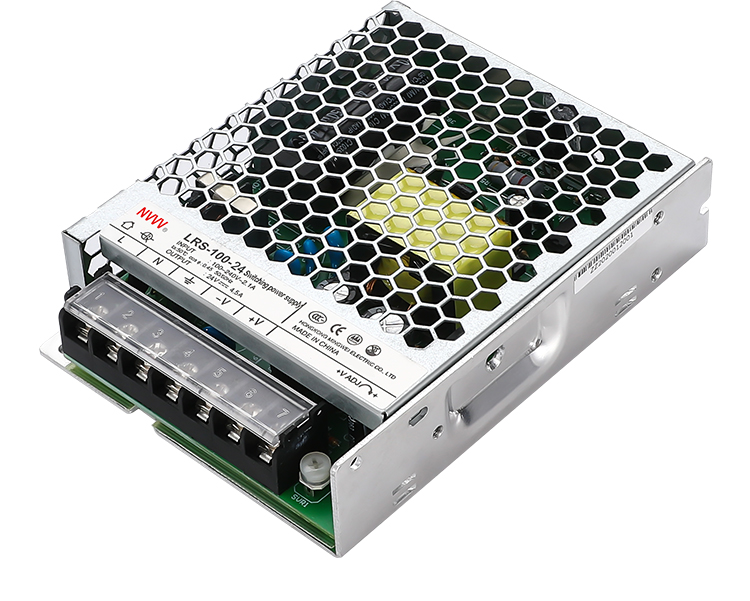

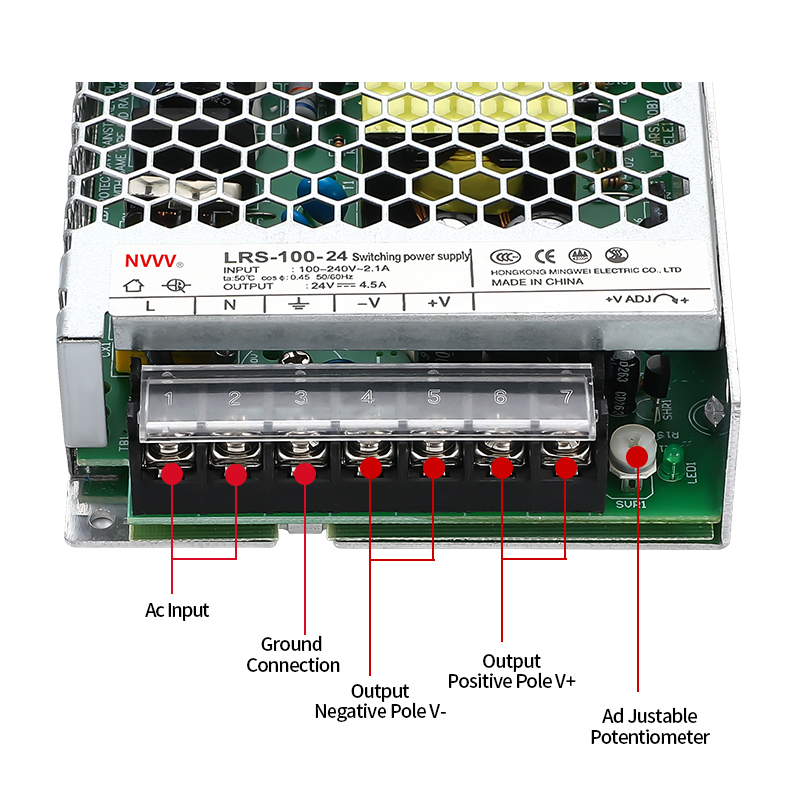

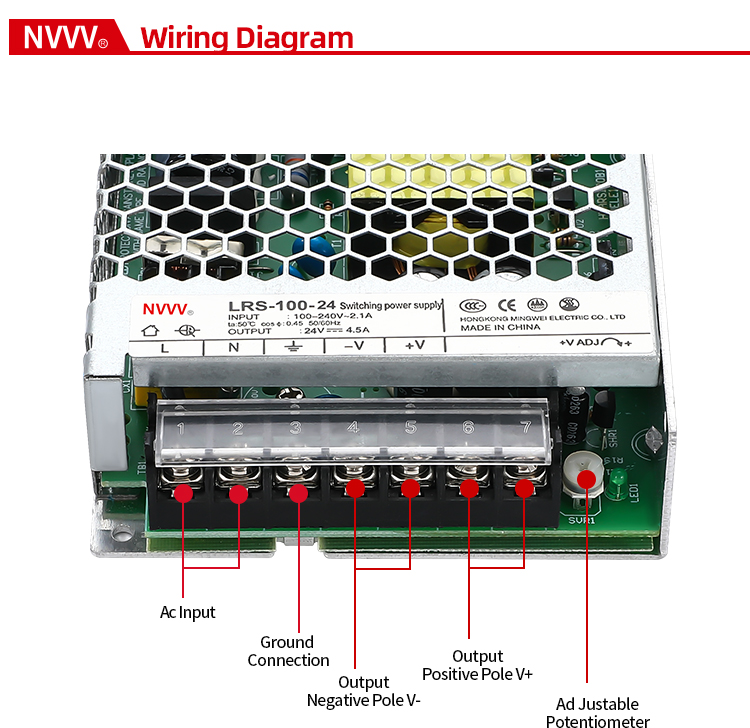

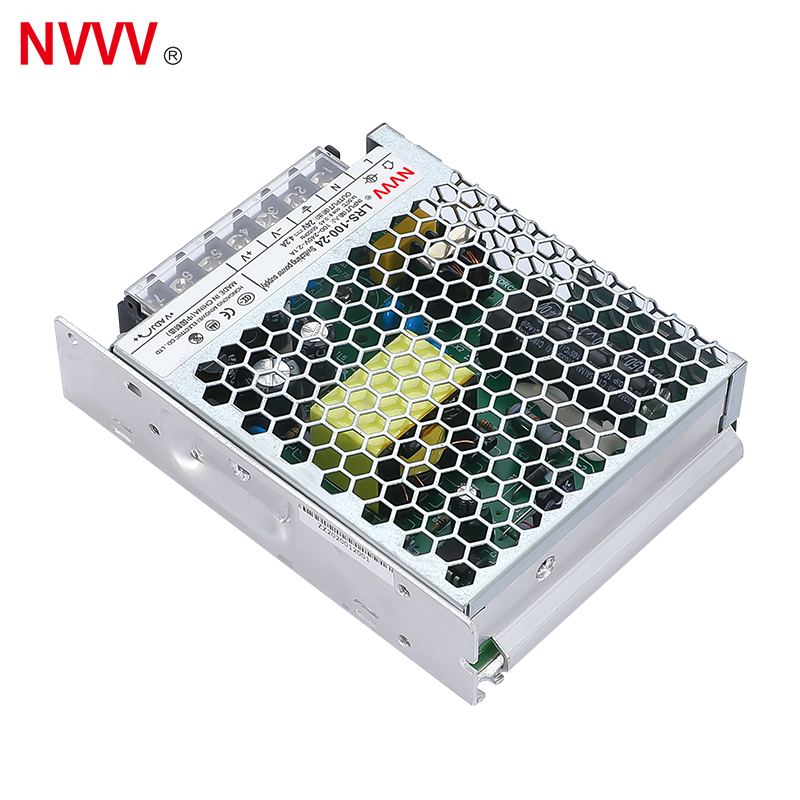

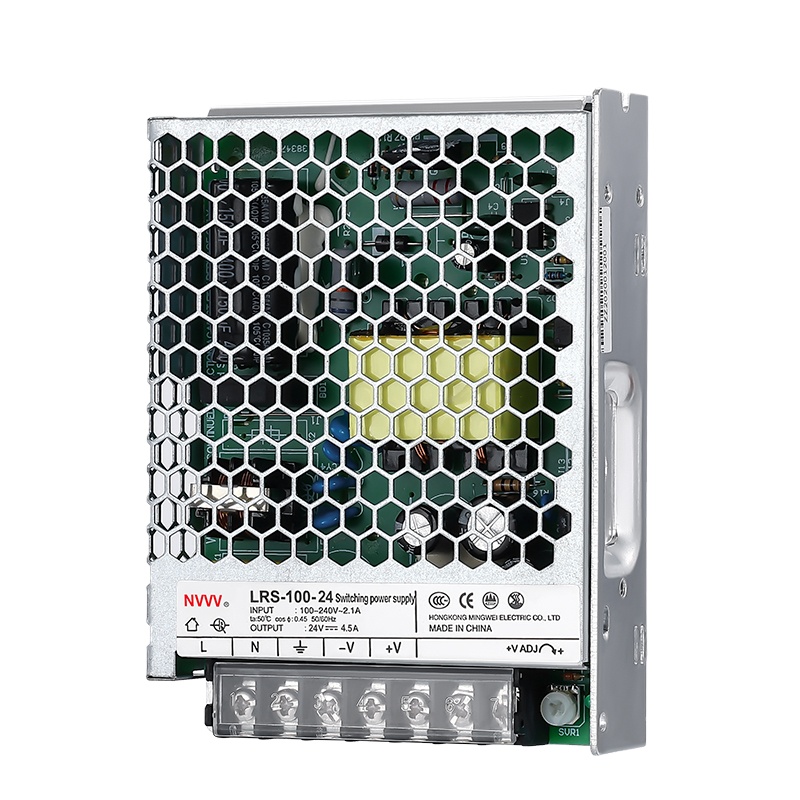

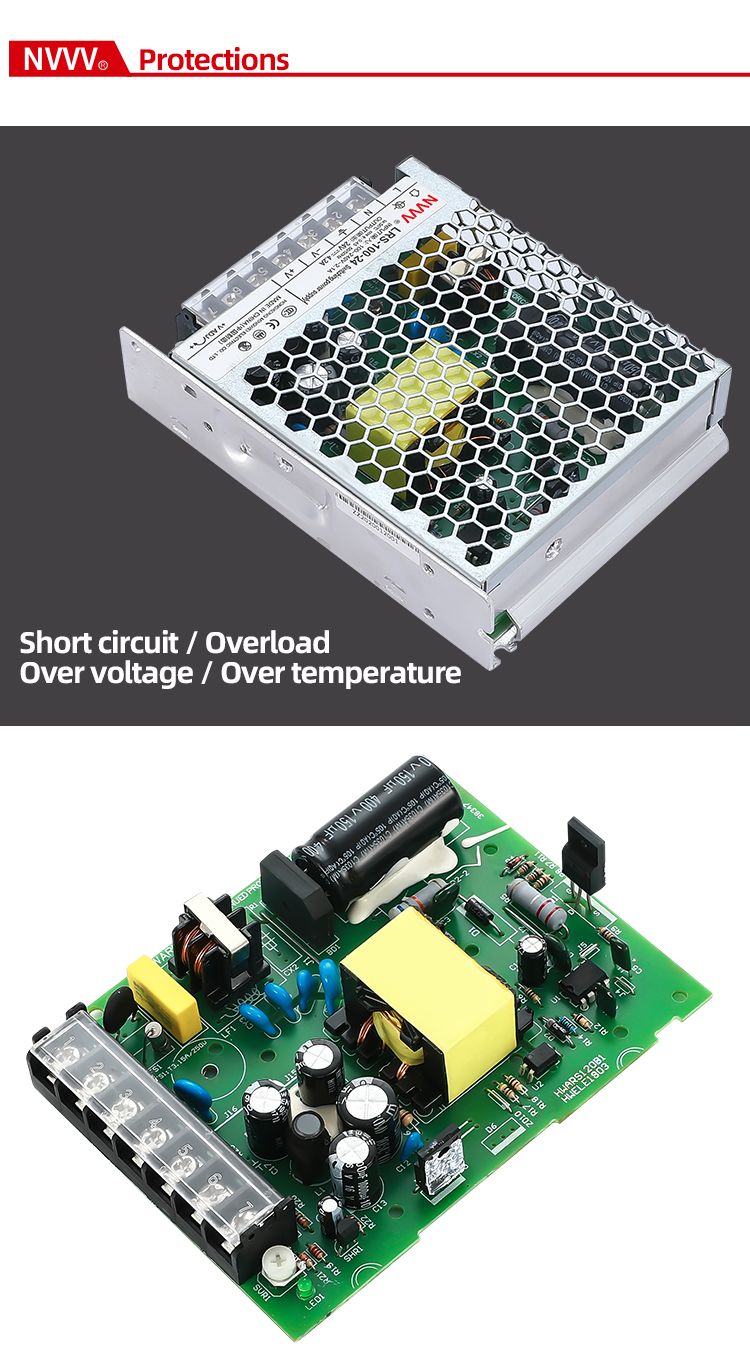

| LRS-100 Series Single Group 100W Switching Power Supply | |||||
|---|---|---|---|---|---|
| Project | Technical Index | ||||
| Output | 5V | 12V | 24V | 48V | |
| DC voltage | 5V | 12V | 24V | 48V | |
| Rated current | 18A | 8.5A | 4.5A | 2.3A | |
| Rated power | 90W | 102W | 108W | 110.4W | |
| Ripple and noise | 100mVp-p | 120mVp-p | 150mVp-p | 200mVp-p | |
| Ripple and noise range | ±10% | ||||
| Voltage accuracy | ±2.0% | ±1.0% | ±1.0% | ±1.0% | |
| Linear adjustment rate | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| Load adjustment rate | ±1.0% | ±0.5% | ±0.5% | ±0.5% | |
| Starting and rising time | 500ms, 30ms / 230VAC; 500ms, 30ms / 115VAC (full load) | ||||
| Retention time | 55ms / 230VAC; 10ms / 115VAC (full load) | ||||
| Input | Specification | ||||
| Voltage range / frequency | 85-264VAC / 120-373VDC; 47Hz - 63Hz | ||||
| Efficiency (typical) | 86% | 88% | 90% | 91% | |
| Working current | 1.9A / 115VAC; 1.2A / 230VAC | ||||
| Impulse current | Cold boot: 50A / 230VAC | ||||
| Leakage current | < 1mA / 240VAC | ||||
| Protect | Specification | ||||
| Overload protection | 110% - 130% Protection type: Hiccup mode, automatic recovery after fault condition is removed | ||||
| Overvoltage protection | ≥ 115% - 145% Protection type: Shut down output, restart to recover | ||||
| Environment | Specification | ||||
| Working temperature and humidity | -30℃ to +70℃, 20% to 90% RH | ||||
| Storage temperature and humidity | -40℃ to +85℃, 10% to 95% RH | ||||
| Safety Regulations | Specification | ||||
| Withstand voltage | Input-Output: 3kVac; Input-FG: 1.5kVac; Output-FG: 0.5kVac for 1 minute | ||||
| Insulation impedance | Input-Output, Input-FG, Output-FG: 500VDC / 100M Ω, 25℃, 70% RH | ||||
| Other | Specification | ||||

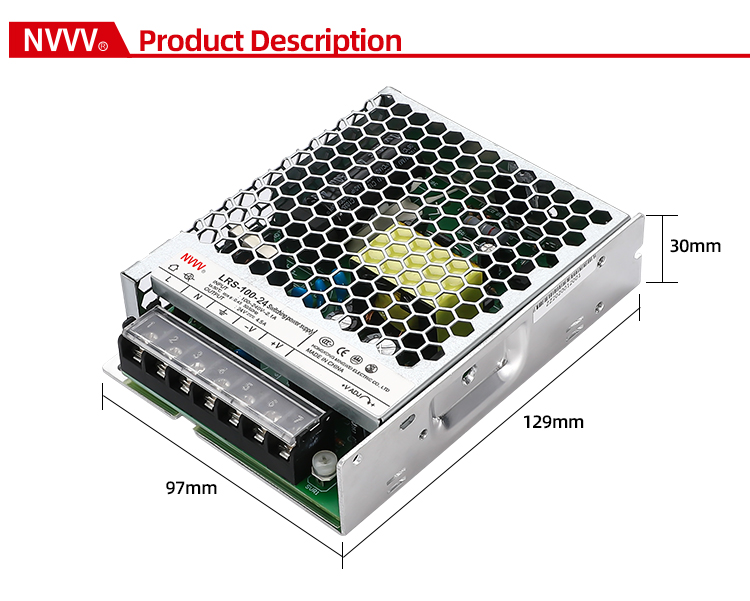

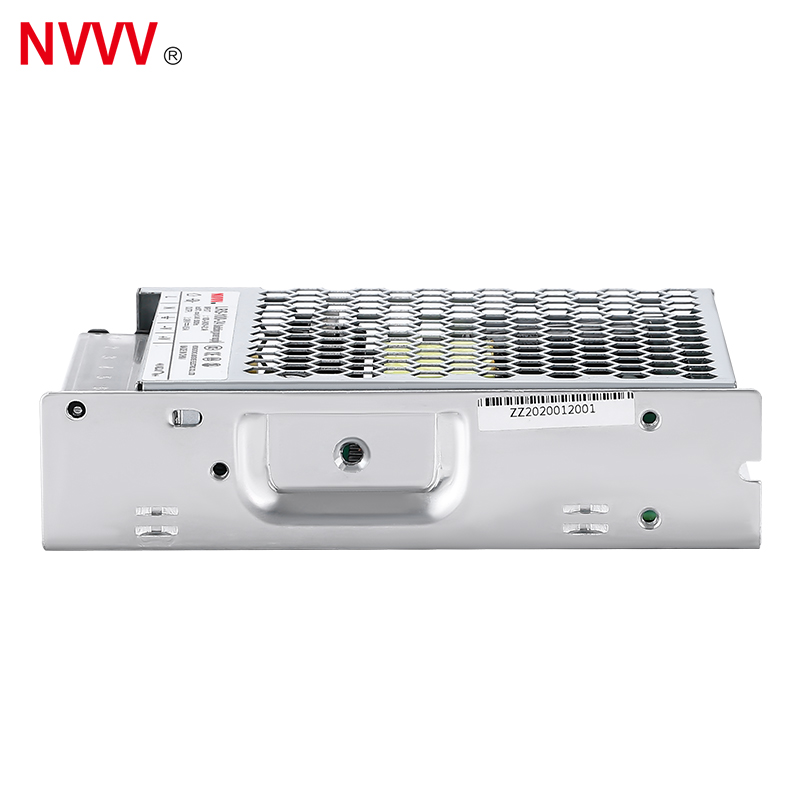

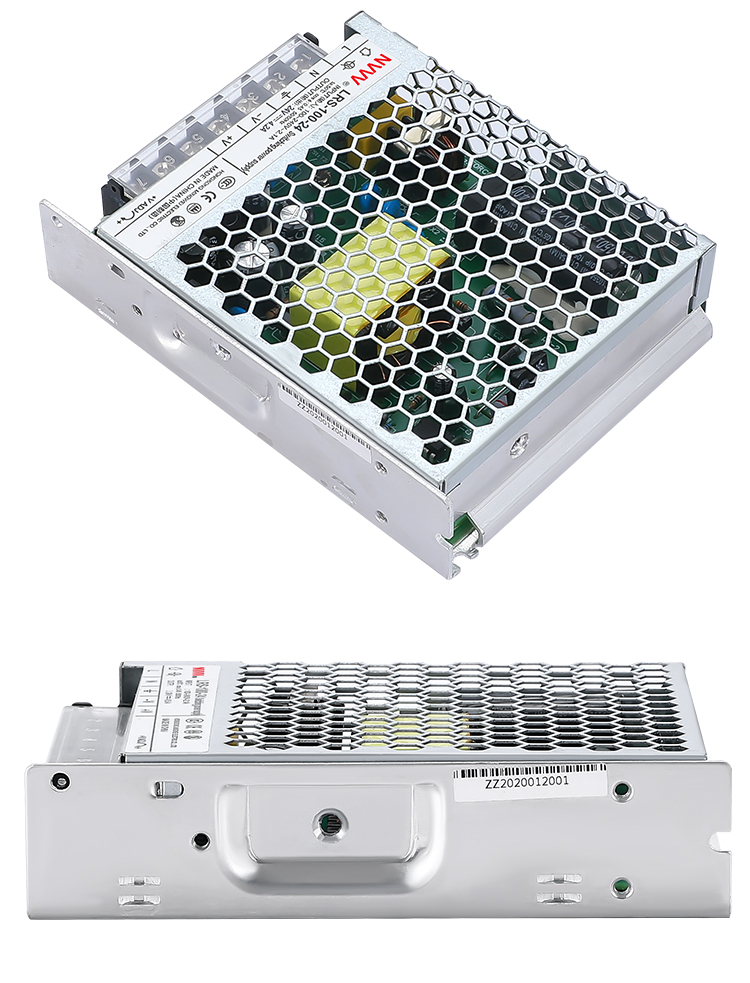

| Size | 129 * 97 * 30mm (L * W * H) | ||||
| Net weight / gross weight | 340g / 365g | ||||
