NVVV Electric
1 / 5

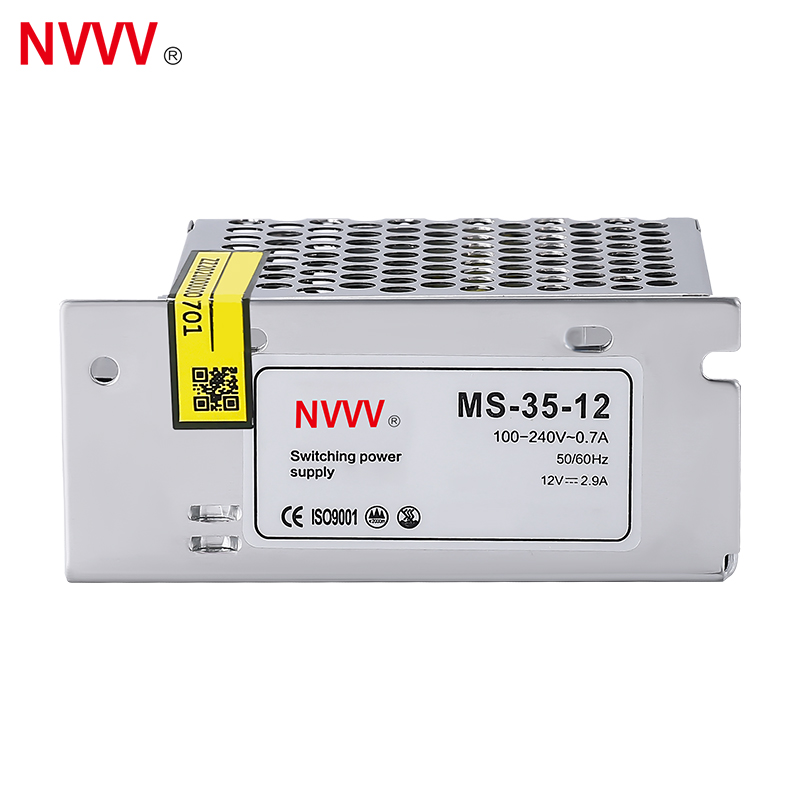

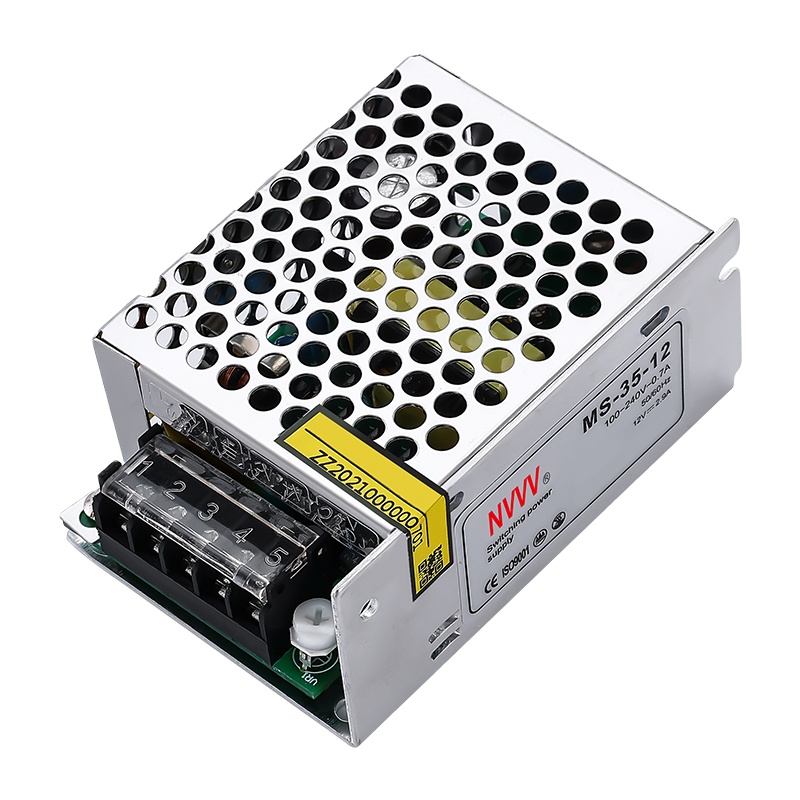

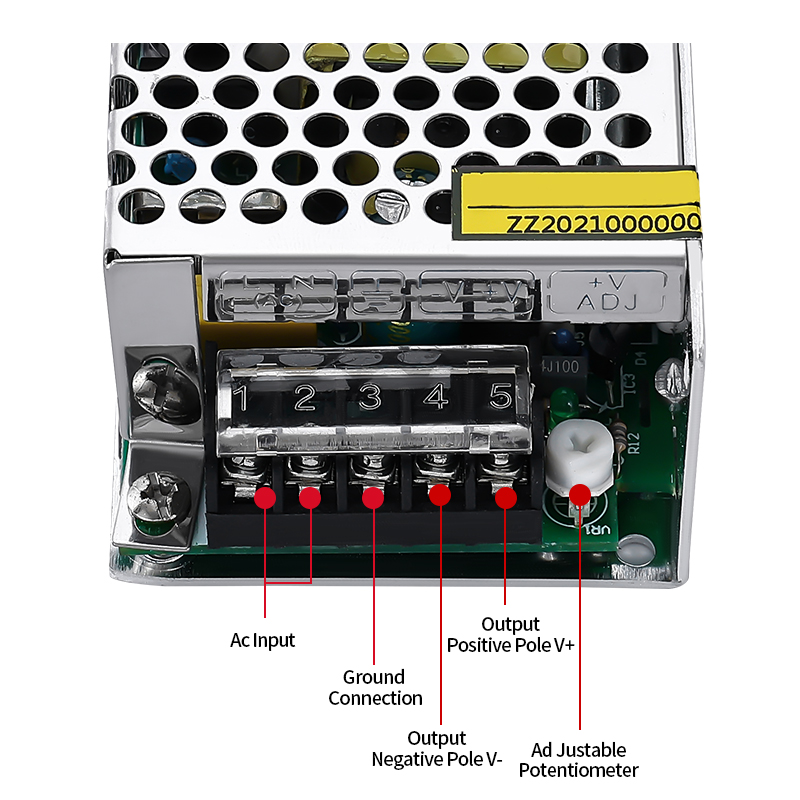

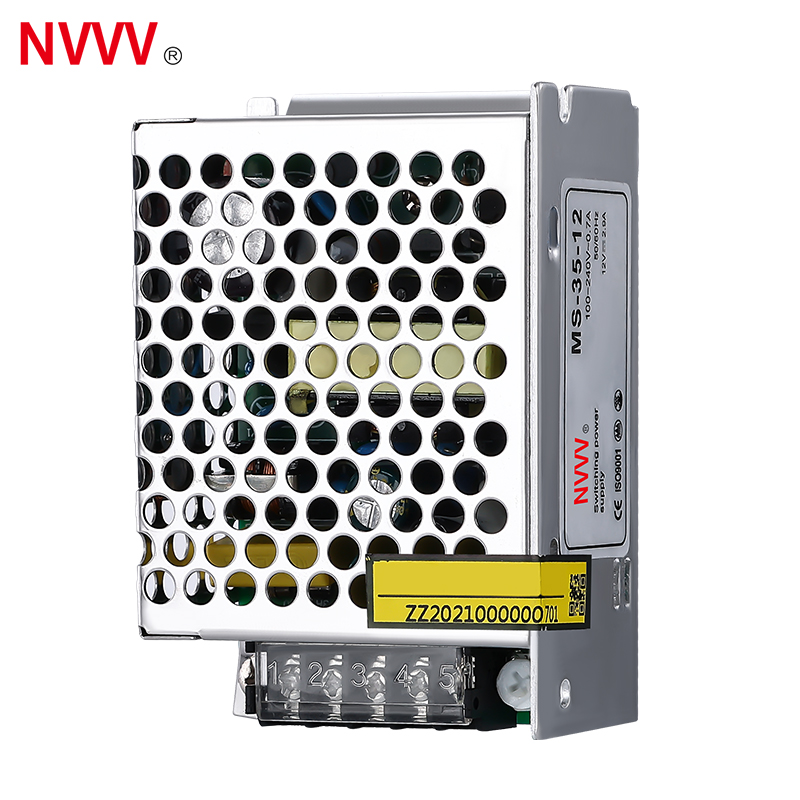

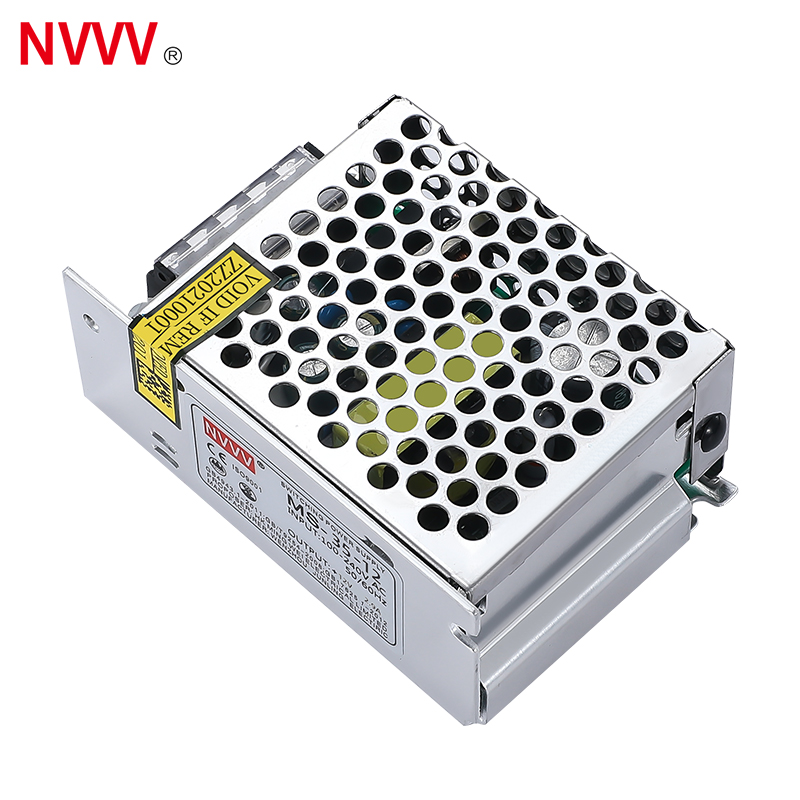

| MS-35 35W Switching Power Supply Specifications | ||||
|---|---|---|---|---|
| Project | Technical Index | 5V | 12V | 24V |
| Output | DC voltage | 5V | 12V | 24V |
| Rated current | 6A | 2.9A | 1.5A | |
| Rated power | 30W | 34.8W | 36W | |
| Ripple and noise | <50mV | <120mV | <150mV | |
| Voltage accuracy | ±2% | ±1% | ±1% | |
| Output voltage regulation range | ±10% | |||
| Load adjustment rate | <±1.5% | <±0.5% | <±0.5% | |
| Linear adjustment rate | <±0.5% | |||
| Input | Voltage range | 85-264VAC 47Hz~63Hz (120VDC~370VDC) | ||
| Efficiency (typical) | >78% | >82% | >84% | |
| Working current | <0.8A 110VAC <0.35A 220VAC | |||
| Impulse current | 110VAC 18A, 220VAC 36A | |||
| Start, rise, hold time | 200ms, 50ms, 20ms at 220VAC | |||
| Protect | overload protection | ≥ 105% - 150% type: constant current output + VO reduced to undervoltage point cut off output reset: power on again | ||
| Short circuit protection | +VO Drop to undervoltage point to close output | |||
| Environment | Working temperature and humidity | -10℃~+50℃; 20%~90RH | ||
| Storage temperature and humidity | -20℃~+85℃; 10%~95RH | |||
| Safety | Withstand voltage | Input output: 1.5kVac input shell: 1.5kVac output shell: 0.5kvac for 1 minute | ||
| Leakage current (1.5kVac) | Input output 1.5KVAC time <5mA | |||
| Leakage current (220Vac) | Input output 220VAC time <1mA | |||
| Isolation resistance | Input output, Input - Housing, Output - Housing: 500VDC/100MΩ | |||
Yes, absolutely. We offer both OEM (your brand, logo, packaging) and ODM (we help design/develop products based on your ideas or samples). We have experience working with well-known companies in the industry, and we are confident we can bring that same quality and reliability to your projects. Your brand and ideas are safe with us.
We offer standard voltages including 12V, 24V, 36V, 48V, 60V, 68V, 110V depending on the specific item.
Yes, sample orders are welcome to test quality. Mixed samples are acceptable. We also have overseas warehouses, so you can receive samples faster.
Our MOQ is low. For sample checking, 30 pieces are available.
We work with reliable shipping logistics partners. Depending on your country, our sales team can recommend dedicated shipping routes for better service and lower prices. Specific delivery times can be provided upon request.
Yes, we offer a warranty on all products. (Please contact us for warranty period details based on the specific item.) If issues arise: for small quantities, we will include new products with your next order; for defective batches, we will repair and resend the products, or we can discuss a solution (including a credit or replacement) based on the actual situation.
