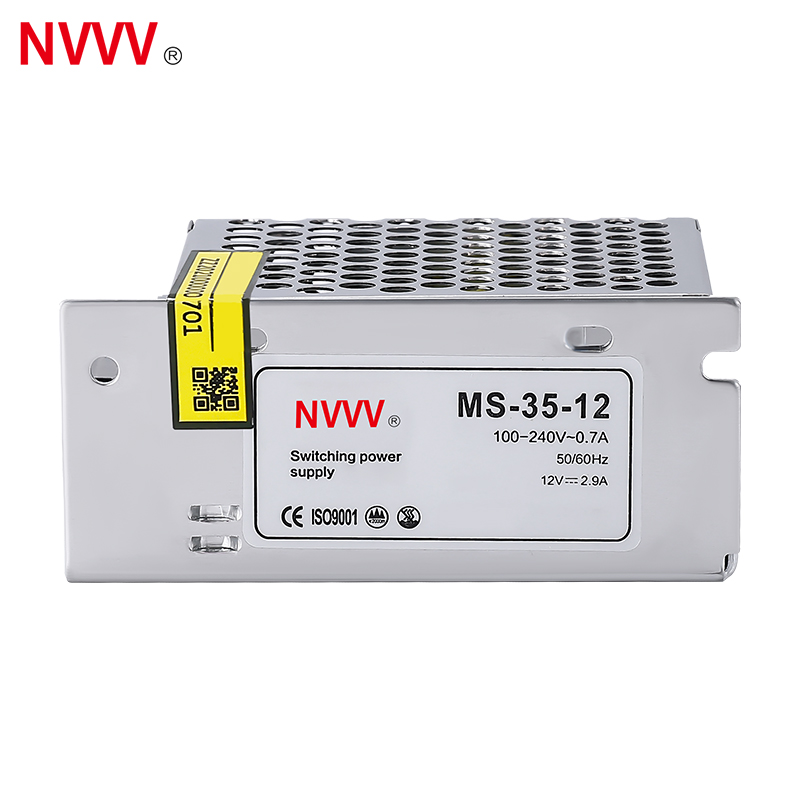

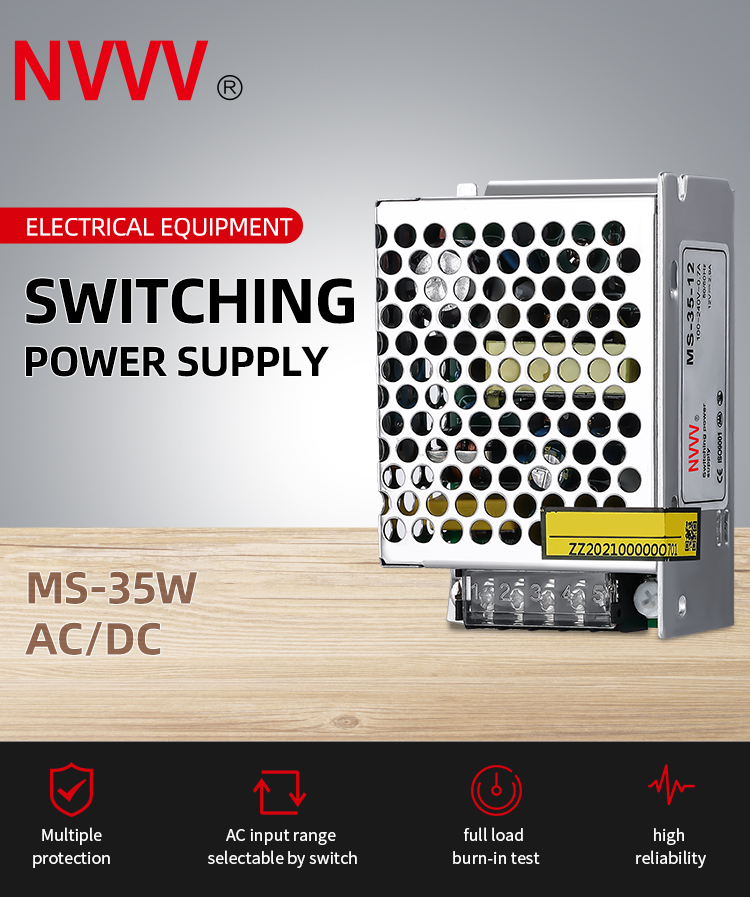

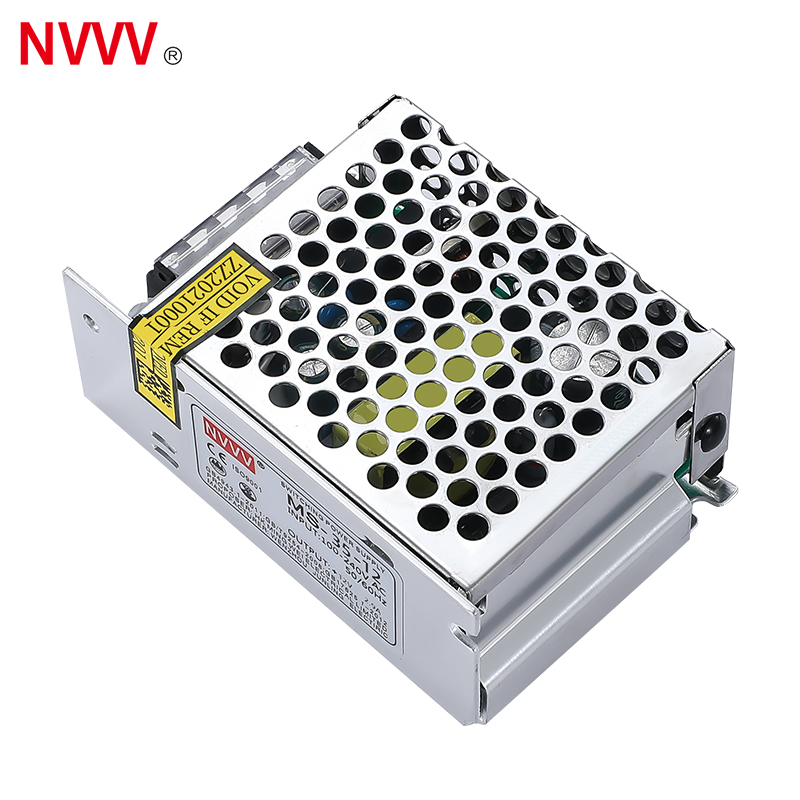

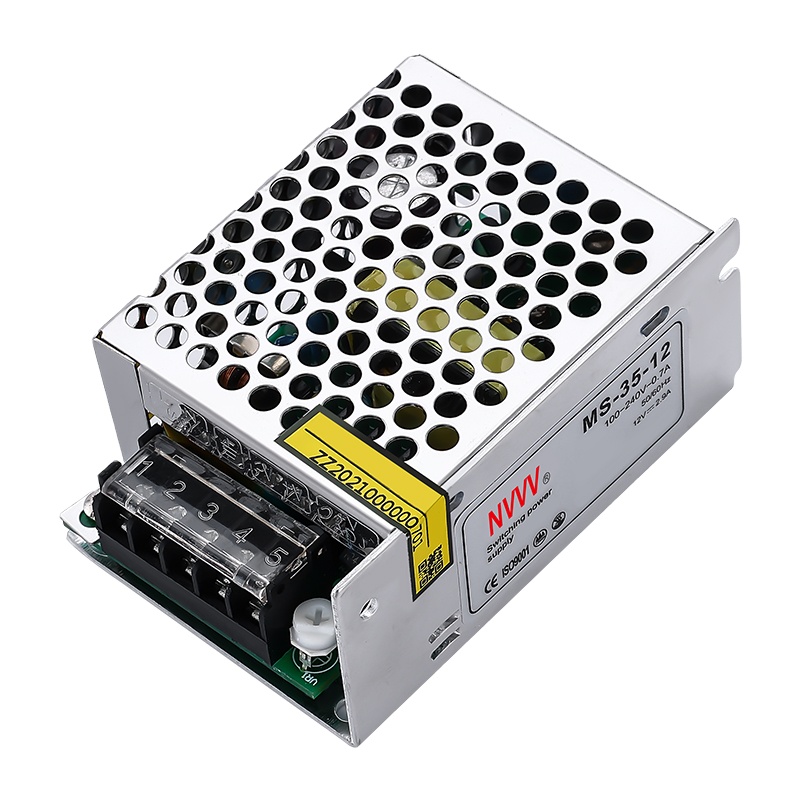

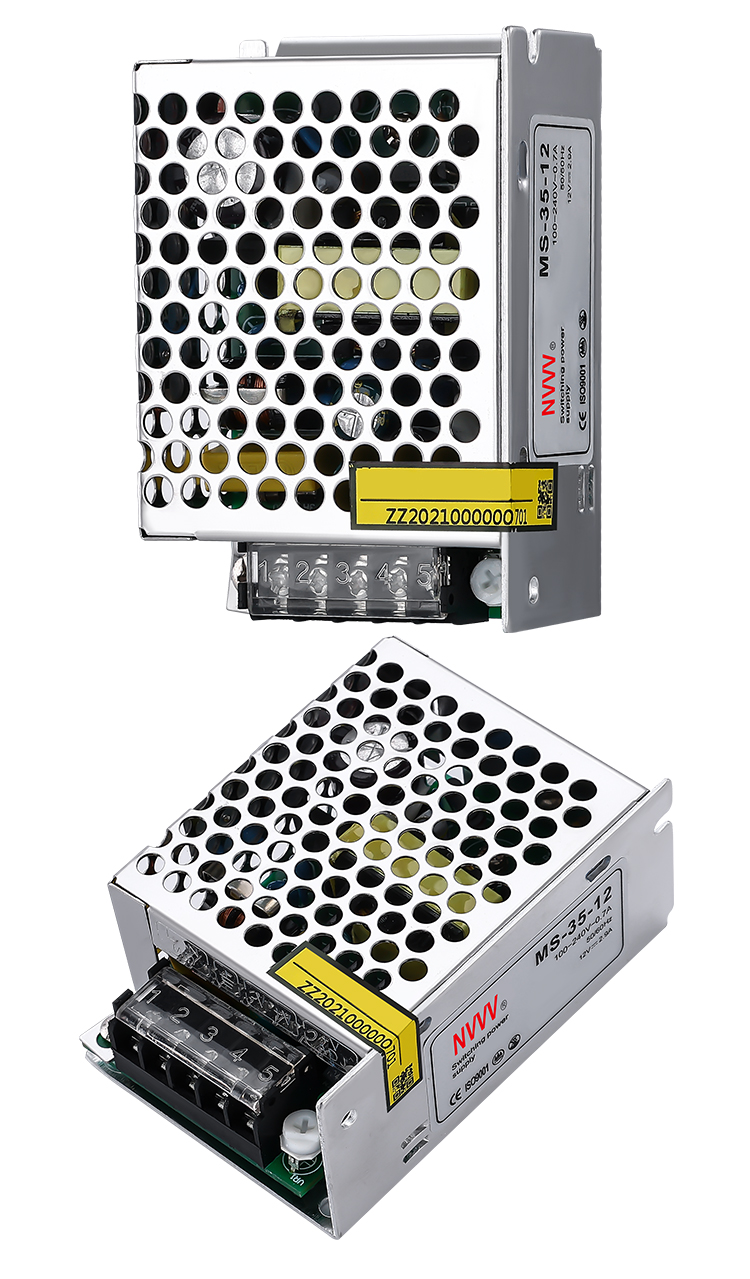

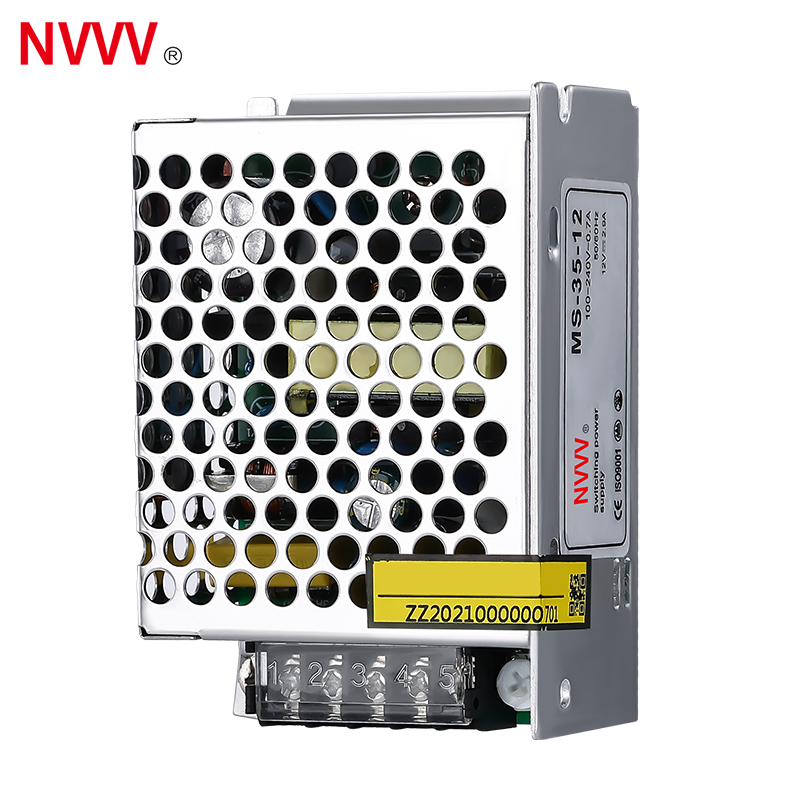

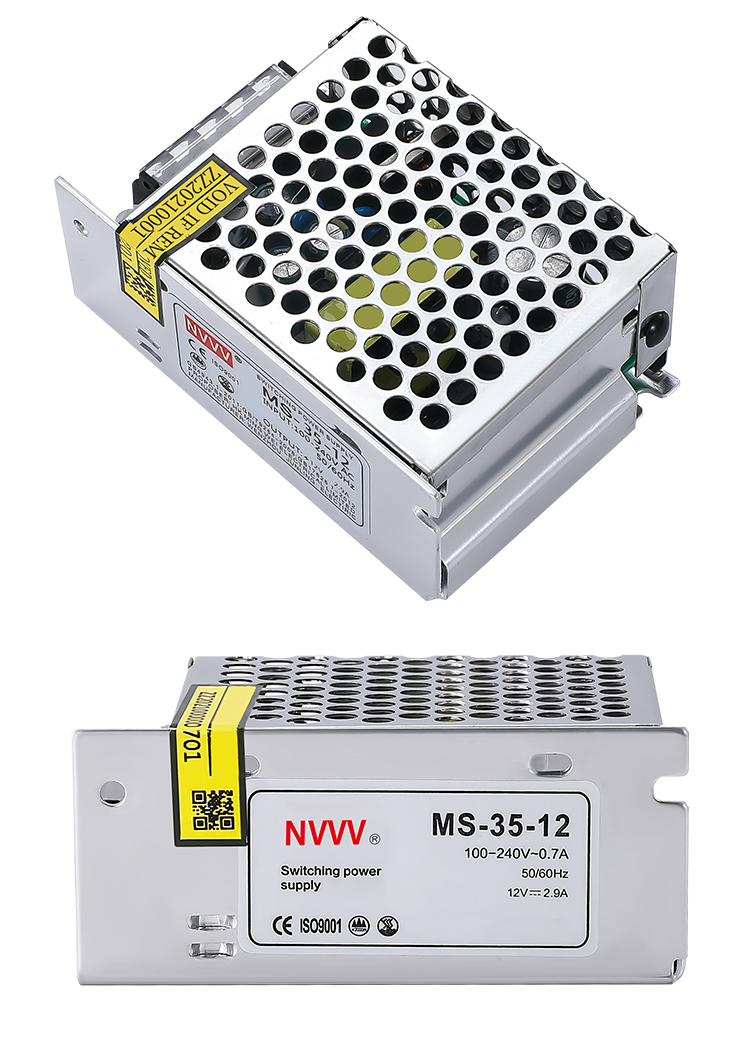

| MS-35 35W Switching Power Supply | ||||
|---|---|---|---|---|
| Project | Technical Index | |||
| Output | DC Voltage | 5V | 12V | 24V |
| Rated Current | 6A | 2.9A | 1.5A | |
| Rated Power | 30W | 34.8W | 36W | |
| Ripple and Noise ① | <50mV | <120mV | <150mV | |
| Voltage Accuracy | ±2% | ±1% | ||
| Output Voltage Regulation Range | ±10% | |||
| Load Adjustment Rate | <±1.5% | <±0.5% | <±0.5% | |
| Linear Adjustment Rate | <±0.5% | |||
| Input | Voltage Range | 85-264VAC 47Hz~63Hz (120VDC~370VDC) | ||
| Efficiency (typical) ② | >78% | >82% | >84% | |
| Working Current | <0.8A 110VAC / <0.35A 220VAC | |||
| Impulse Current | 110VAC 18A / 220VAC 36A | |||
| Start, Rise, Hold Time | 200ms, 50ms, 20ms : 220VAC | |||

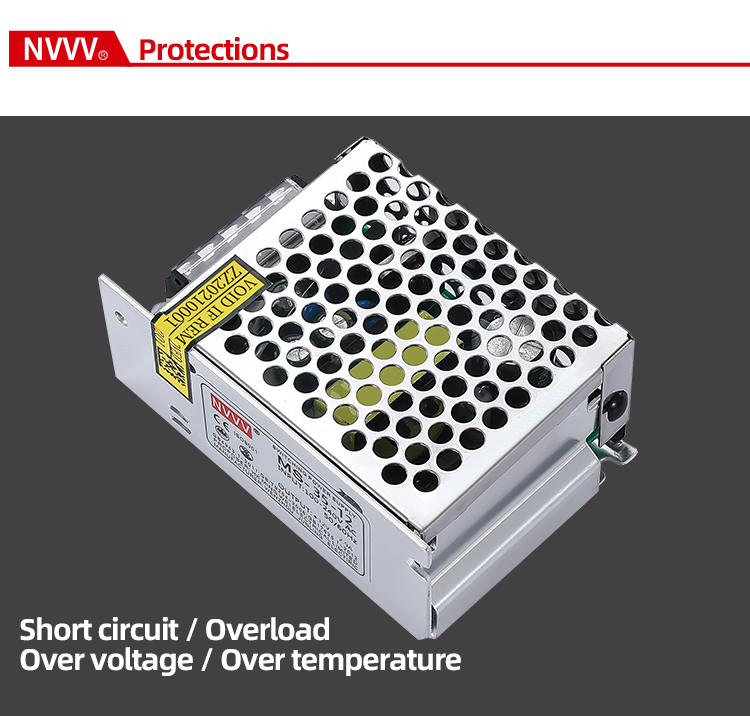

| Protect | Overload Protection | ≥ 105% - 150% Type: constant current output + VO reduced to undervoltage point cut off output. Reset: power on again | ||
| Short Circuit Protection | +VO Drop to undervoltage point to close output | |||
| Environment | Working Temp. & Humidity | -10℃ ~ +50℃; 20% ~ 90% RH | ||
| Storage Temp. & Humidity | -20℃ ~ +85℃; 10% ~ 95% RH | |||
| Safety Regulations | Withstand Voltage | Input-Output: 1.5kVac / Input-Shell: 1.5kVac / Output-Shell: 0.5kVac for 1 minute | ||
| Leakage Current (1.5kVac) | Input-Output 1.5KVAC time <5mA | |||
| Leakage Current (220VAC) | Input-Output 220VAC time <1mA | |||
| Isolation Resistance | Input-Output, Input-Housing, Output-Housing: 500VDC/100MΩ | |||
QDo you offer OEM/ODM custom service for power products?
Yes, absolutely. We offer both OEM (your brand, logo, packaging) and ODM (designing and developing products based on your ideas or samples) services. Your brand and ideas are safe with us.
QWhat voltage options can you supply for power supplies? Can you customize voltage?
We offer standard voltages including 12V, 24V, 36V, 48V, 60V, 68V, and 110V depending on the specific item. Customized voltage options are also available.
QCan I get a sample order for quality testing?
Yes, sample orders are welcome to test quality. Mixed samples are acceptable. We also utilize overseas warehouses for faster delivery of samples.
QWhat is your minimum order quantity (MOQ) for sample and bulk orders?
Our MOQ is low. For sample checking, 30 pieces are available.
QWhat are your shipping methods, delivery time, and logistics options?
We partner with reliable logistics providers. Depending on your country, we can recommend dedicated shipping routes for better service and competitive pricing. Specific delivery times can be provided upon request.
QHow do you handle defective products under warranty?
First, all products go through a strict quality control system, so the defect rate is extremely low. Second, during the warranty period: for small quantities, we will include new products with your next order. For defective batches, we will repair and resend the products, or discuss a viable solution including replacements based on the situation.
