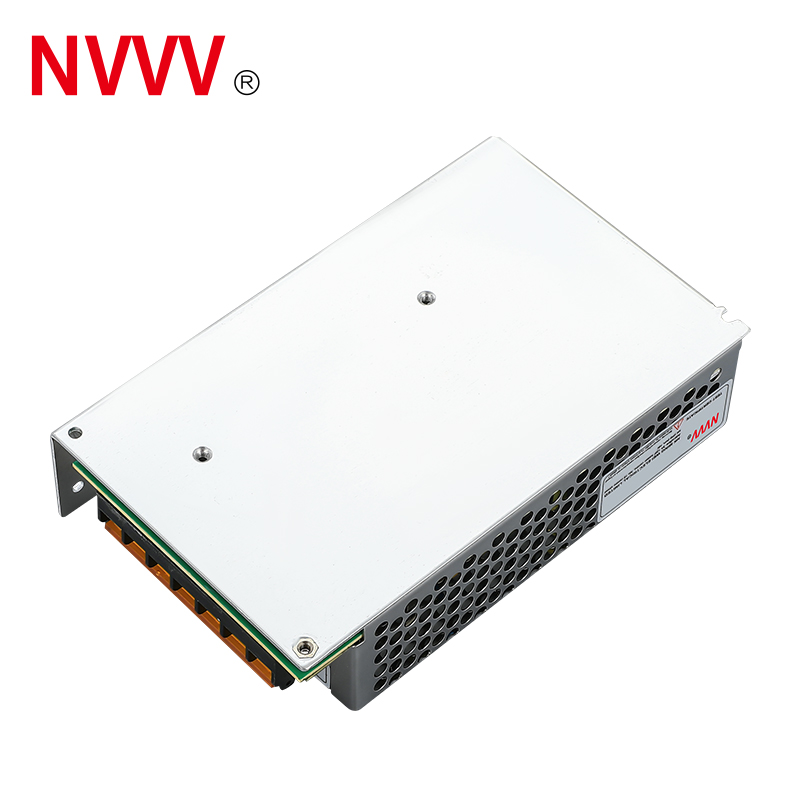

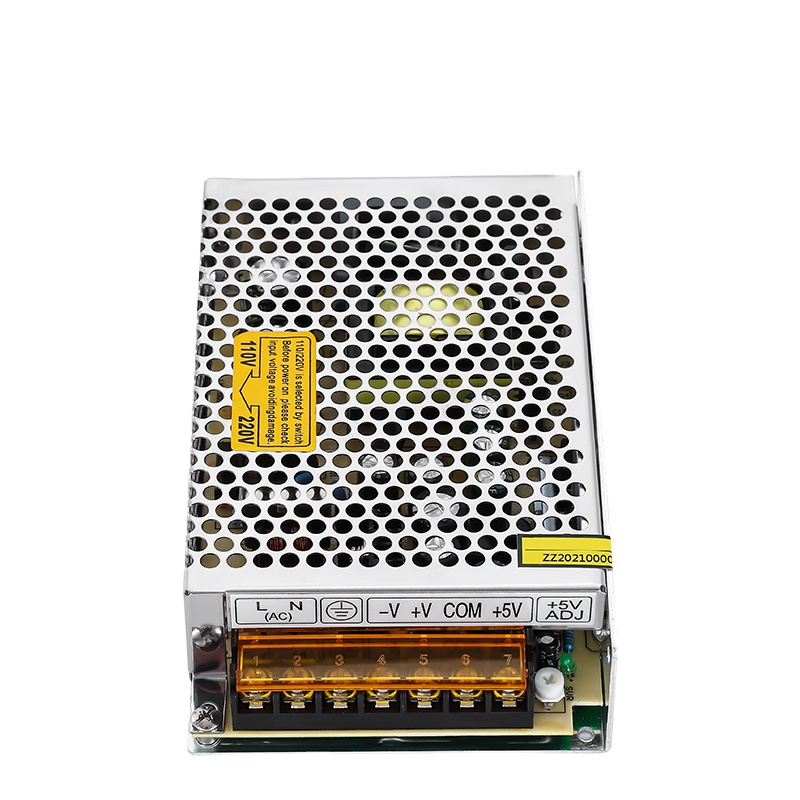

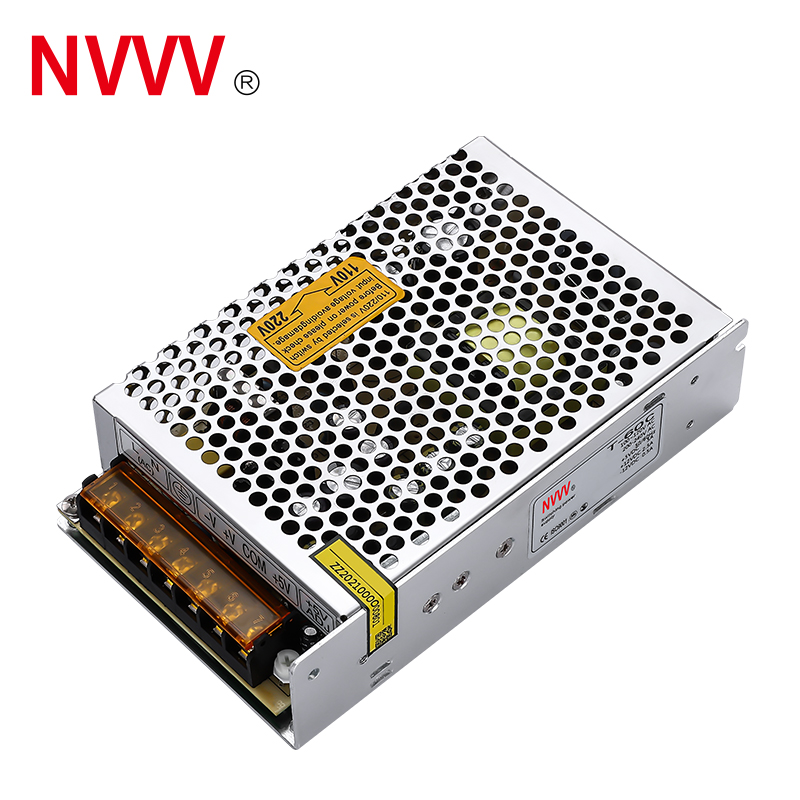

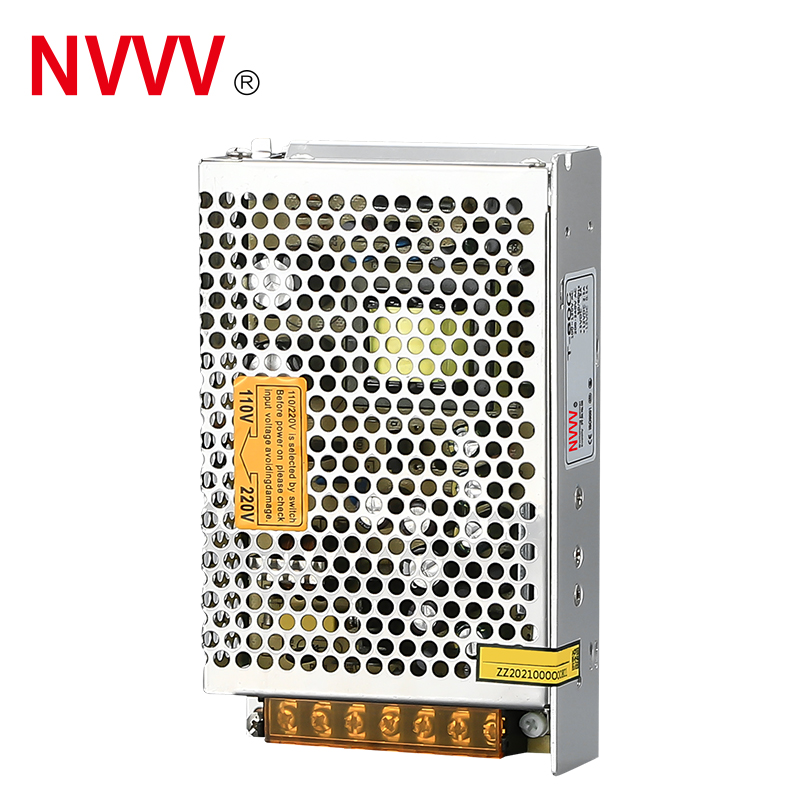

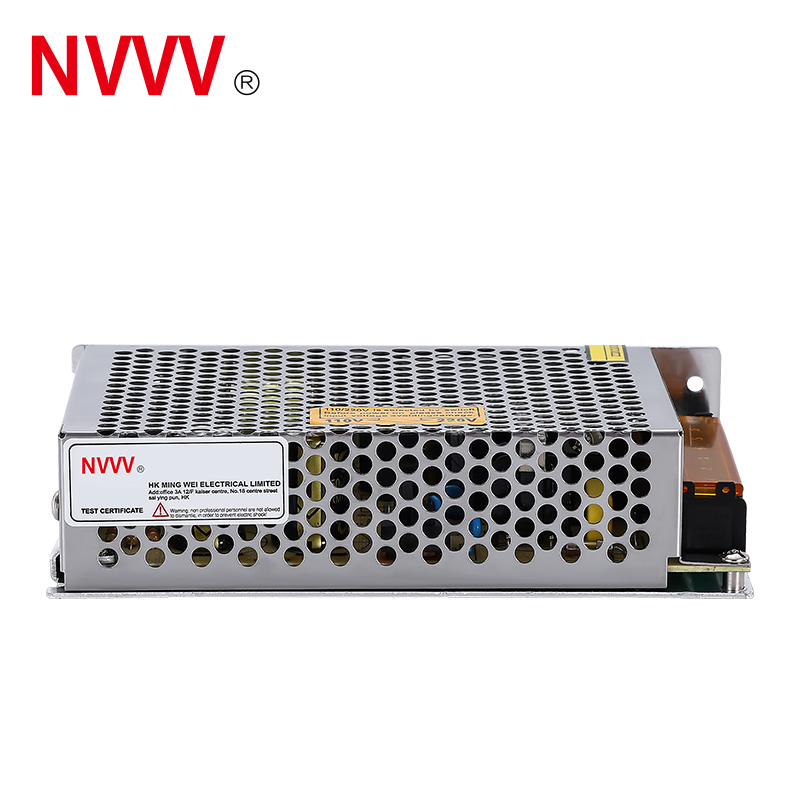

| T-60 Three Switch Power Supply | |||||||
|---|---|---|---|---|---|---|---|
| Project | Technical Indicators | ||||||
| Model | T-60C | T-60D | |||||
| Output Channel | CH1 | CH2 | CH3 | CH1 | CH2 | CH3 | |
| Output | DC Voltage | 5V | 15V | 15V | 5V | 24V | 12V |
| Rated Current | 5A | 2.5A | 0.5A | 5A | 1A | 1A | |
| Current Range | 0.6-6A | 0.1-2.5A | 0.1-0.7A | 0.6-6A | 0.1-1.5A | 0.1-1.5A | |
| Rated Power | 62.5W | 61W | |||||
| Ripple and Noise ① | 80mV | 150mV | 150mV | 80mV | 200mV | 120mV | |
| Voltage Accuracy | ±2% | ±8% | ±5% | ±2% | ±8% | ±6% | |
| Output Voltage Adj. Range | CH1: ±10% | ||||||
| Load Regulation | ±1.5% | ±3.0% | ±1.0% | ±1.5% | ±3.0% | ±3% | |
| Linear Regulation | ±0.5% | ±1.0% | ±1.0% | ±0.5% | ±1.0% | ±1.0% | |
| Input | Voltage Range | 85-132/180-264VAC 47Hz~63Hz (254VDC~370VDC) | |||||
| Efficiency (typical) ② | >78% | >80% | |||||
| Working Current | <1.2A 110VAC <0.7A 220VAC | ||||||
| Impulse Current | 110VAC 18A, 220VAC 45A | ||||||
| Start, Rise, Hold Time | 900ms, 20ms, 20ms : 220VAC / 800ms, 20ms, 10ms : 115VAC | ||||||
| Protect | Overload Protection | ≥105% - 150% type: constant current output VO drop to underpressure point cut off output reset: power up again | |||||
| Short Circuit Protection | VO drop to underpressure point to close output | ||||||
| Environment | Working Temp. & Humidity | -10℃~+50℃; 20%~90% RH | |||||
| Storage Temp. & Humidity | -20℃~+85℃; 10%~95% RH | ||||||
| Safety | Withstand Voltage | Input-output: 1.5kVac, Input-ground: 1.5kVac, Output-ground: 0.5kVac for 1 minute | |||||
| Leakage Current | <1.5mA / 240VAC | ||||||
| Isolation Resistance | Input-output, input-shell, output-shell: 500VDC / 100MΩ | ||||||
| Other | Size | 159*98*38mm | |||||
| Net / Gross Weight | 440/470g | ||||||
Yes, absolutely. We offer both OEM (your brand, logo, packaging) and ODM (we help design and develop products based on your ideas or samples) services. We have extensive experience working with well-known companies in the industry and ensure your brands and designs remain confidential.
We offer standard voltages including 12V, 24V, 36V, 48V, 60V, 68V, and 110V depending on the specific item. Customized voltage requirements can also be evaluated based on specifications.
Yes, sample orders are welcome to test and verify quality. Mixed samples are acceptable. We also utilize overseas warehouses for faster delivery of samples.
Our MOQ is low; for example checking, 30 pieces are available. We work with reliable logistics partners to recommend dedicated shipping routes for better service and cost efficiency tailored to your country.
Yes, we offer a comprehensive warranty on all products. Warranty periods vary depending on the specific product item. Please verify standard details for your specific model.
Our products undergo strict quality control, maintaining a very low defect rate. During the warranty period: for small quantities, replacements will be sent with your next order; for defective batches, we will repair and resend them, or arrange an appropriate replacement or credit solution based on evaluation.
