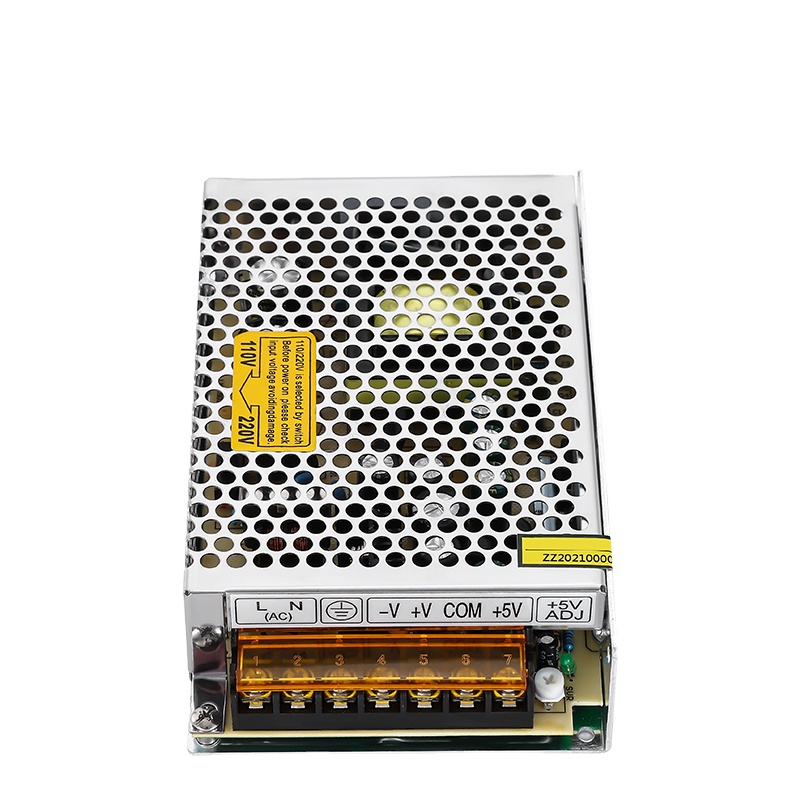

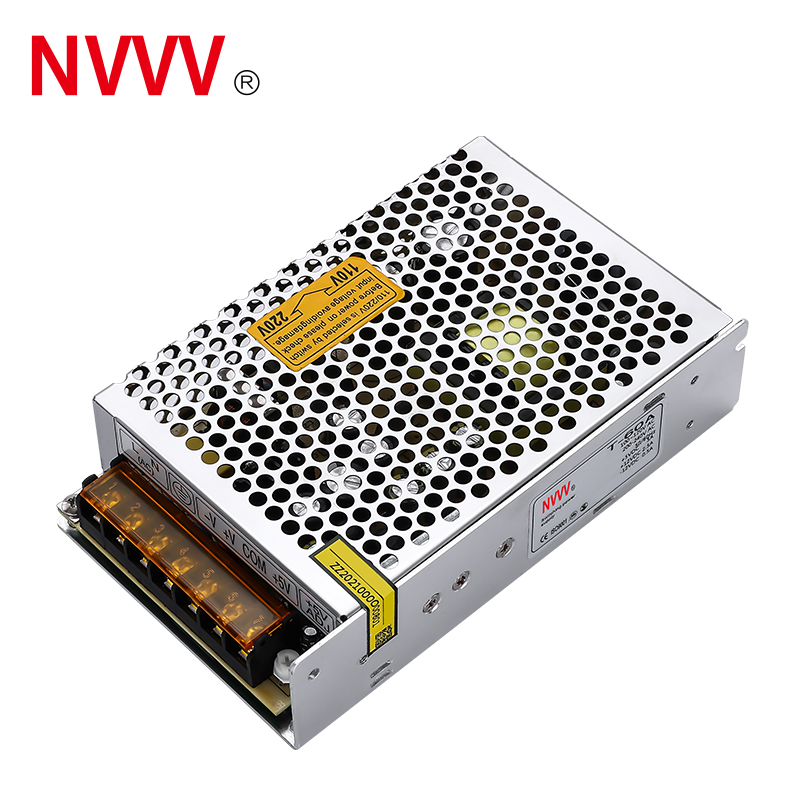

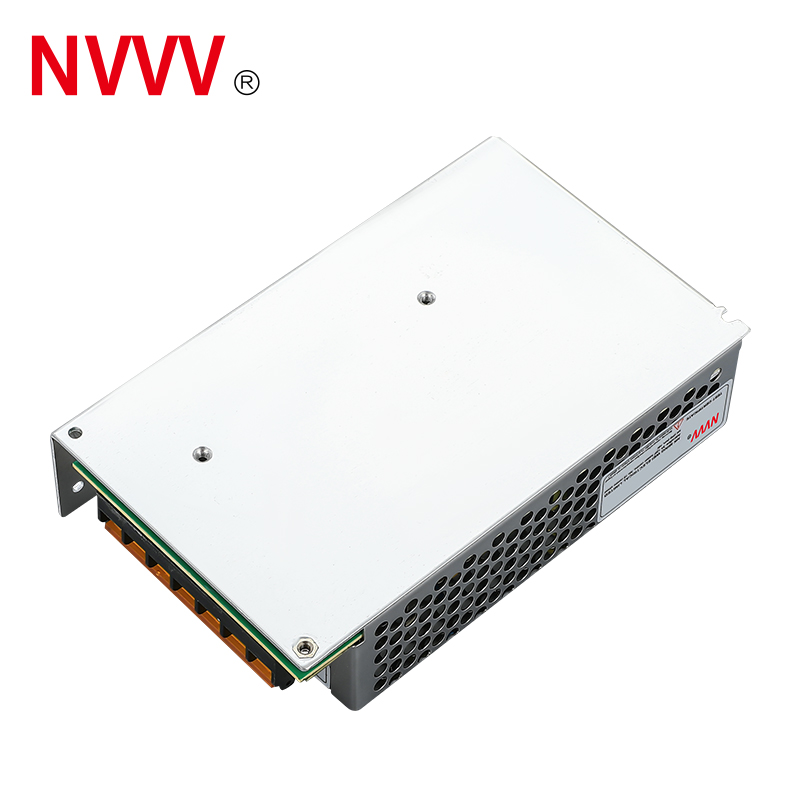

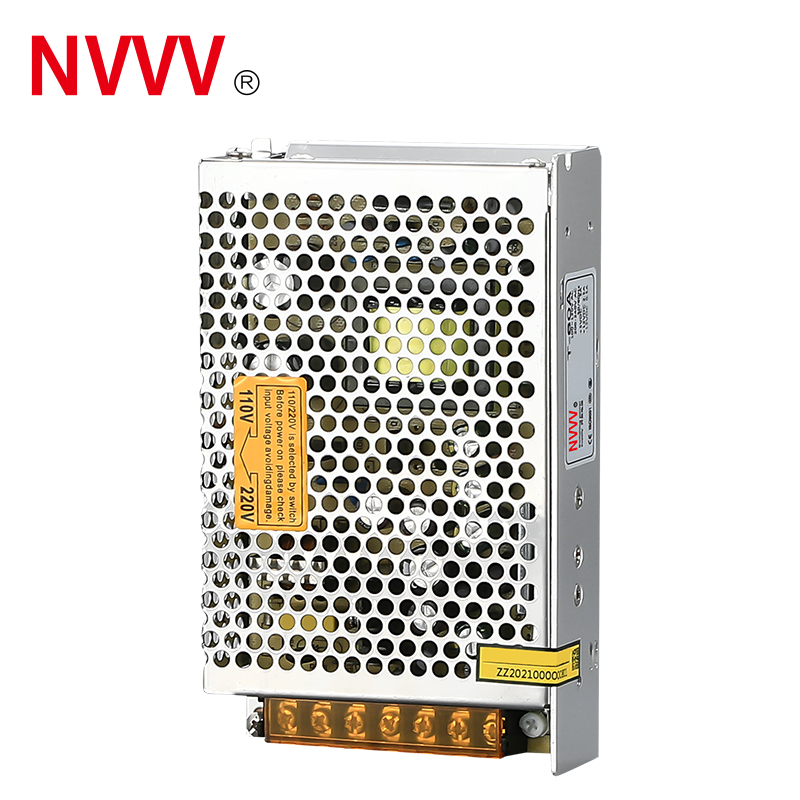

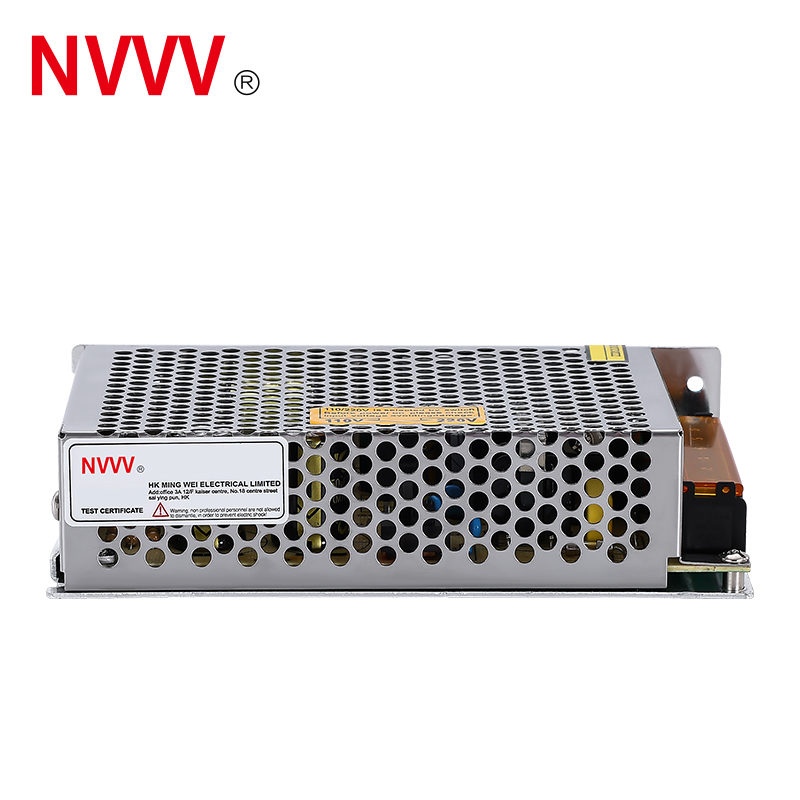

| T-60 Three Switch Power Supply | |||||||
|---|---|---|---|---|---|---|---|
| Project | Technical Indicators | ||||||
| Model | T-60A | T-60D | |||||
| Output Channel | CH1 | CH2 | CH3 | CH1 | CH2 | CH3 | |
| Output | DC Voltage | 5V | 12V | -5V | 5V | 24V | 12V |
| Rated Current | 5A | 2.5A | 0.5A | 5A | 1A | 1A | |
| Current Range | 0.6-6A | 0.2-3A | 0.1-0.7A | 0.6-6A | 0.1-1.5A | 0.1-1.5A | |
| Rated Power | 57.5W | 61W | |||||
| Ripple and Noise (1) | 80mV | 120mV | 120mV | 80mV | 200mV | 120mV | |
| Voltage Accuracy | ±2% | ±6% | ±5% | ±2% | ±8% | ±6% | |
| Output Voltage Adjustment Range | CH1: ±10% | ||||||
| Load Regulation | ±1.5% | ±3.0% | ±1.0% | ±1.5% | ±3.0% | ±3% | |
| Linear Regulation | ±0.5% | ±1.0% | ±1.0% | ±0.5% | ±1.0% | ±1.0% | |
| Input | Voltage Range | 85-132/180-264VAC 47Hz ~ 63Hz (254VDC ~ 370VDC) | |||||
| Efficiency (Typical) (2) | > 76% | > 80% | |||||
| Working Current | < 1.2A 110VAC / < 0.7A 220VAC | ||||||
| Impulse Current | 110VAC 18A, 220VAC 45A | ||||||
| Start, Rise, Hold Time | 900ms, 20ms, 20ms : 220VAC / 800ms, 20ms, 10ms : 115VAC | ||||||
| Protect | Overload Protection | ≥ 105% - 150% Type: constant current output VO drop to underpressure point cut off output. Reset: power up again. | |||||
| Short Circuit Protection | VO drop to underpressure point to close output | ||||||
| Environmental | Working Temperature & Humidity | -10°C ~ +50°C; 20% ~ 90% RH | |||||
| Storage Temperature & Humidity | -20°C ~ +85°C; 10% ~ 95% RH | ||||||
| Safety | Withstand Voltage | Input-Output: 1.5kVac; Input-Ground: 1.5kVac; Output-Ground: 0.5kVac for 1 minute | |||||
| Leakage Current | < 1.5mA / 240VAC | ||||||
| Isolation Resistance | Input-Output, Input-Shell, Output-Shell: 500VDC / 100M Ω | ||||||
| Other | Size | 159*98*38mm | |||||
| Net Weight / Gross Weight | 440g / 470g | ||||||
