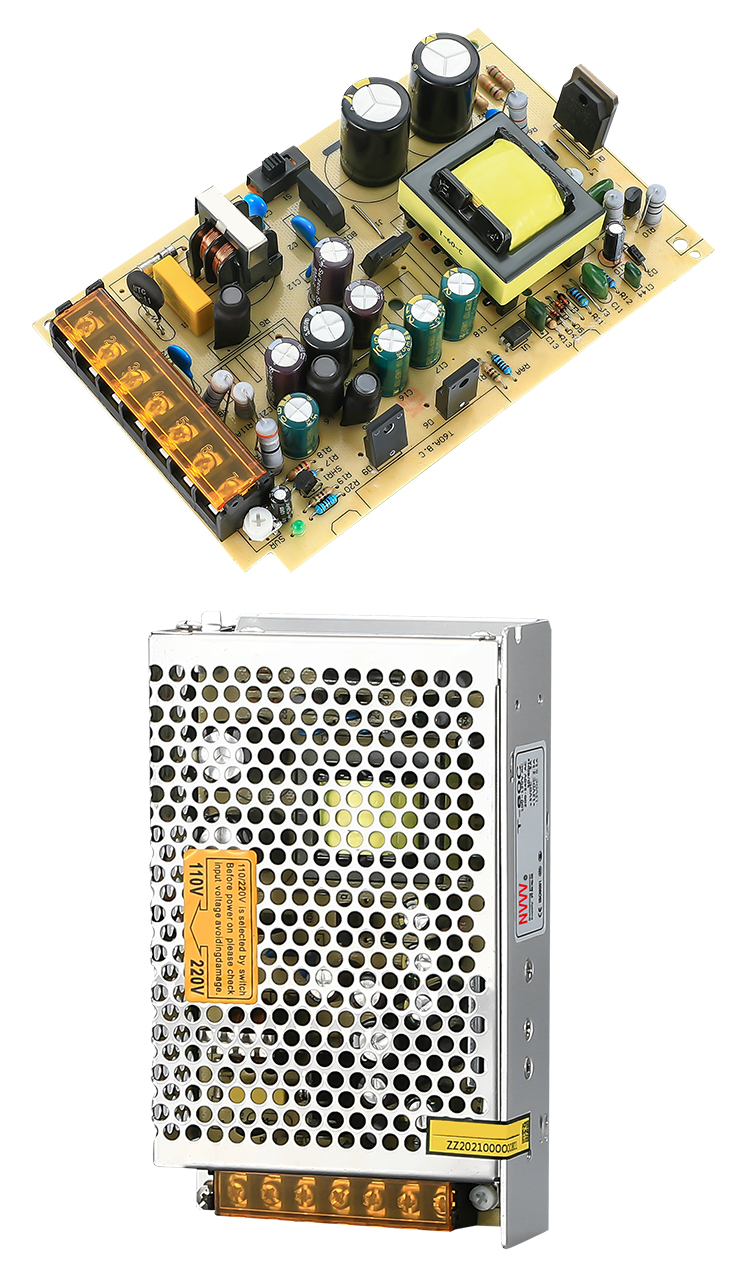

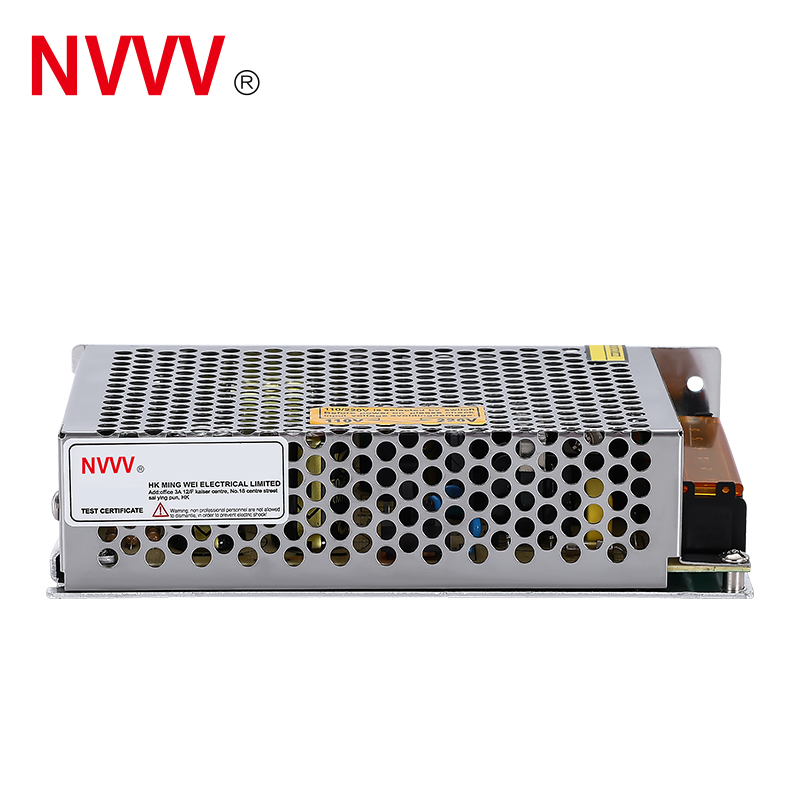

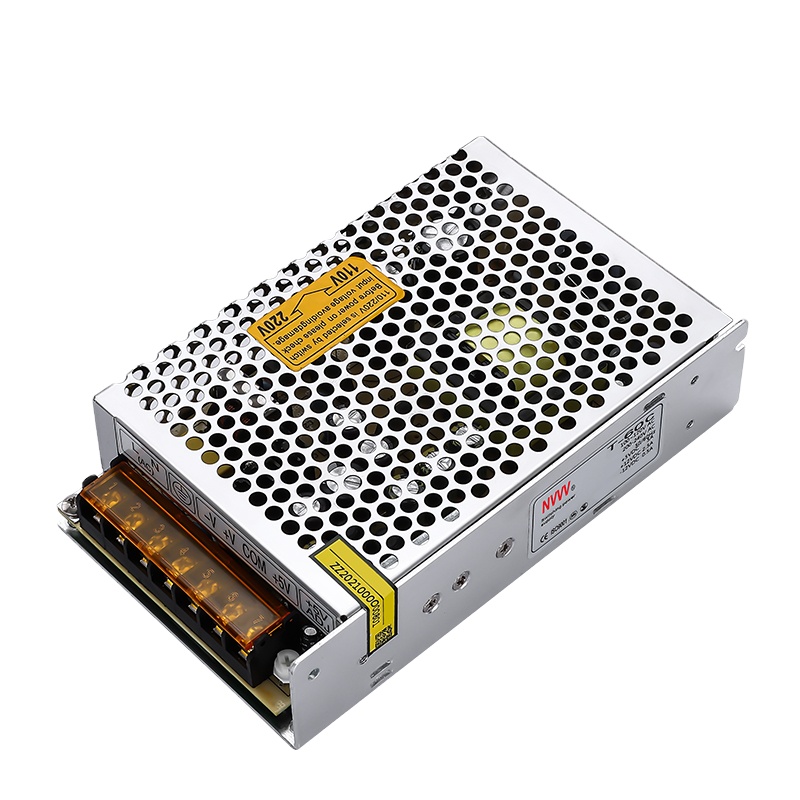

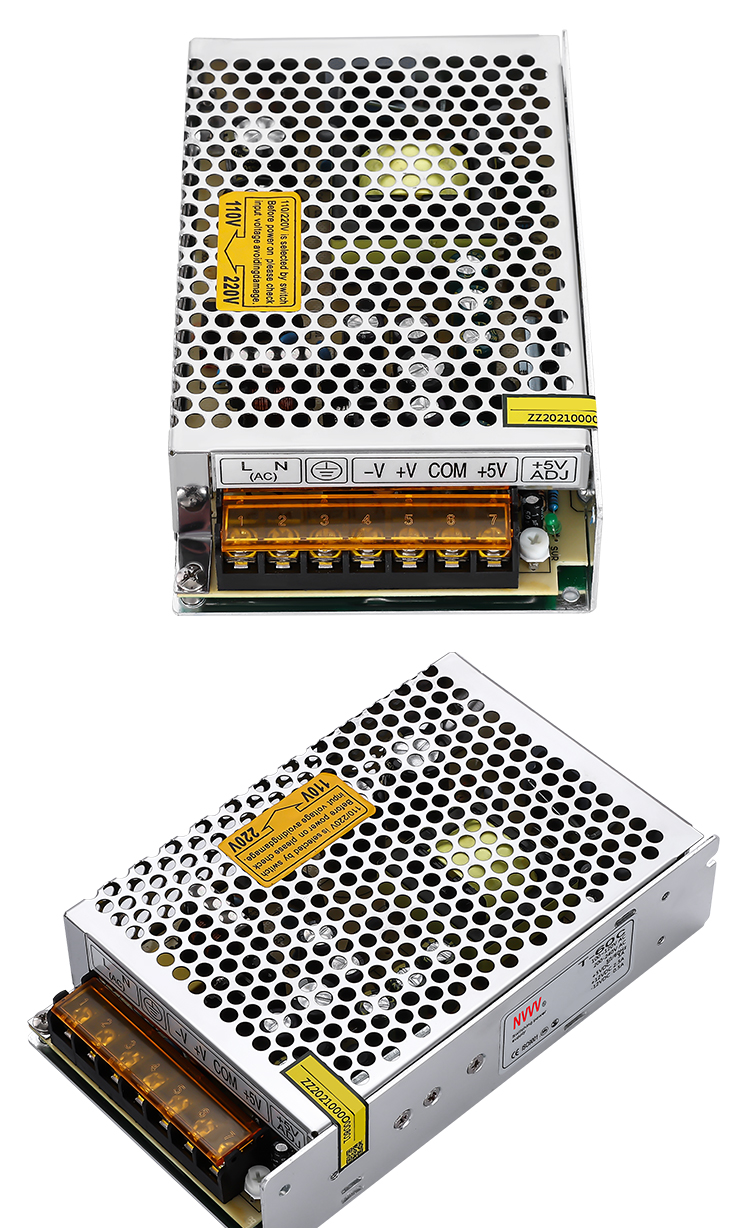

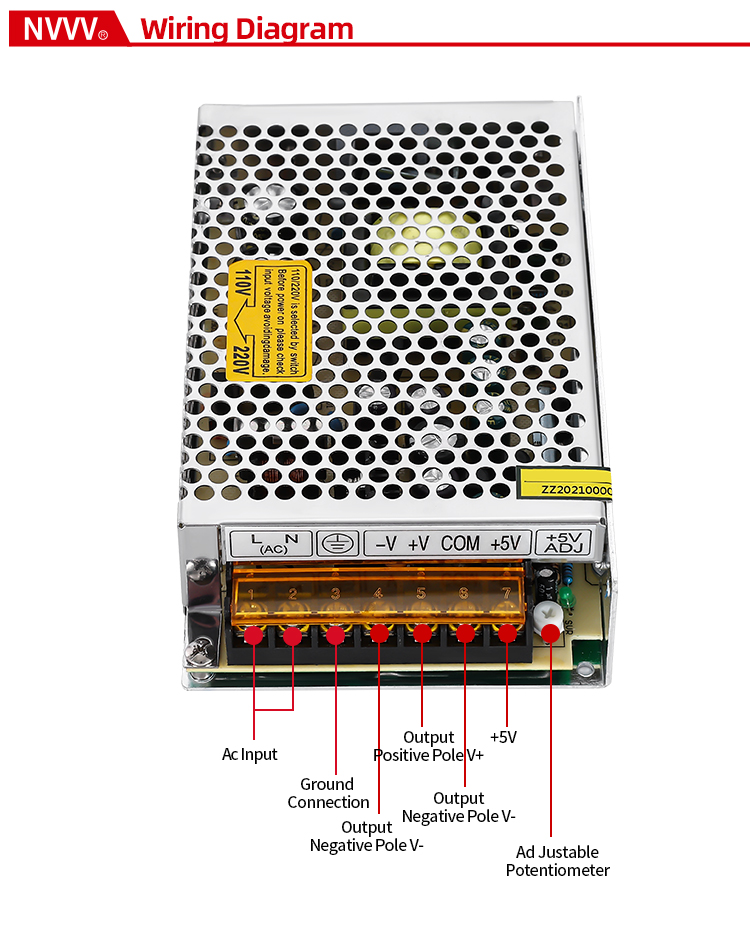

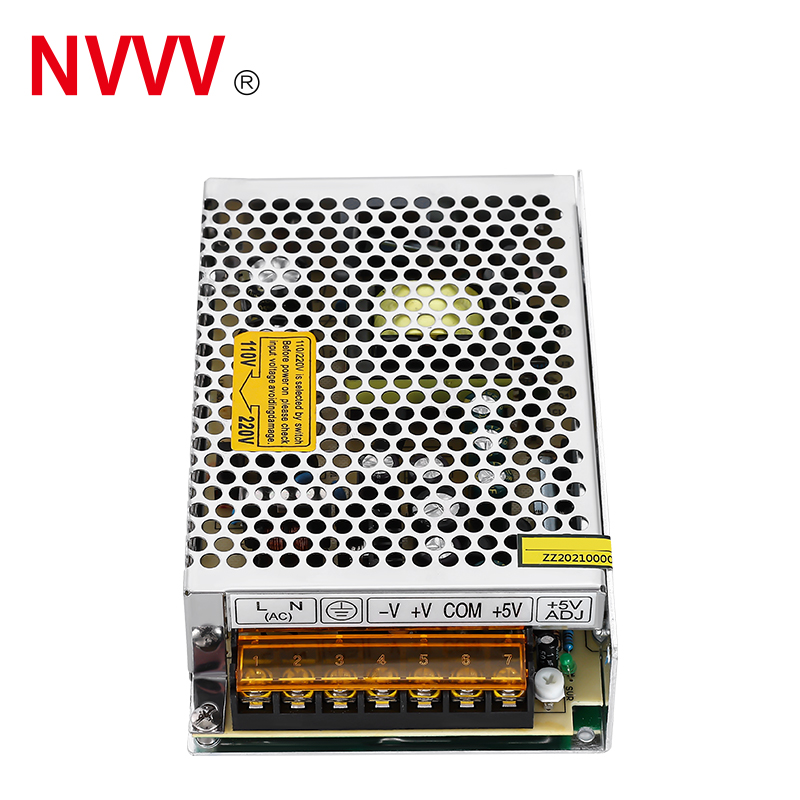

| T-60 Three Switch Power Supply | |||||||
| Project | Technical indicators | ||||||
| Model | T-60C | T-60D | |||||
| Output Channel | CH1 | CH2 | CH3 | CH1 | CH2 | CH3 | |
| Output | DC voltage | 5V | 15V | 15V | 5V | 24V | 12V |
| Rated current | 5A | 2.5A | 0.5A | 5A | 1A | 1A | |
| Current range | 0.6-6A | 0.1-2.5A | 0.1-0.7A | 0.6-6A | 0.1-1.5A | 0.1-1.5A | |
| Rated power | 62.5W | 61W | |||||
| Ripple and noise | 80mV | 150mV | 150mV | 80mV | 200mV | 120mV | |
| Voltage accuracy | ±2% | ±8% | ±5% | ±2% | ±8% | ±6% | |
| Output voltage adjustment range | CH1: ±10% | ||||||
| Load regulation | ±1.5% | ±3.0% | ±1.0% | ±1.5% | ±3.0% | ±3% | |
| Linear regulation | ±0.5% | ±1.0% | ±1.0% | ±0.5% | ±1.0% | ±1.0% | |
| Input | Voltage range | 85-132/180-264VAC 47Hz ~ 63Hz (254VDC ~ 370VDC) | |||||
| Efficiency (typical) | >78% | >80% | |||||
| Working current | <1.2A 110VAC, <0.7A 220VAC | ||||||
| Impulse current | 110VAC 18A, 220VAC 45A | ||||||
| Start, rise, hold time | 900ms, 20ms, 20ms : 220VAC / 800ms, 20ms, 10ms : 115VAC | ||||||

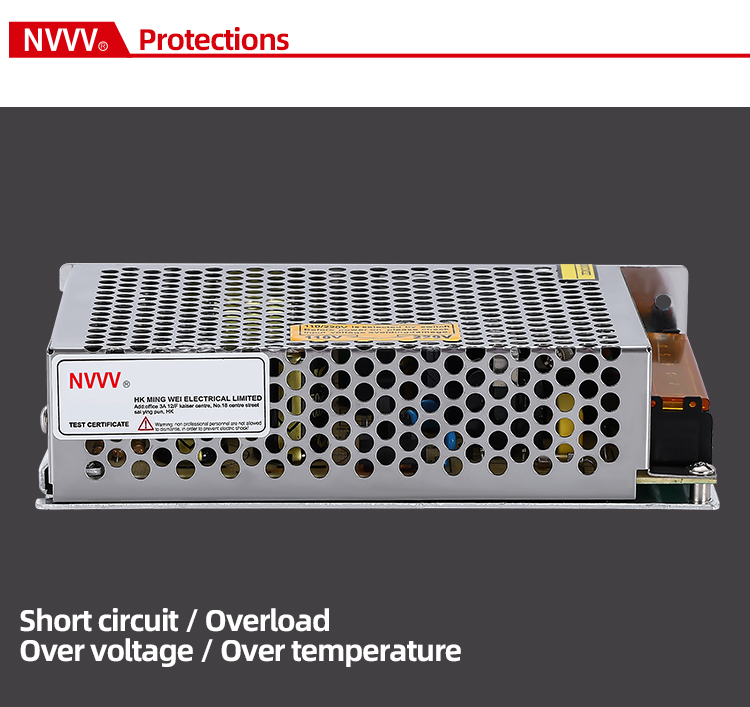

| Protect | Overload protection | ≥105% - 150% type: constant current output VO drop to underpressure point cut off output, reset: power up again | |||||
| Short circuit protection | VO drop to underpressure point to close output | ||||||
| Environmental | Working temp. & humidity | -10℃ ~ +50℃; 20% ~ 90% RH | |||||
| Storage temp. & humidity | -20℃ ~ +85℃; 10% ~ 95% RH | ||||||
| Safety | Withstand voltage | Input output: 1.5kVac, Input ground: 1.5kVac, Output ground: 0.5kvac for 1 minute | |||||
| Leakage current | <1.5mA/240VAC | ||||||
| Isolation resistance | Input output, input shell, output shell: 500VDC / 100M Ω | ||||||

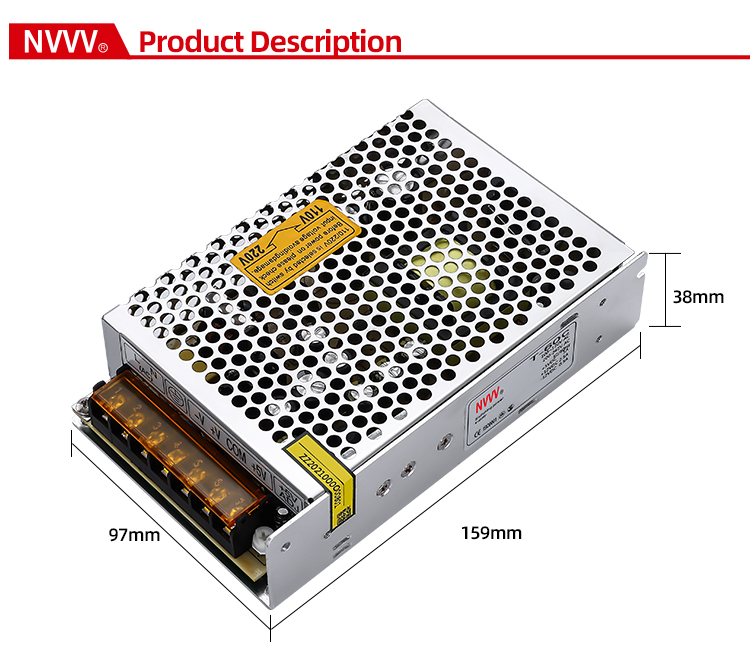

| Other | Size | 159*98*38mm | |||||
| Net / Gross weight | 440/470g | ||||||
