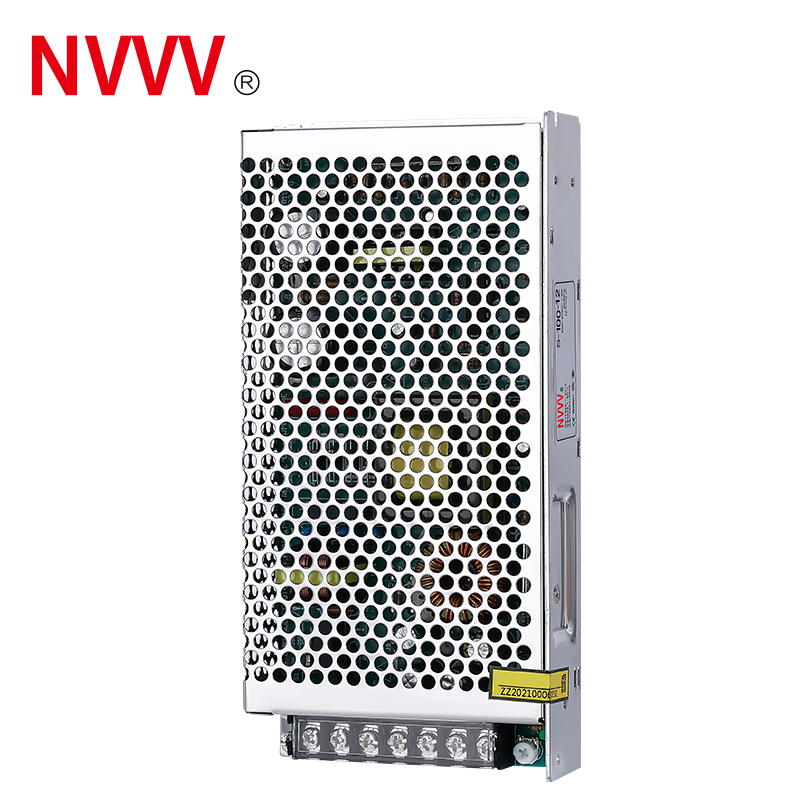

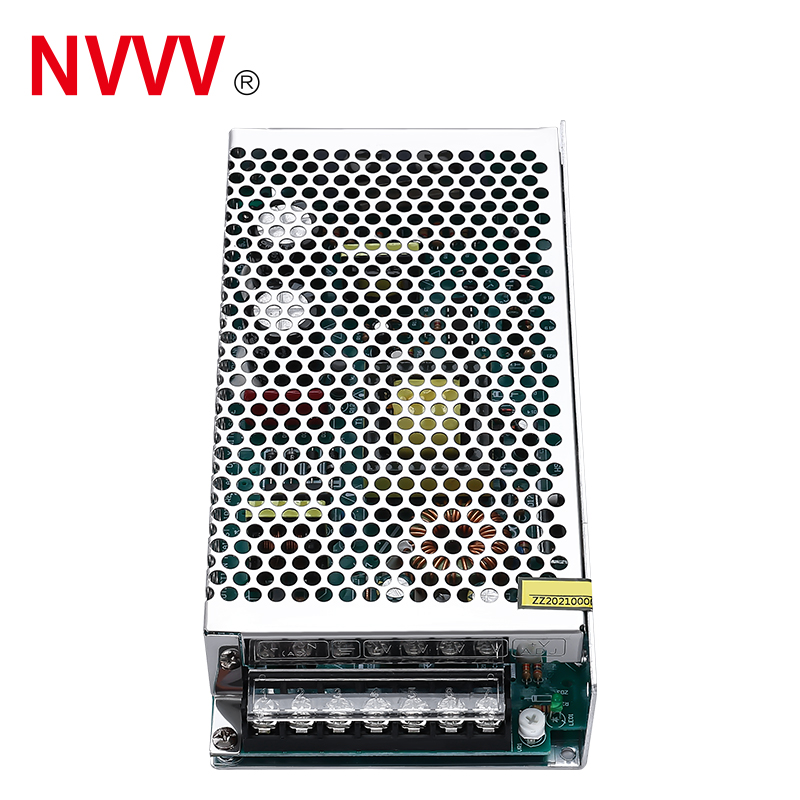

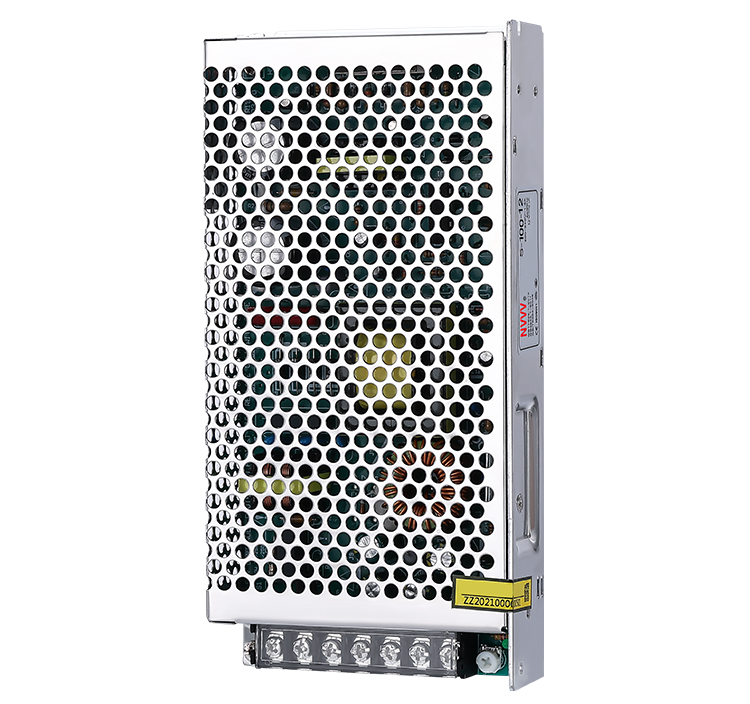

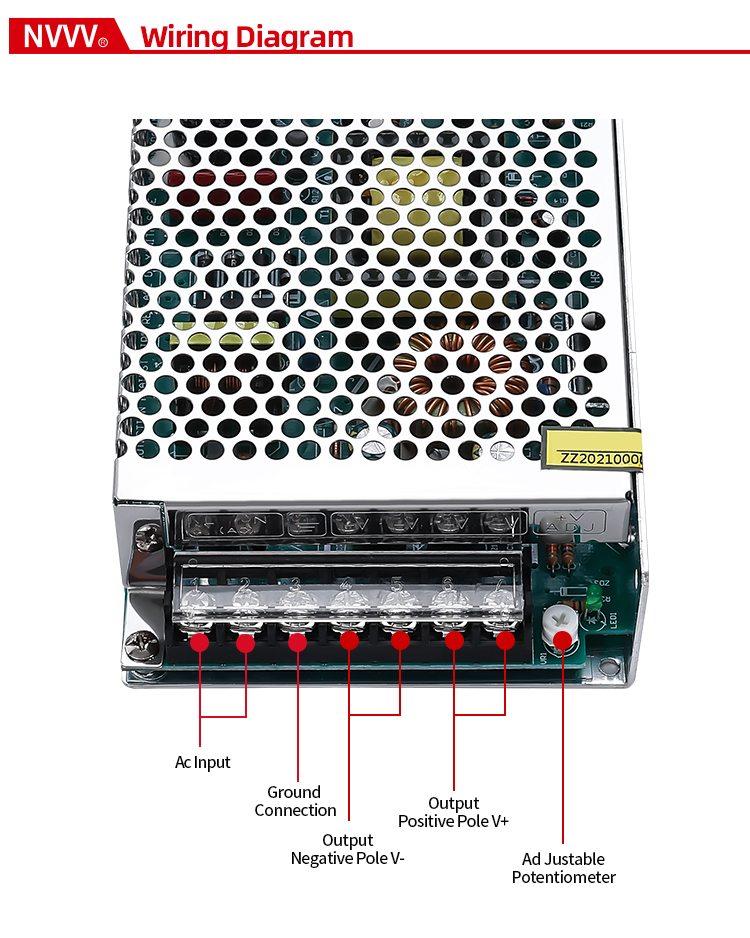

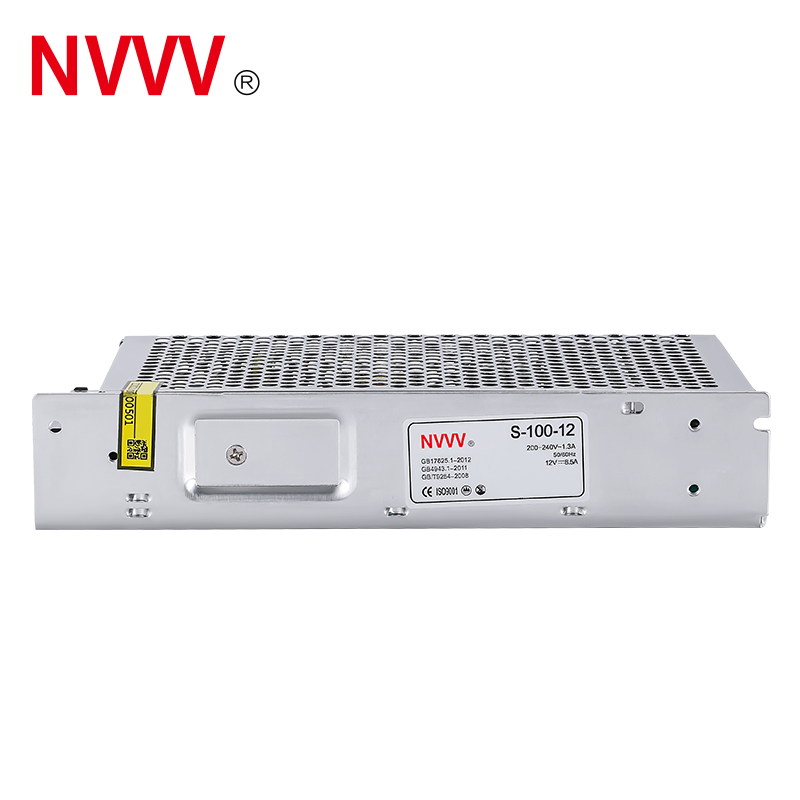

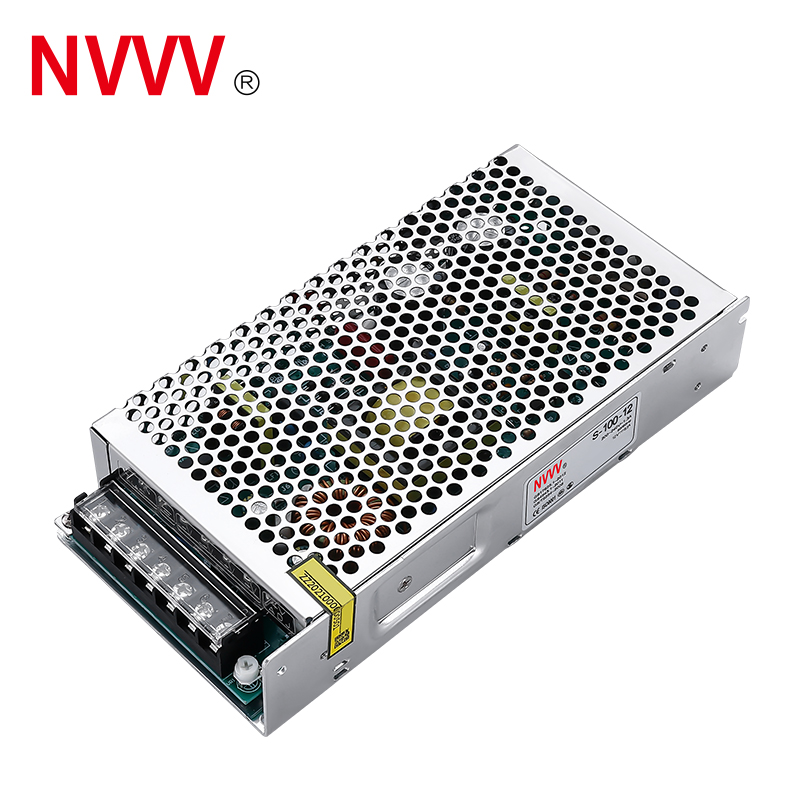

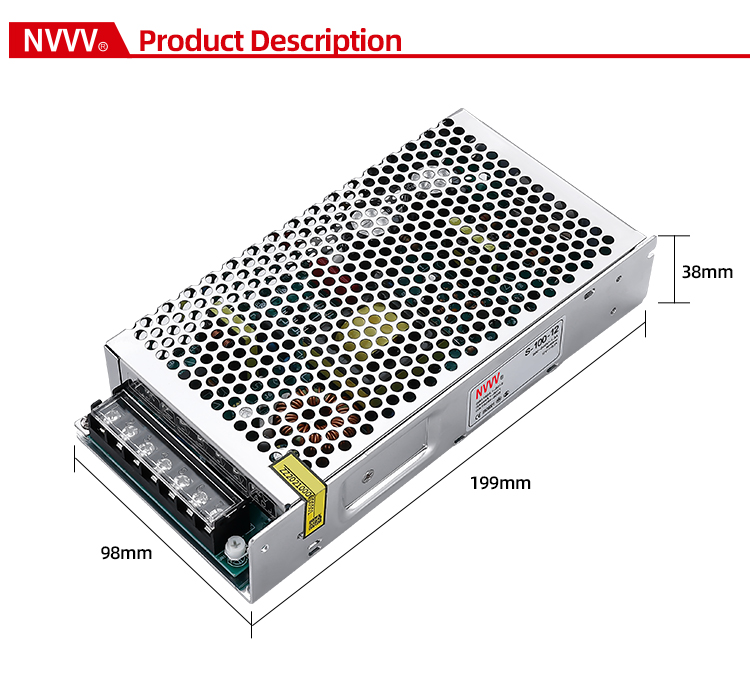

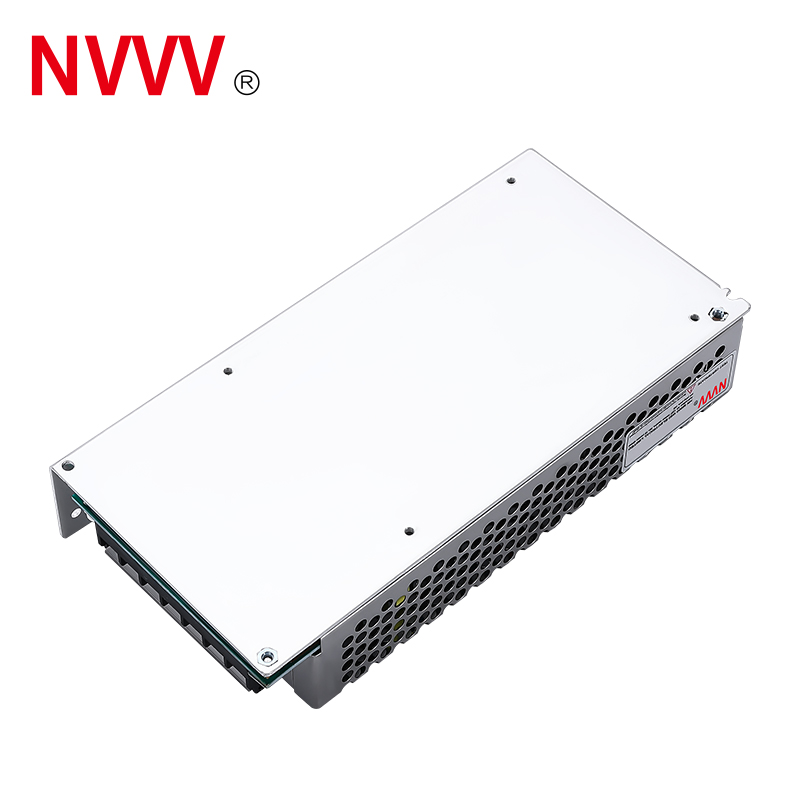

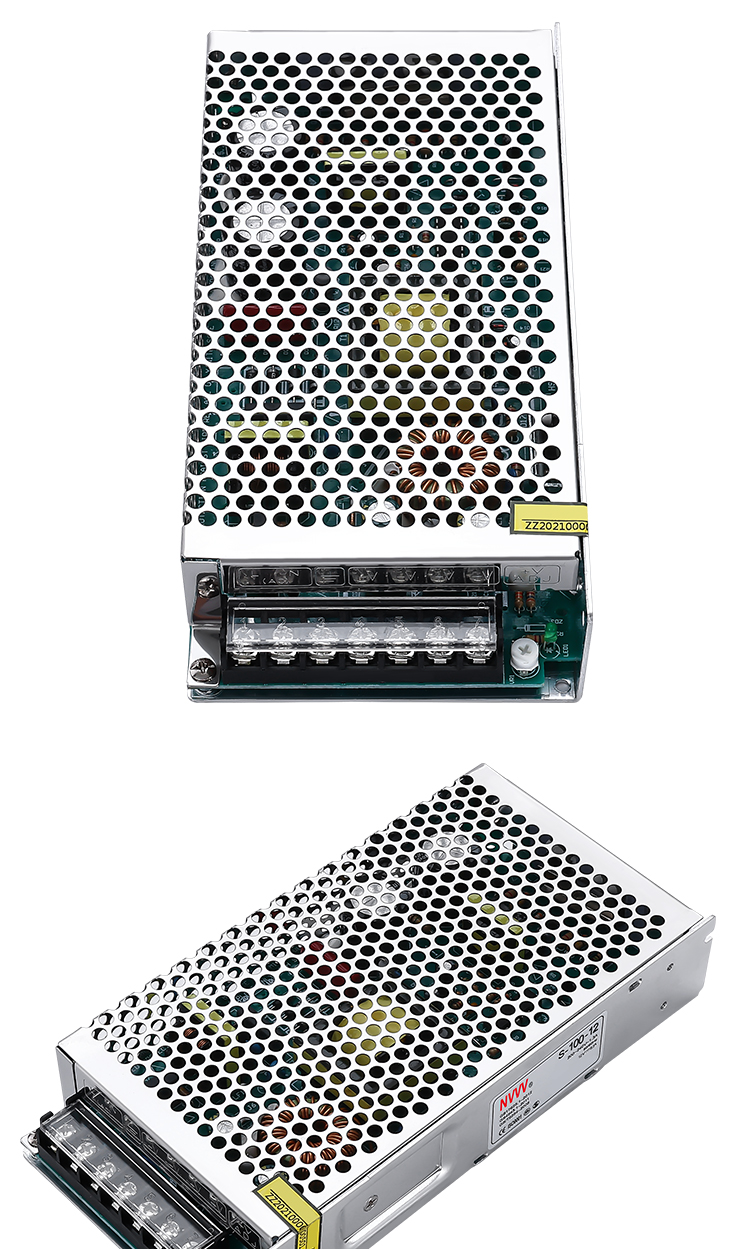

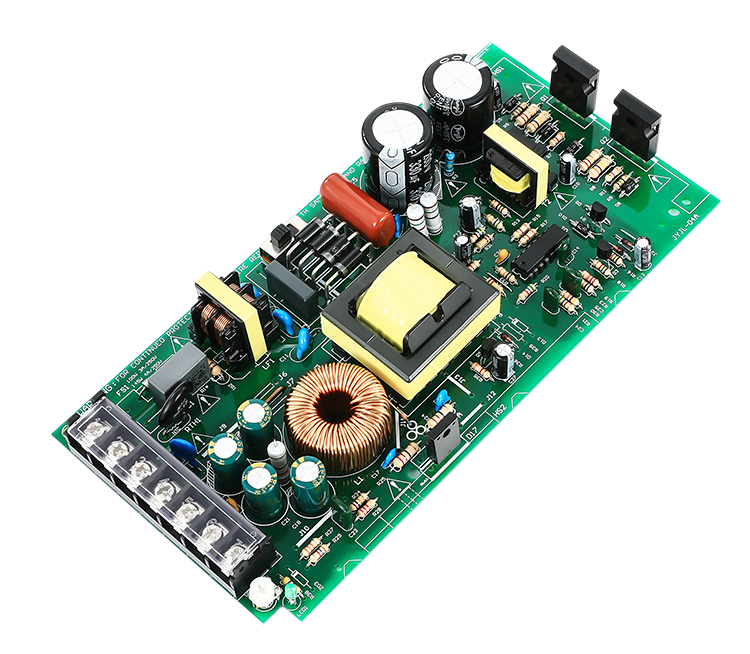

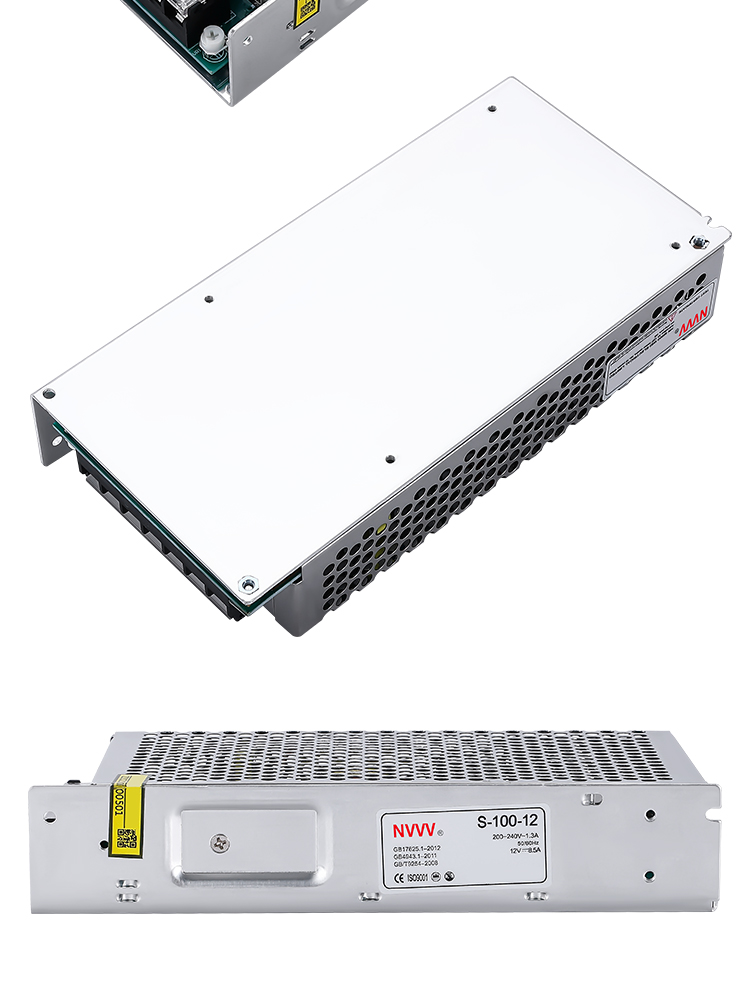

| S-100 100W Switching Power Supply | ||||||
|---|---|---|---|---|---|---|
| Project | Technical Index | |||||
| Output | DC Voltage | 5V | 12V | 24V | 36V | 48V |
| Rated Current | 18A | 8.3A | 4.1A | 2.8A | 2.1A | |
| Rated Power | 90W | 100.8W | 100.8W | 100.8W | 100.8W | |
| Ripple & Noise ① | <75mV | <120mV | <150mV | <240mV | <240mV | |
| Voltage Accuracy | ±2% | ±1% | ||||
| Voltage Regulation Range | ±10% | |||||
| Load Adjustment Rate | <±1.5% | <±0.5% | ||||
| Linear Adjustment Rate | <±0.5% | |||||
| Input | Voltage Range | 180-264VAC 47Hz~63Hz (254VDC~370VDC) | ||||
| Efficiency (Typical) ② | >75% | >82% | >84% | >84% | >84% | |
| Working Current | <1.2A 220VAC | |||||
| Impulse Current | 220VAC 50A | |||||
| Start, Rise, Hold Time | 200ms, 50ms, 20ms at 220VAC | |||||

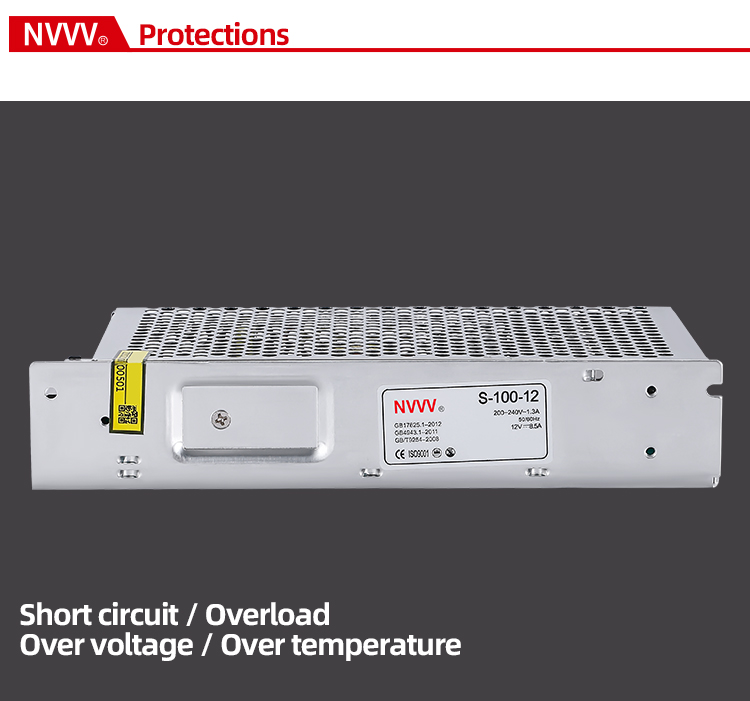

| Protection | Overload Protection | 105% - 150% type: constant current output + VO reduced to undervoltage point cut off output reset: power on again | ||||
| Short Circuit Protection | +VO Drop to undervoltage point to close output | |||||
| Environment | Working Temp & Humidity | -10℃ ~ +50℃; 20% ~ 90% RH | ||||
| Storage Temp & Humidity | -20℃ ~ +85℃; 10% ~ 95% RH | |||||
| Safety Regulations | Withstand Voltage | Input-Output: 1.5kVac; Input-Shell: 1.5kVac; Output-Shell: 0.5kVac for 1 minute | ||||
| Leakage Current (I/O) | 5mA at 1.5kVac Input-Output | |||||
| Leakage Current (220VAC) | Input-Output at 220VAC < 1mA | |||||
| Isolation Resistance | Input-Output, Input-Shell, Output-Shell: 500VDC / 100MΩ | |||||
