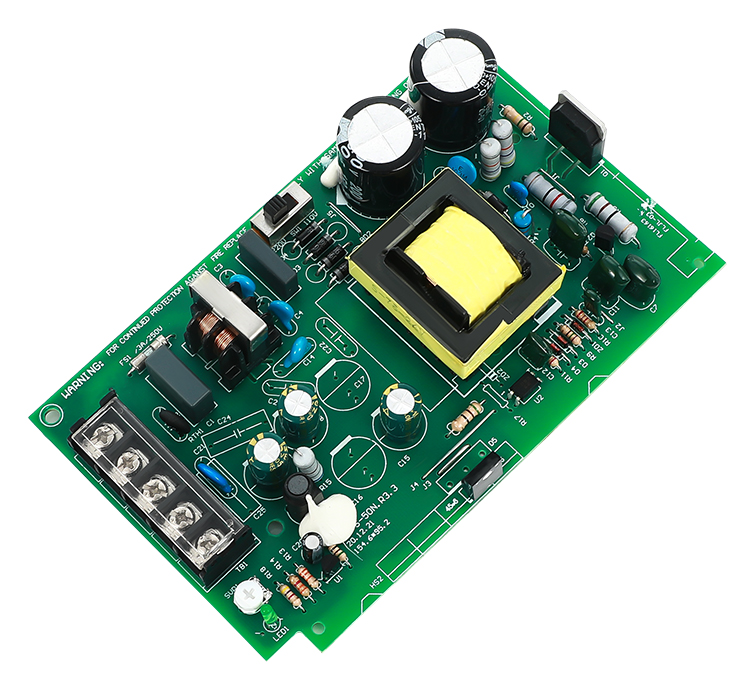

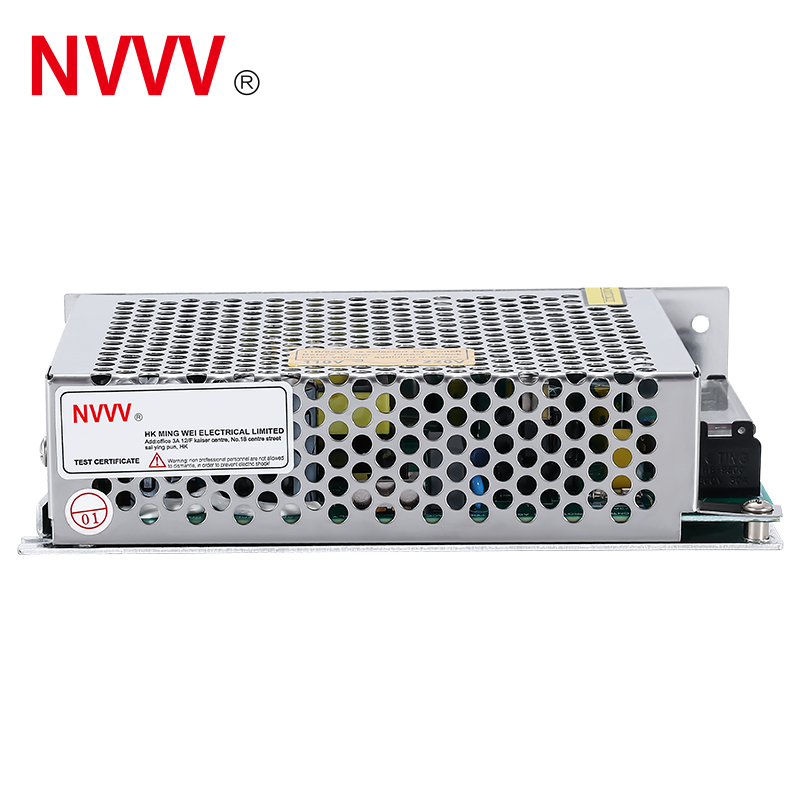

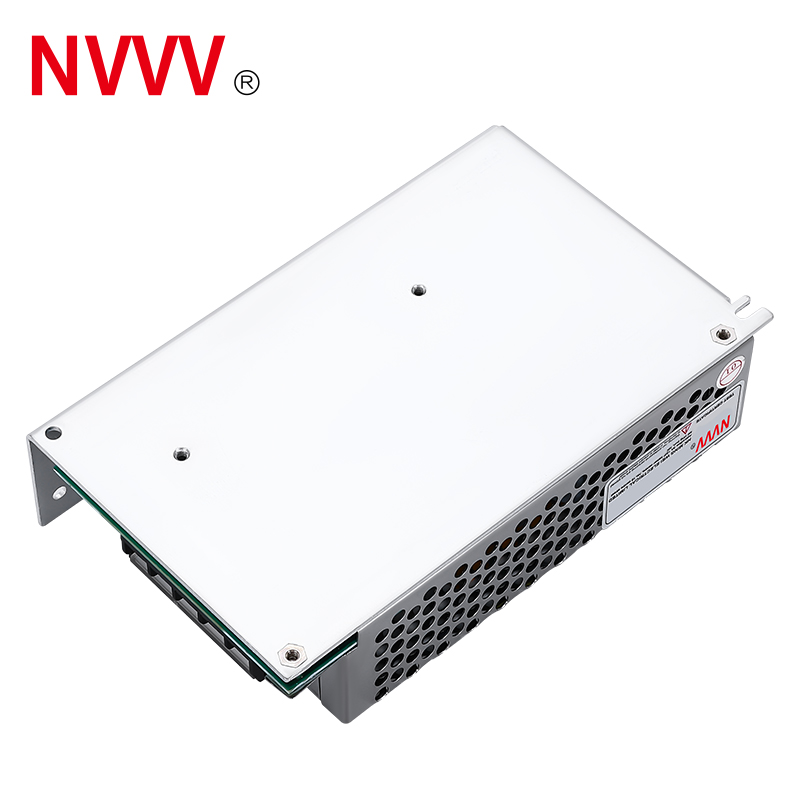

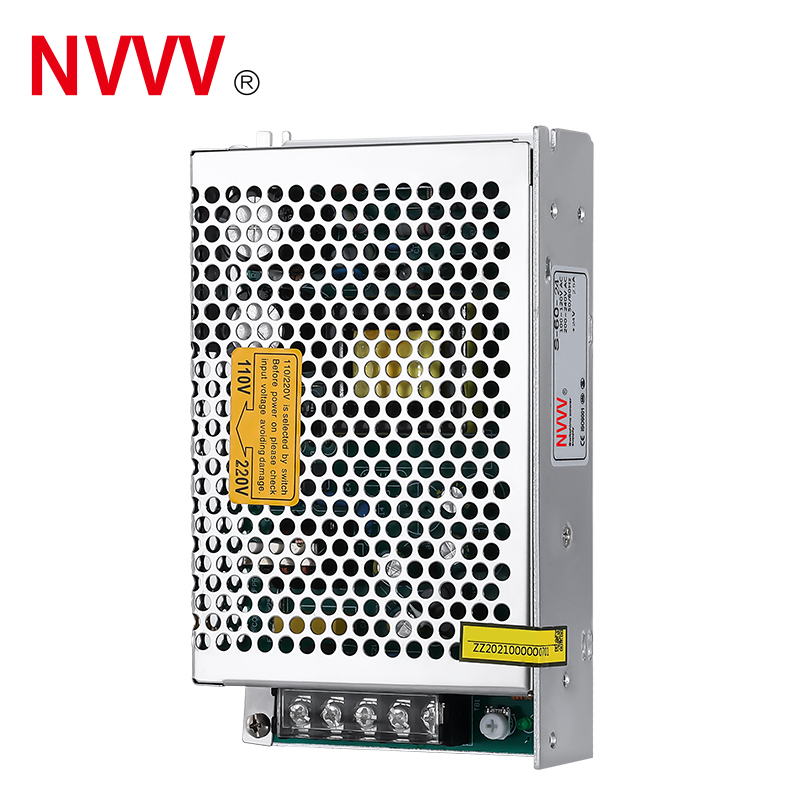

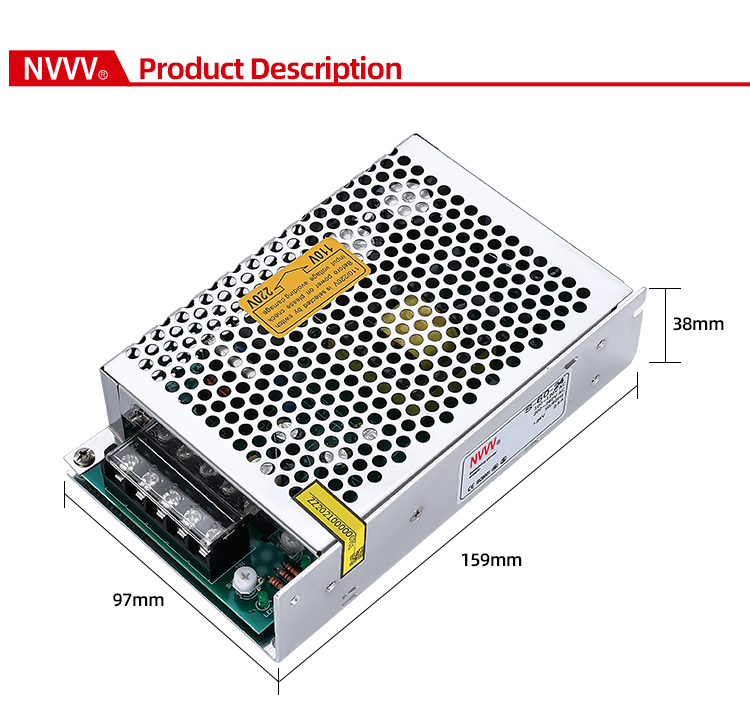

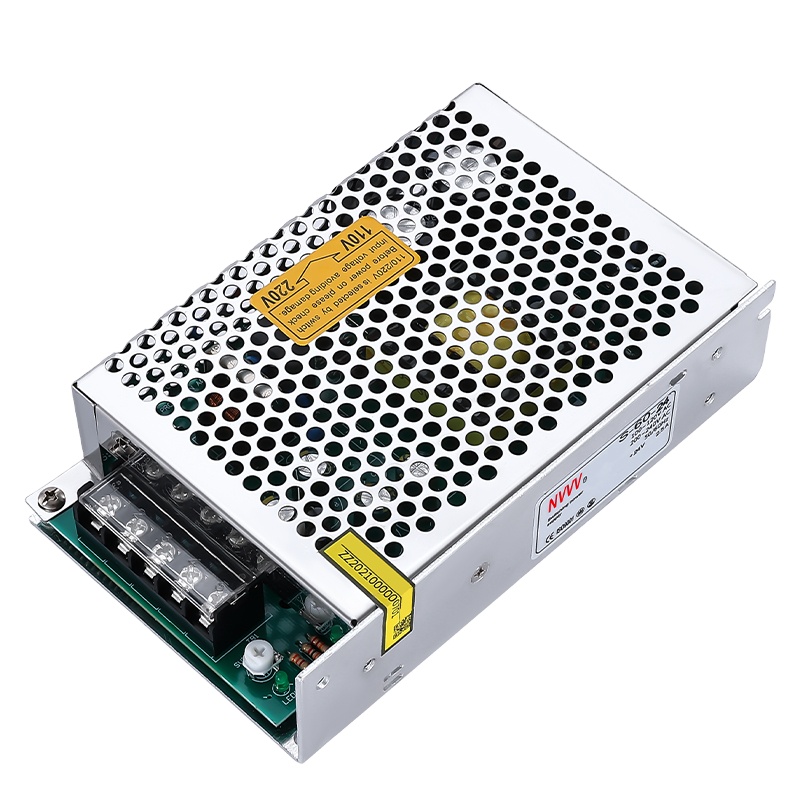

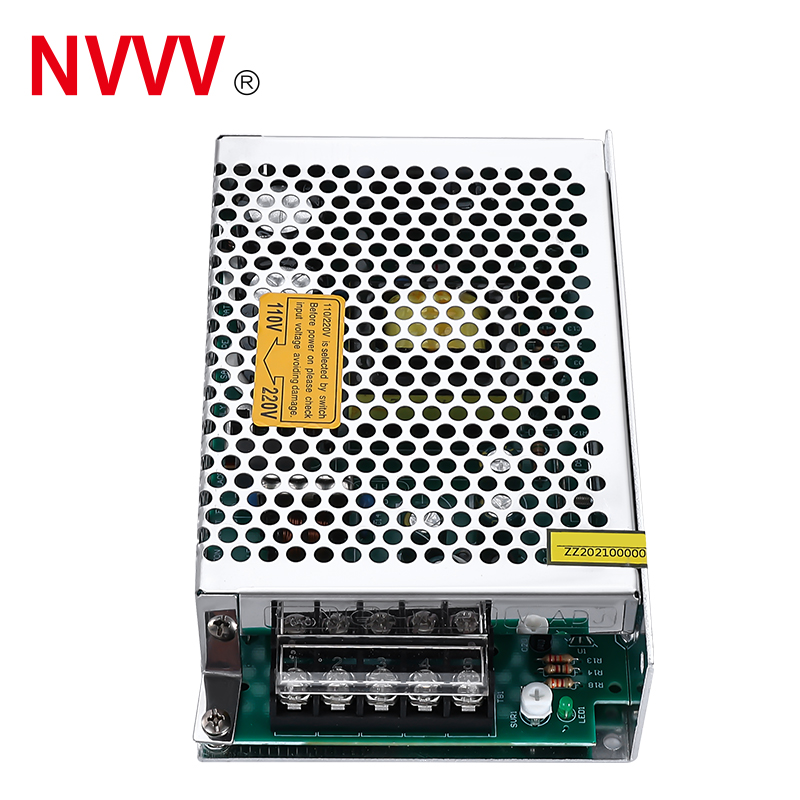

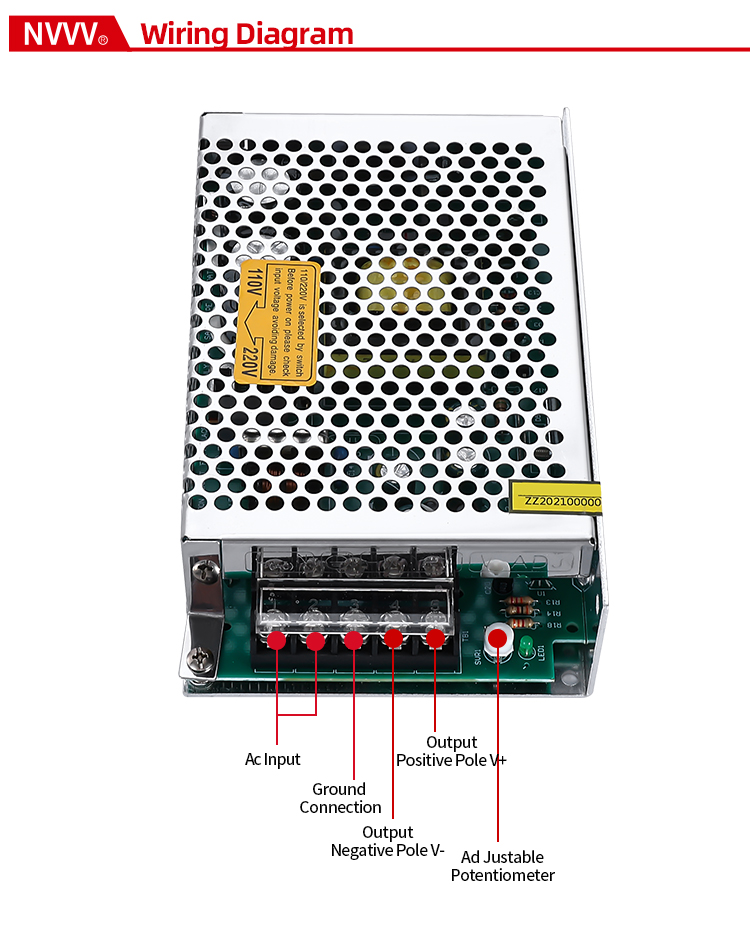

| S-60 60W Switching Power Supply | |||||
|---|---|---|---|---|---|
| Project | Technical Index | ||||
| Output | DC Voltage | 5V | 12V | 15V | 24V |
| Rated Current | 10A | 5A | 4A | 2.5A | |
| Rated Power | 50W | 60W | 60W | 60W | |
| Ripple and Noise | < 75mV | < 120mV | < 120mV | < 150mV | |
| Voltage Accuracy | ±2% | ±1% | |||
| Output Voltage Regulation Range | ±10% | ||||
| Load Adjustment Rate | <±1.5% | <±0.5% | <±0.5% | <±0.5% | |
| Linear Adjustment Rate | <±0.5% | ||||
| Input | Voltage Range | 85-132VAC / 180-264VAC 47Hz-63Hz (254VDC-370VDC) | |||
| Efficiency (typical) | > 75% | > 82% | > 82% | > 84% | |
| Working Current | < 1A @ 110VAC / < 0.6A @ 220VAC | ||||
| Impulse Current | 110VAC 18A / 220VAC 36A | ||||
| Start, Rise, Hold Time | 200ms, 50ms, 20ms at 220VAC | ||||

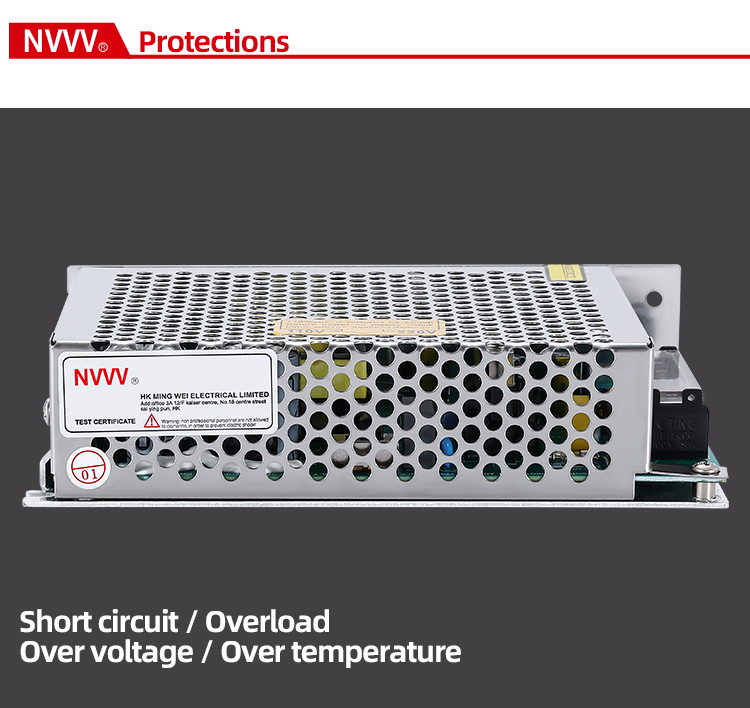

| Protection | Overload Protection | ≥ 105% - 150% Type: Constant current output + VO reduced to undervoltage point cut off output. Reset: Power on again. | |||
| Short Circuit Protection | +VO Drop to undervoltage point to close output | ||||
| Environment | Working Temp. & Humidity | -10℃ ~ +50℃; 20% ~ 90% RH | |||
| Storage Temp. & Humidity | -20℃ ~ +85℃; 10% ~ 95% RH | ||||
| Safety Regulations | Withstand Voltage | Input-Output: 1.5kVac | Input-Shell: 1.5kVac | Output-Shell: 0.5kVac for 1 minute | |||
| Leakage Current | 5mA at 1.5kVac input-output | ||||
| Leakage Current (2) | Input-Output at 220VAC < 1mA | ||||
| Isolation Resistance | Input-Output, Input-Shell, Output-Shell: 500VDC / 100M Ω | ||||
