NVVV Electric
1 / 5

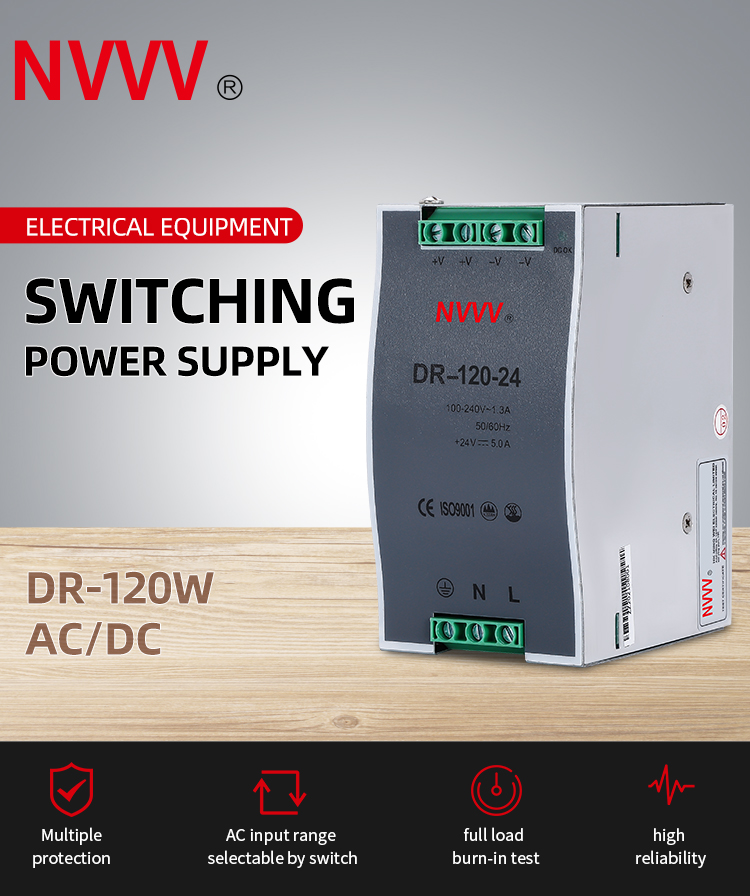

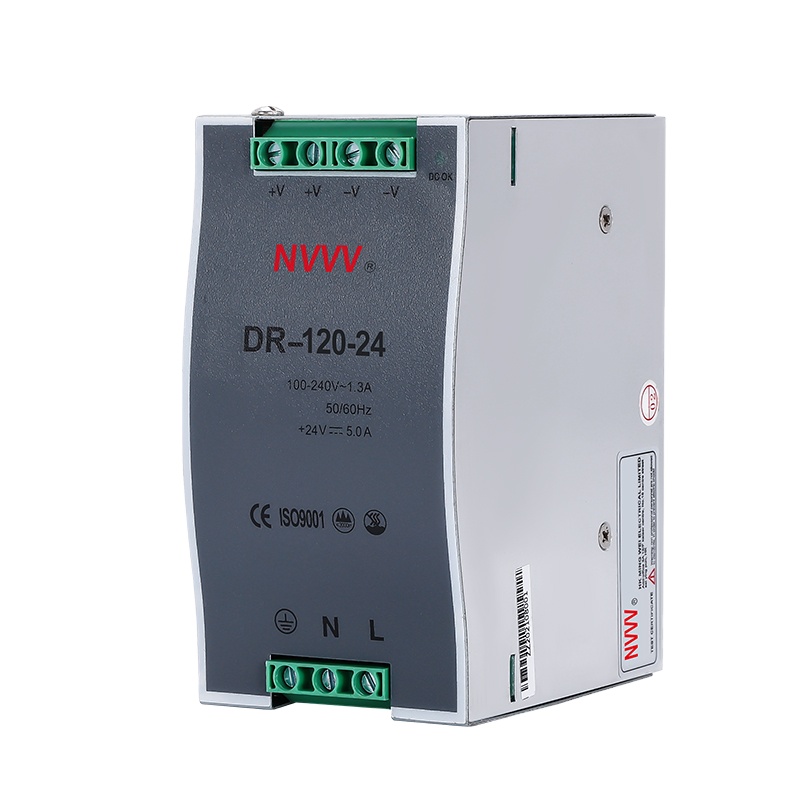

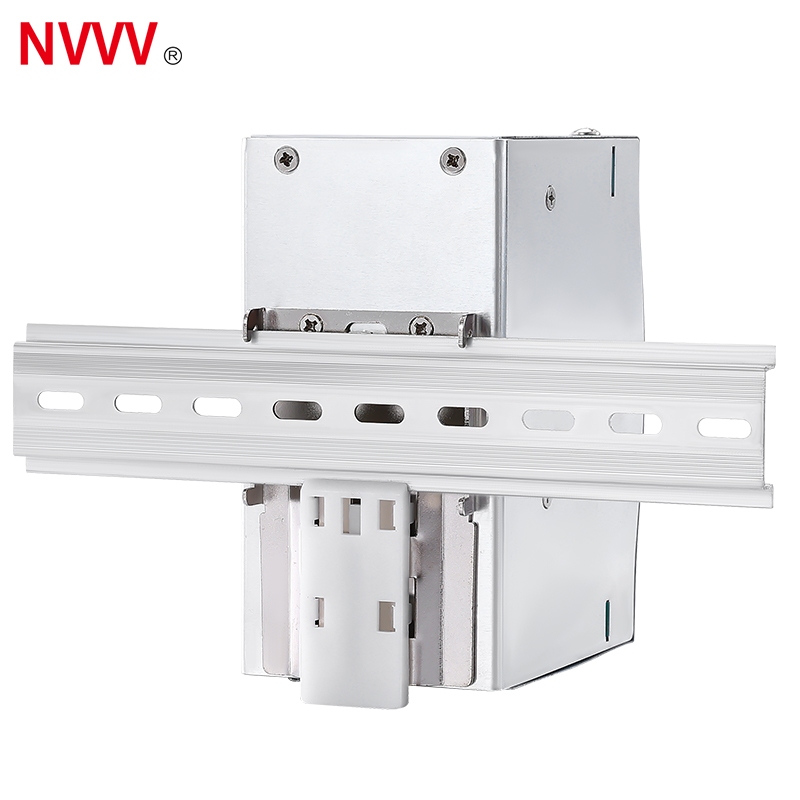

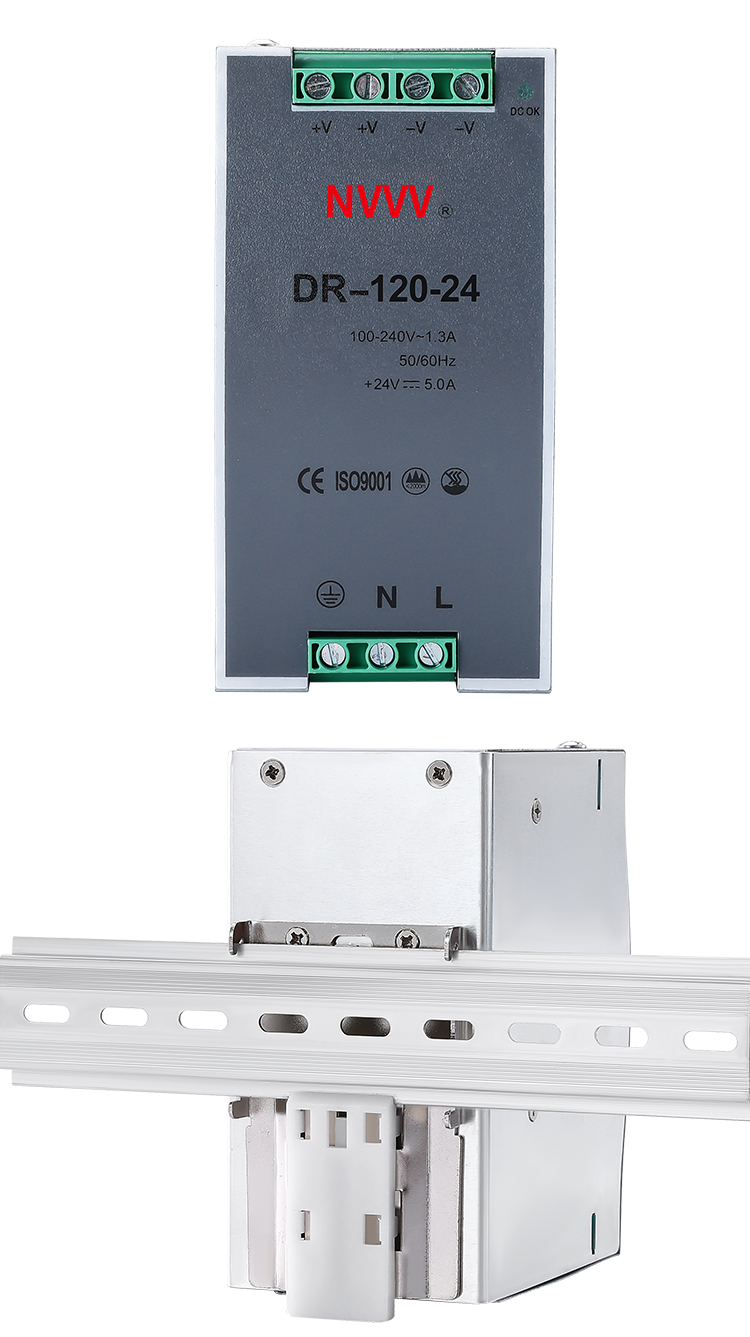

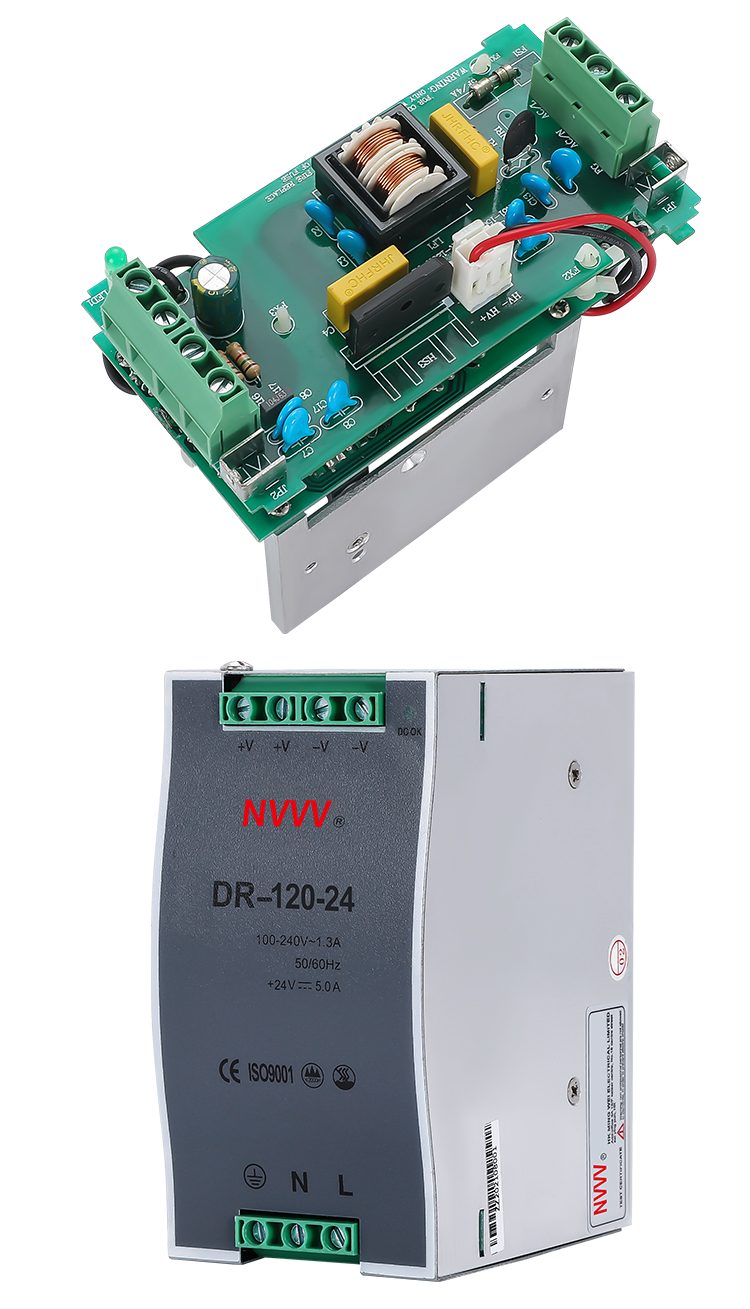

| DR-120W Rail Type Switching Power Supply (Model: DR-120-24) | |
|---|---|
| OUTPUT | |
| DC Voltage | 24V |
| Rated Current | 5A |
| Rated Power | 120W |
| Ripple and Noise ① | < 150mV |
| Voltage Accuracy | ±1% |
| Output Voltage Regulation Range | ±10% |
| Linear adjustment rate | ±0.5% |
| INPUT | |
| Voltage range | 85-264VAC 47Hz ~ 63Hz (120VDC ~ 370VDC) |
| Efficiency (typical) ② | > 88% |
| Working Current | < 2.6A 110VAC / < 1.6A 220VAC |
| Shock Current | 110VAC 20A, 220VAC 40A |
| Start, Rise, Hold time | 500ms, 70ms, 32ms : 110VAC / 500ms, 70ms, 36ms : 220VAC |

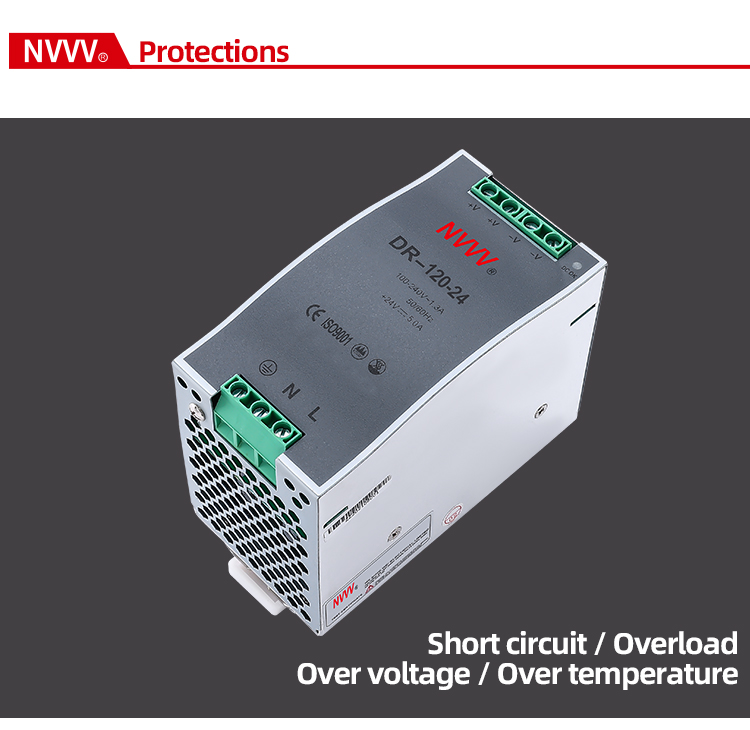

| PROTECTION | |
| Short circuit protection | 105%-150% Type: production mode: burp modde automatic recovery after the abnormal condition is lifted |
| Overload Protection | Output Voltage > 135% will be restored automatically after it is removed |
| Short circuit Protection | VO The output abnormal condition will be restored automatically after it is removed |
| ENVIRONMENT | |
| Working temp. and humidity | -10℃ ~ +50℃, 20% ~ 90% RH |
| Working temp. and humidity | -20℃ ~ +85℃, 10% ~ 95% RH |
| SECURITY | |
| Pressure resistance | I/P-O/P: 3KVAC I/P-FG: 1.5KVAC O/P: 0.5KVAC |
| Isolation resistance | I/P-O/P, O/P-Shell, O/P-Shell : 500VDC/100MΩ |
| OTHER | |

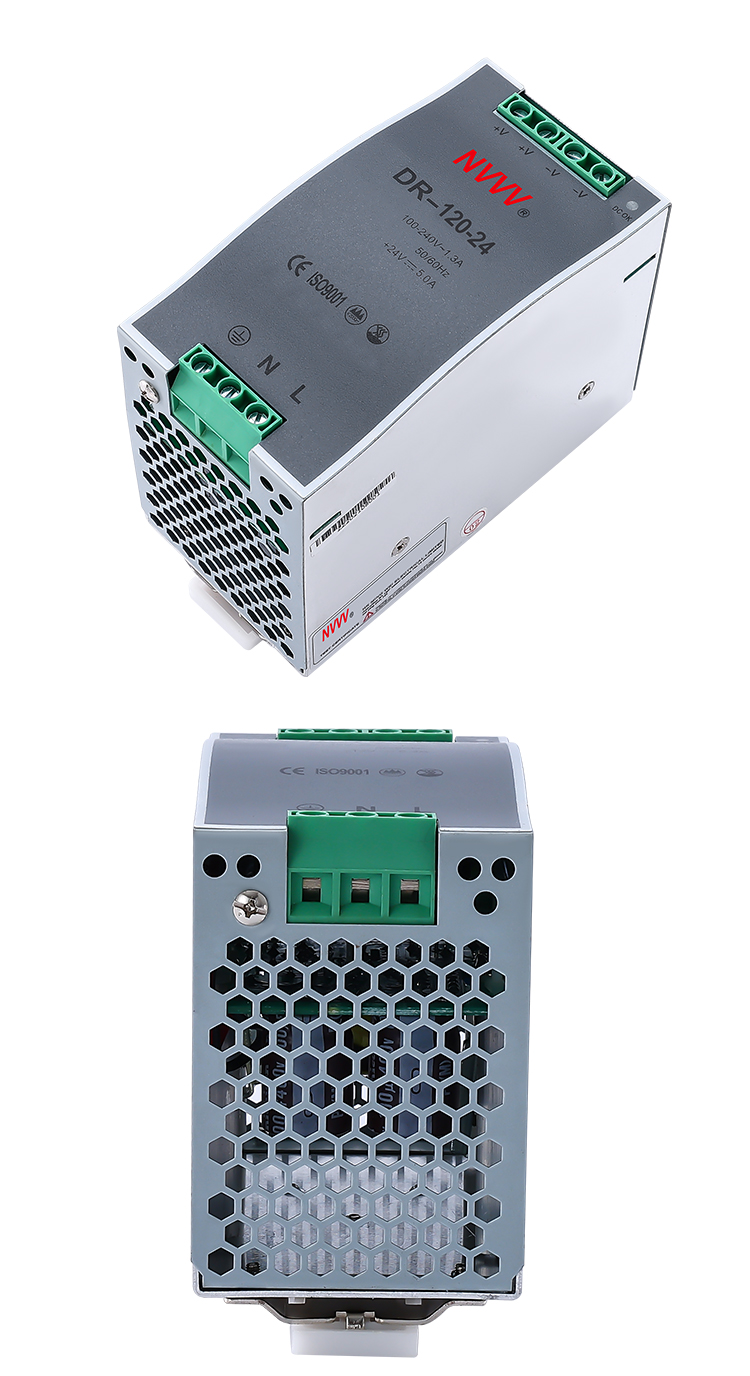

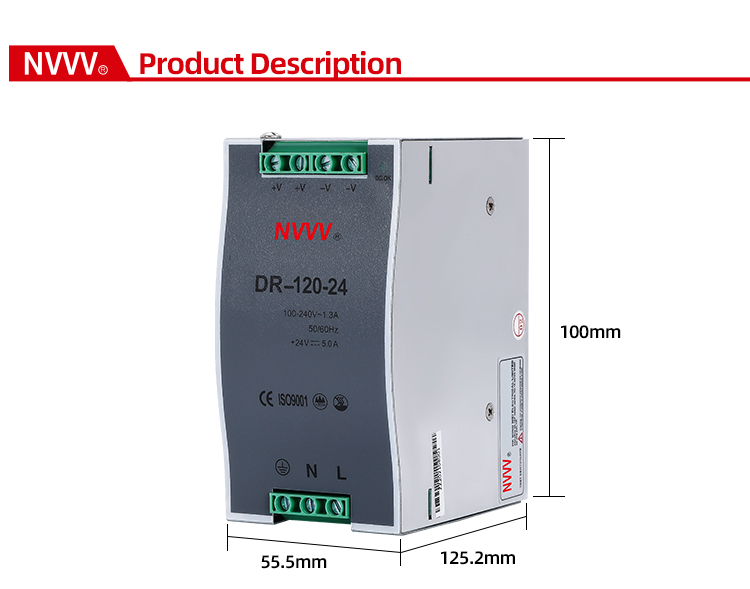

| DIMENSION | 65.5*125.2*100mm(W*H*D) |
| Net/Gross Weight | 790/815g |
Yes, absolutely. We offer both OEM (your brand, logo, packaging) and ODM (we help design/develop products based on your ideas or samples). We have experience working with well-known companies in the industry, and we are confident we can bring that same quality and reliability to your projects. Your brand and ideas are safe with us.
We offer standard voltages including 12V, 24V, 36V, 48V, 60V, 68V, 110V depending on the specific item.
Yes, sample orders are welcome to test quality. Mixed samples are acceptable. We also have overseas warehouses, so you can receive samples faster.
Our MOQ is low. For sample checking, 30 pieces are available.
We work with reliable shipping logistics partners. Depending on your country, our sales team can recommend dedicated shipping routes for better service and lower prices. Specific delivery times can be provided upon request.
First, all our products go through a strict quality control system, so the defect rate is very low. Second, during the warranty period: For small quantities, we will include new products with your next order. For defective batches, we will repair and resend the products, or we can discuss a solution (including a credit or replacement) based on the actual situation.
