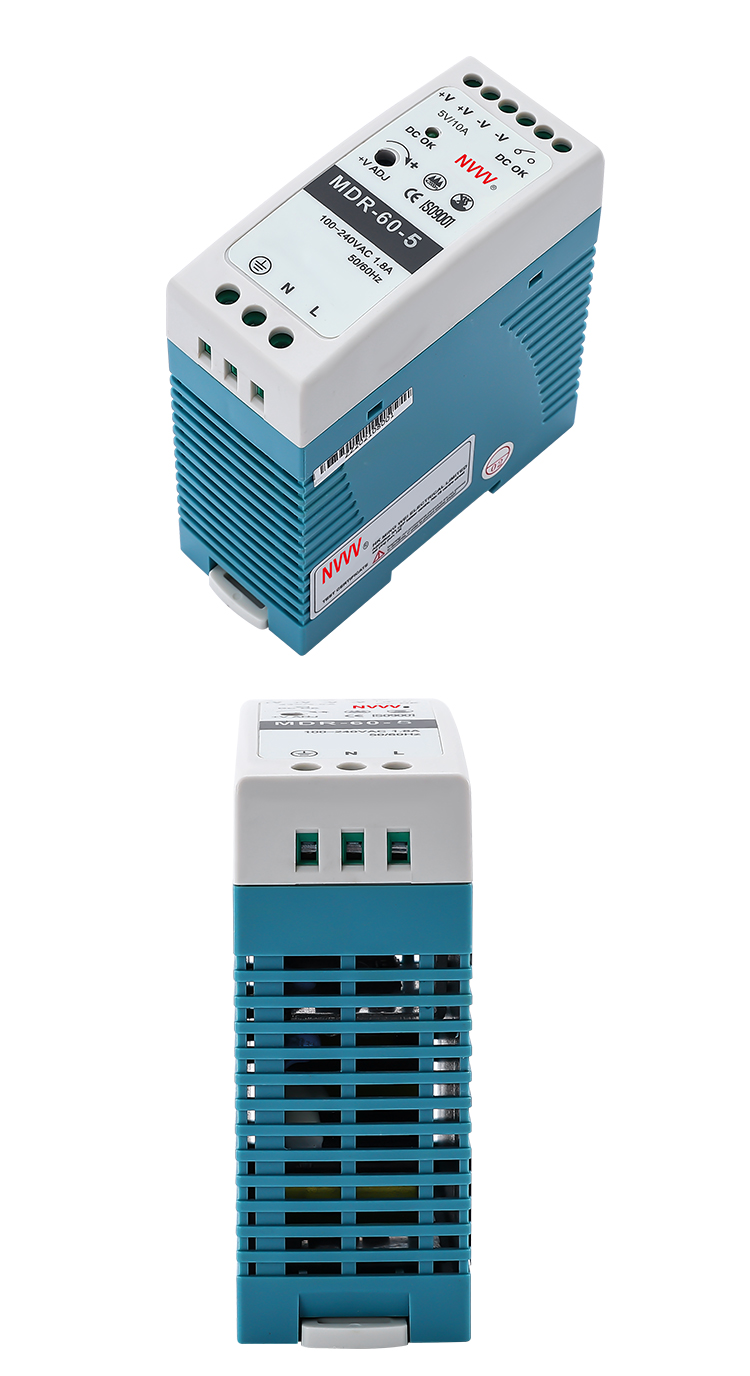

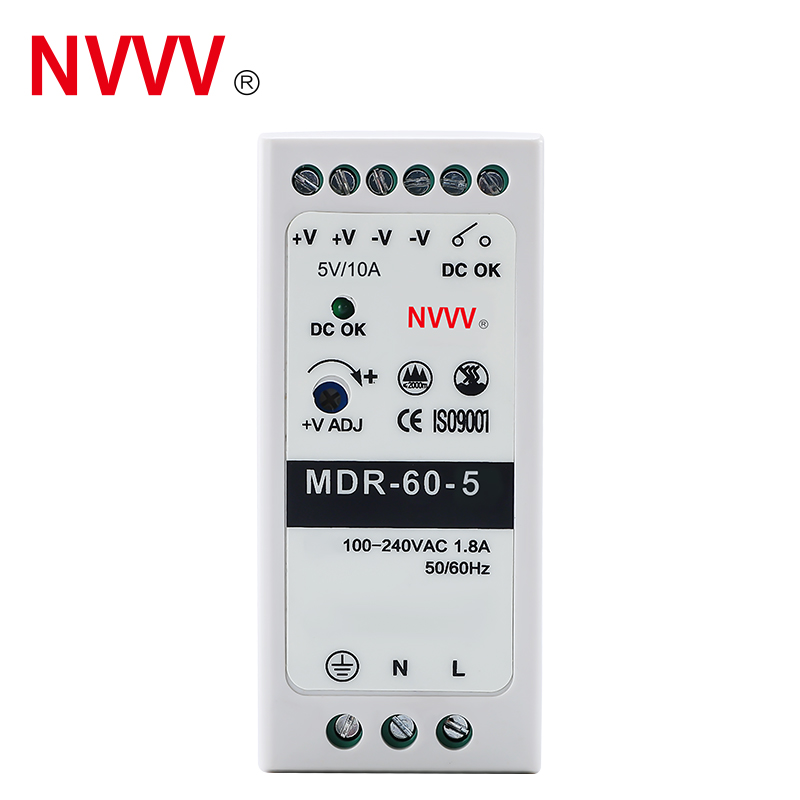

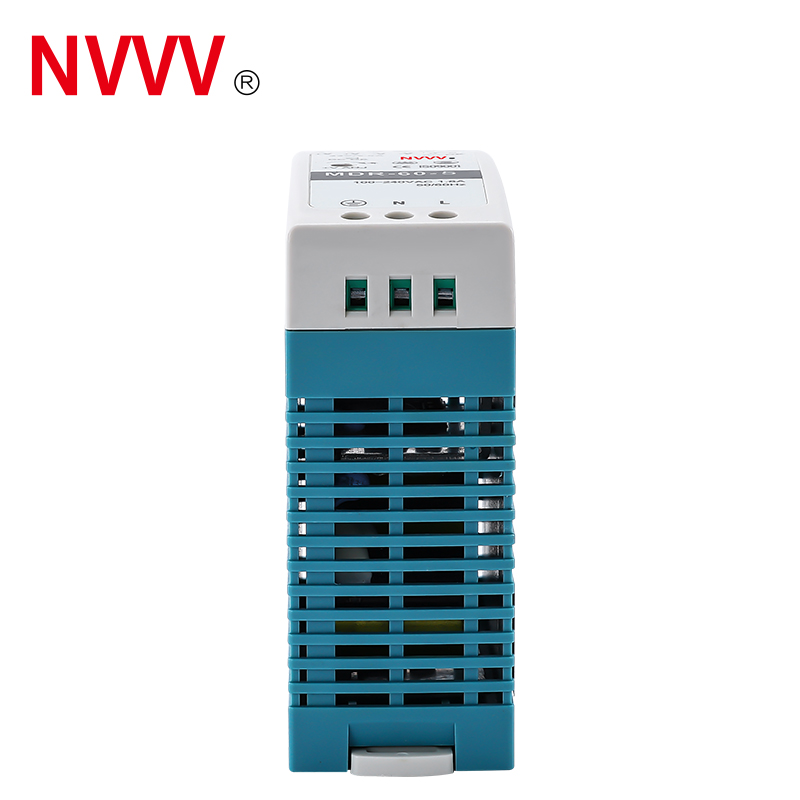

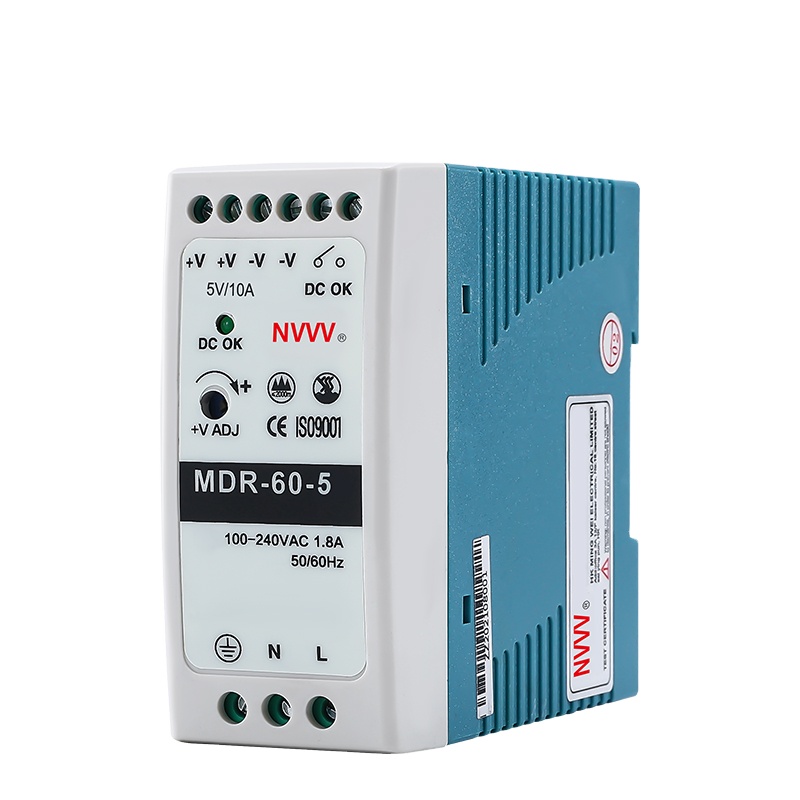

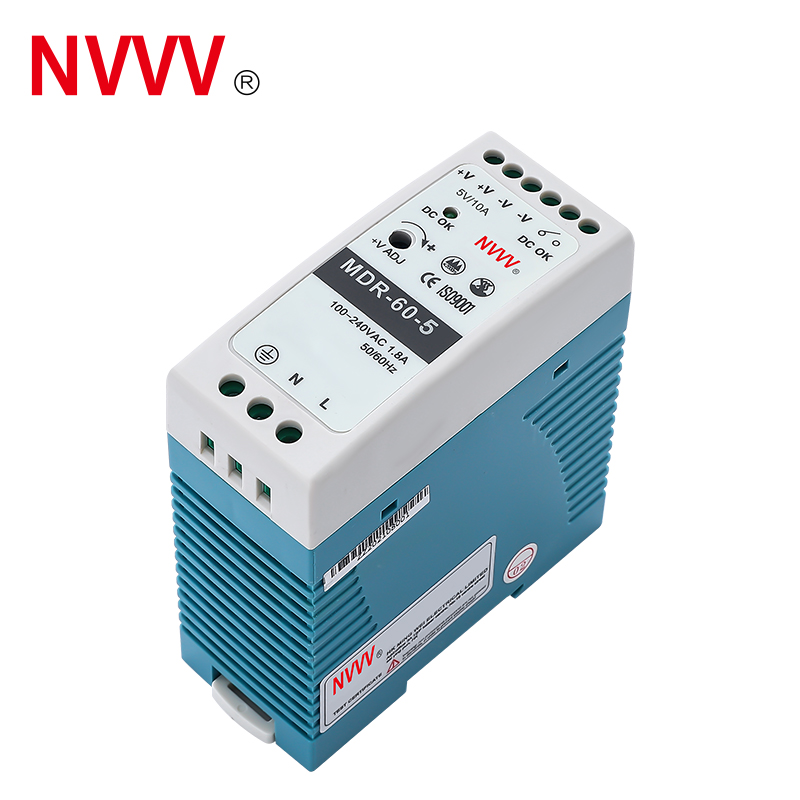

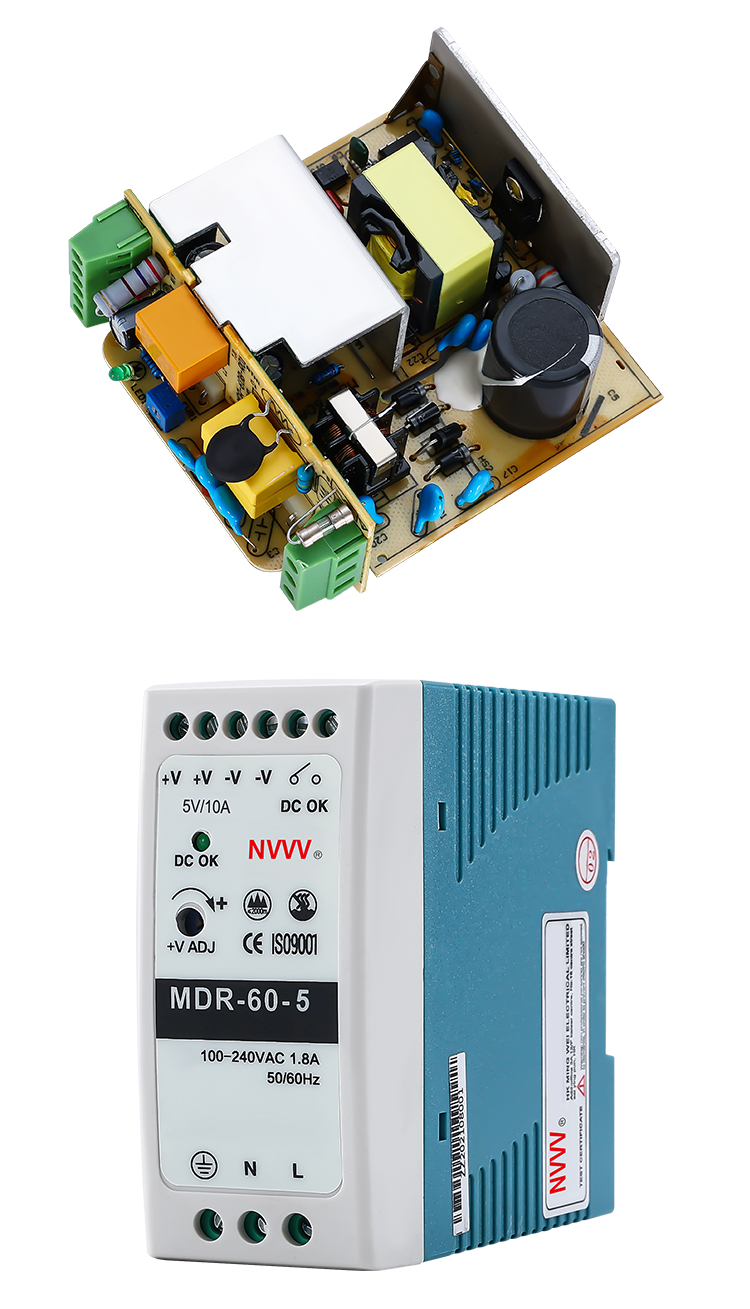

| MDR-60 60W Switching Power Supply | |||
|---|---|---|---|
| Project | Technical Item | 5V Parameter | 12V Parameter / Range |
| Output | DC Voltage | 5V | 12V |
| Rated Current | 10A | 5A | |
| Rated Power | 50W | 60W | |
| Ripple & Noise ① | < 120mV | < 120mV | |
| Voltage Accuracy | ±2% | ±1% | |
| Load Adjustment Rate | ±10% | ||
| Linear Adjustment Rate | ±1% | ±1% | |
| Starting & Rising Time | ±1% | ||
| Input | Voltage Range / Frequency | 85-264VAC 47Hz~63Hz (120VDC~370VDC) | |
| Efficiency (typical) ② | > 78% | > 86% | |
| Working Current | < 1.8A 110VAC / < 1A 220VAC | ||
| Impulse Current | 110VAC 35A / 220VAC 70A | ||
| Overload Protection | 500ms, 30ms, 25ms : 110VAC / 500ms, 30ms, 120ms : 220VAC | ||

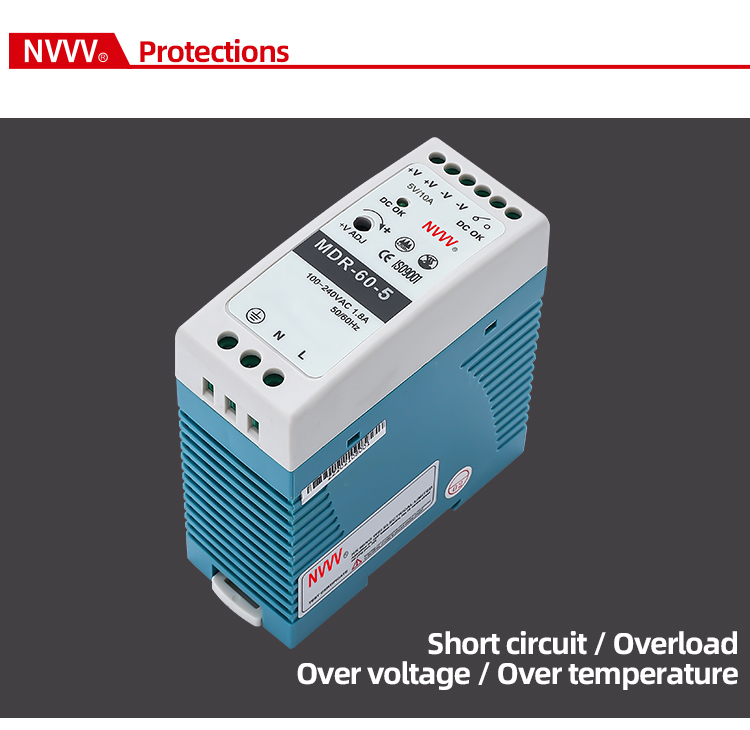

| Protect | Overvoltage Protection | 105%-135% Protection type: Hiccup mode, automatic return to normal after removing abnormal conditions | |
| Working Temp. & Humidity | > 135% Protection type: Close output, restart and automatically return to normal | ||
| Function | Storage Temp. & Humidity | -20℃~+70℃; 20%~90% RH | |
| Withstand Voltage | -40℃~+85℃; 10%~95% RH | ||
| Safety | Leakage Current | Input output: 0.5 kvac for 1 minute | |
| Insulation Impedance | Input output, input shell, output shell: 500VDC / 100MΩ | ||

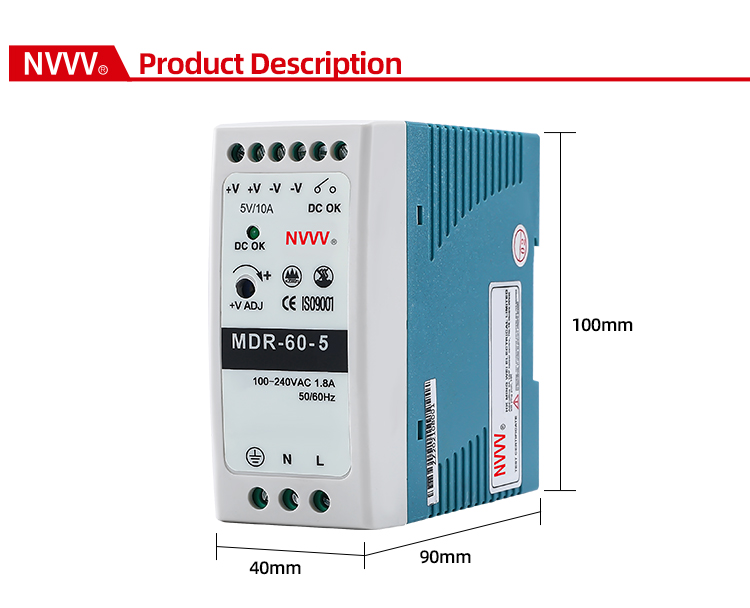

| Other | Size | 40*90*100mm | |
| Net/Gross Weight | 300g / 325g | ||
