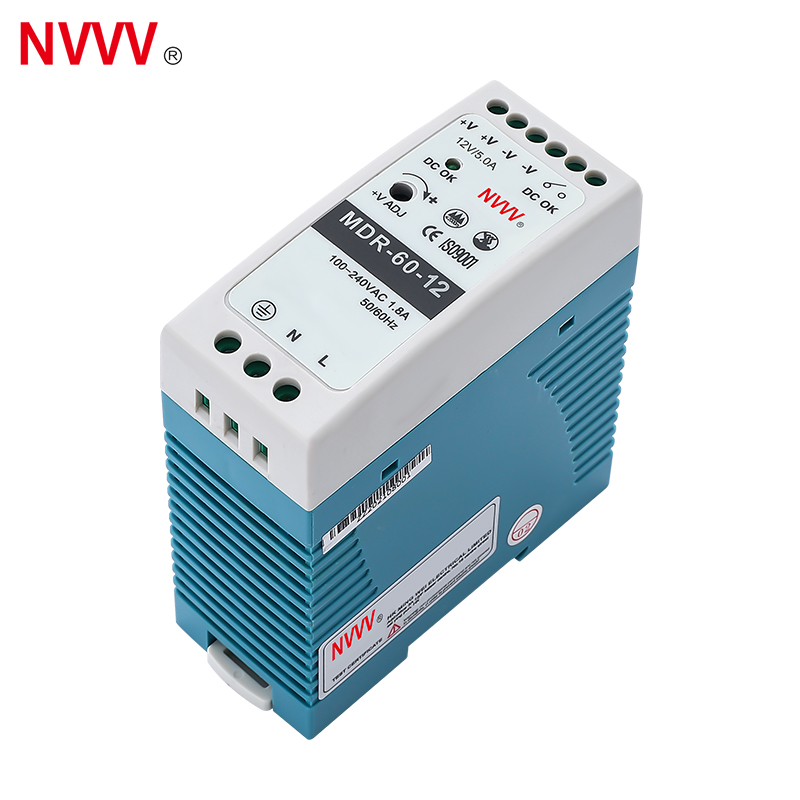

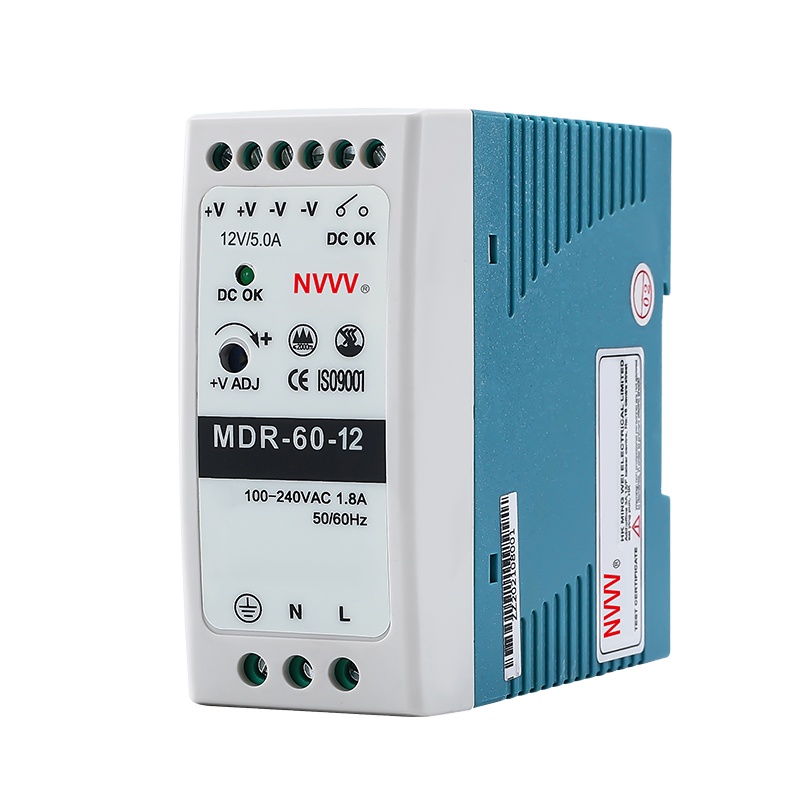

| MDR-60 60W Rail Type Switching Power Supply | |||||
|---|---|---|---|---|---|
| Project | Technical Index | ||||
| Output | DC voltage | 5V | 12V | 24V | 48V |
| Rated current | 10A | 5A | 2.5A | 1.25A | |
| Rated power | 50W | 60W | 60W | 60W | |
| Ripple and noise ① | <80mV | <120mV | <150mV | <200mV | |
| Voltage accuracy | ±2% | ±1% | ±1% | ±1% | |
| Output voltage regulation range | ±10% | ||||
| Load adjustment rate | ±1.5% | ±1% | ±1% | ±1% | |
| Linear adjustment rate | ±1% | ||||
| Input | Voltage range | 85-264VAC 47Hz~63Hz (120VDC~370VDC) | |||
| Efficiency (typical) ② | >78% | >86% | >88% | >87% | |
| Working current | <1.8A 110VAC, <1A 220VAC | ||||
| Impulse current | 110VAC 35A, 220VAC 70A | ||||
| Start, rise hold time | 500ms, 30ms, 25ms : 110VAC / 500ms, 30ms, 120ms : 220VAC | ||||

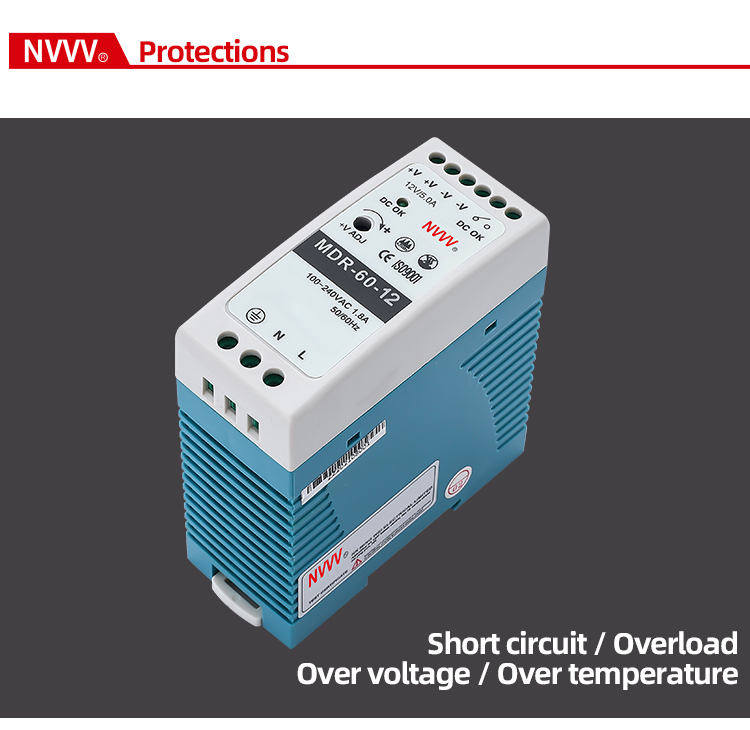

| Protect | Overload protection | 105%-150% type: protection mode: automatic recovery after abnormal conditions are removed | |||
| Overvoltage protection | When the output voltage is more than 135%, close the abnormal output condition and restart it for recovery | ||||
| Environmental | Working temperature/humidity | -20℃~+70℃, 20%~90% RH | |||
| Storage temperature/humidity | -40℃~+85℃, 10%~95% RH | ||||
| Safety Regulations | Withstand voltage | Input-output: 3KVAC, input-ground: 1.5KVAC, output-ground: 0.5KVAC for 1 minute | |||
| Isolation resistance | Input-output, input-shell, output-shell: 500VDC / 100MΩ | ||||

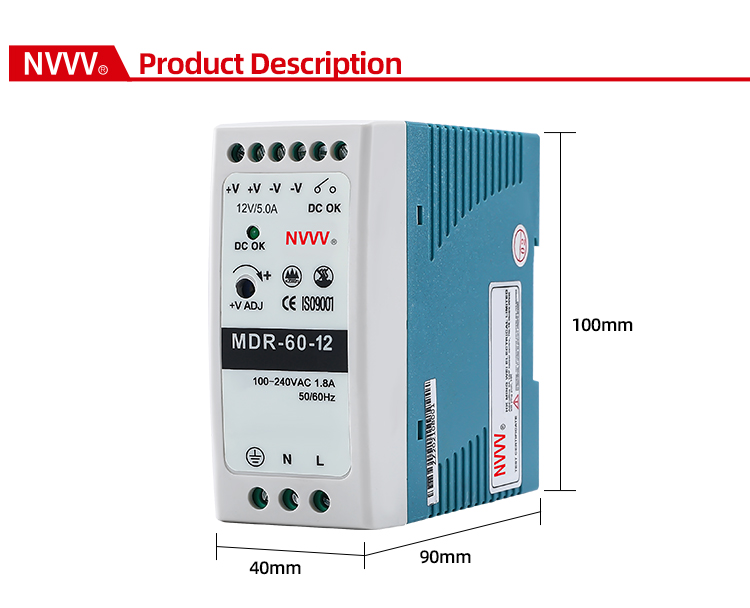

| Other | Size | 40*90*100mm | |||
| Net weight / Gross weight | 330g / 350g | ||||
