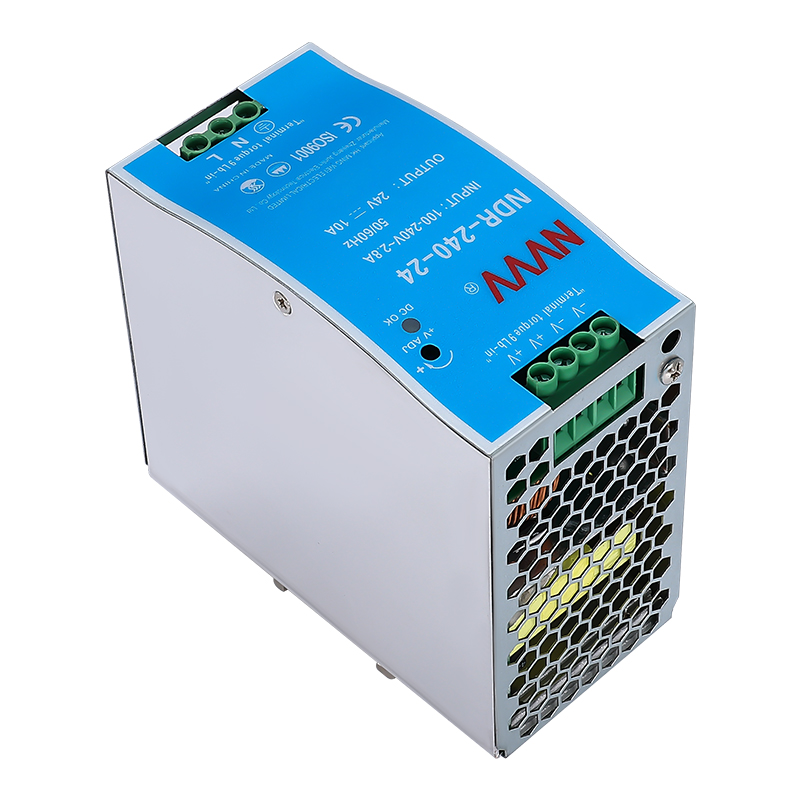

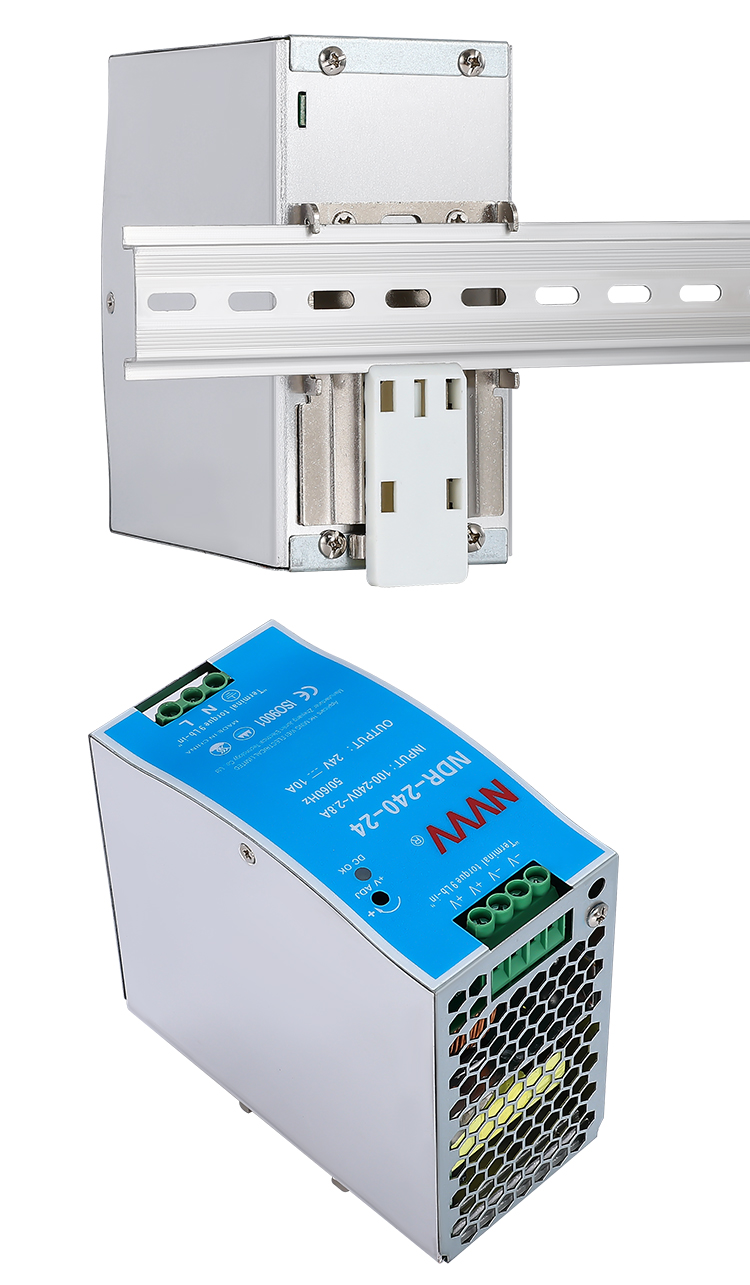

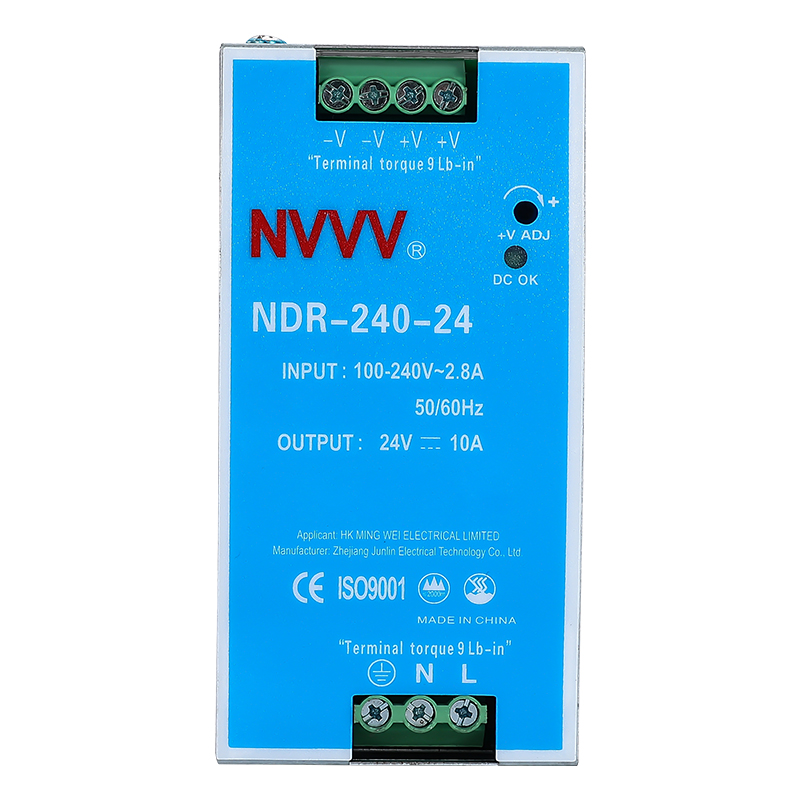

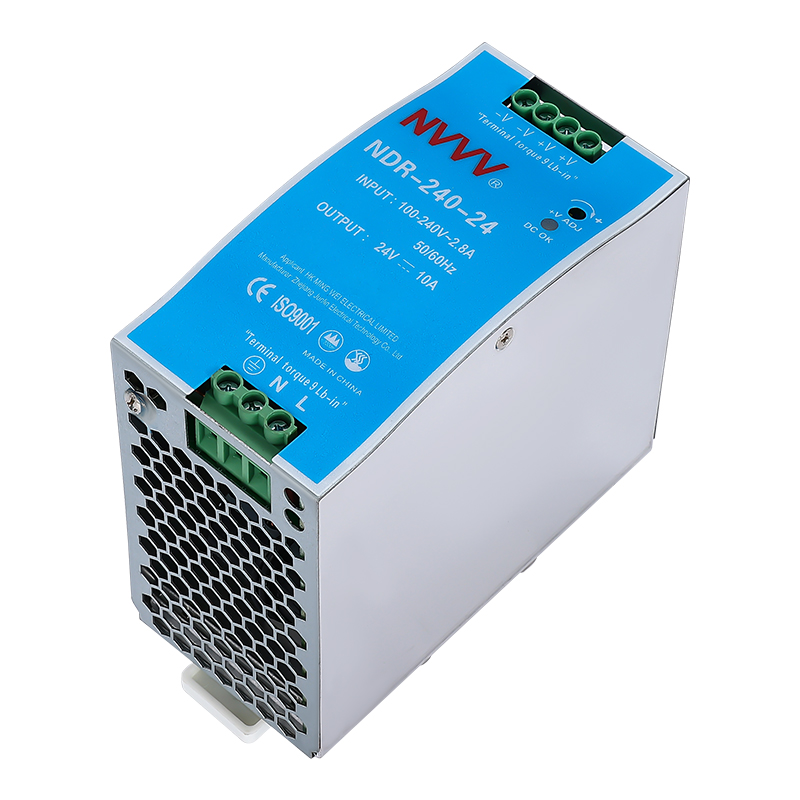

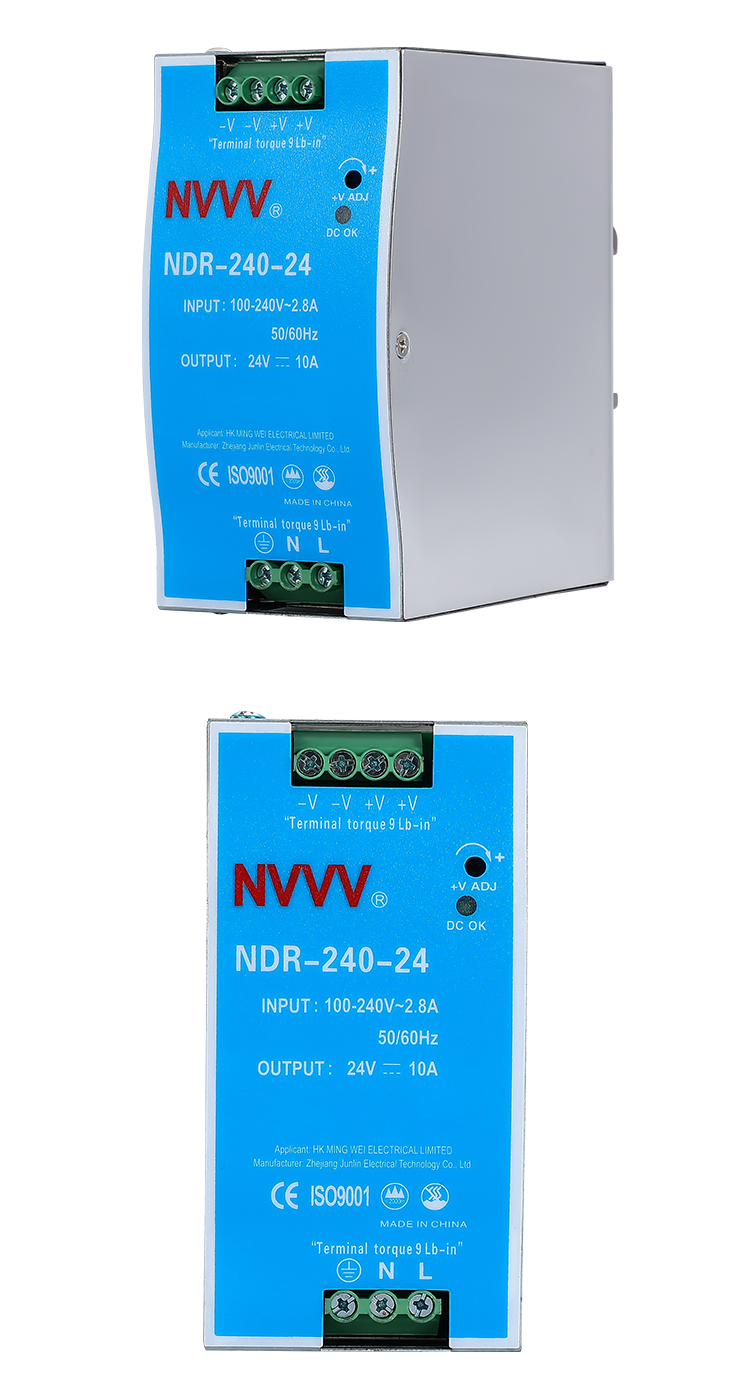

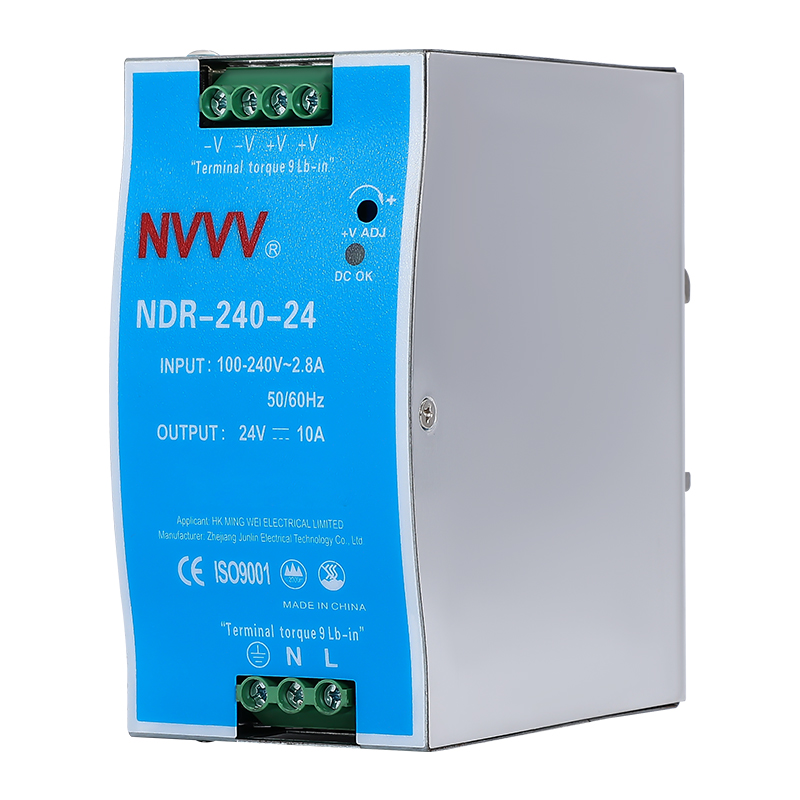

| NDR-240 240W Rail Type Switching Power Supply | ||
|---|---|---|
| Project | NDR-240-24 | NDR-240-48 |
| Output | ||
| DC VOLTAGE | 24V | 48V |
| RATED CURRENT | 10A | 5A |
| CURRENT RANGE | 0~10A | 0~5A |
| RATED POWER | 240W | 240W |
| RIPPLE & NOISE | 150mVp-p | 150mVp-p |
| VOLTAGE ADJ. RANGE | 24~28V | 48~55V |
| VOLTAGE TOLERANCE | ±1.0% | ±1.0% |
| LINE REGULATION | ±0.5% | ±0.5% |
| LOAD REGULATION | ±1.0% | ±1.0% |
| SETUP RISE TIME | 1500ms, 100ms/230VAC | 3000ms, 100ms/115VAC at full load |
| HOLD UP TIME (Typ.) | 28ms/230VAC 22ms/115VAC at full load | |
| Input | ||
| VOLTAGE RANGE | 90~264VAC 127~370VDC | |
| FREQUENCY RANGE | 47~63Hz | |
| POWER FACTOR (Typ.) | PF>0.98/115VAC, PF>0.95/230VAC at full load | |
| EFFICIENCY (Typ.) | 88% | 89% |
| AC CURRENT (Typ.) | 2.5A/115VAC 1.3A/230VAC | |
| INRUSH CURRENT (Typ.) | 20A/115VAC 35A/230VAC | |
| LEAKAGE CURRENT | <1mA/240VAC | |

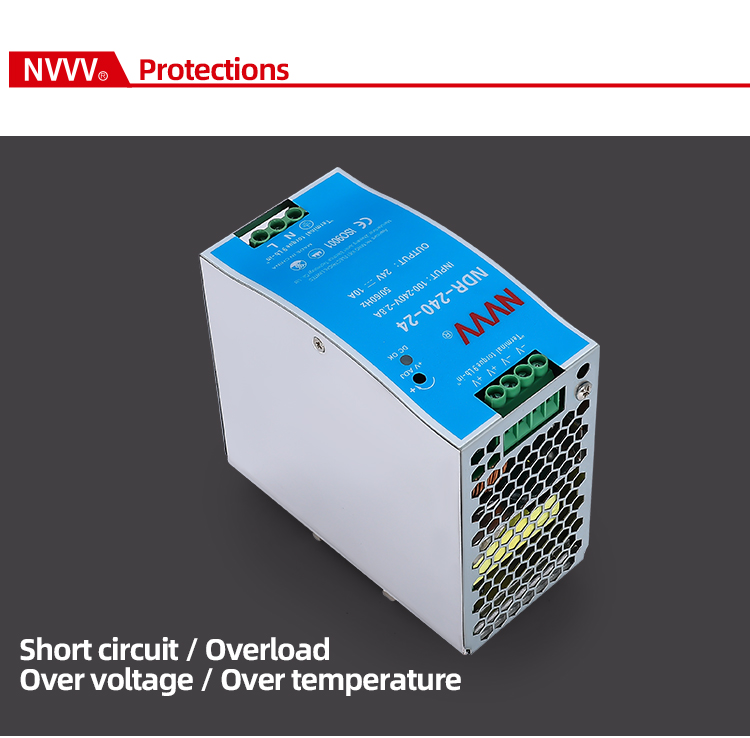

| Protect | ||
| OVERLOAD | 105 ~ 130% rated output power. Protection type: Constant current limiting, recovers automatically after fault condition is removed. | |
| OVER VOLTAGE | 29~33V | 56~65V |
| OVER TEMPERATURE | Shut down o/p voltage, recovers automatically after temperature goes down | |
| Environmental | ||
| WORKING TEMP | -20°C ~ +70°C | |
| WORKING HUMIDITY | 20-95% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40°C ~ +85°C, 10% ~ 95% RH | |
| TEMR COEFFICIENT | ±0.03%/°C (0-50°C) | |
| VIBRATION | Component: 10 - 500Hz, 2G 10min/1cycle, 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6 | |
| Safety | ||
| SAFETY STANDARDS | UL508, TUV BS EN(EN62368-1), EAC TP TC 004, BSMI CNS14336-1 approved (meet BS EN/EN60204-1) | |
| WITHSTAND VOLTAGE | I/P-O/P: 3KVAC, I/P-FG: 2KVAC, O/P-FG: 0.5KVAC | |
| Other | ||
| MTBF | 230.2K hrs min. MIL-HDBK-217F (25°C) | |
| DIMENSION | 63*125*113mm (W*H*D) | |
| PACKING | 1Kg; 12pcs/13Kg/1.22CUFT | |
