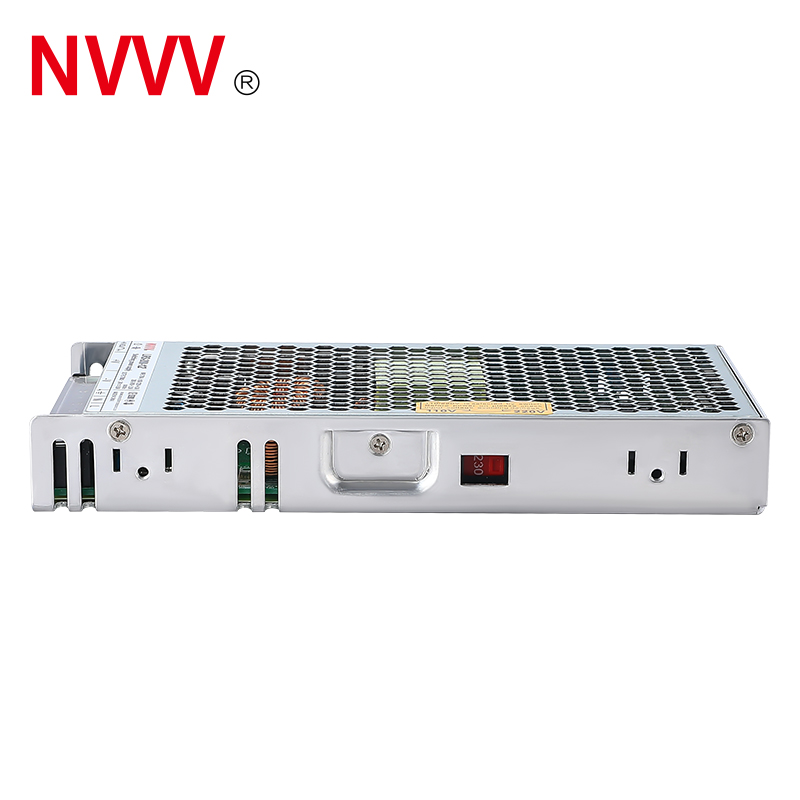

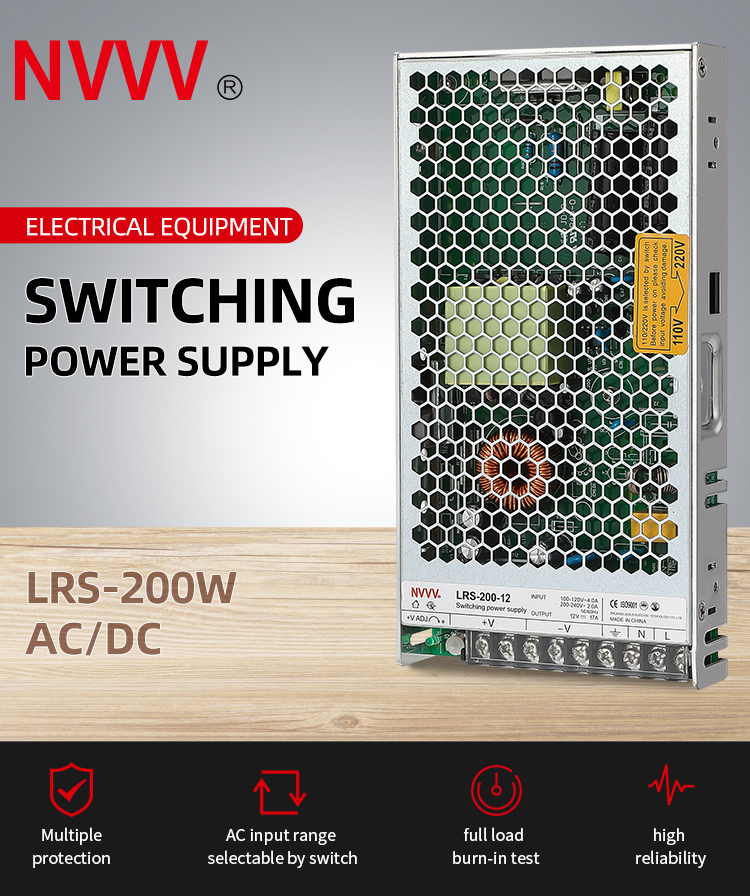

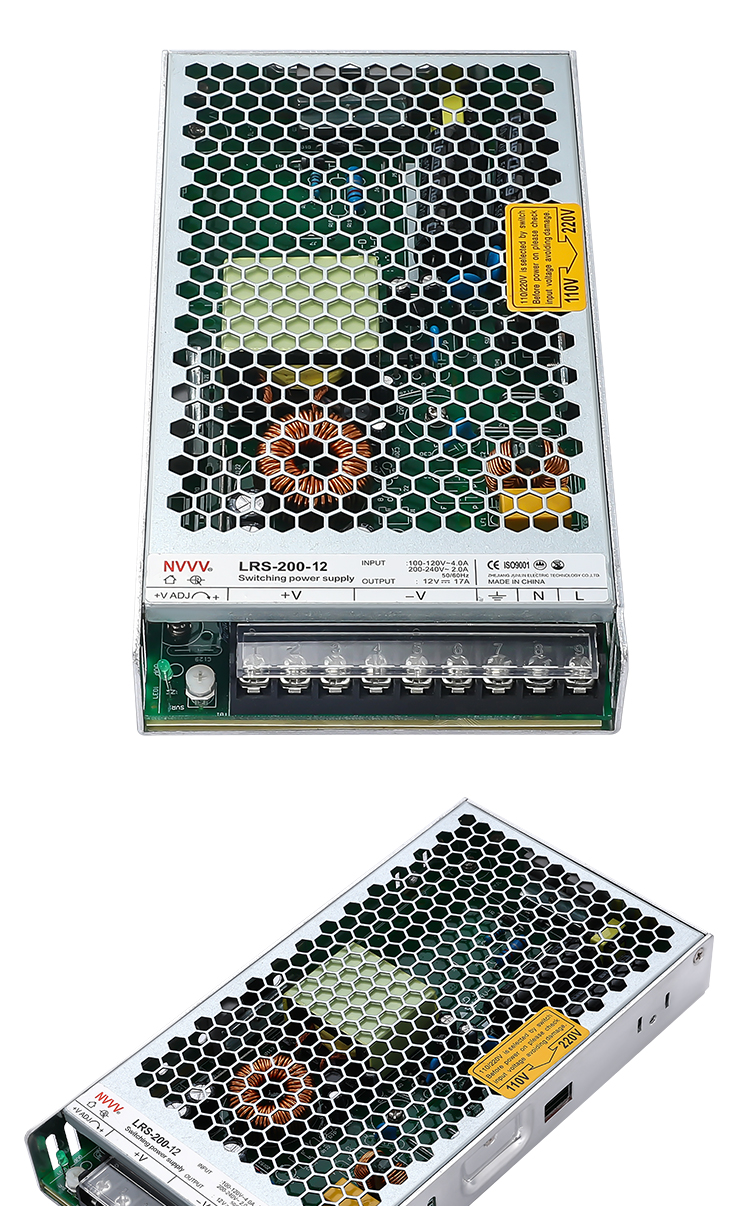

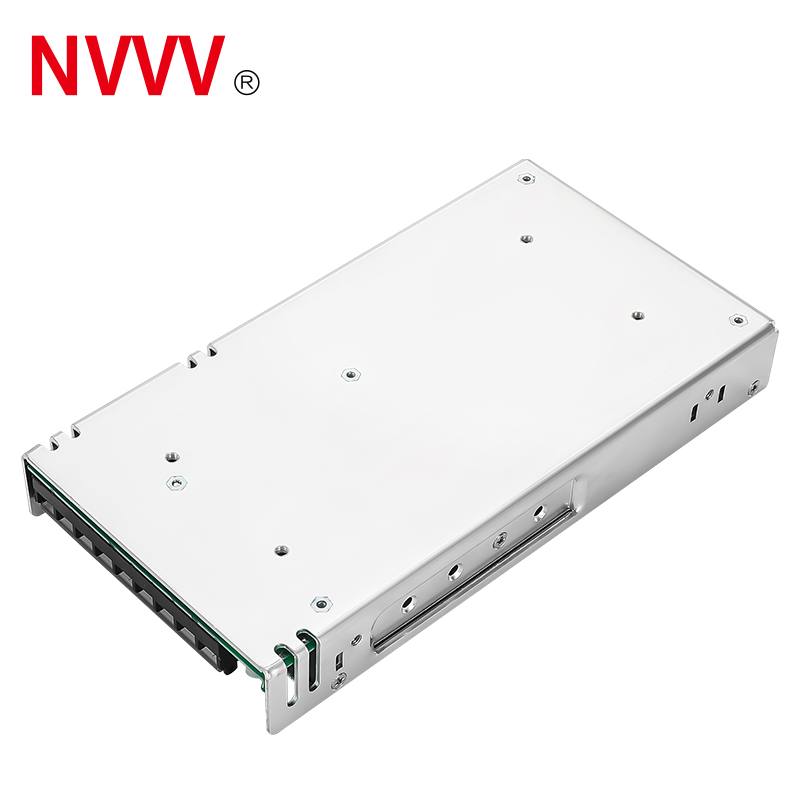

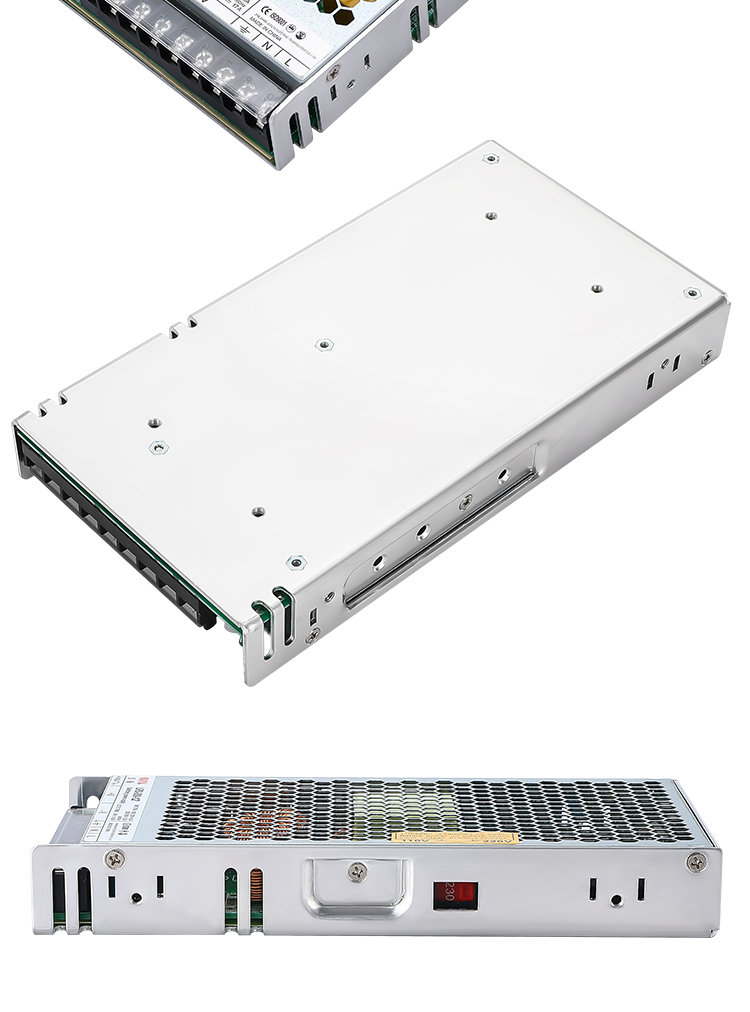

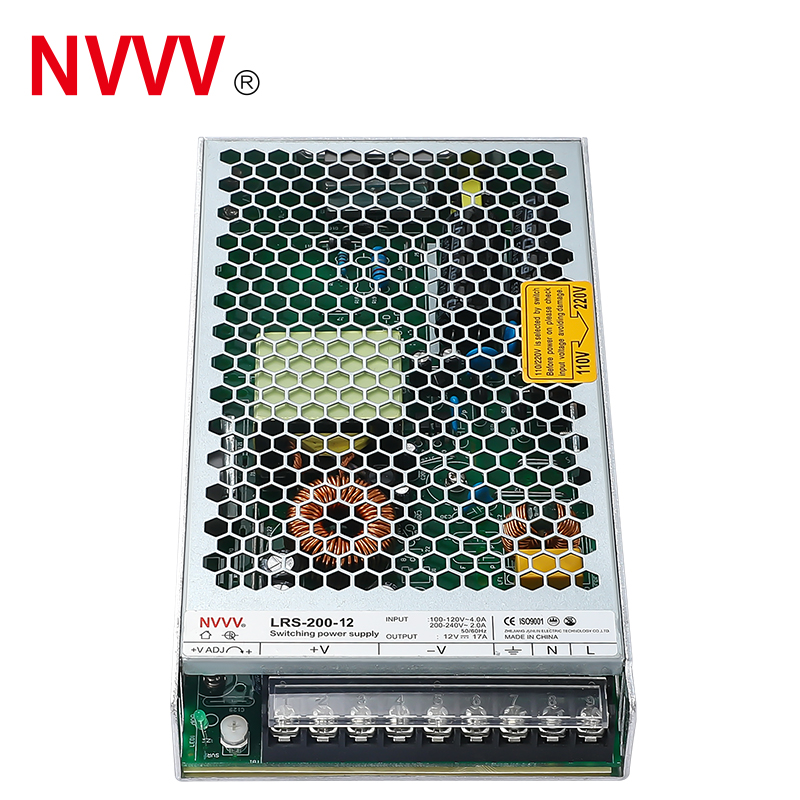

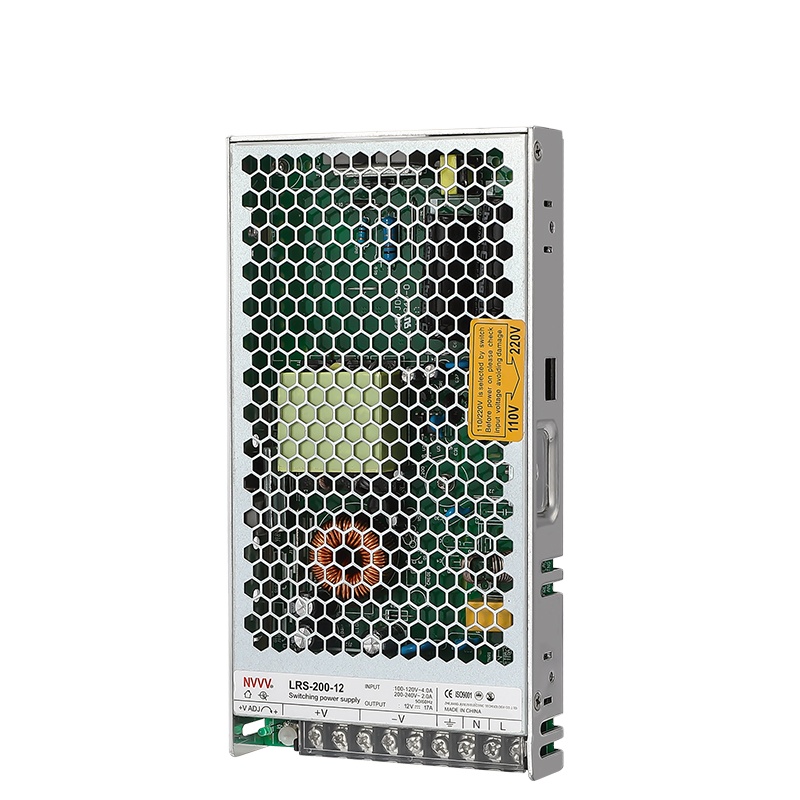

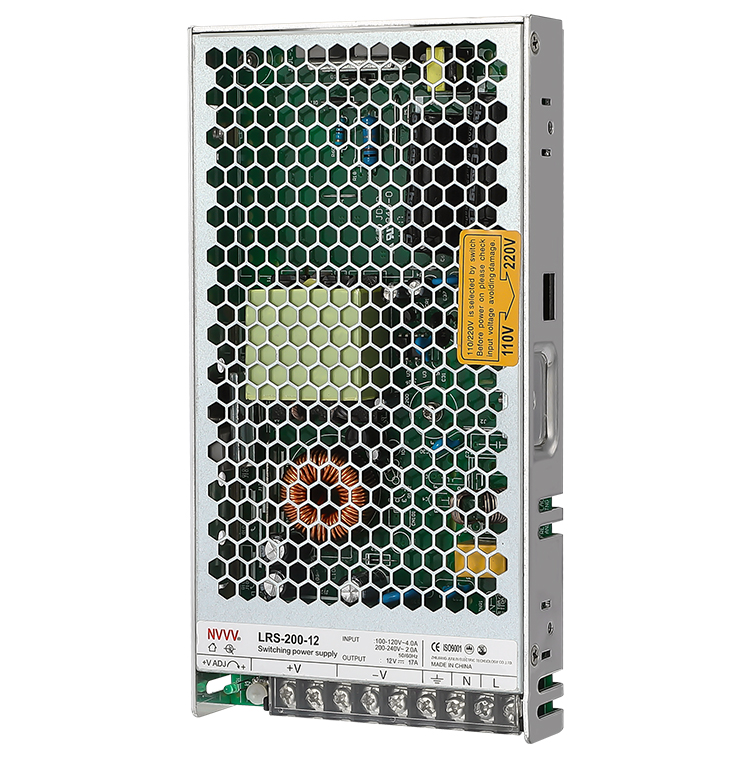

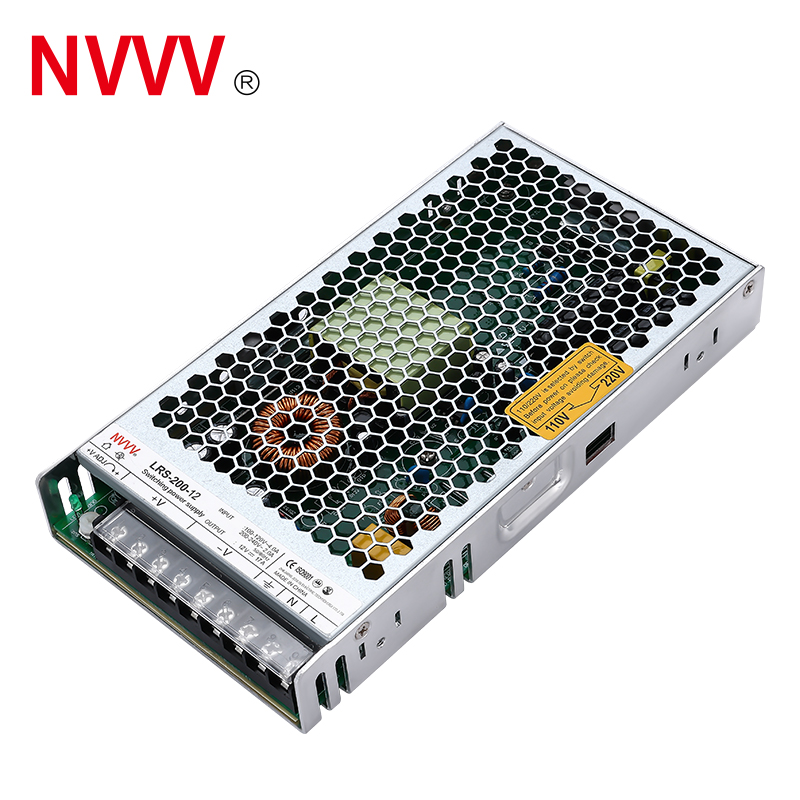

| LRS-200 Series 200W Switching Power Supply | |||||
|---|---|---|---|---|---|
| Project | 5V | 12V | 24V | 48V | |
| Output | DC voltage | 5V | 12V | 24V | 48V |
| Rated current | 40A | 17A | 8.8A | 4.4A | |
| Rated power | 200W | 204W | 211.2W | 211.2W | |
| Ripple and noise ① | 150mVp-p | 150mVp-p | 150mVp-p | 200mVp-p | |
| Ripple and noise | ±10% | ||||
| Voltage accuracy | ±3.0% | ±1.5% | ±1.0% | ±1.0% | |
| Linear adjustment rate | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| Load adjustment rate | ±2.0% | ±1.0% | ±0.5% | ±0.5% | |
| Starting and rising time | 1500ms, 50ms/230VAC | 1500ms, 50ms/115VAC (Full load) | ||||
| Retention time | 16ms/230VAC | 12ms/115VAC (Full load) | ||||
| Input | Voltage range / frequency | 90-132VAC / 180-264VAC selected by switch / 240-370VDC 47Hz ~ 63Hz | |||
| Efficiency (typical) ② | 87% | 87.50% | 89.50% | 90% | |
| Working current | 4A/115VAC | 2.2A/230VAC | ||||
| Impulse current | Cold start: 60A / 230VAC | ||||
| Leakage current | <2mA 240VAC | ||||

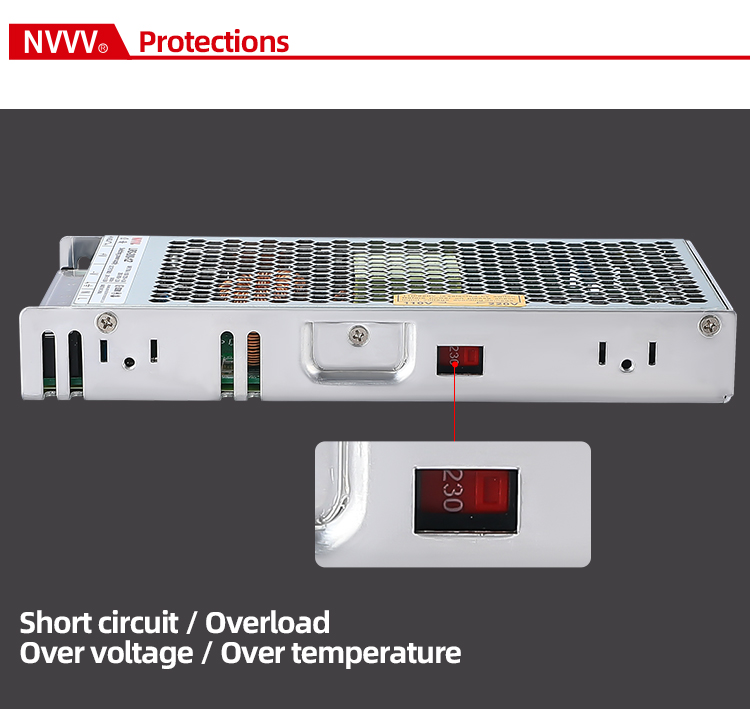

| Protect | Overload protection | 110%-130% Protection type: Hiccup mode, automatic return to normal after removing abnormal conditions | |||
| Overvoltage protection | 115%-145% Protection type: Close the output, restart and automatically return to normal | ||||
| Over temperature protection | ≥90°C Protection type: Hiccup mode, remove the abnormal condition and automatically return to normal | ||||
| Function | Working temp. and humidity | -25°C ~ +70°C / 20% ~ 90% RH | |||
| Storage temp. and humidity | -40°C ~ +85°C / 10% ~ 95% RH | ||||
| Safety Regulations | Withstand voltage | Input-Output: 3kVac | Input-Shell: 2kvac | Output-Shell: 0.5kvac for 1 minute | |||
| Insulation impedance | Input-Output, Input-Shell, Output-Shell: 500VDC / 100MΩ 25°C 70% RH | ||||

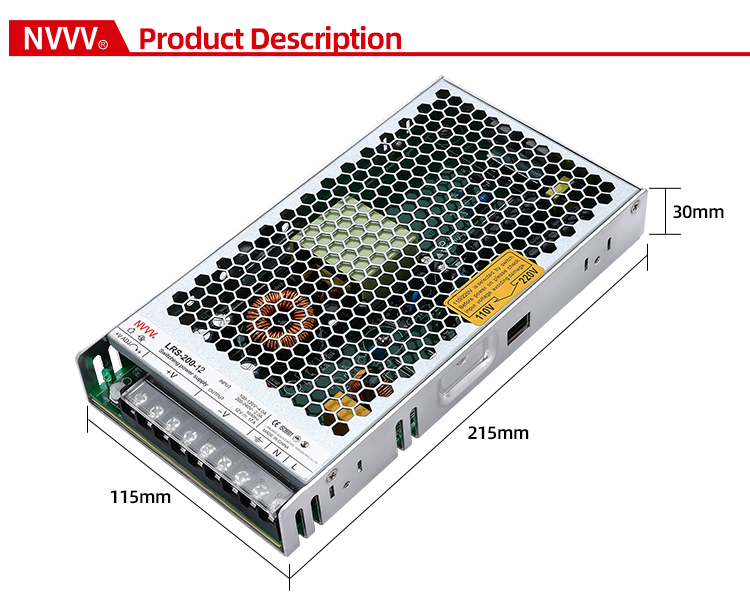

| Other | Size | 215*115*30mm (L*W*H) | |||
| Net weight / gross weight | 660g / 727g | ||||
Yes, absolutely. We offer both OEM (your brand, logo, packaging) and ODM (we help design/develop products based on your ideas or samples). We have experience working with well-known companies in the industry, and we are confident we can bring that same quality and reliability to your projects.
We offer standard voltages including 12V, 24V, 36V, 48V, 60V, 68V, and 110V depending on the specific item. Customized configurations can also be discussed based on requirements.
Yes, sample orders are welcome to test quality. Mixed samples are acceptable. We also support quick fulfillment from regional warehouse networks for faster delivery.
Our MOQ is low. For sample checking, 30 pieces are available.
We work with reliable shipping logistics partners. Depending on your location, dedicated shipping routes can be recommended for better service and cost efficiency. Specific delivery timelines can be provided upon request.
First, all products go through a strict quality control system, maintaining a very low defect rate. Second, during the warranty period, for small quantities, we will include replacement products with your next order. For defective batches, we will repair and resend them, or coordinate a credit or replacement solution based on the actual situation.
