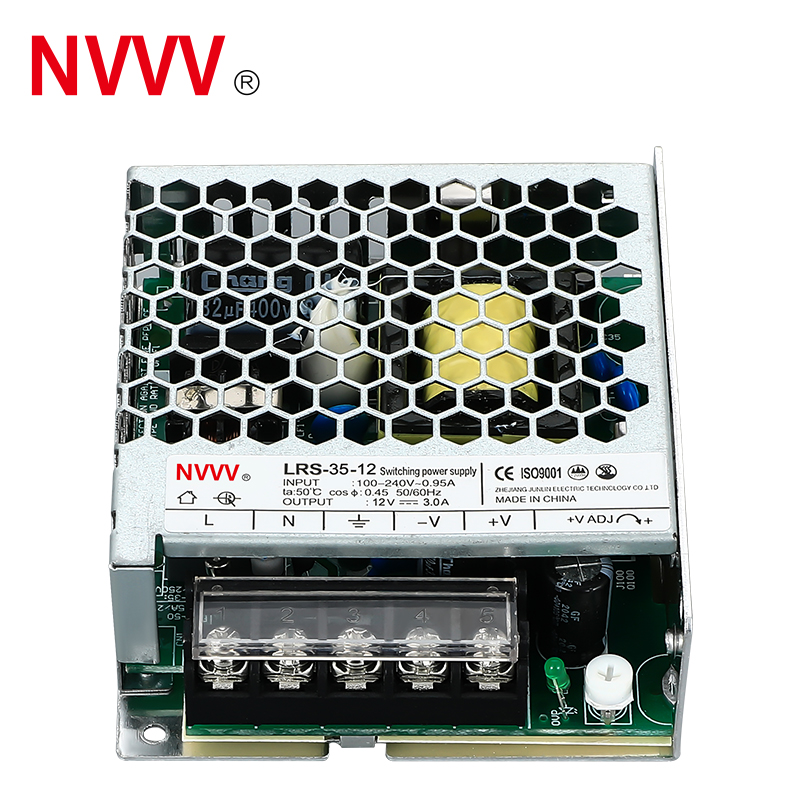

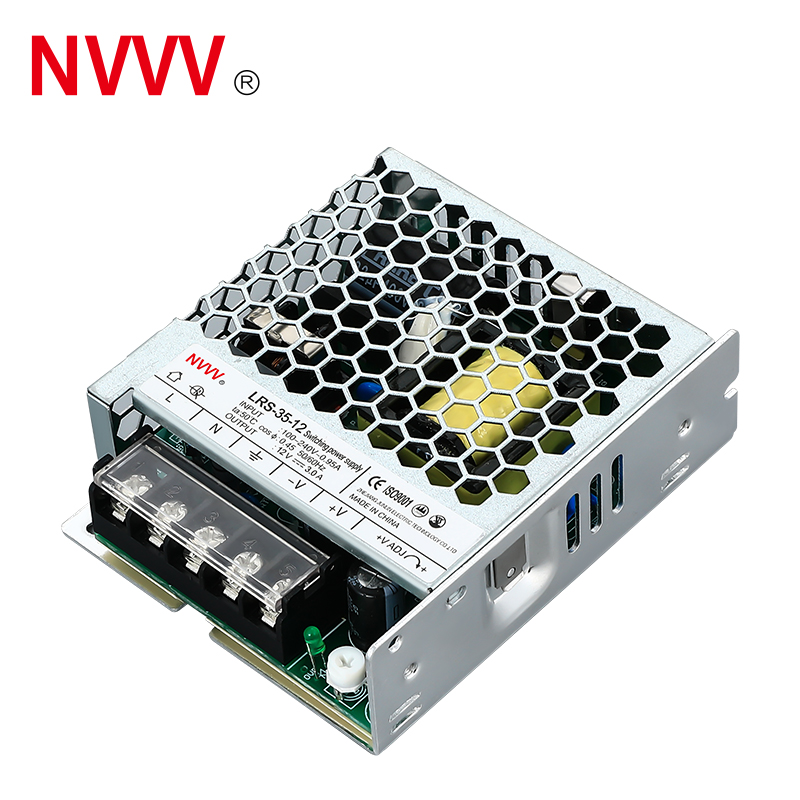

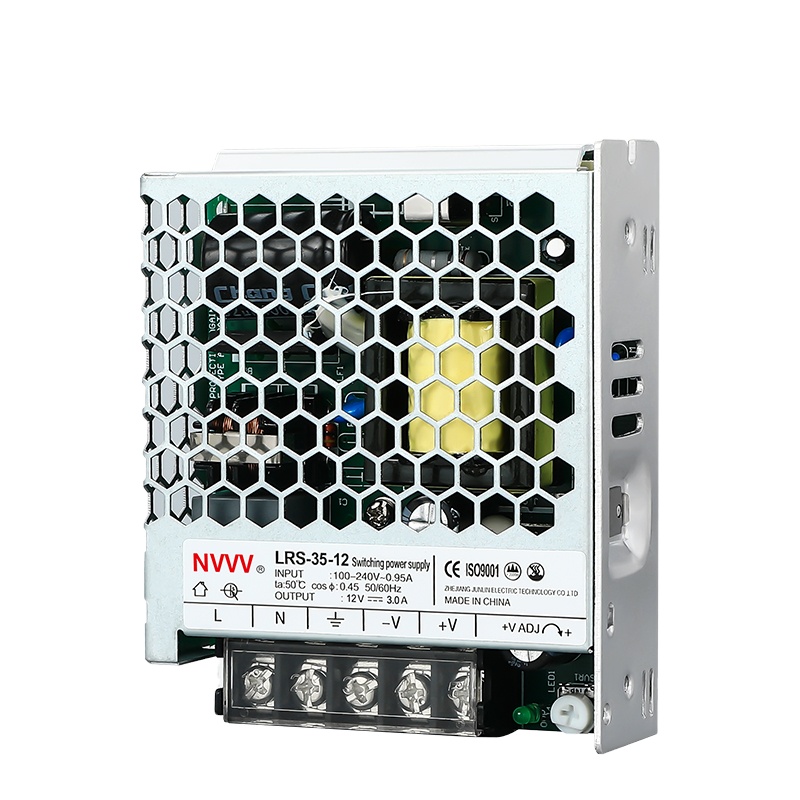

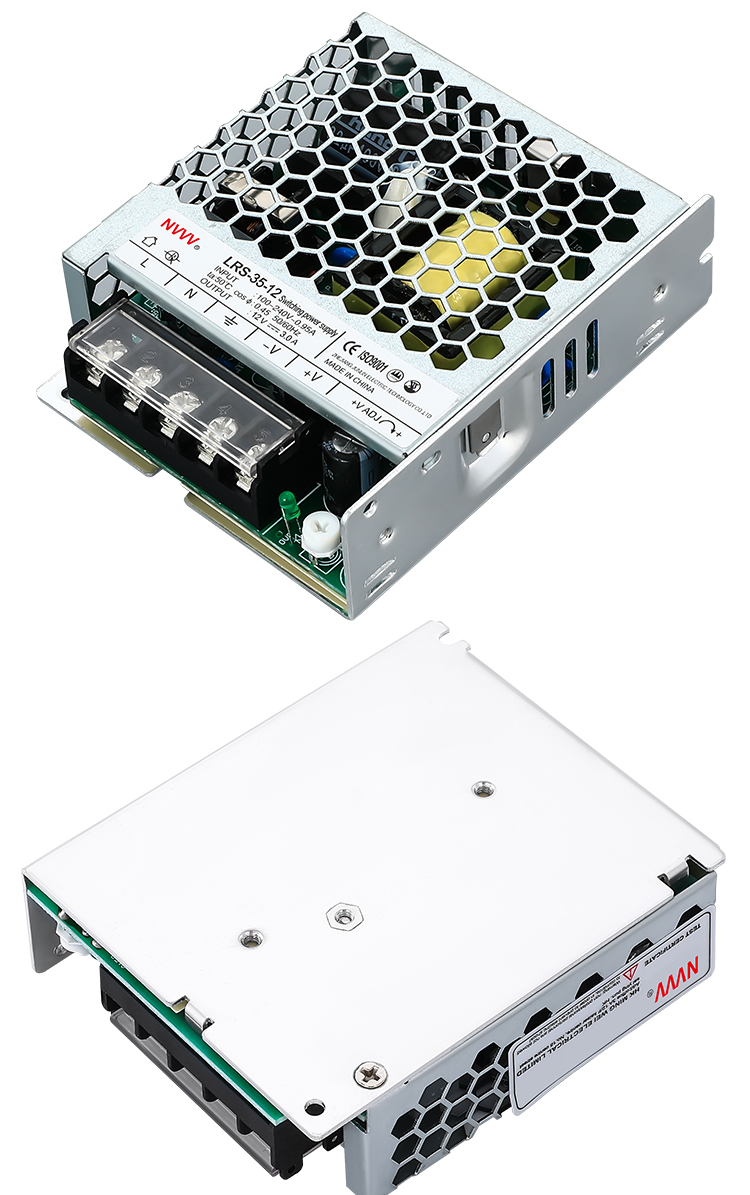

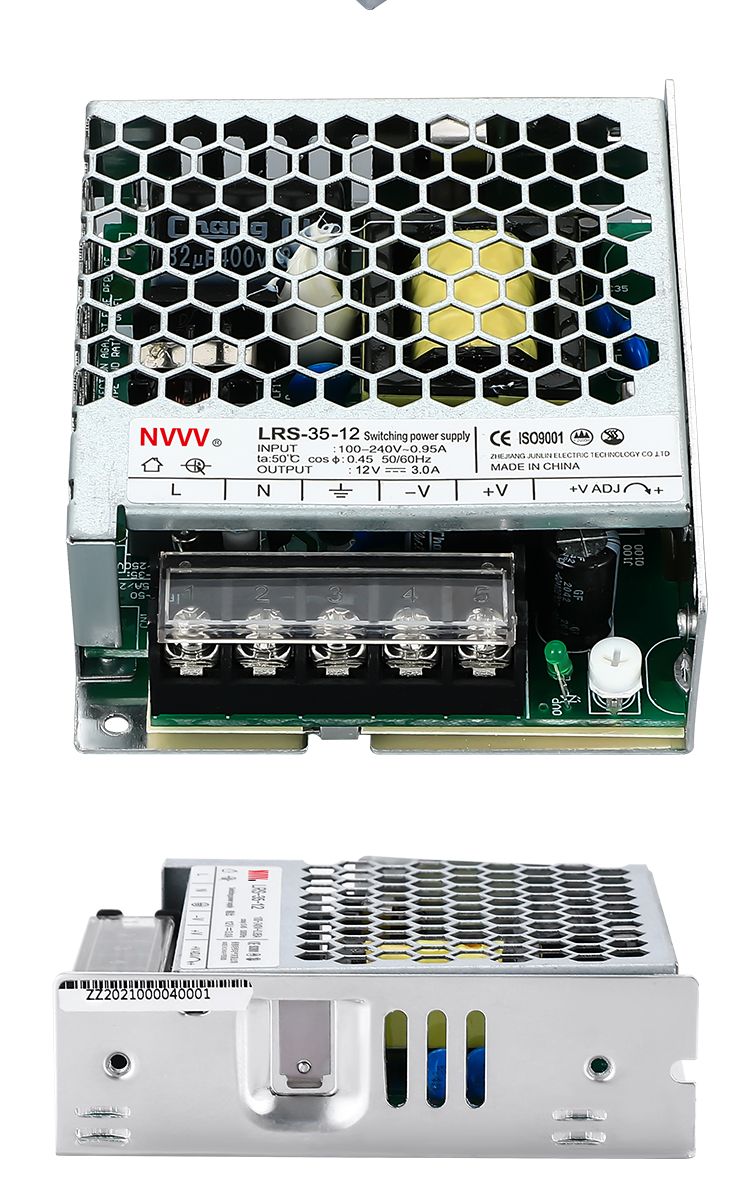

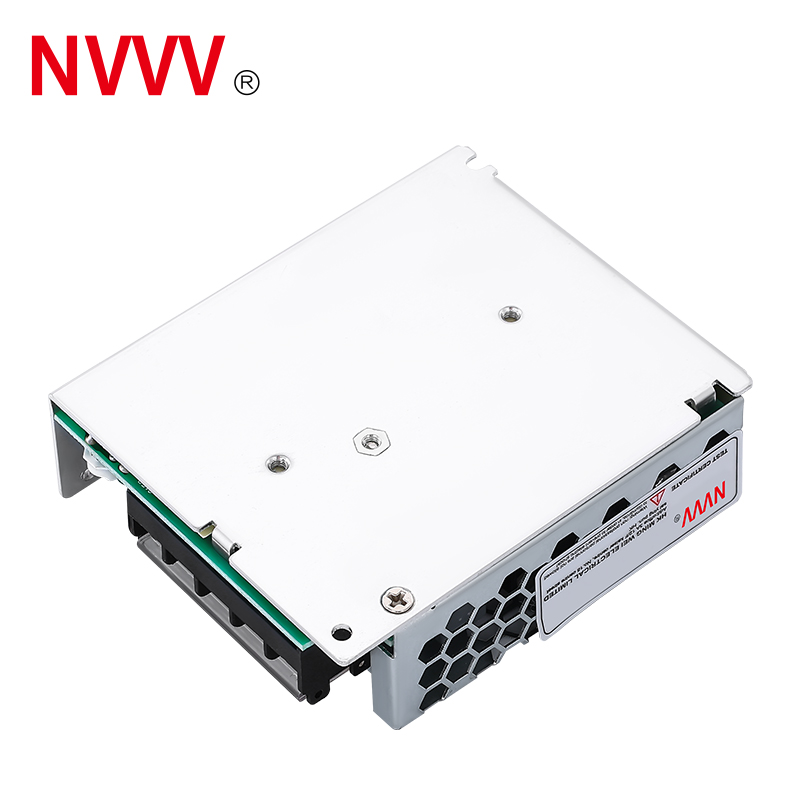

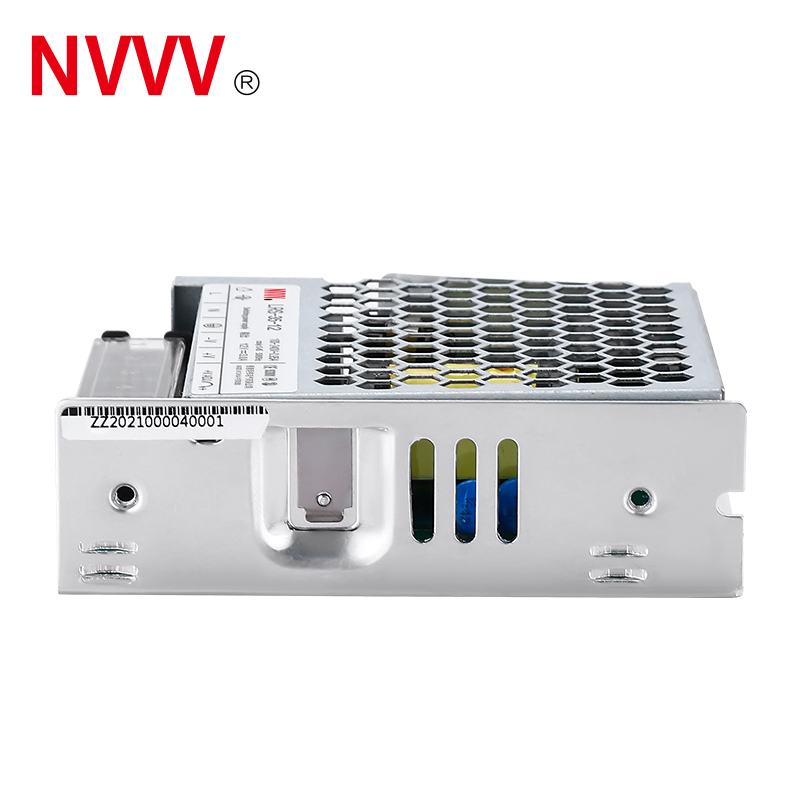

| LRS-35 Series 35W Switching Power Supply | |||||
|---|---|---|---|---|---|
| Project / Item | Technical Index | ||||
| Output | DC Voltage | 5V | 12V | 24V | 48V |
| Rated Current | 7A | 3A | 1.5A | 0.8A | |
| Rated Power | 35W | 36W | 36W | 38.4W | |
| Ripple and Noise ① | 80mVp-p | 120mVp-p | 150mVp-p | 200mVp-p | |
| Voltage Adj. Range | ±10% | ||||
| Voltage Accuracy | ±2.0% | ±1.0% | ±1.0% | ±1.0% | |
| Linear Regulation | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| Load Regulation | ±1.0% | ±0.5% | ±0.5% | ±0.5% | |
| Setup & Rise Time | 1000ms, 30ms / 230VAC; 2000ms, 30ms / 115VAC (full load) | ||||
| Hold Up Time | 30ms / 230VAC; 12ms / 115VAC (full load) | ||||
| Input | Voltage Range / Freq. | 85-264VAC / 120-373VDC, 47Hz ~ 63Hz | |||
| Efficiency (typical) ② | 82% | 86% | 88% | 89% | |
| Working Current | 0.7A / 115VAC, 0.42A / 230VAC | ||||
| Impulse Current | Cold boot: 45A / 230VAC | ||||
| Leakage Current | < 0.75mA / 240VAC | ||||

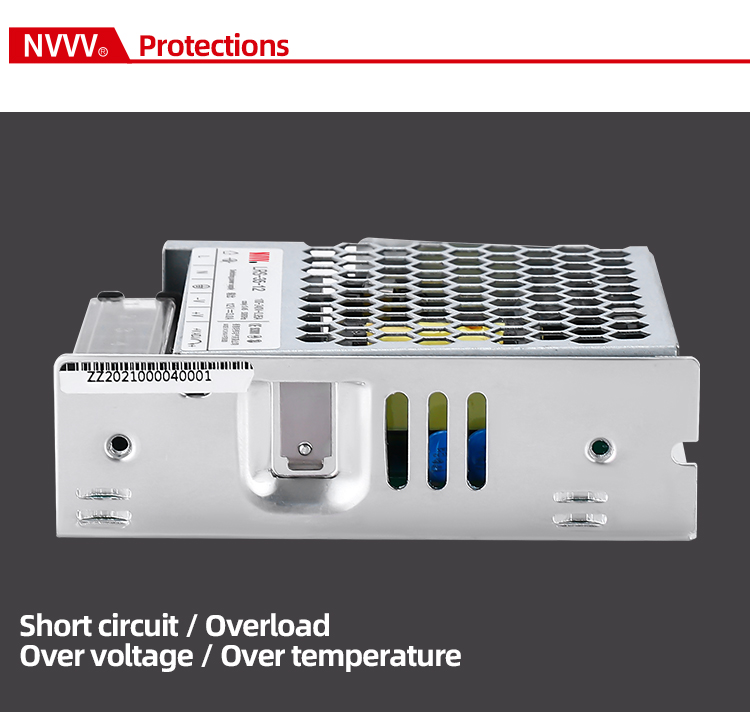

| Protect | Overload Protection | 110%-130% Protection type: hiccup mode, automatic recovery after abnormal conditions are removed | |||
| Overvoltage Protection | ≥ 115% - 145% Protection type: shut down output, restart to recover | ||||
| Function | Working Temp. & Hum. | -30°C ~ +70°C, 20% ~ 90% RH | |||
| Storage Temp. & Hum. | -40°C ~ +85°C, 10% ~ 95% RH | ||||
| Safety | Withstand Voltage | Input-Output: 4KVAC; Input-FG: 2KVAC; Output-FG: 1.25KVAC for 1 minute | |||
| Insulation Resistance | Input-Output, Input-FG, Output-FG: 500VDC / 100MΩ / 25°C / 70% RH | ||||

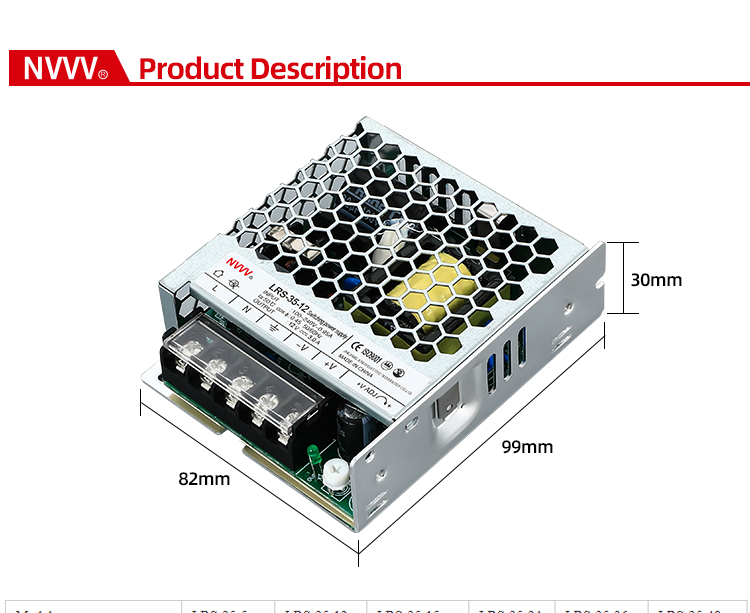

| Other | Size | 98 * 82 * 30mm (L * W * H) | |||
| Net / Gross Weight | 230g / 246g | ||||
