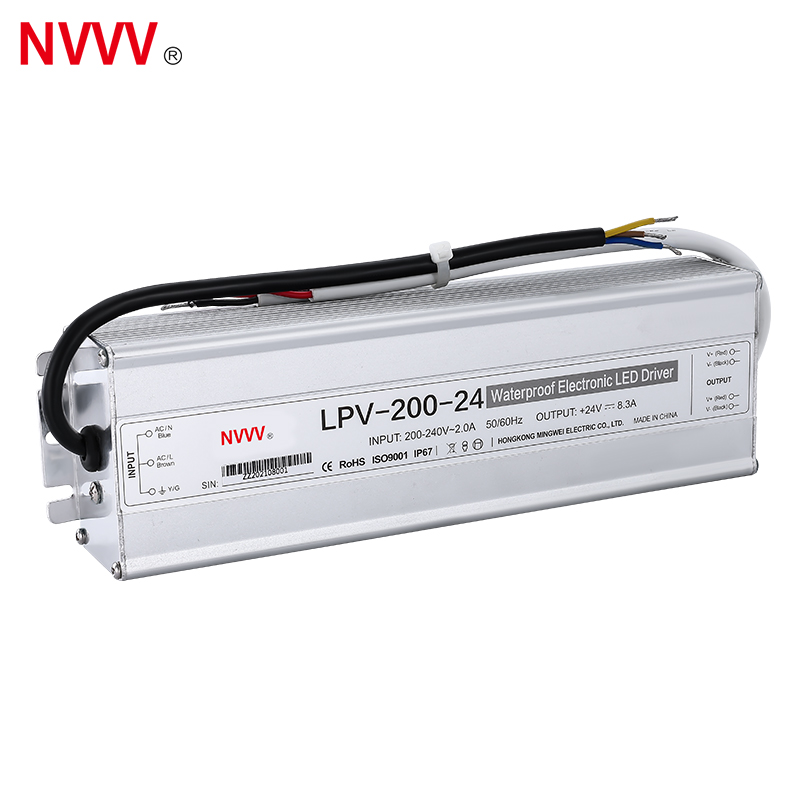

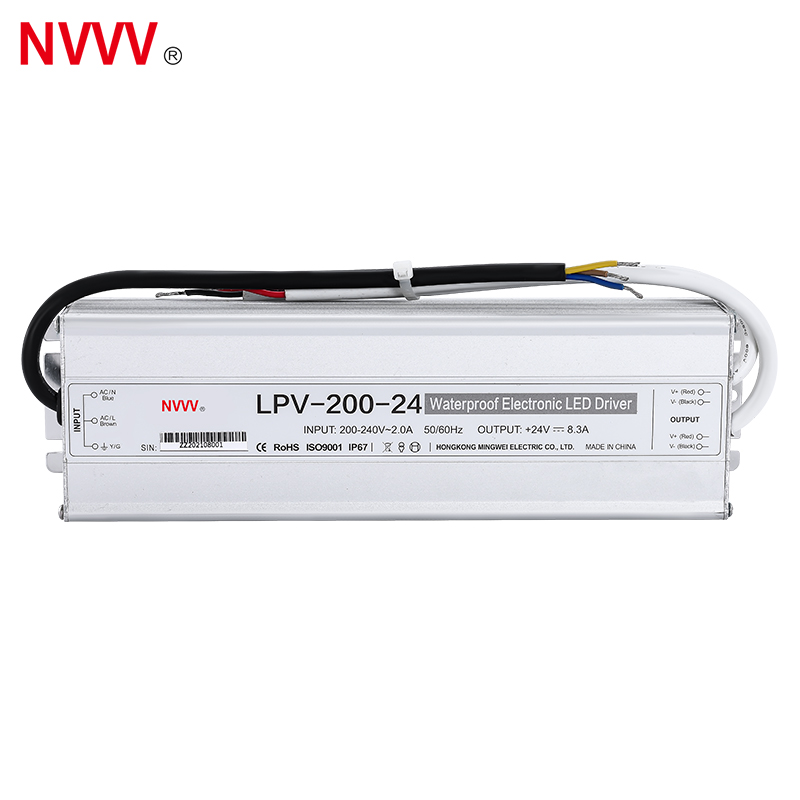

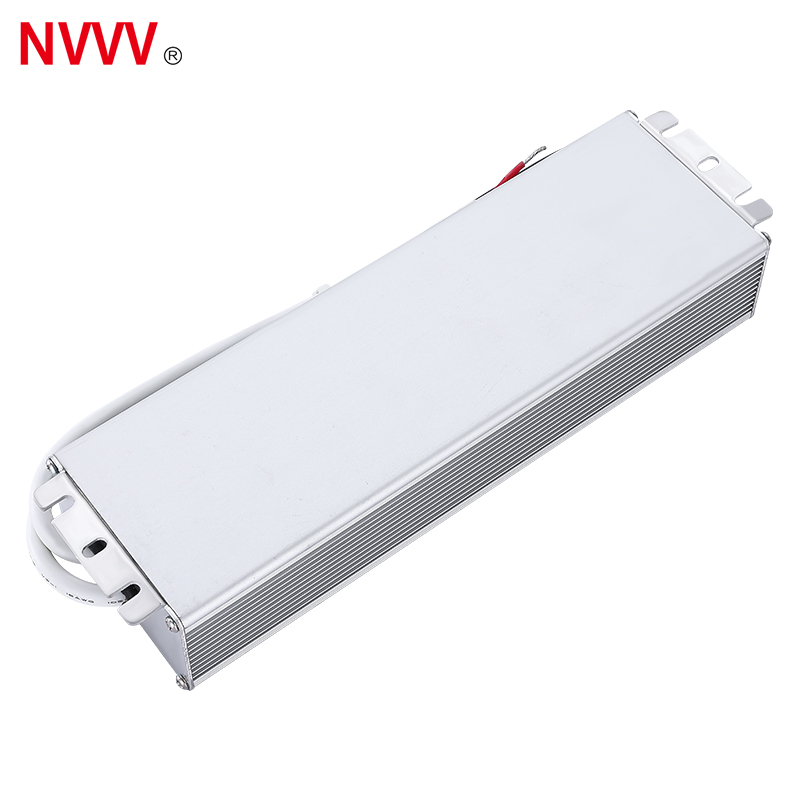

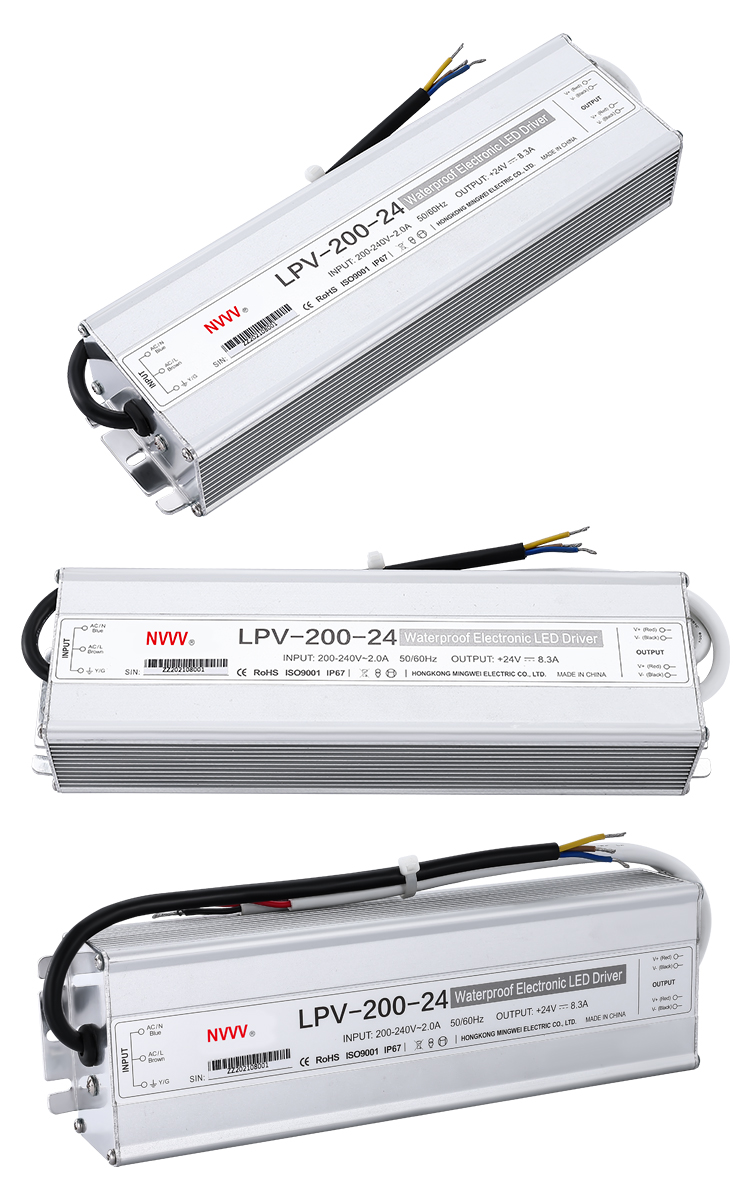

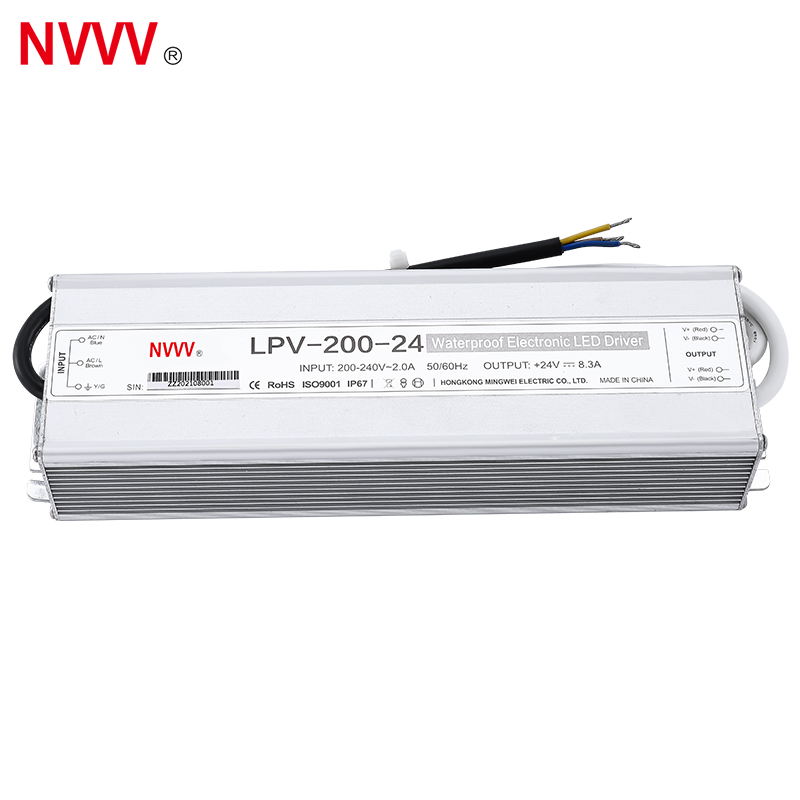

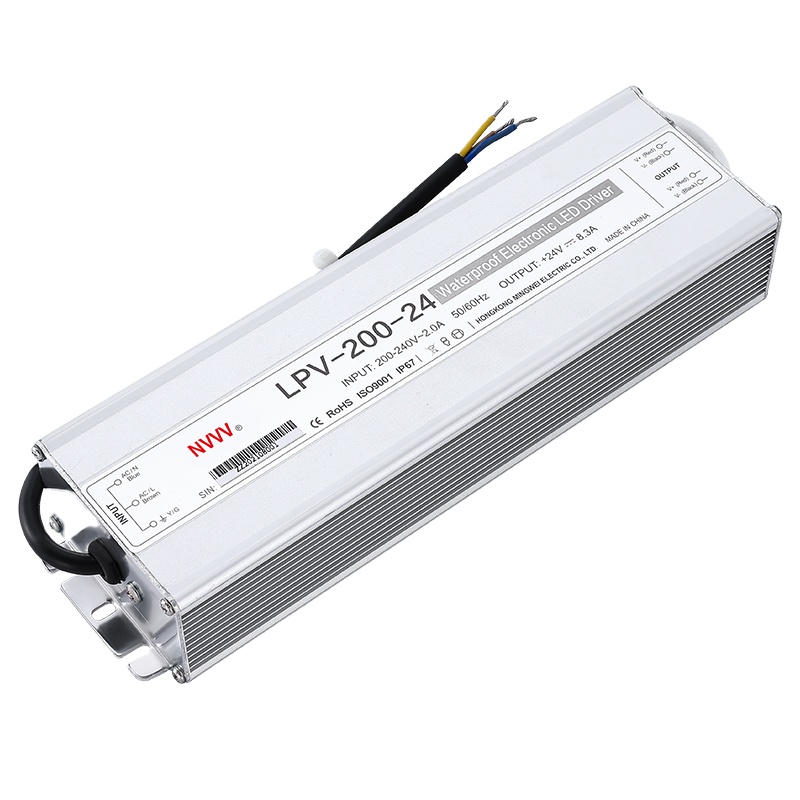

| LPV-200 200W Waterproof Irrigation Switch Power Supply | ||
|---|---|---|
| Output Specifications | ||
| DC Voltage | 12V | 24V |
| Rated Current | 16.6A | 8.3A |
| Rated Power | 199.2W | 199.2W |
| Ripple and Noise | < 120mV | < 200mV |
| Voltage Accuracy | ±5% | |
| Load Adjustment Rate | ±2% | |
| Linear Adjustment Rate | ±1% | |
| Starting and Rising Time | 2000ms, 25ms, 15ms / 115VAC | 2000ms, 25ms, 50ms / 230VAC | |
| Input Specifications | ||
| Voltage Range / Frequency | 90-264VAC 47Hz ~ 63Hz / 127VDC ~ 370VDC | |
| Efficiency (Typical) | > 87% | > 88% |
| Working Current | 3A/110VAC | 1.7A/230VAC | |
| Impulse Current | 60A at 220VAC | |

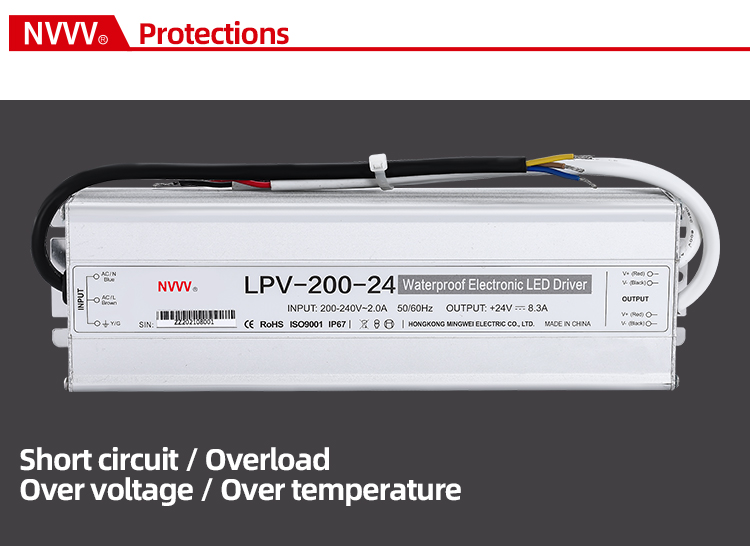

| Protection | ||
| Overload Protection | 105%-135% Protection type: hiccup mode, automatic recovery after abnormal condition is removed | |
| Overvoltage Protection | ≥ 115% - 145% Protection type: shut down output, restart to recover | |
| Environment | ||
| Working Temp. & Humidity | -30℃ ~ +70℃ / 20% ~ 90% RH | |
| Storage Temp. & Humidity | -40℃ ~ +85℃ / 10% ~ 95% RH | |
| Safety Regulations | ||
| Withstand Voltage | Input-Output: 3KVAC for 1 minute | |
| Leakage Current | Input-Case < 2.5mA at 240VAC | |
| Insulation Impedance | Input-Output, Input-Case, Output-Case: 500VDC / 100M Ω | |
| Other Parameters | ||

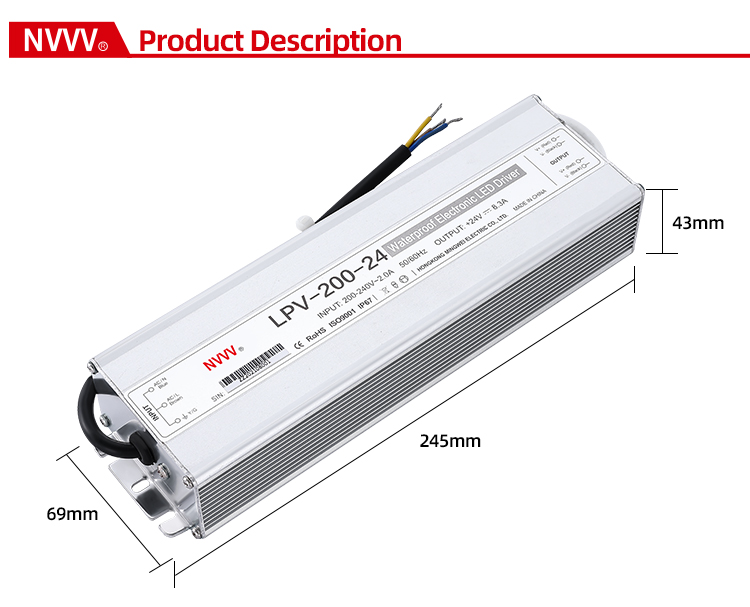

| Size | 218 * 68 * 42mm | |
| Net / Gross Weight | 1100g / 1200g | |
