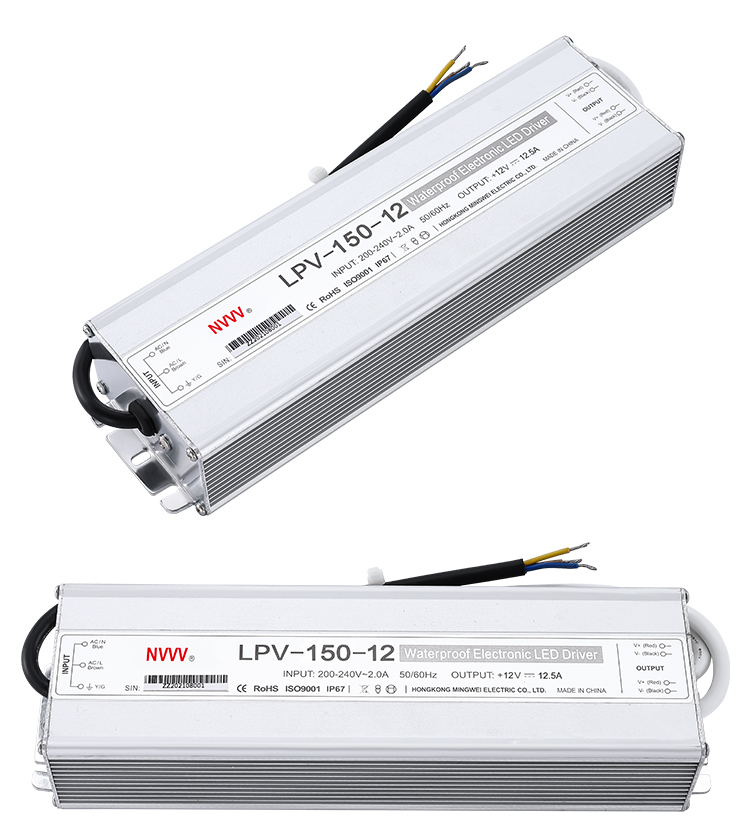

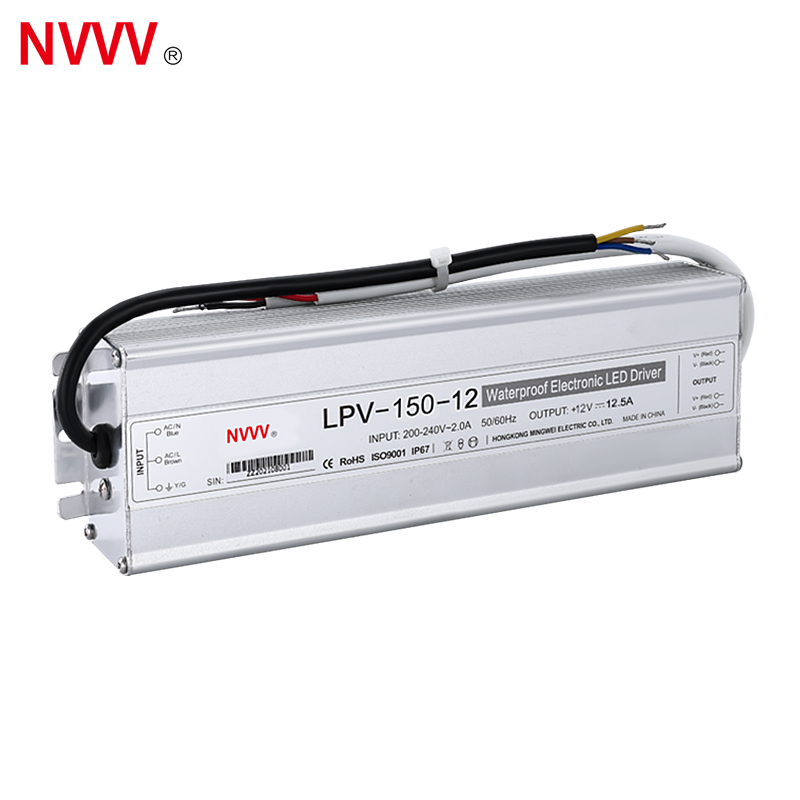

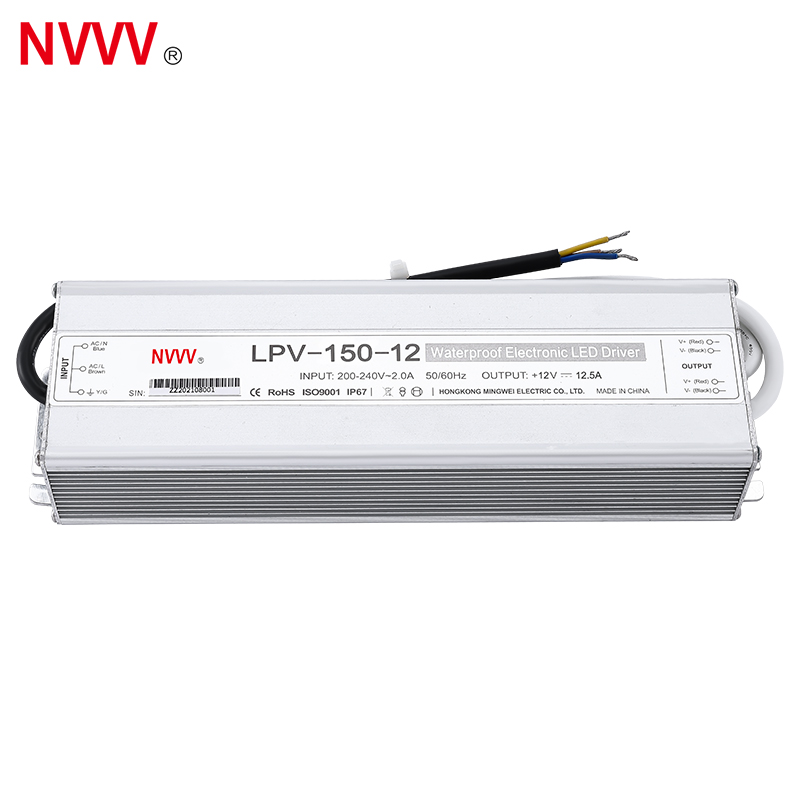

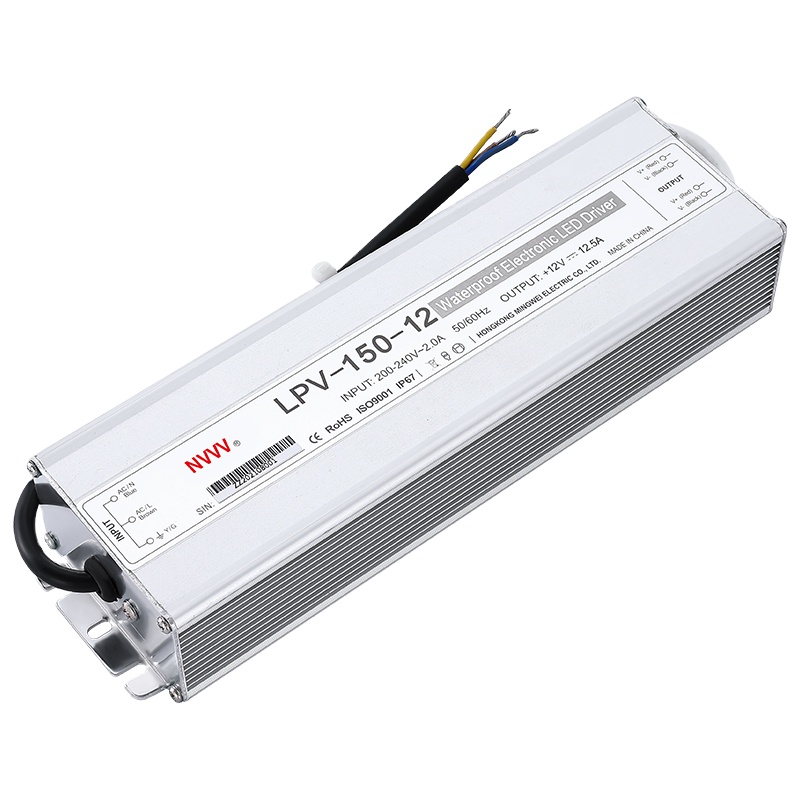

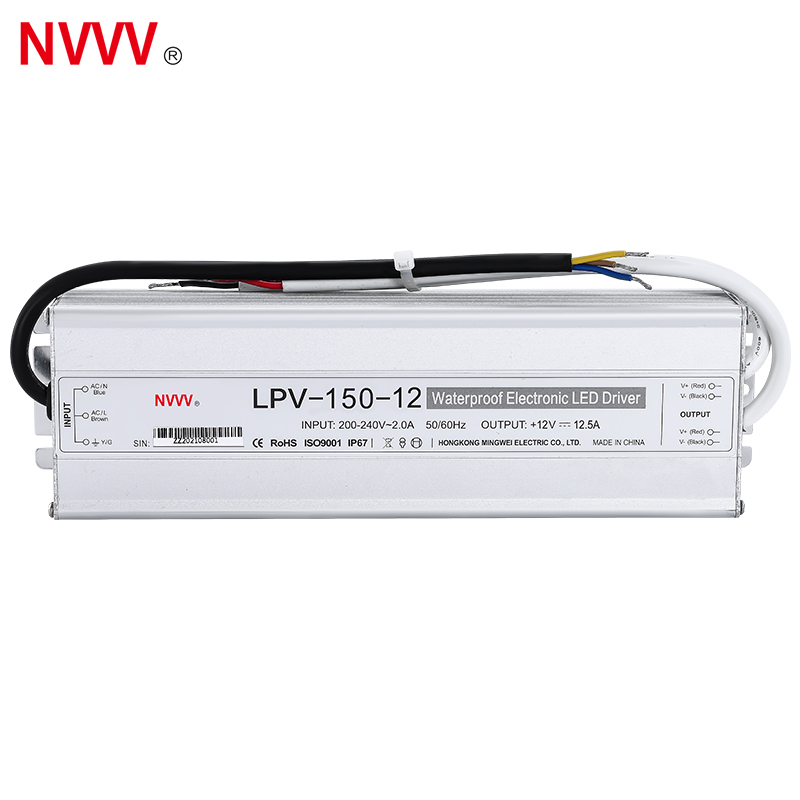

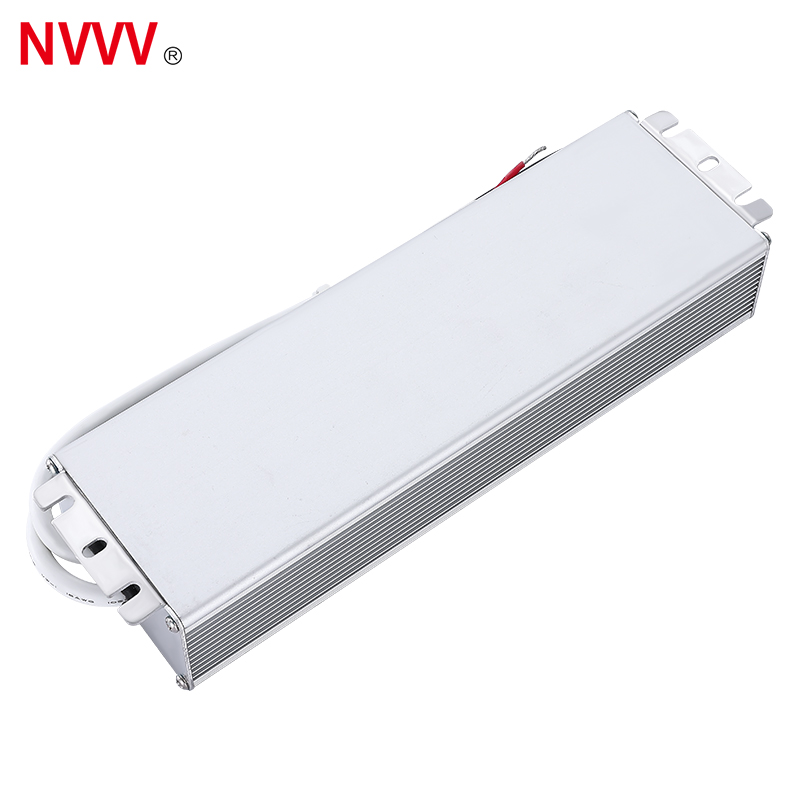

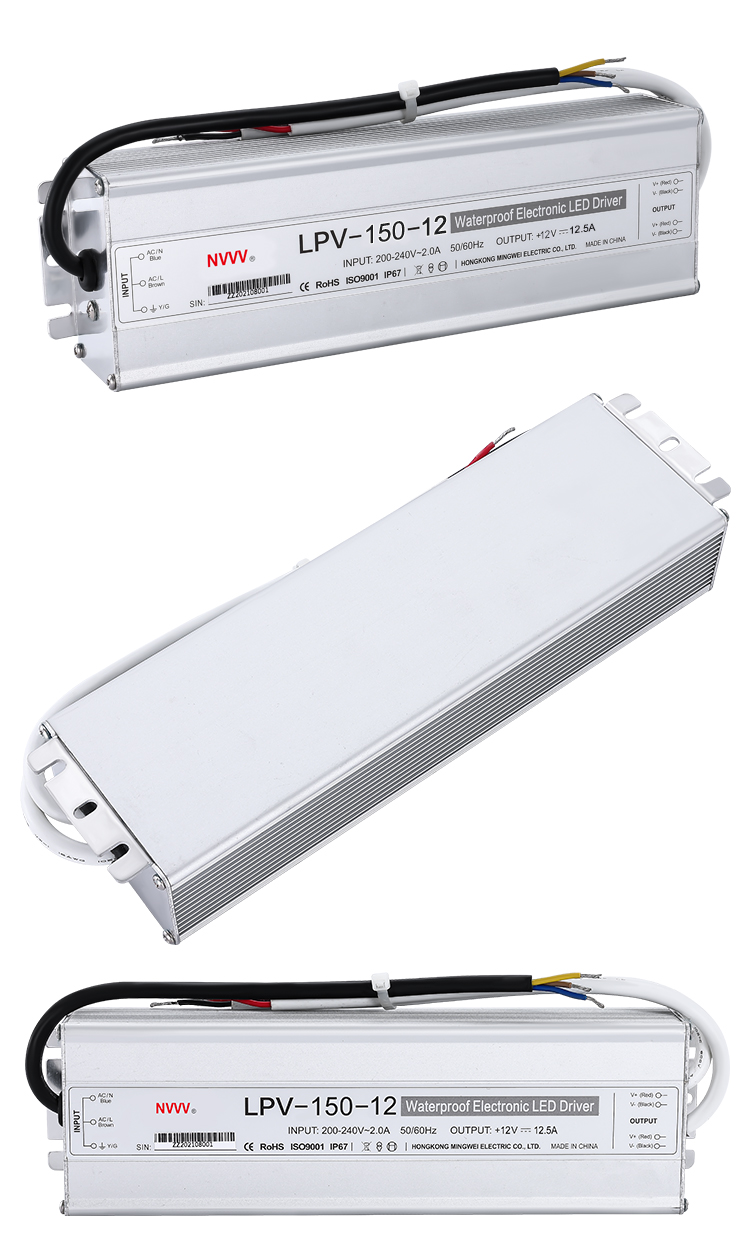

| LPV-150 150W Waterproof Switch Power Supply | ||
|---|---|---|
| Category | Project | Technical Index |
| Output | DC Voltage | 12V / 24V |
| Rated Current | 12.5A (12V) / 6.25A (24V) | |
| Rated Power | 150W | |
| Ripple and Noise | < 120mV (12V) / < 200mV (24V) | |
| Voltage Accuracy | ±5% | |
| Load Adjustment Rate | ±2% | |
| Linear Adjustment Rate | ±1% | |
| Starting & Rising Time | 2000ms, 25ms, 15ms at 115VAC / 2000ms, 25ms, 50ms at 230VAC | |
| Input | Voltage Range / Frequency | 90-264VAC, 47Hz-63Hz / 127VDC-370VDC |
| Efficiency (Typical) | > 87% (12V) / > 88% (24V) | |
| Working Current | 2.7A / 110VAC, 1.5A / 230VAC | |
| Impulse Current | 60A at 220VAC | |

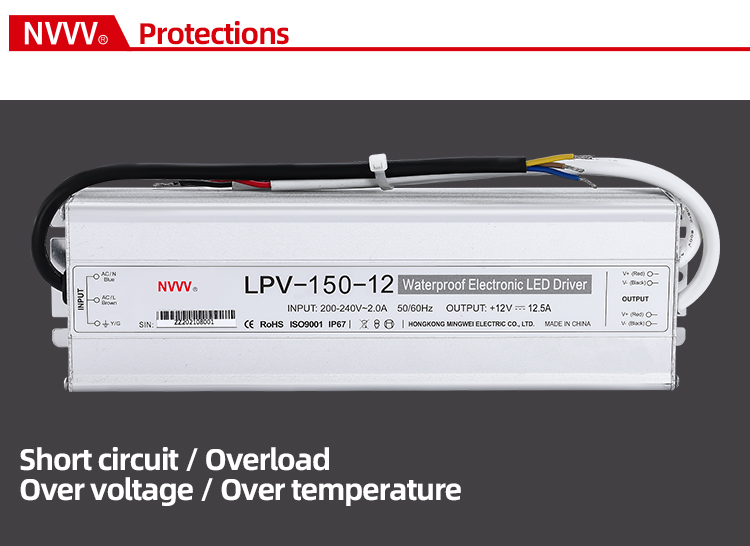

| Protect | Overload Protection | 105%-135% Protection type: burping mode, automatic return to normal after removing abnormal conditions |
| Overvoltage Protection | ≥ 115% - 145% protection type: close output, restart and automatically return to normal | |
| Function | Working Temp. & Humidity | -30℃ ~ +70℃, 20% ~ 90% RH |
| Storage Temp. & Humidity | -40℃ ~ +85℃, 10% ~ 95% RH | |
| Safety | Withstand Voltage | Input-Output: 3KVAC for 1 minute |
| Leakage Current | Input shell < 2.5mA at 240VAC | |
| Insulation Impedance | Input-Output, Input-Shell, Output-Shell: 500VDC / 100M Ω | |
| Other | Size | 218 * 68 * 42mm |
| Net / Gross Weight | 1100g / 1200g | |
