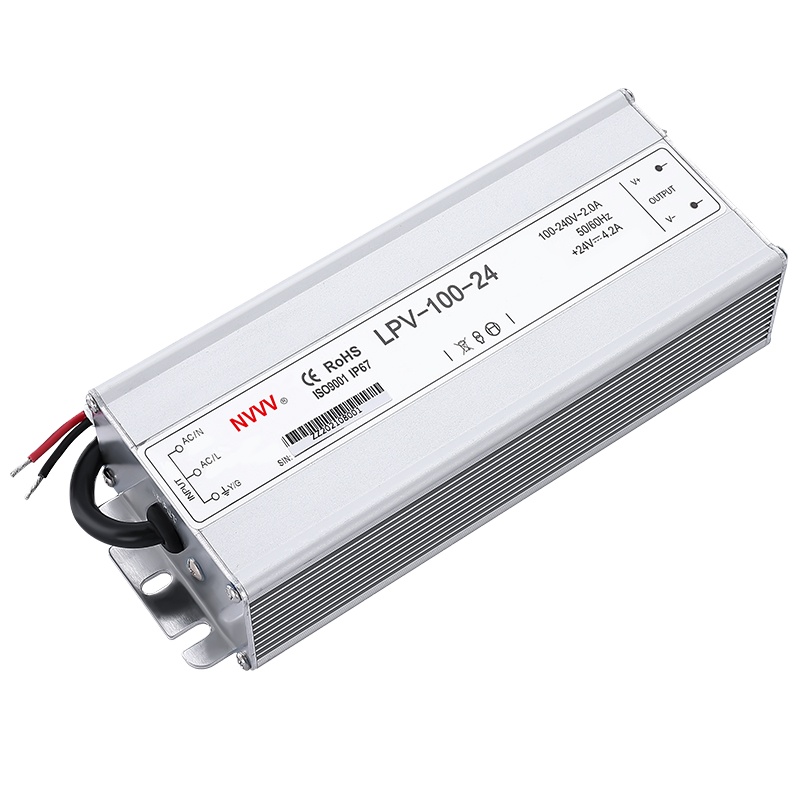

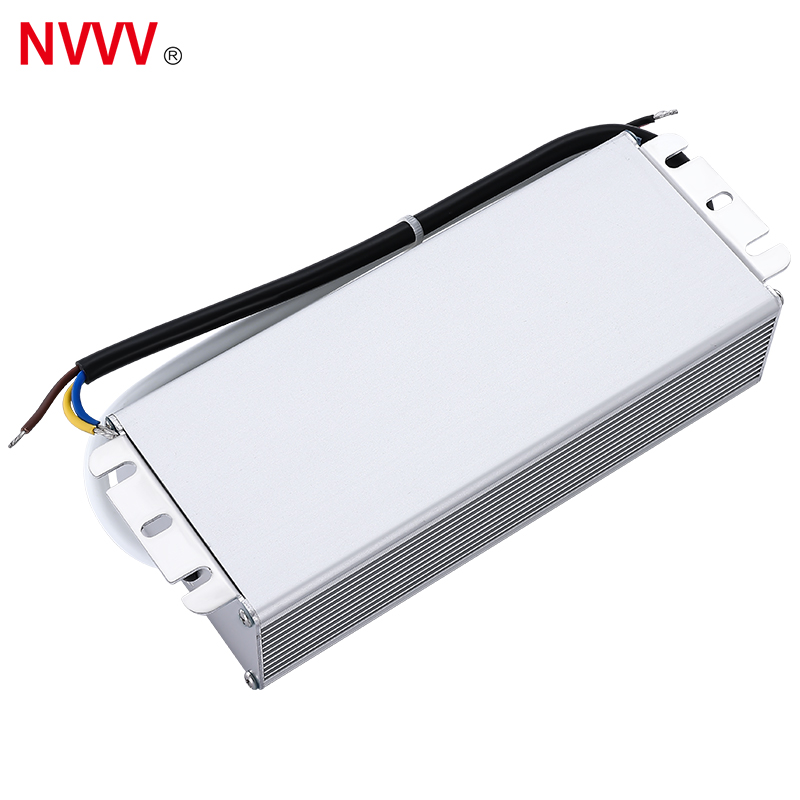

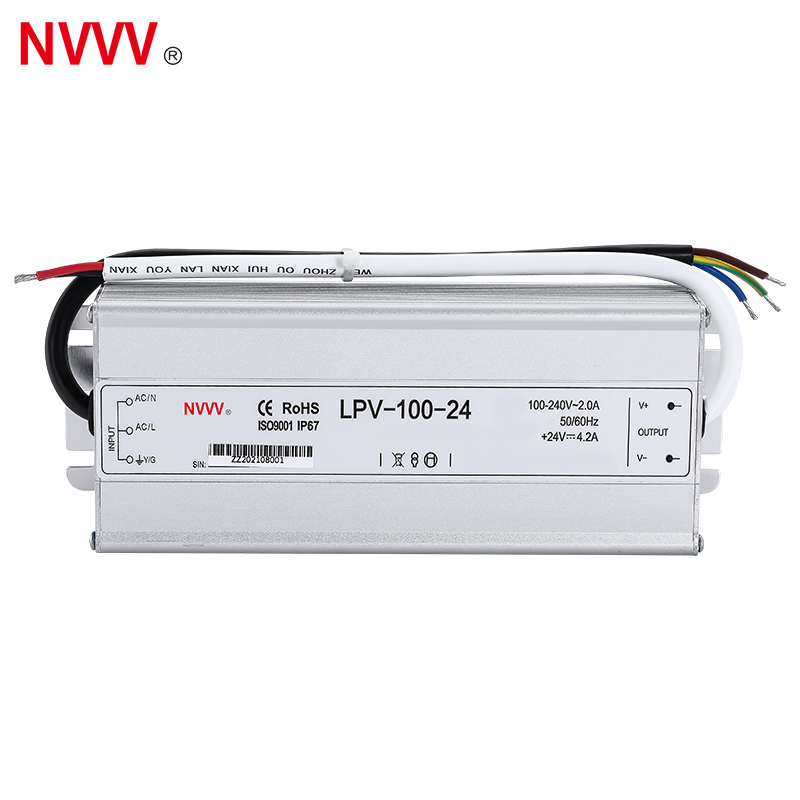

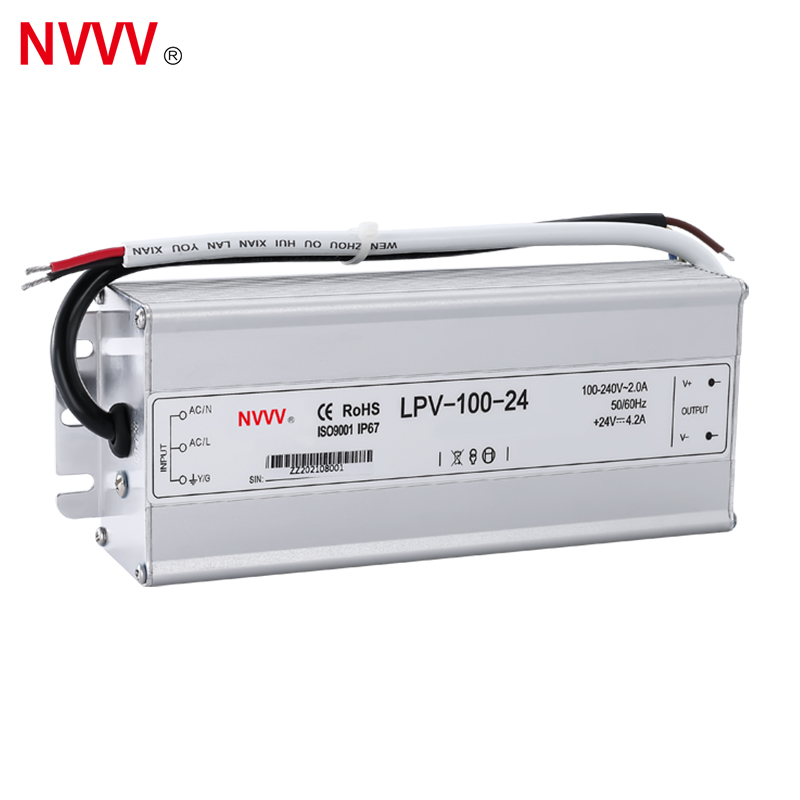

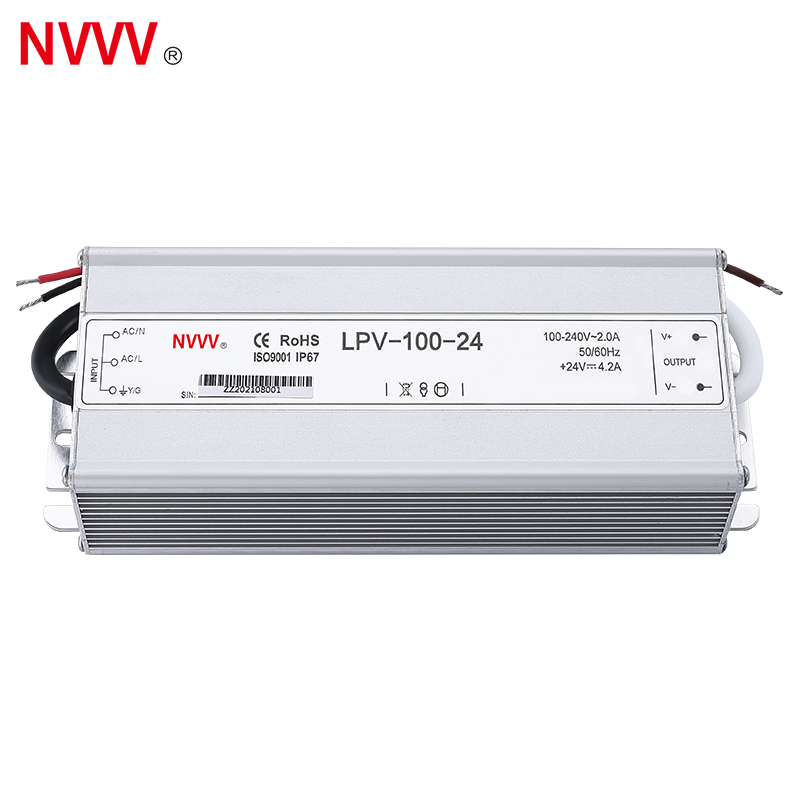

| LPV-100 100W Waterproof Irrigation Switch Power Supply | ||
|---|---|---|
| Output | DC Voltage | 12V | 24V |
| Rated Current | 8.5A | 4.2A | |
| Rated Power | 102W | 100.8W | |
| Ripple and Noise | < 120mV | < 150mV | |
| Voltage Accuracy | ±5% | |
| Load Adjustment Rate | ±2% | |
| Linear Adjustment Rate | ±1% | |
| Starting and Rising Time | 2000ms, 25ms, 15ms (115VAC) | 2000ms, 25ms, 50ms (230VAC) | |
| Input | Voltage Range / Frequency | 90-264VAC, 47Hz-63Hz | 127VDC-370VDC |
| Efficiency (Typical) | > 85% | > 88% | |
| Working Current | 2.2A / 110VAC | 1.2A / 230VAC | |
| Impulse Current | 220VAC: 60A | |
| Protect | Overload Protection | 105%-135% (Protection type: burping mode, automatic return to normal after removing abnormal conditions) |
| Overvoltage Protection | ≥ 115% - 145% (Protection type: close output, restart and automatically return to normal) | |
| Function | Working Temp. & Humidity | -30℃ ~ +70℃, 20% ~ 90% RH |
| Storage Temp. & Humidity | -40℃ ~ +85℃, 10% ~ 95% RH | |
| Safety Regulations | Withstand Voltage | Input-Output: 3KVAC for 1 minute |
| Leakage Current | Input-Shell: < 2.5mA at 240VAC | |
| Insulation Impedance | Input-Output, Input-Shell, Output-Shell: 500VDC / 100MΩ | |
| Other | Size | 163 * 68 * 42mm |
| Net / Gross Weight | 900g / 1200g | |
