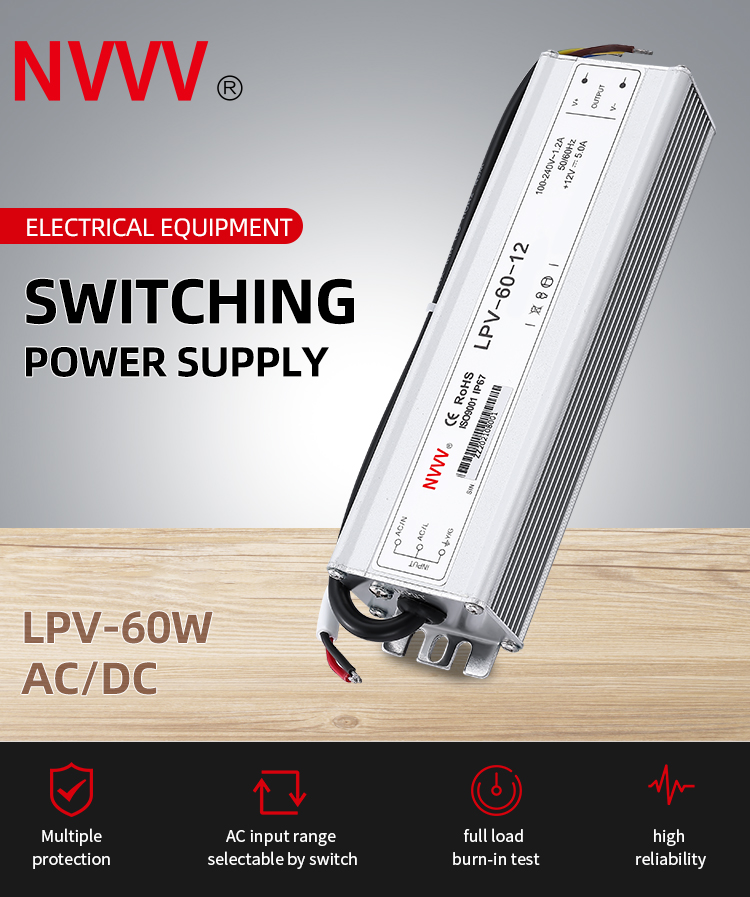

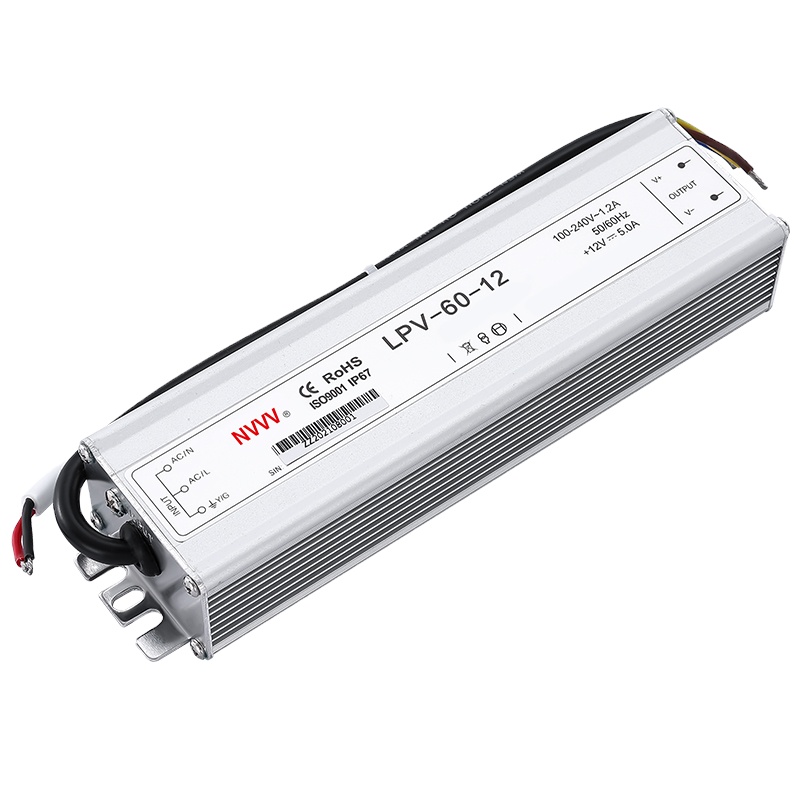

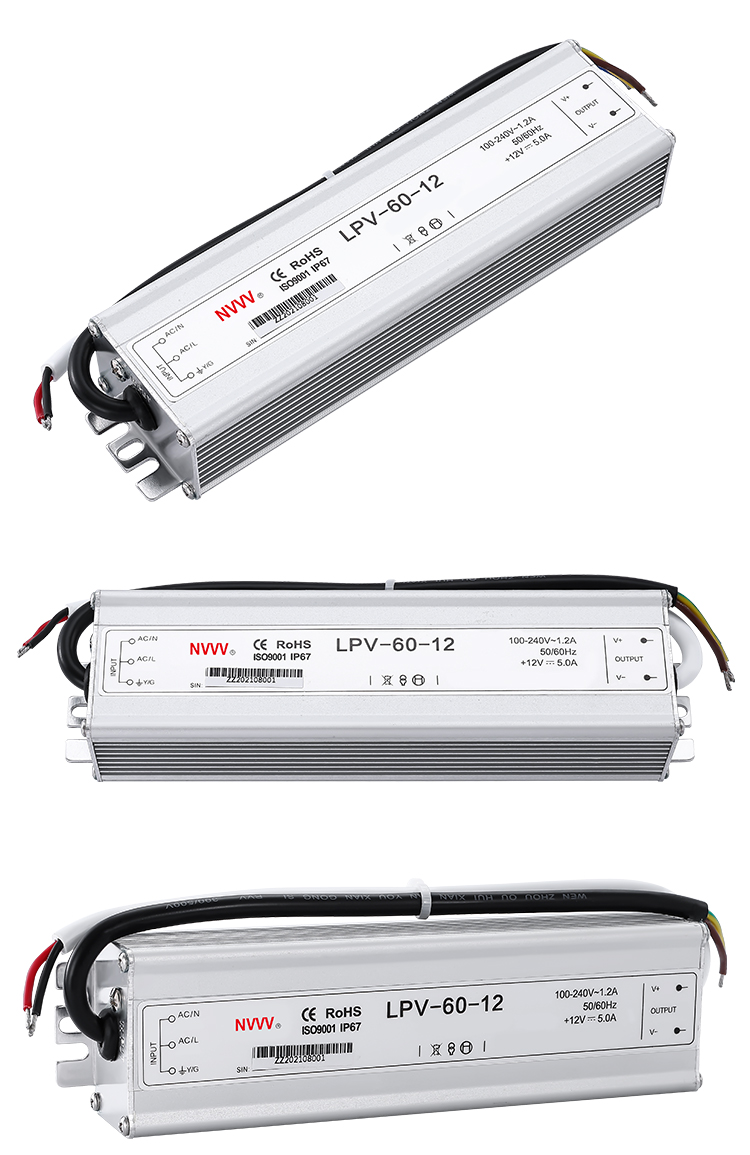

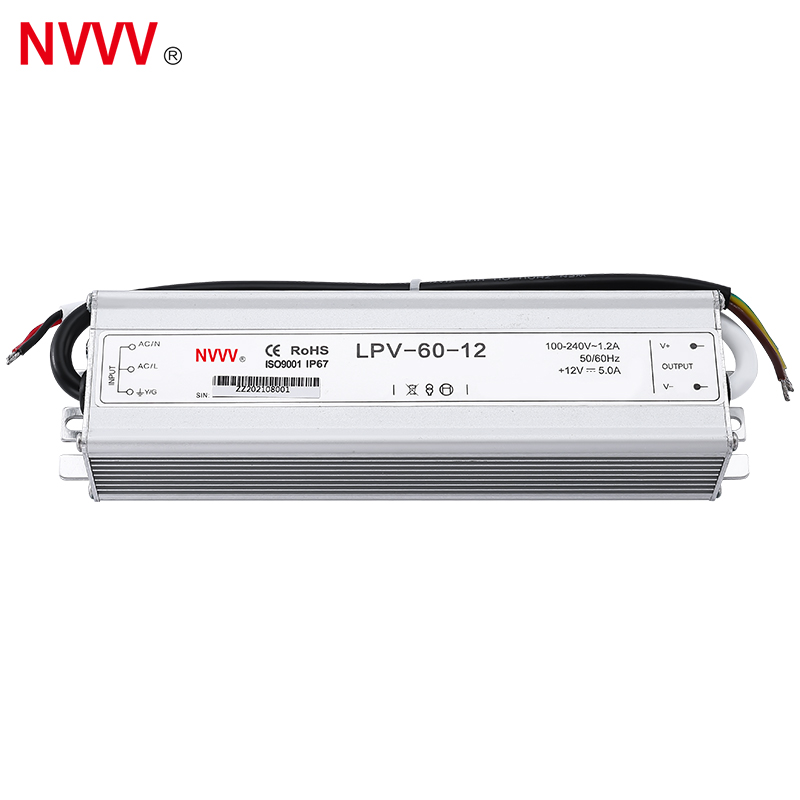

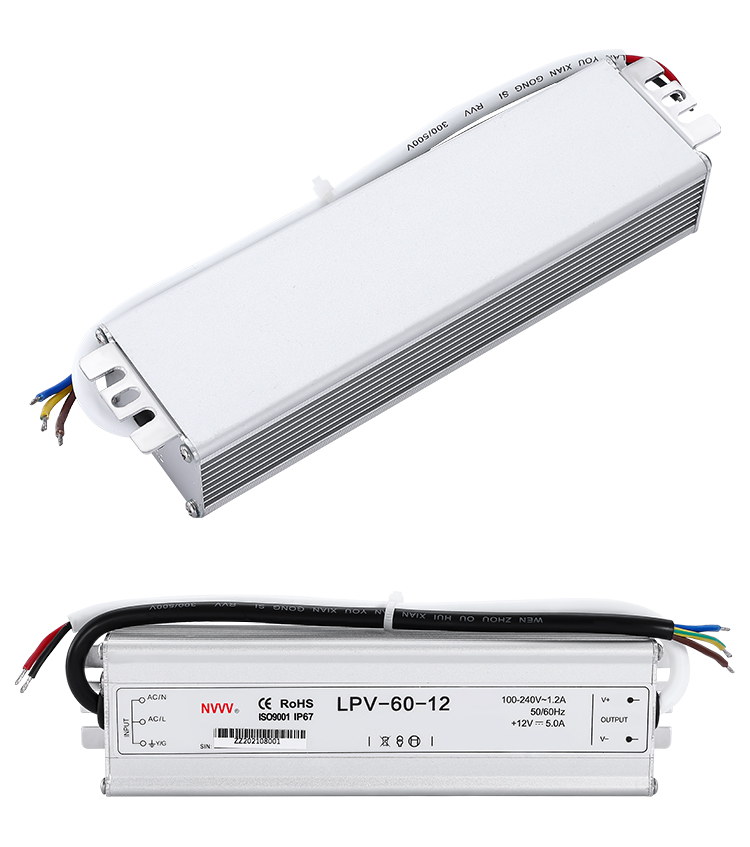

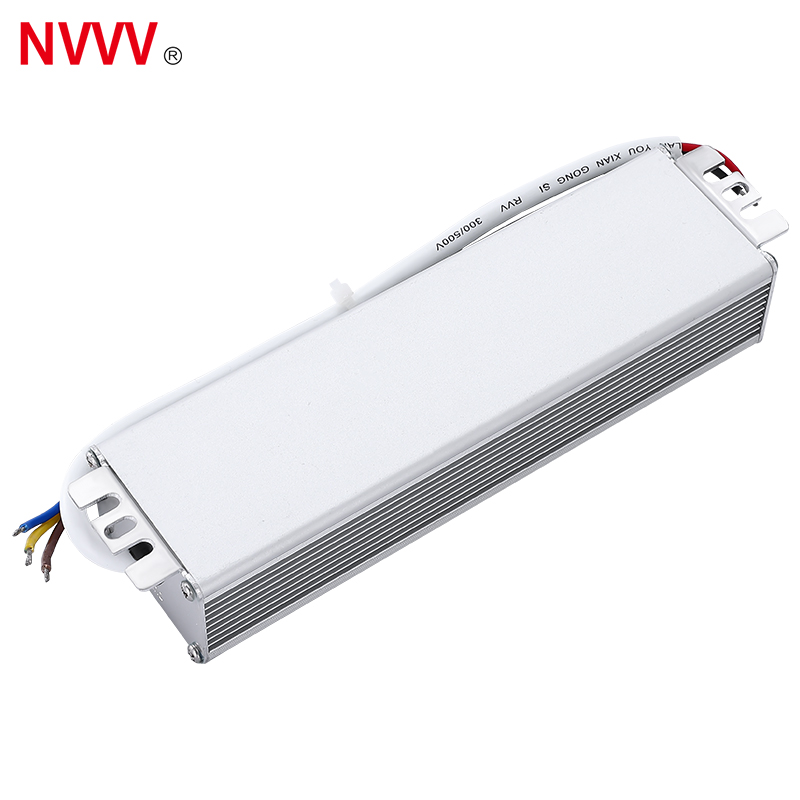

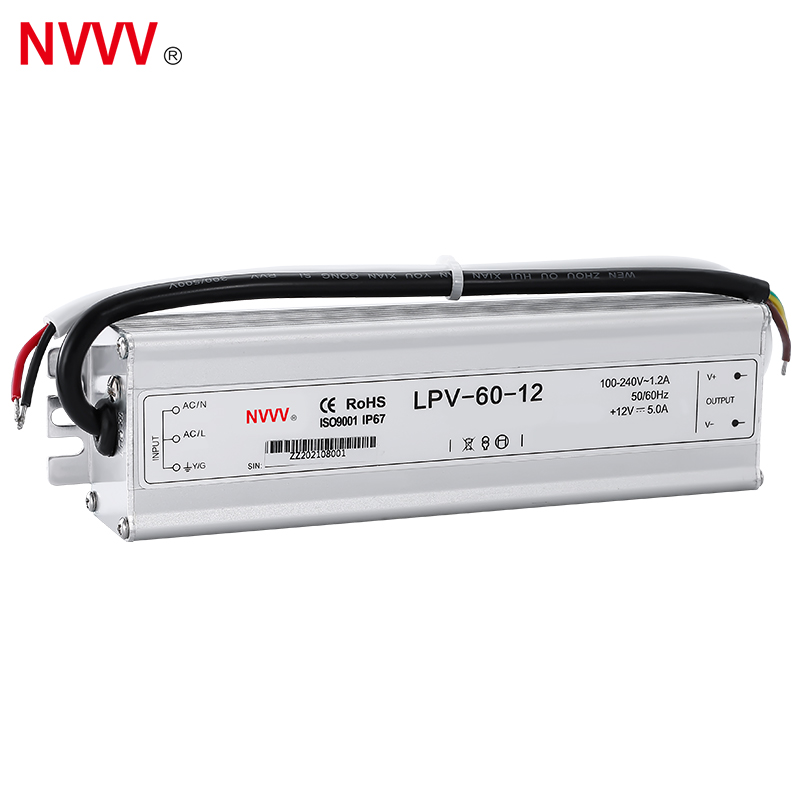

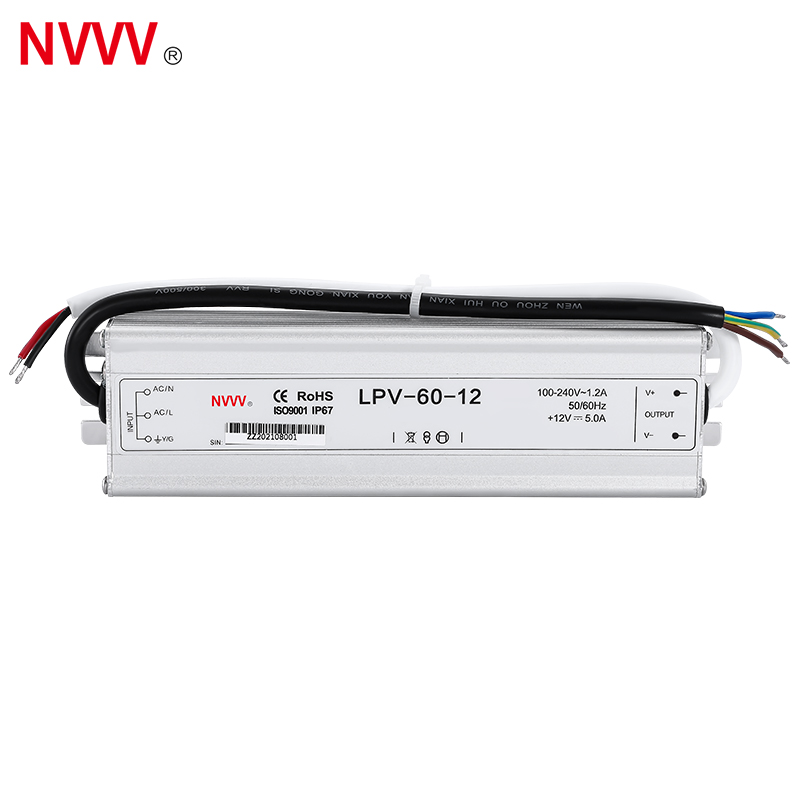

| LPV-60 60W Waterproof Switching Power Supply Specification | ||
|---|---|---|
| Output | DC Voltage | 12V / 24V |
| Rated Current | 5A / 2.5A | |
| Rated Power | 60W | |
| Ripple & Noise | < 120mV (12V) / < 150mV (24V) | |
| Voltage Accuracy | ±5% | |
| Load Adjustment Rate | ±2% | |
| Linear Adjustment Rate | ±1% | |
| Setup, Rise, Hold Time | 500ms, 20ms, 16ms at 115VAC / 500ms, 20ms, 50ms at 230VAC | |
| Input | Voltage Range | 90-264VAC, 47Hz~63Hz / 127VDC~370VDC |
| Efficiency (Typical) | > 81% (12V) / > 83% (24V) | |
| Working Current | 1.5A / 110VAC, 1.1A / 230VAC | |
| Impulse Current | 60A at 220VAC | |

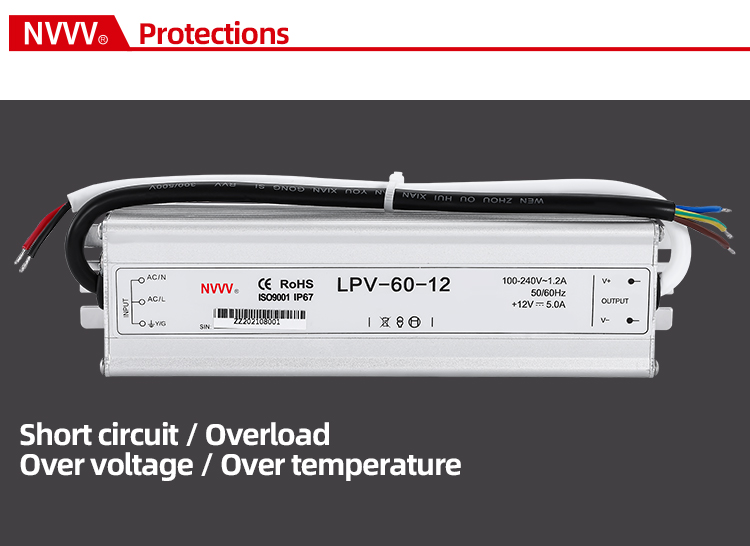

| Protection | Overload Protection | ≥ 105%-135% rated output power. Protection mode: Hiccup mode, recovers automatically after fault condition is removed. |
| Overvoltage Protection | ≥ 115%-145% rated output voltage. Protection mode: Hiccup mode, recovers automatically after fault condition is removed. | |
| Environmental | Working Temp. & Humidity | -30℃ ~ +70℃, 20% ~ 90% RH |
| Storage Temp. & Humidity | -40℃ ~ +85℃, 10% ~ 95% RH | |
| Safety | Withstand Voltage | Input-Output: 3kVac for 1 minute |
| Leakage Current | 2.5mA at 240VAC input | |
| Isolation Resistance | Input-Output, Input-Case, Output-Case: 500VDC / 100MΩ | |
| Other | Size | 168 * 48 * 33mm |
| Net / Gross Weight | 900g / 1200g | |
