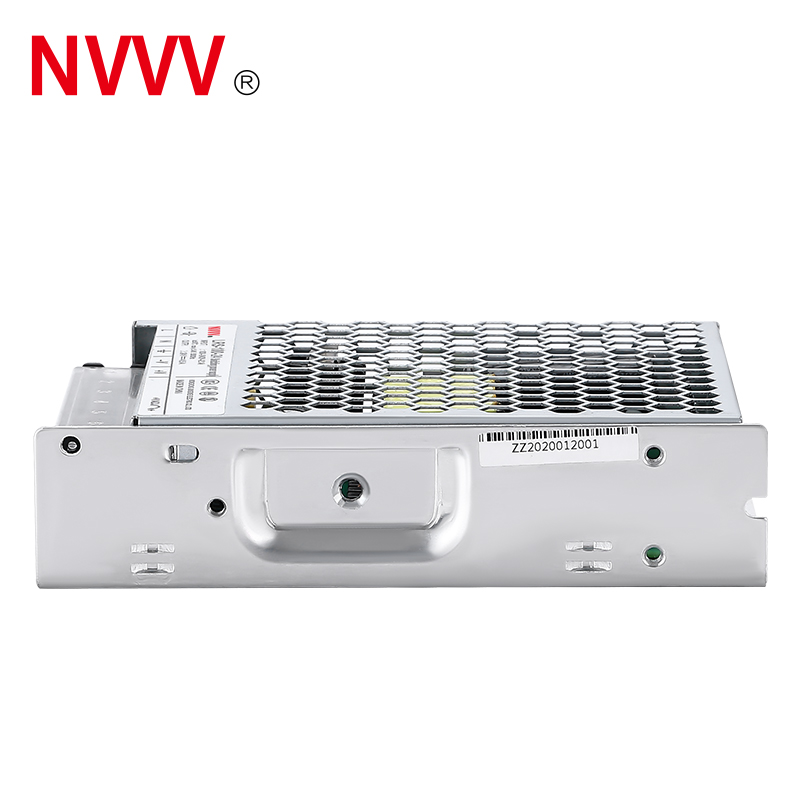

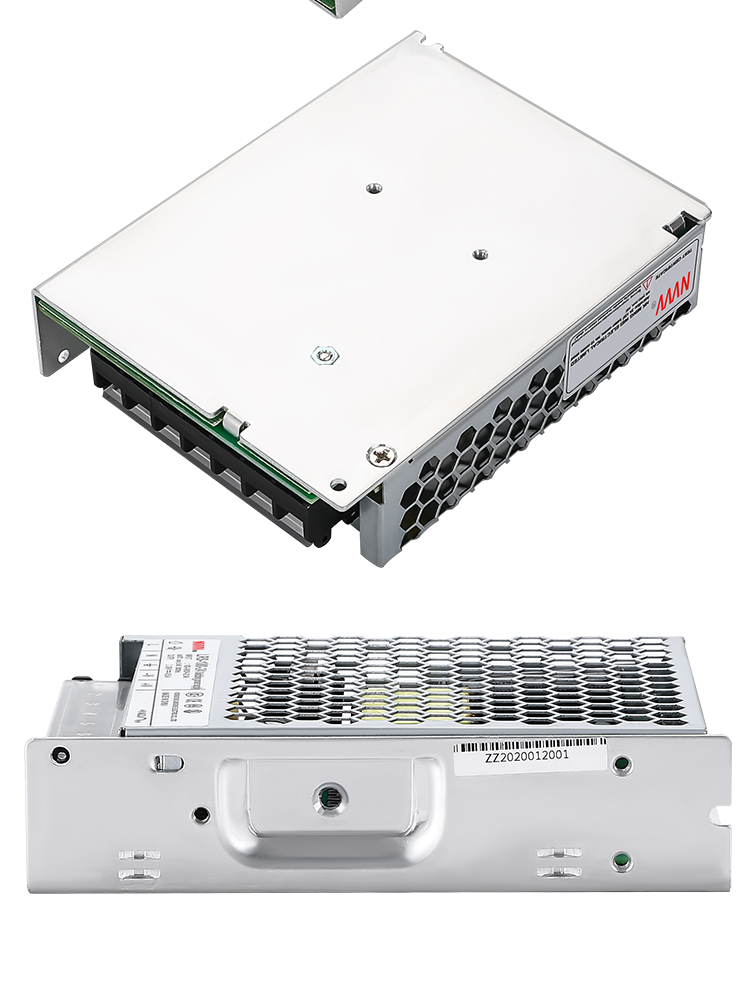

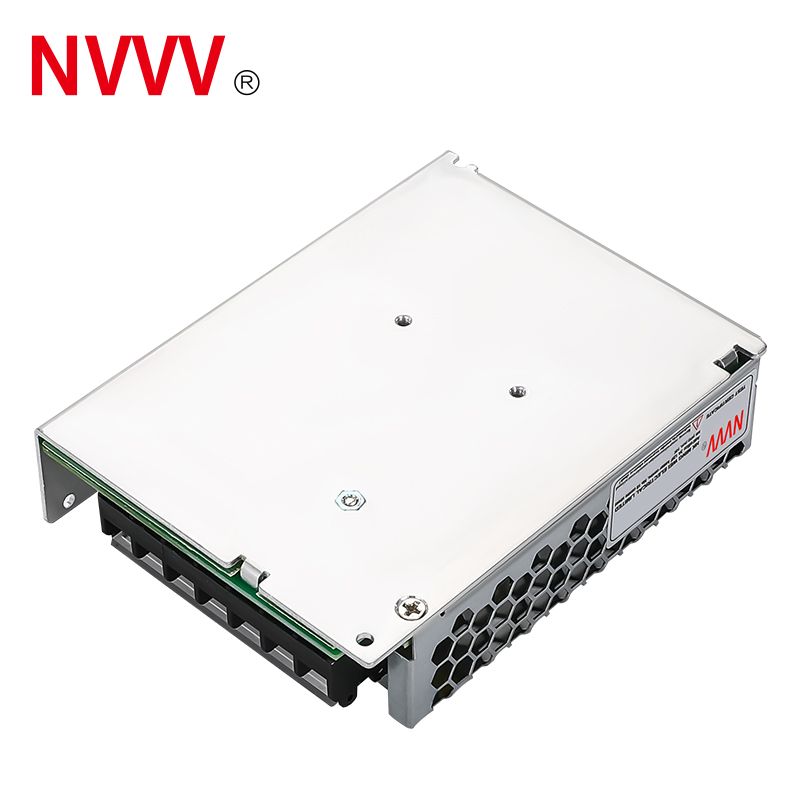

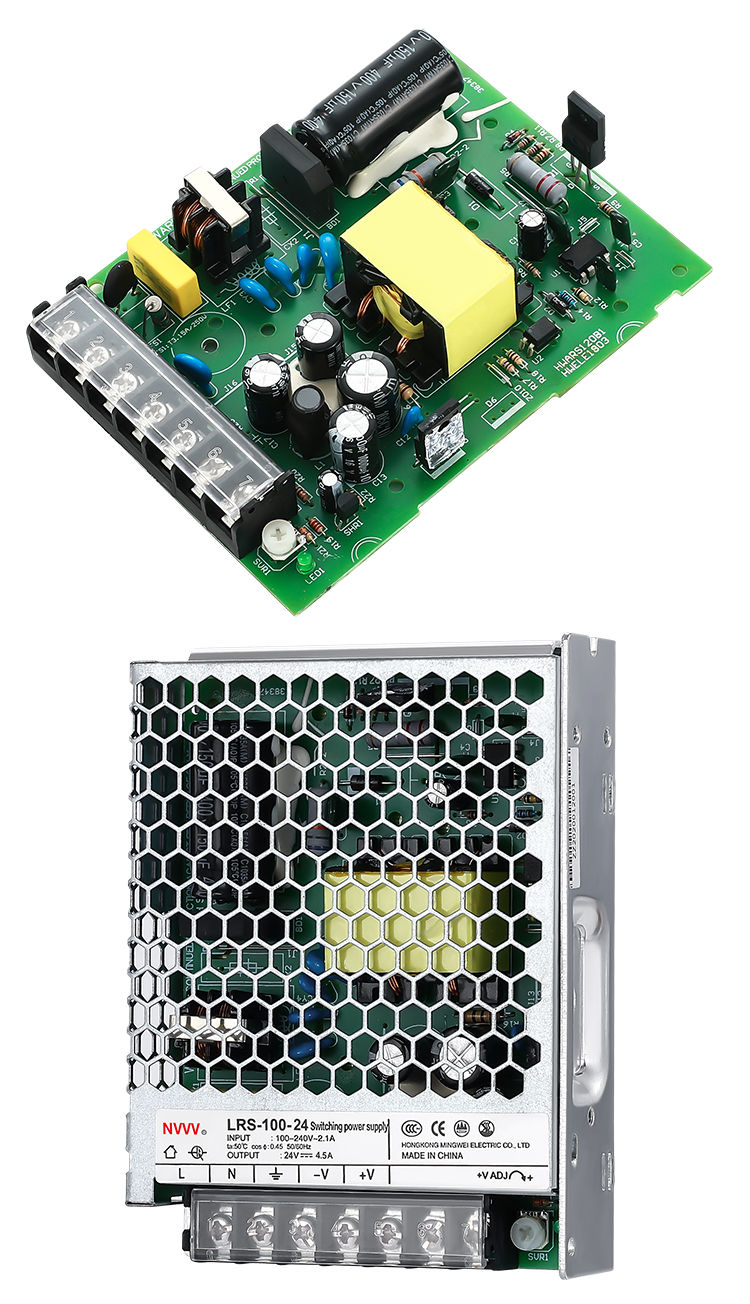

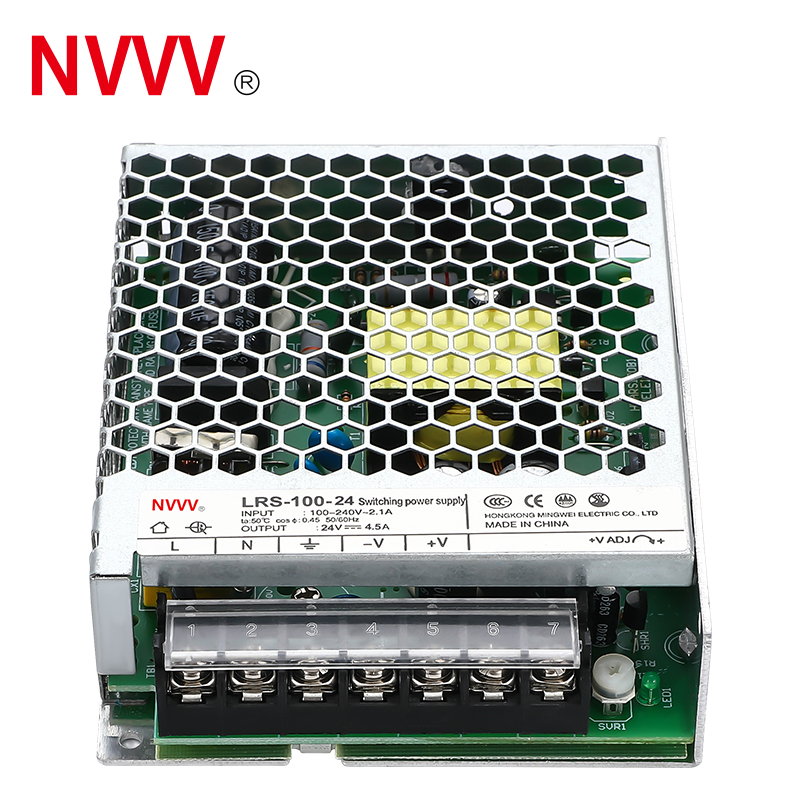

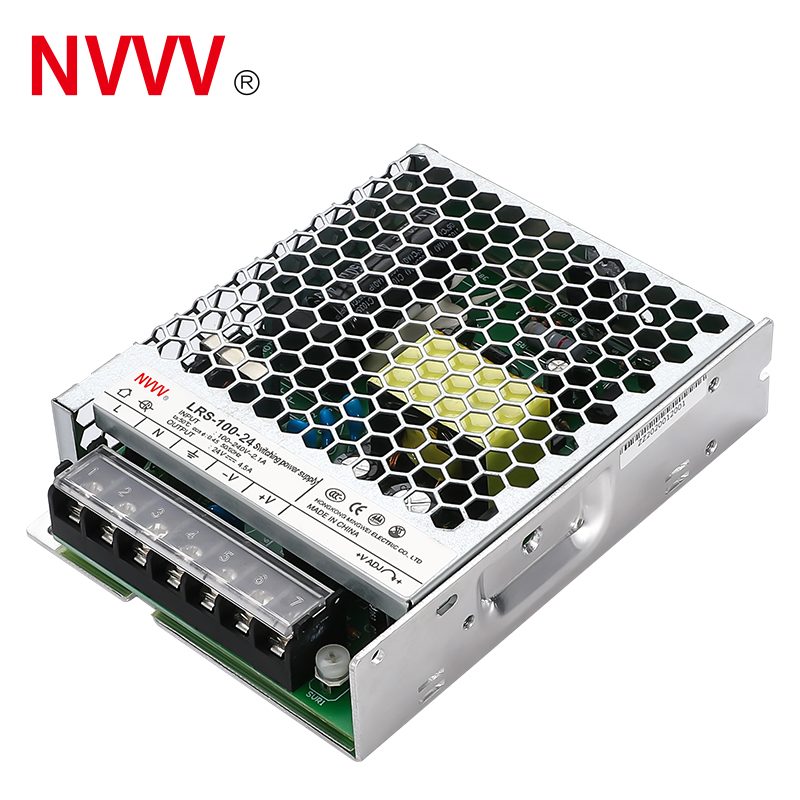

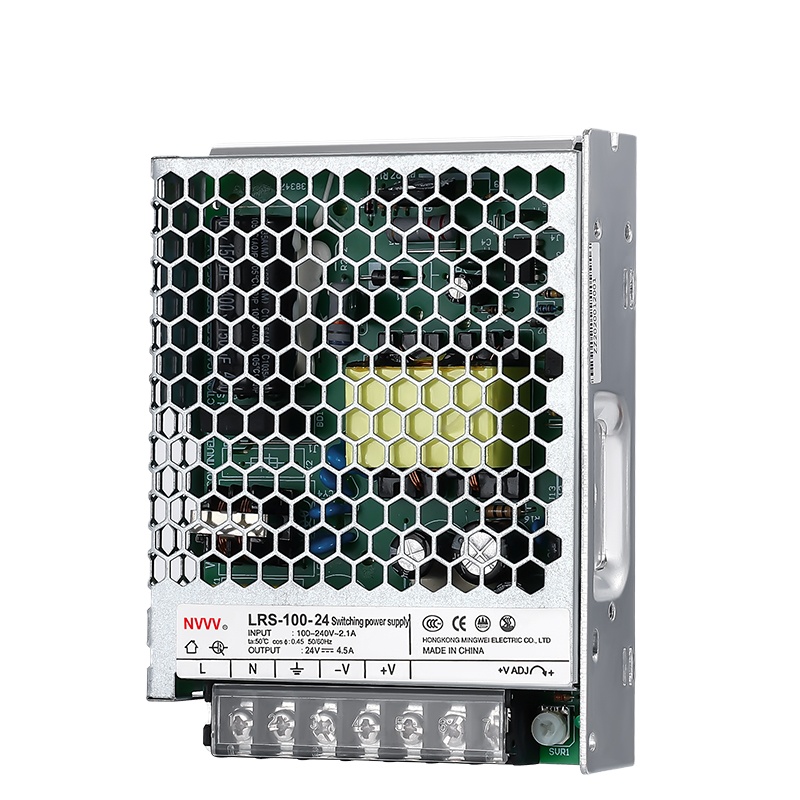

| LRS-100W Switching Power Supply | |||||
|---|---|---|---|---|---|
| Project | 5V | 12V | 24V | 48V | |
| Output | DC Voltage | 5V | 12V | 24V | 48V |
| Rated Current | 18A | 8.5A | 4.5A | 2.3A | |
| Rated Power | 90W | 102W | 108W | 110.4W | |
| Ripple and Noise ① | 100mVp-p | 120mVp-p | 150mVp-p | 200mVp-p | |
| Ripple and Noise Range | ±10% | ||||
| Voltage Accuracy | ±2.0% | ±1.0% | ±1.0% | ±1.0% | |
| Linear Adjustment Rate | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| Load Adjustment Rate | ±1.0% | ±0.5% | ±0.5% | ±0.5% | |
| Starting and Rising Time | 500ms, 30ms / 230VAC; 500ms, 30ms / 115VAC (full load) | ||||
| Retention Time | 55ms / 230VAC; 10ms / 115VAC (full load) | ||||
| Input | Voltage Range / Frequency | 85-264VAC / 120-373VDC 47Hz~63Hz | |||
| Efficiency (Typical) ② | 86% | 88% | 90% | 91% | |
| Working Current | 1.9A / 115VAC; 1.2A / 230VAC | ||||
| Impulse Current | Cold boot: 50A / 230VAC | ||||
| Leakage Current | < 1mA 240VAC | ||||

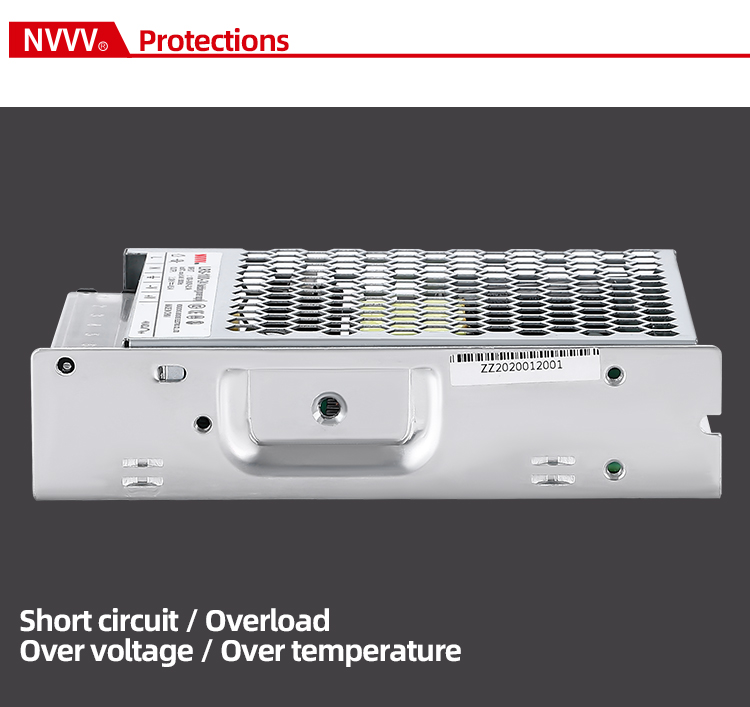

| Protect | Overload Protection | 110%-130% Protection type: Hiccup mode, automatic recovery after abnormal condition is removed | |||
| Overvoltage Protection | ≥ 115% - 145% Protection type: Shut down output, restart to recover | ||||
| Environment | Working Temp & Humidity | -30℃ ~ +70℃; 20% ~ 90% RH | |||
| Storage Temp & Humidity | -40℃ ~ +85℃; 10% ~ 95% RH | ||||
| Safety | Withstand Voltage | Input-Output: 3kVac; Input-FG: 1.5kVac; Output-FG: 0.5kVac for 1 minute | |||
| Insulation Resistance | Input-Output, Input-FG, Output-FG: 500VDC / 100MΩ 25℃ 70% RH | ||||

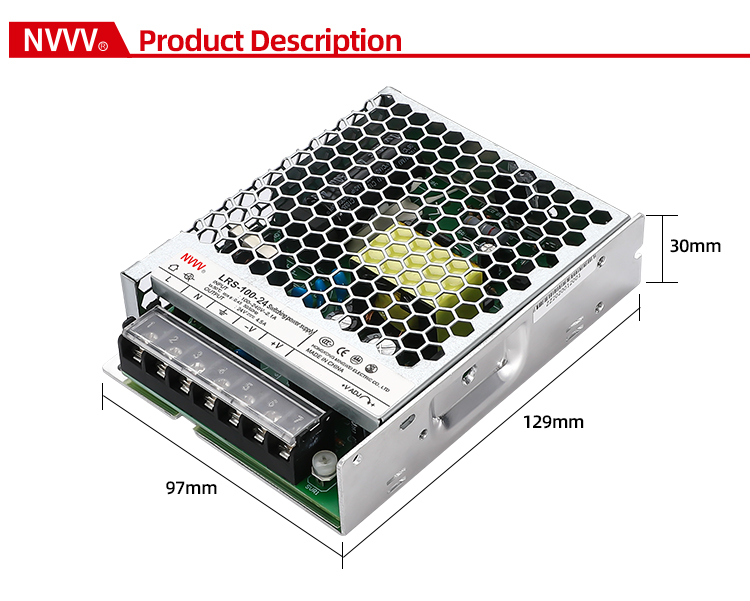

| Other | Size | 129*97*30mm (L*W*H) | |||
| Net / Gross Weight | 340g / 365g | ||||
