| DR-30W Technical Index | ||
|---|---|---|
| Output | DC Voltage | 12V / 24V |
| Rated Current | 2A / 1.5A | |
| Rated Power | 24W / 36W | |
| Ripple and Noise | < 120mV / < 150mV | |
| Voltage Precision | ±1% | |
| Voltage regulation Range | ±10% | |
| Load adjustment rate | ±1% | |
| Linear adjustment rate | ±1% | |
| Input | Voltage Range | 85-264VAC 47Hz - 63Hz (120VDC - 370VDC) |
| Efficiency (typical) | > 82% / > 84% | |
| Working Current | < 0.8A 110VAC / < 0.4A 220VAC | |
| Shock Current | 110VAC 15A / 220VAC 30A | |
| Start, Rise, Hold time | 100ms, 30ms, 21ms (110VAC) / 100ms, 30ms, 100ms (220VAC) | |

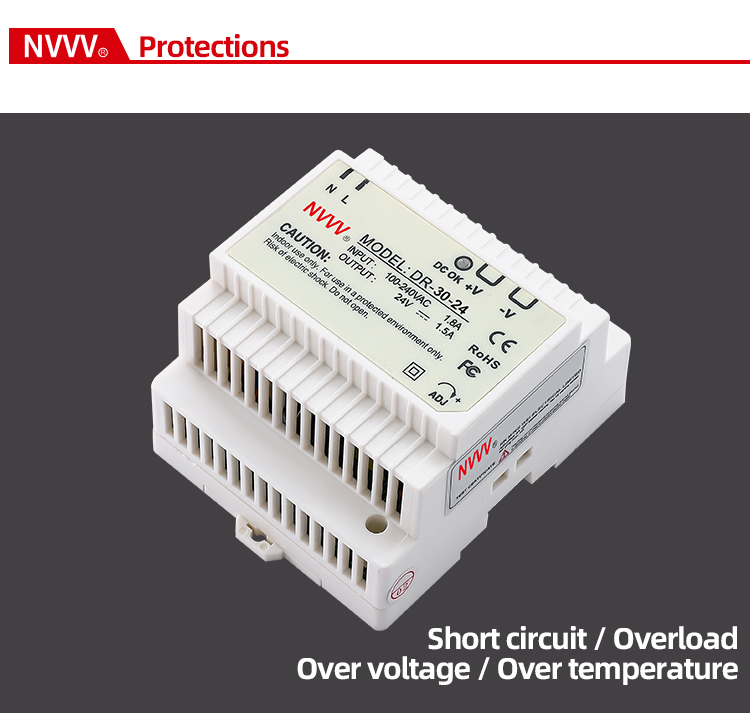

| Protections | Short circuit protection | 105%-150% type: protection mode: automatic recovery after abnormal conditions are removed |
| Overvoltage protection | VO recovers automatically when output abnormal conditions are released | |
| Environmental | Working Temp. & Humidity | -10℃ to +50℃; 20% to 90% RH |
| Storage Temp. & Humidity | -20℃ to +85℃; 10% to 95% RH | |
| Security | Pressure Resistance | O/P-I/P, I/P-O/P: 3KVAC |
| Isolation Resistance | I/P-O/P, O/P-Shell, O/P-Shell: 500VDC / 100MΩ | |

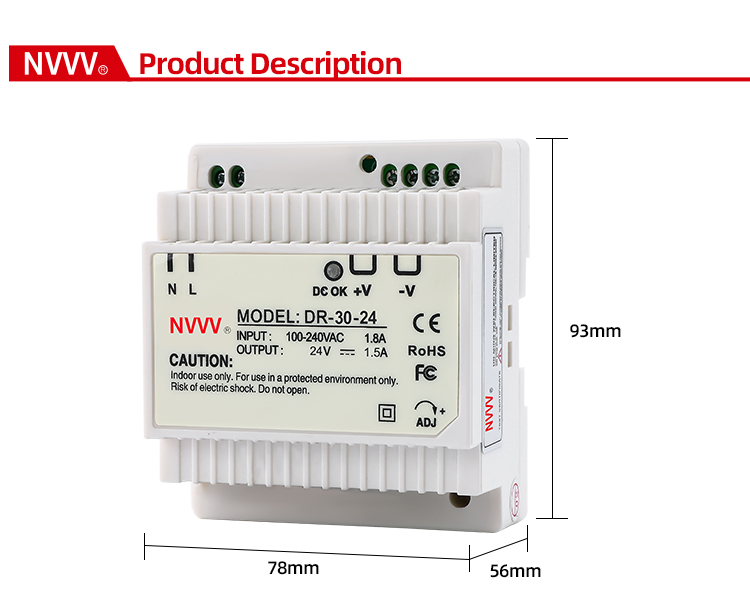

| Others | Size | 78*93*56mm |
| Net/Gross Weight | 270/290g | |
