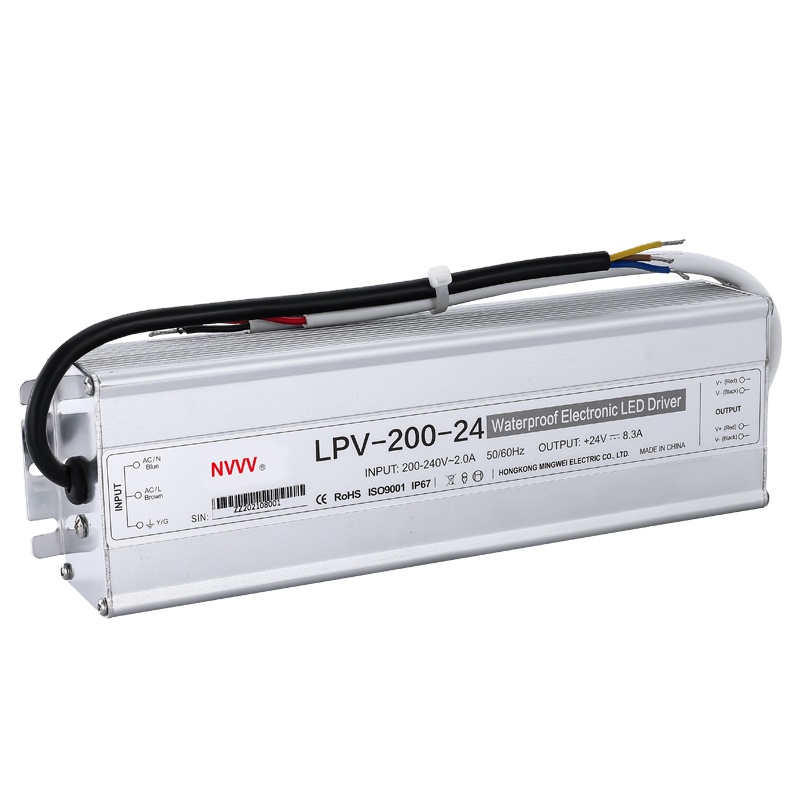

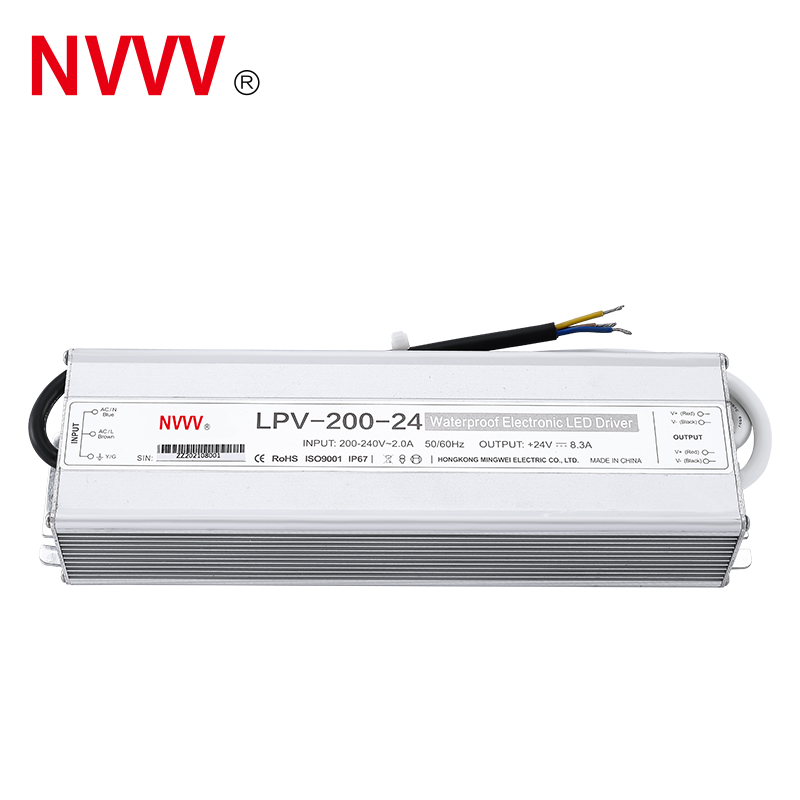

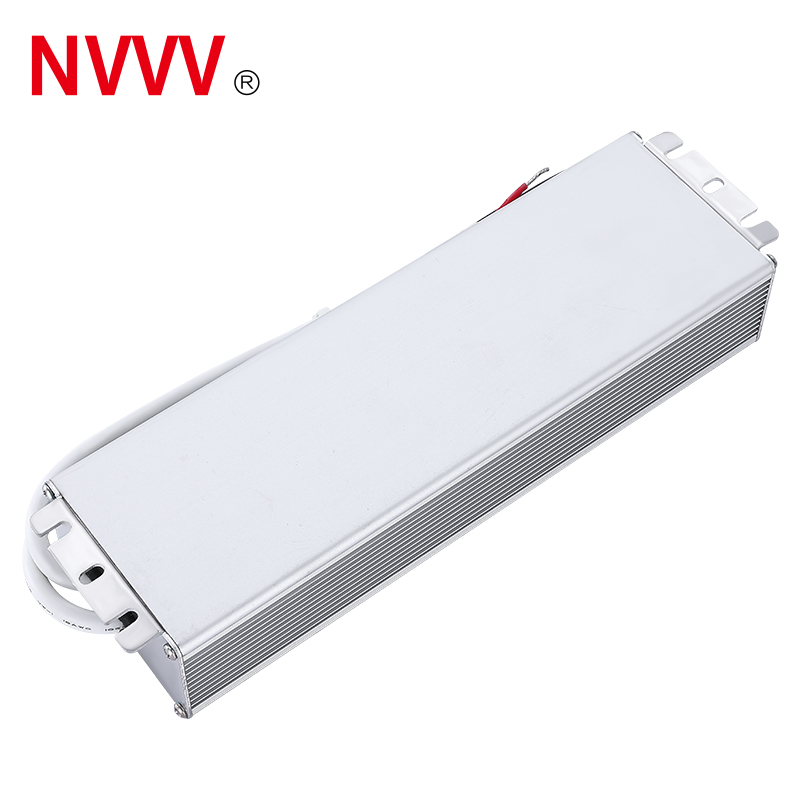

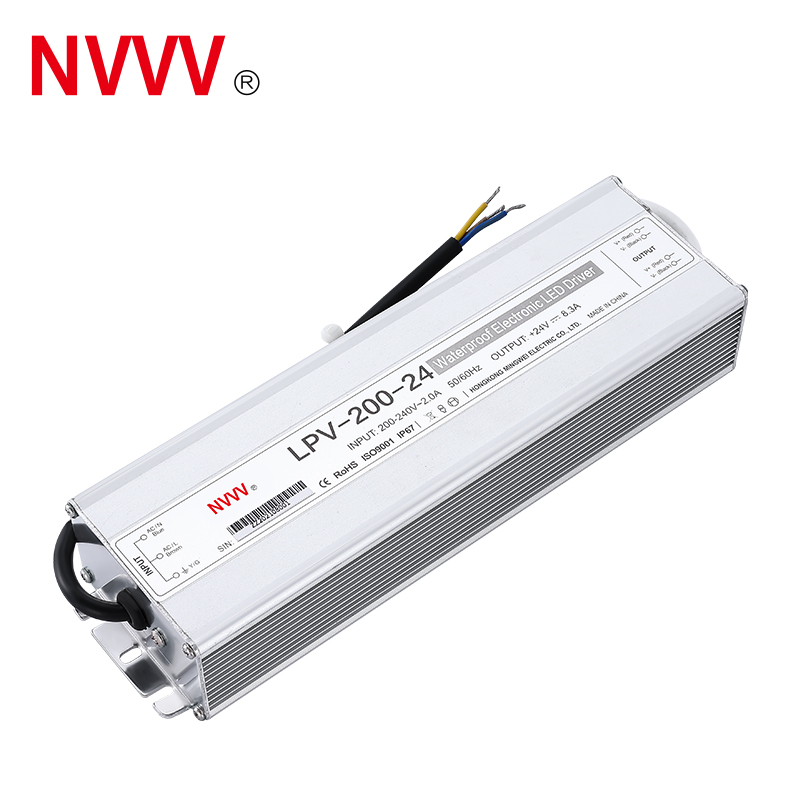

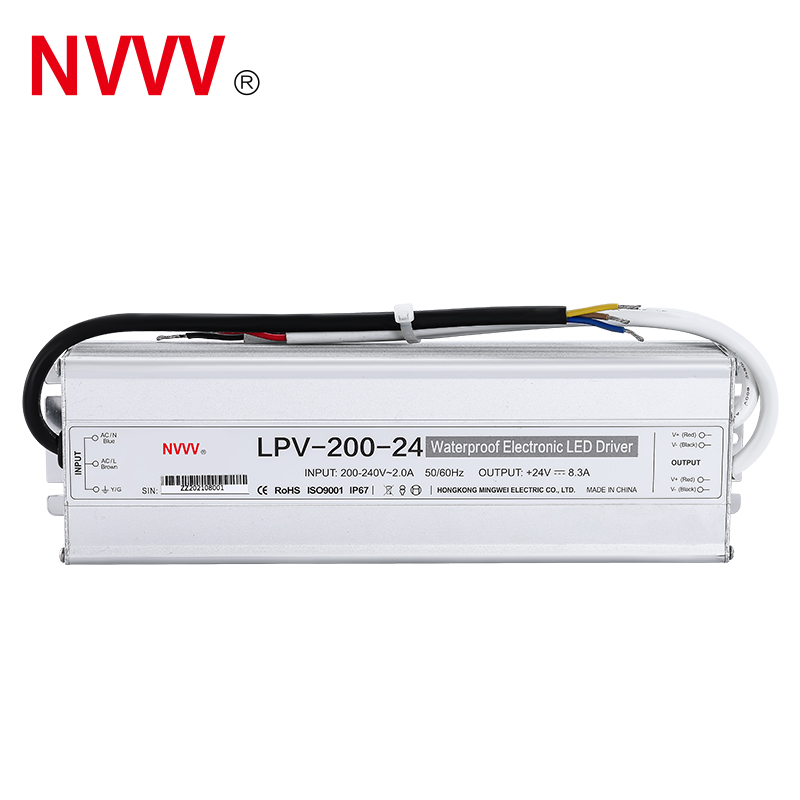

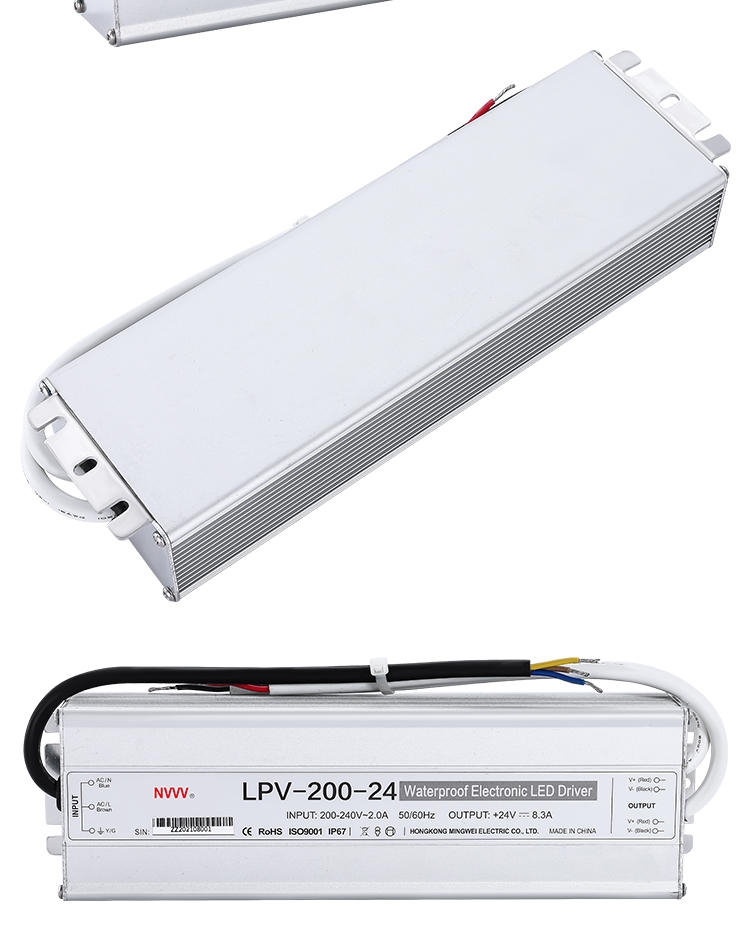

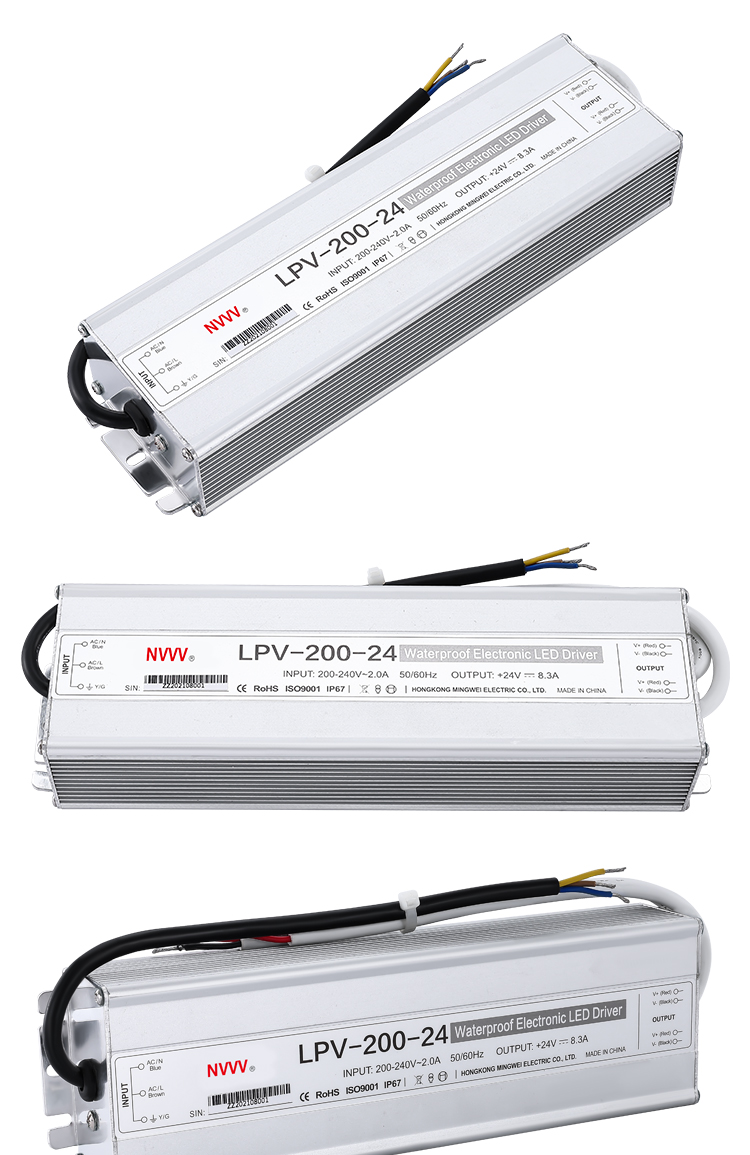

| Category | Project Parameter | Technical Index (12V / 24V Specs) |
|---|---|---|
| Output | DC voltage | 12V / 24V |
| Rated current | 16.6A / 8.3A | |
| Rated power | 200W / 200W | |
| Ripple and noise | < 120mV / < 200mV | |
| Voltage Precision | ±5% | |
| Load adjustment rate | ±2% | |
| Linear adjustment rate | ±1% | |
| Starting and rising time | 500ms, 20ms, 16ms : 115VAC / 500ms, 20ms, 50ms : 230VAC | |
| Input | Voltage range / frequency | 90-264VAC (47Hz~63Hz) / 127VDC~370VDC |
| Efficiency (typical) | > 81% / > 83% | |
| Working current | 0.24A/110VAC, 0.14A/230VAC | |
| Impulse current | 220VAC : 60A | |
| Protection | Leakage current protection | 110% - 130% protection type: hiccup mode, automatic recovery after removing abnormal conditions |
| Overload protection | 115% - 145% protection type: shut down the output, restart to automatically recover | |
| Environment | Working temp. & humidity | -30℃ ~ +70℃; 20% ~ 90% RH |
| Storage temp. & humidity | -40℃ ~ +85℃; 10% ~ 95% RH | |
| Safety Regs | Withstand voltage | Input - Output: 3KVAC (1 minute) |
| Leakage current | Input - Shell: < 2.5mA / 240VAC | |
| Isolation Resistance | Input-Output, Input-Shell, Output-Shell: 500VDC / 100MΩ | |
| Other Info | Dimensions | 240 * 69 * 43 mm |
| Net / Gross weight | 1.3kg / 1.45kg |
