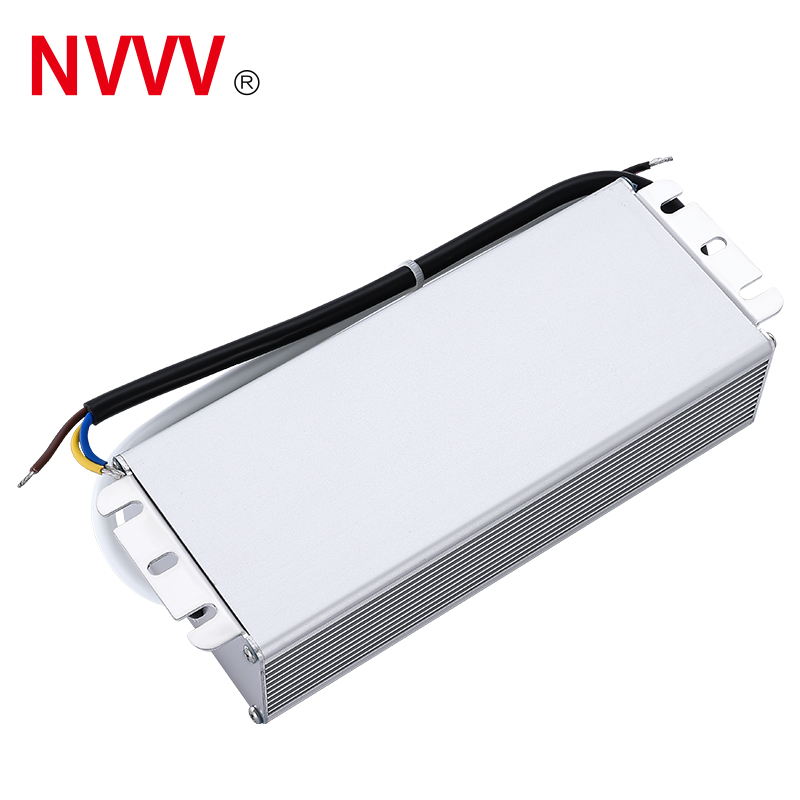

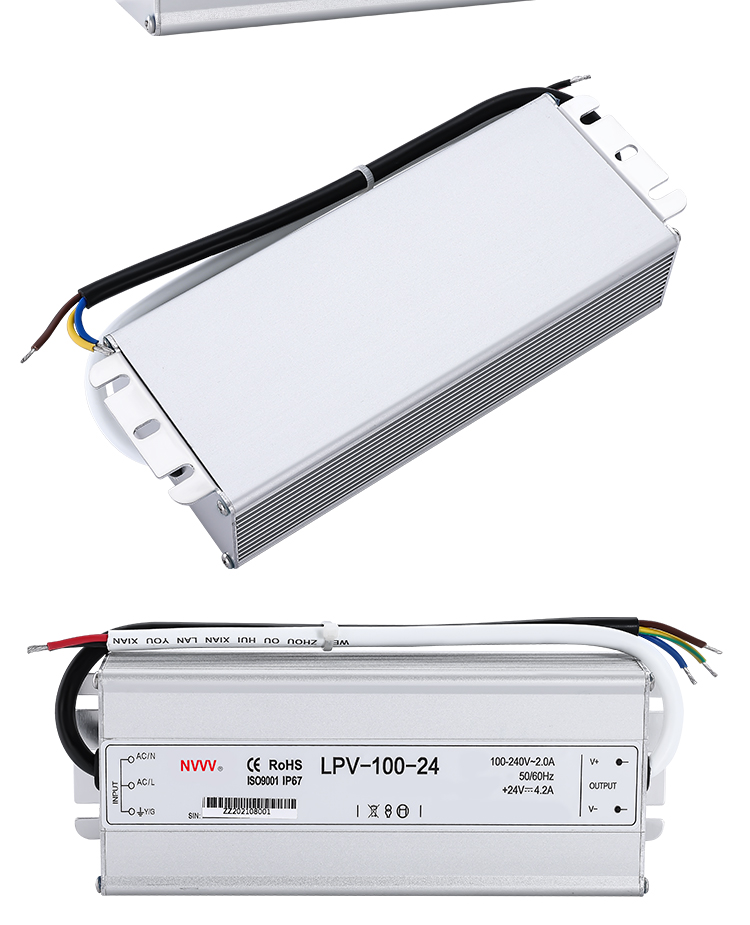

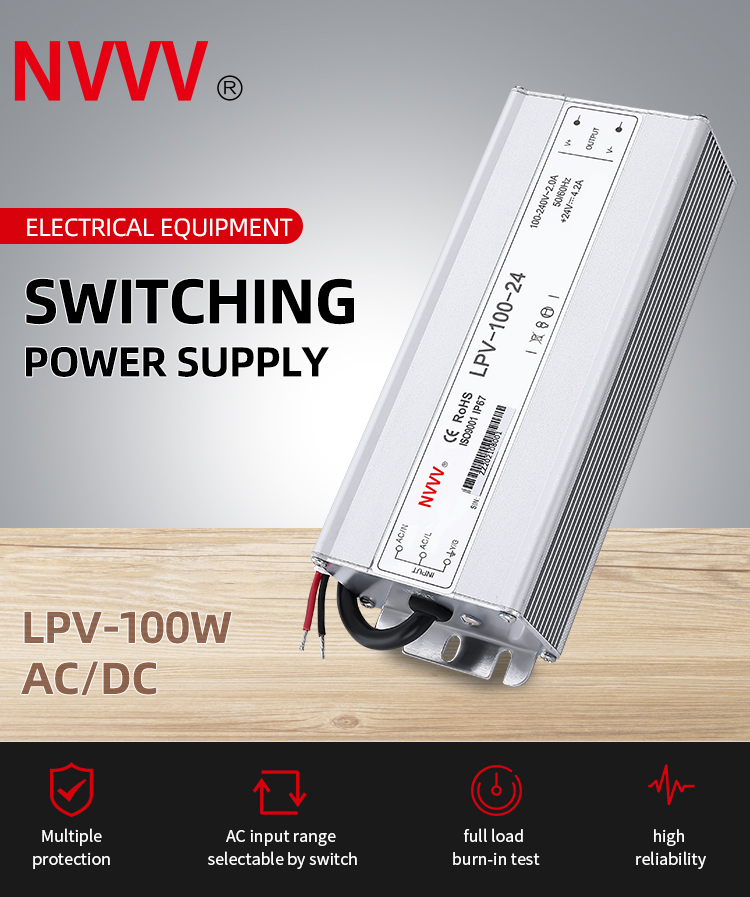

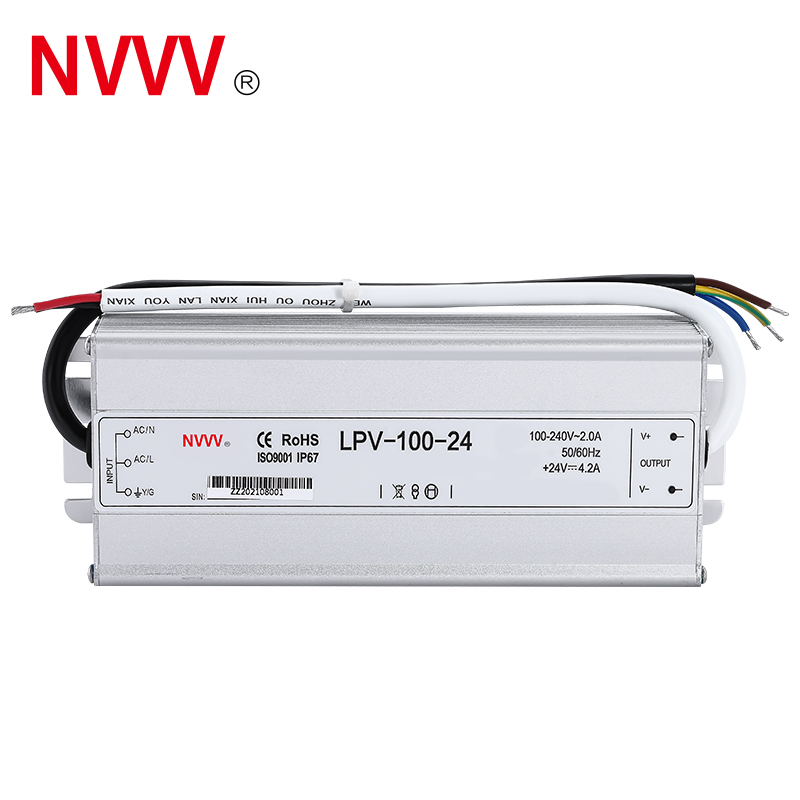

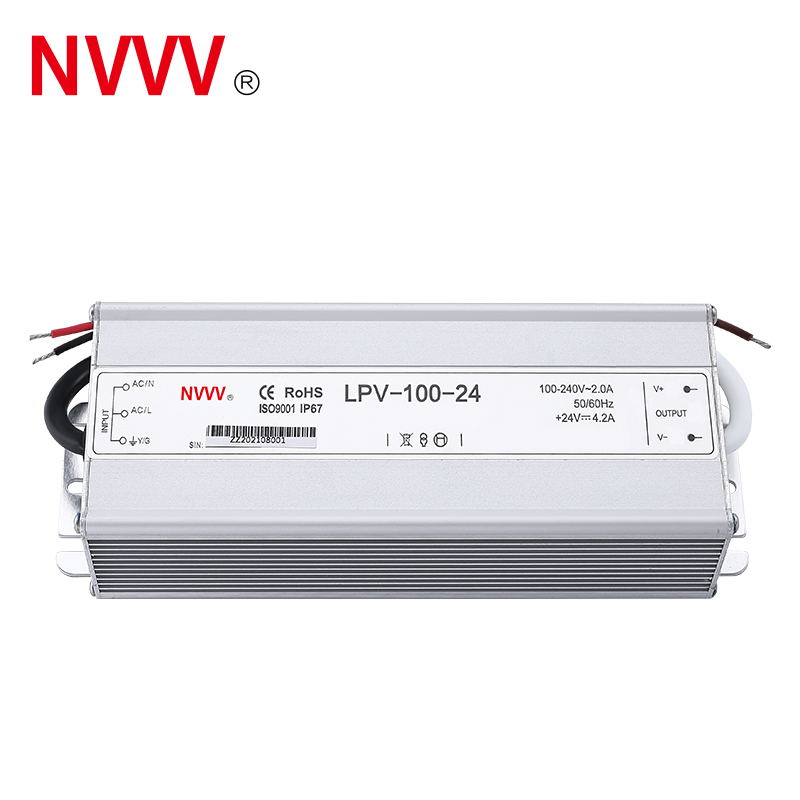

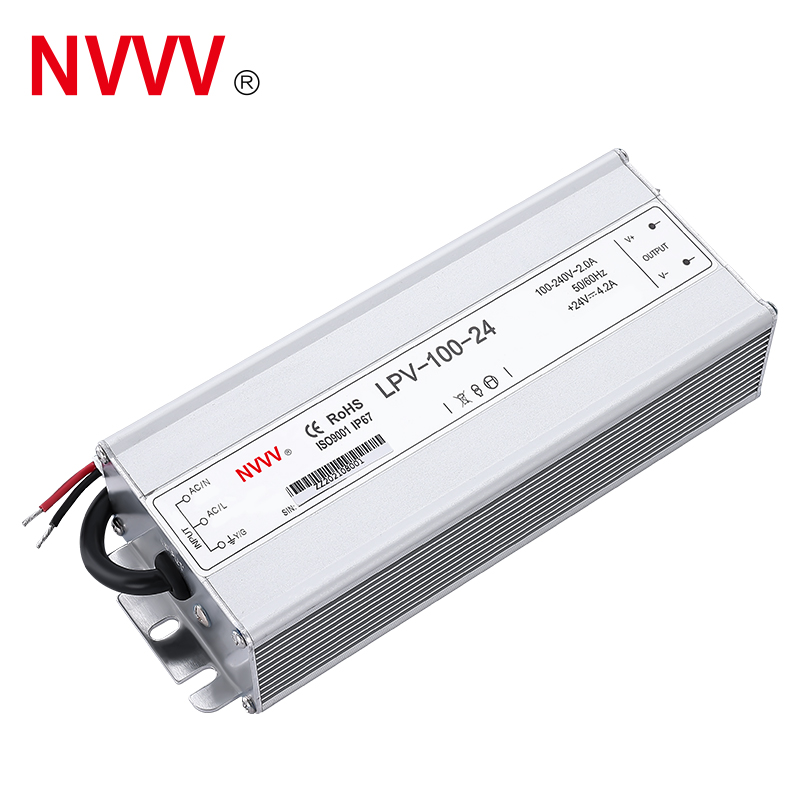

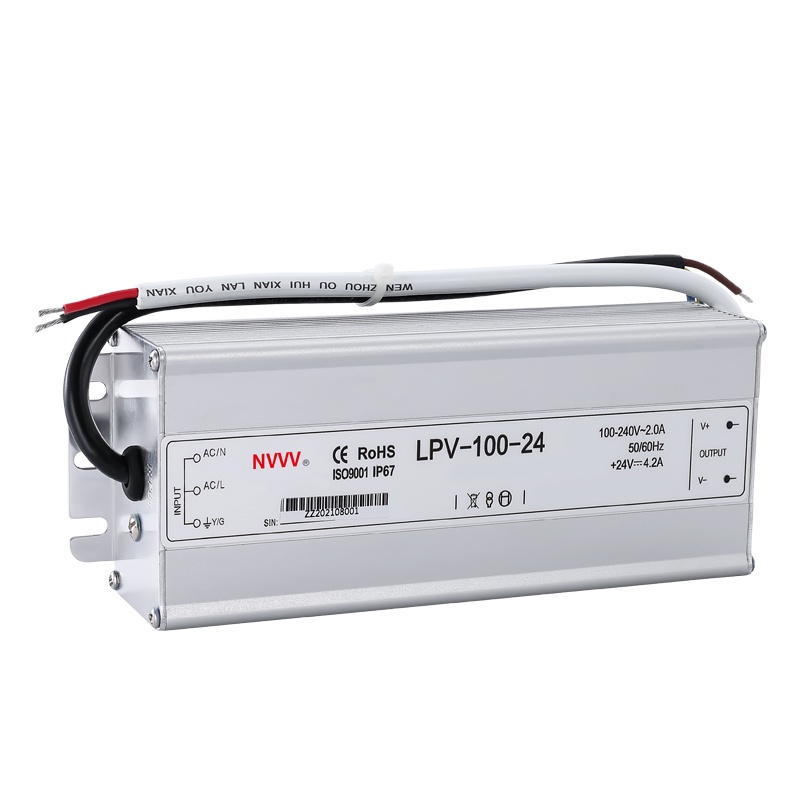

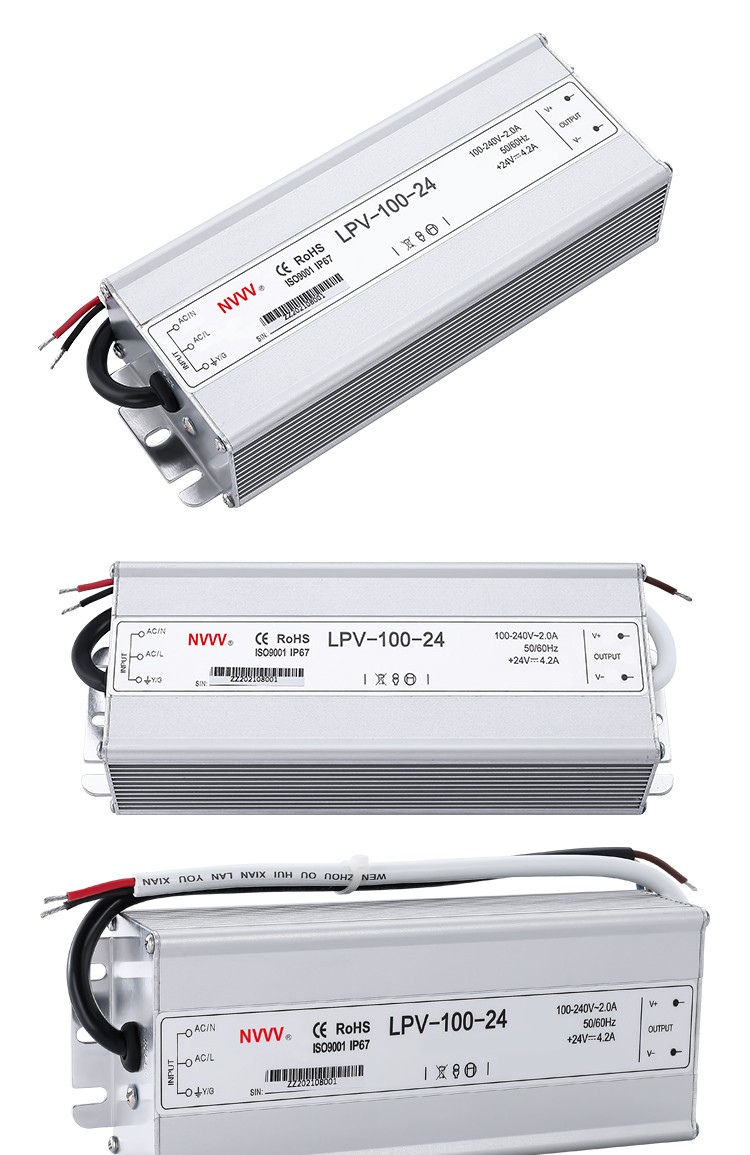

| LPV-100 100W Waterproof Irrigation Switch Power Supply | |||
|---|---|---|---|
| Output | DC voltage | 12V | 24V |
| Rated current | 8.5A | 4.2A | |
| Rated power | 100W | 100W | |
| Ripple and noise (1) | < 120mV | < 150mV | |
| Voltage Precision | ±5% | ||
| Load adjustment rate | ±2% | ||
| Linear adjustment rate | ±1% | ||
| Starting and rising time | 500ms, 20ms, 16ms / 115VAC; 500ms, 20ms, 50ms / 230VAC | ||
| Input | Voltage range / frequency | 90-264VAC 47Hz ~ 63Hz; 127VDC ~ 370VDC | |
| Efficiency (typical) (2) | > 81% | > 83% | |
| Working current | 0.24A / 110VAC; 0.14A / 230VAC | ||
| Impulse current | 220VAC: 60A | ||

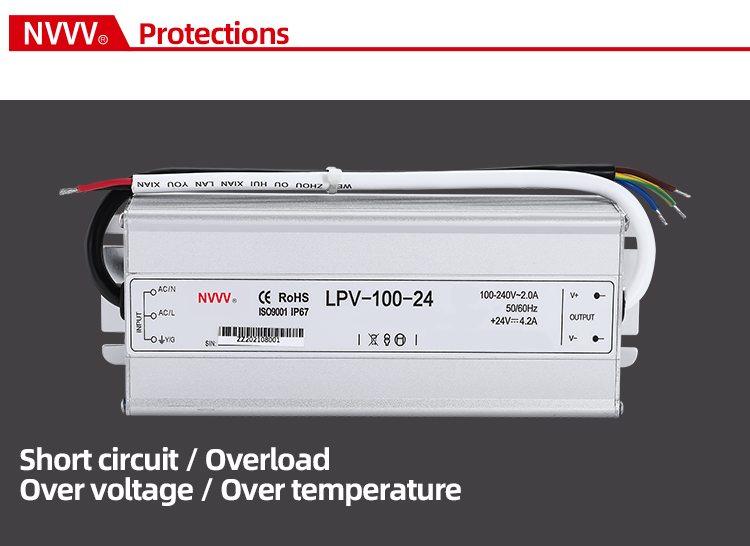

| Protect | Leakage current protection | 110% - 130% protection type: hiccup mode, automatic recovery after abnormal condition is removed | |
| Overload protection | 115% - 145% protection type: shut down the output, auto-recovery after restart | ||
| Environment | Working temp. & humidity | -30°C ~ +70°C; 20% ~ 90% RH | |
| Storage temp. & humidity | -40°C ~ +85°C; 10% ~ 95% RH | ||
| Safety | Withstand voltage | Input - Output: 3KVAC 1 minute | |
| Leakage current | Input - Case: < 2.5mA @ 240VAC | ||
| Isolation Resistance | Input - Output, Input - Case, Output - Case: 500VDC / 100MΩ | ||
| Other | Size | 190 * 50 * 35mm | |
| Net weight / Gross weight | 450g / 500g | ||
