| DR-30W Series Power Supply Specification | ||
|---|---|---|
| Category | Technical Index (12V Model) | Technical Index (24V Model) |
| Output | DC Voltage: 12V | DC Voltage: 24V |
| Rated Current: 2A | Rated Current: 1.5A | |
| Rated Power: 24W | Rated Power: 36W | |
| Ripple and Noise (1): <120mV | Ripple and Noise (1): <150mV | |
| Voltage Precision: ±1% | ||
| Output Voltage Regulation Range: ±10% | ||
| Load Adjustment Rate: ±1% | ||
| Linear Adjustment Rate: ±1% | ||
| Input | Voltage Range: 85-264VAC 47Hz - 63Hz (120VDC - 370VDC) | |
| Efficiency (typical) (2): >82% | Efficiency (typical) (2): >84% | |
| Working Current: <0.8A / 110VAC, <0.4A / 220VAC | ||
| Shock Current: 110VAC 15A, 220VAC 30A | ||
| Start, Rise, Hold Time: 100ms, 30ms, 21ms (110VAC) / 100ms, 30ms, 100ms (220VAC) | ||

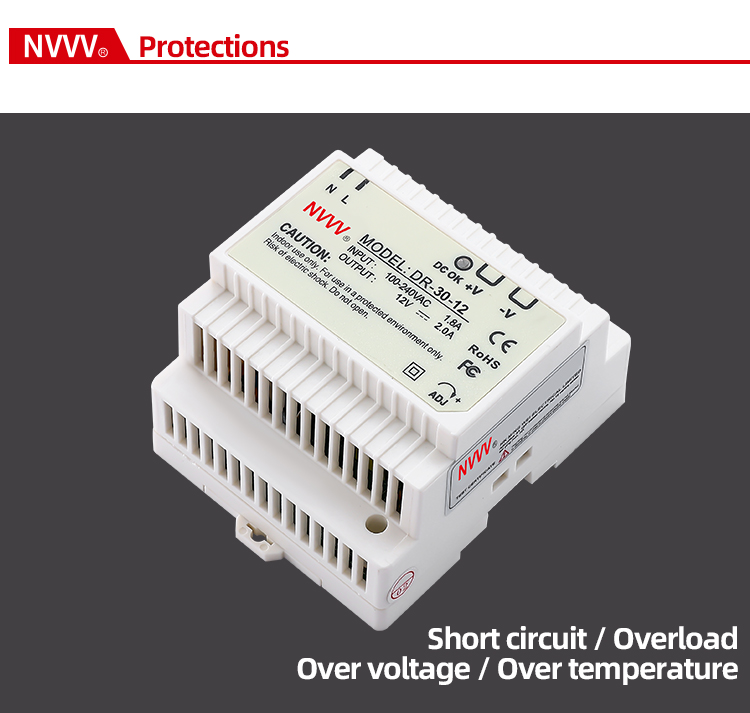

| Protection | Short Circuit Protection: 105%-150% type: protection mode: automatic recovery after abnormal conditions are removed | |
| Overload Protection: VO when the abnormal condition of output is released, it will recover automatically | ||
| Environmental | Working Temp. and Humidity: -10°C - +50°C, 20% - 90% RH F2 | |
| Storage Temp. and Humidity: -20°C - +85°C, 10% - 95% RH | ||
| Security | Pressure Resistance: O/P-I/P, I/P-O/P: 3KVAC | |
| Isolation Resistance: I/P-O/P, O/P-Shell, O/P-Shell: 500VDC / 100MΩ | ||

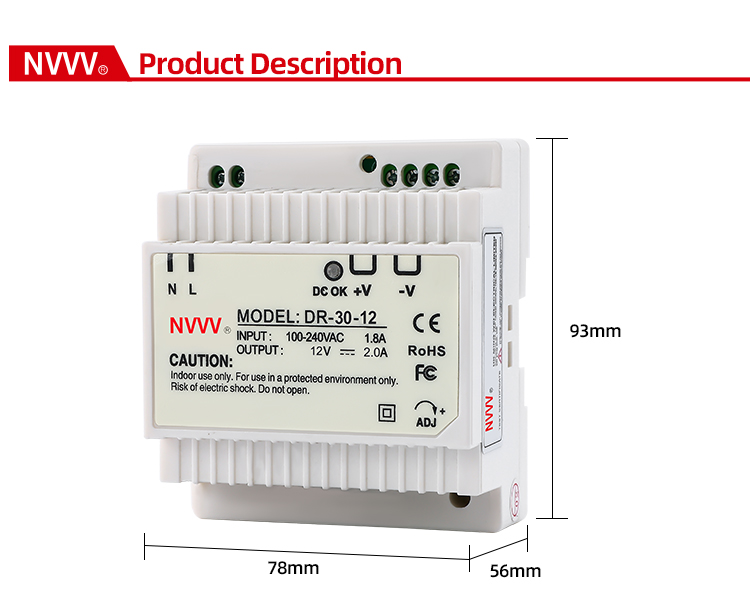

| Others | Size: 78 * 93 * 56mm | |
| Net/Gross Weight: 270g / 290g | ||
