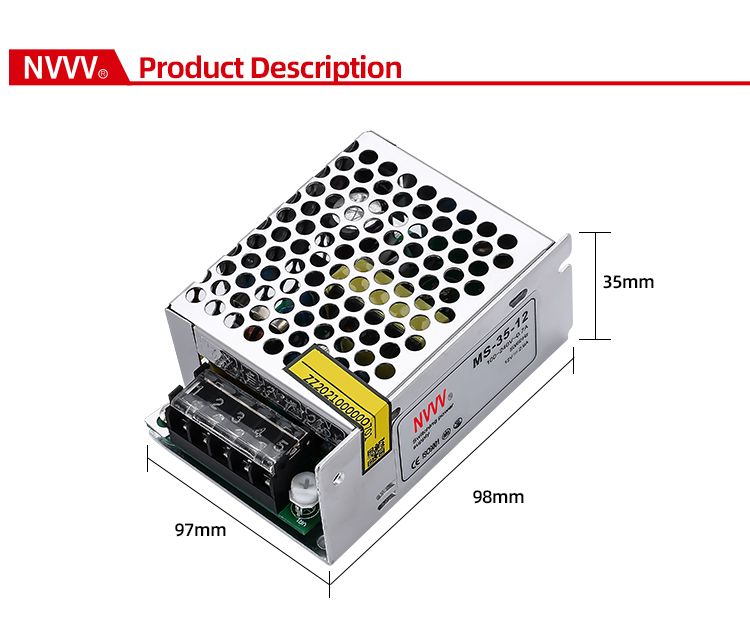

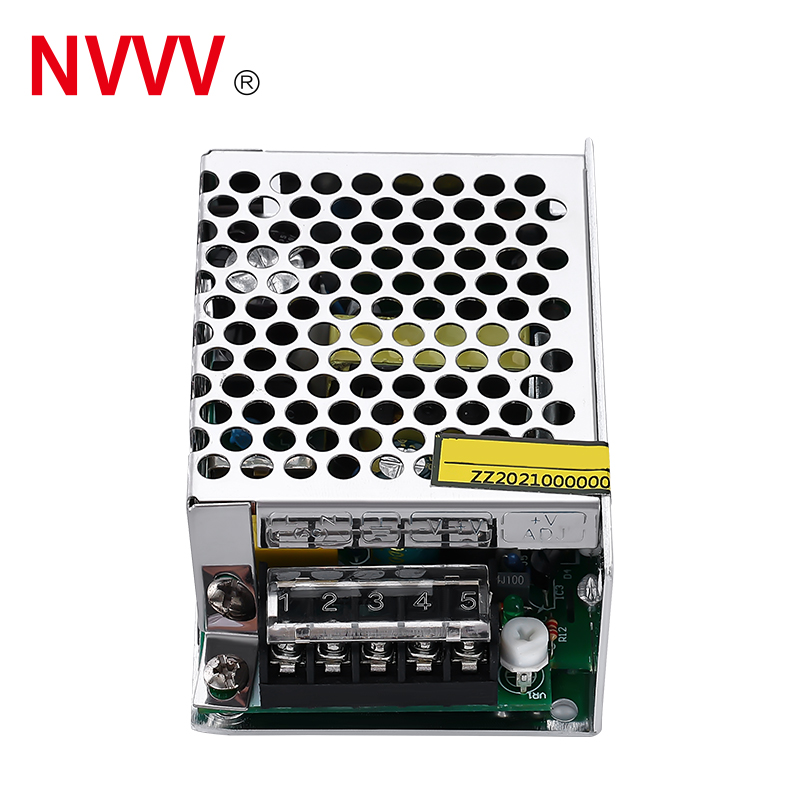

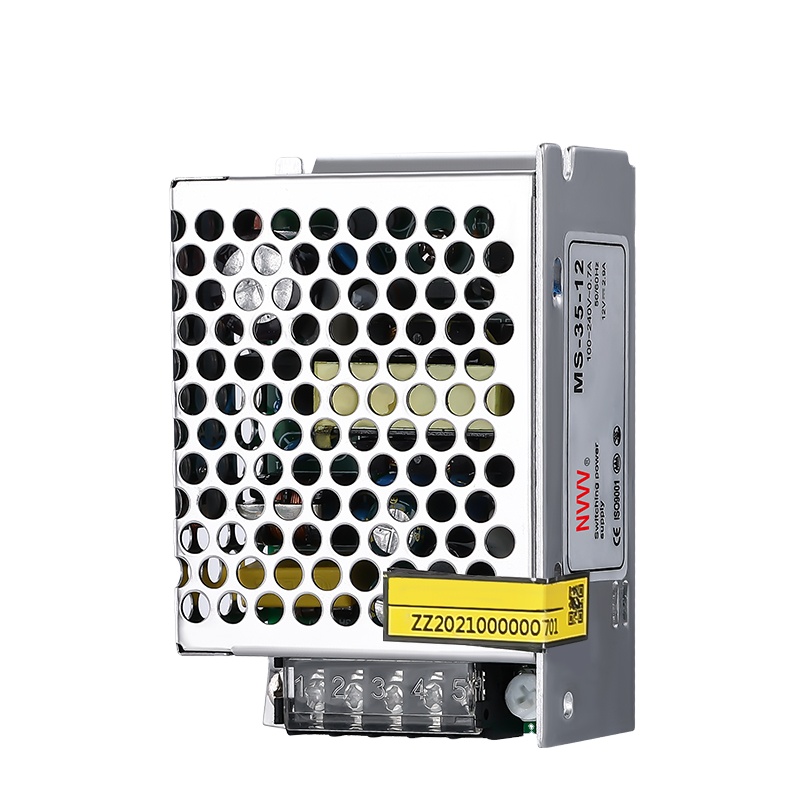

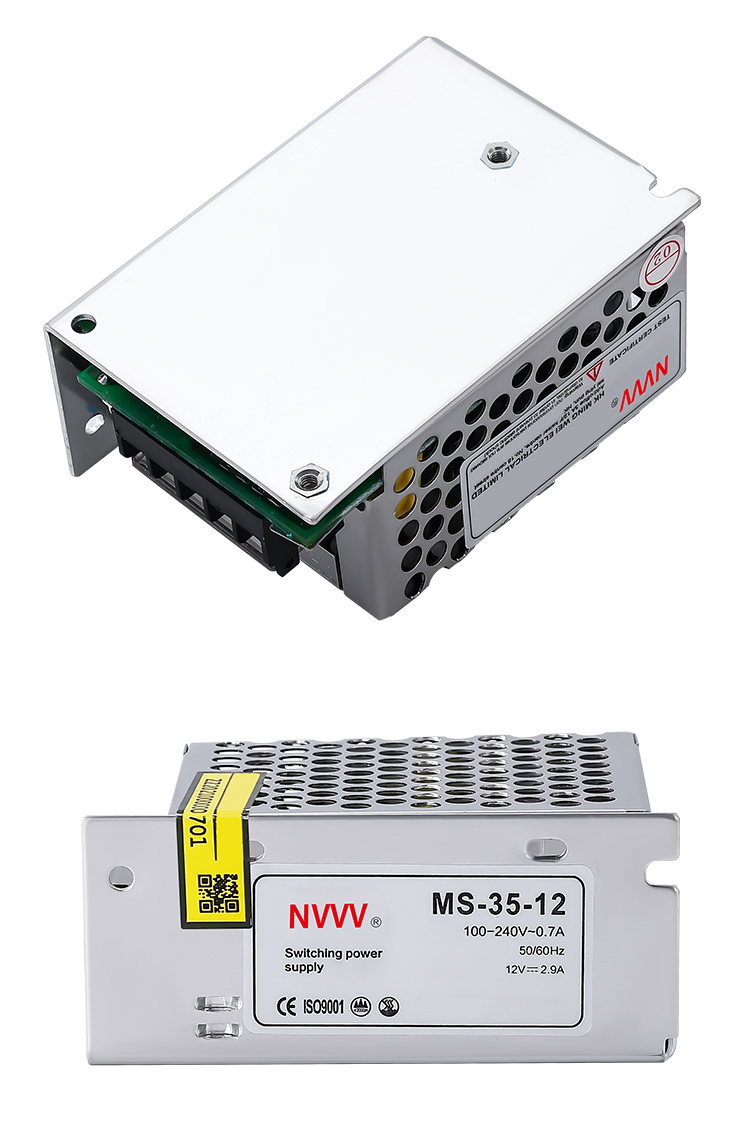

| MS-35 35W Switching Power Supply | ||||
|---|---|---|---|---|
| Project | Technical Index | 5V | 12V | 24V |
| Product | DC voltage | 5V | 12V | 24V |
| Rated current | 6A | 2.9A | 1.5A | |
| Rated power | 30W | 34.8W | 36W | |
| Ripple and noise (1) | <50mV | <120mV | <150mV | |
| Voltage accuracy | ±2% | ±1% | ±1% | |
| Output voltage regulation range | ±10% | |||
| Load adjustment rate | <±1.5% | <±0.5% | <±0.5% | |
| Linear adjustment rate | <±0.5% | |||
| Input | Voltage range | 85-264VAC 47Hz-63Hz (120VDC-370VDC) | ||
| Efficiency (typical) (2) | >78% | >82% | >84% | |
| Working current | <0.8A 110VAC / <0.35A 220VAC | |||
| Impulse current | 110VAC 18A / 220VAC 36A | |||
| Start, rise, hold time | 200ms, 50ms, 20ms at 220VAC | |||
| Protection | Overload protection | ≥ 105% - 150% type: constant current output + VO reduced to undervoltage point cut off output reset: power on again | ||
| Short circuit protection | +VO Drop to undervoltage point to close output | |||
| Environment | Working temp and humidity | -10℃ ~ +50℃, 20% ~ 90% RH | ||
| Storage temp and humidity | -20℃ ~ +85℃, 10% ~ 95% RH | |||
| Safety | Withstand voltage | Input-Output: 1.5kVac, Input-Shell: 1.5kVac, Output-Shell: 0.5kVac for 1 minute | ||
| Leakage current (1.5kVac) | Input-Output 1.5KVAC time < 5mA | |||
| Leakage current (220kVac) | Input-Output 220VAC time < 1mA | |||
| Isolation resistance | Input-Output, Input-Housing, Output-Housing: 500VDC/100MΩ | |||
