| DR-60W Technical Index | |||
|---|---|---|---|
| Category | Parameter | DR-60-12 (12V) | DR-60-24 (24V) |
| Output | DC Voltage | 12V | 24V |
| Rated Current | 4.5A | 2.5A | |
| Rated Power | 54W | 60W | |
| Ripple and Noise ① | < 120mV | < 150mV | |
| Voltage Precision | ±1% | ||
| Output Voltage Regulation Range | ±10% | ||
| Load Adjustment Rate | ±1% | ||
| Linear Adjustment Rate | ±1% | ||
| Input | Voltage Range | 85-264VAC 47Hz ~ 63Hz (120VDC ~ 370VDC) | |
| Efficiency (Typical) ② | > 82% | > 84% | |
| Working Current | < 0.8A 110VAC / < 0.4A 220VAC | ||
| Shock Current (Inrush Current) | 110VAC 15A / 220VAC 30A | ||
| Start, Rise, Hold Time | 100ms, 30ms, 21ms : 110VAC / 100ms, 30ms, 100ms : 220VAC | ||

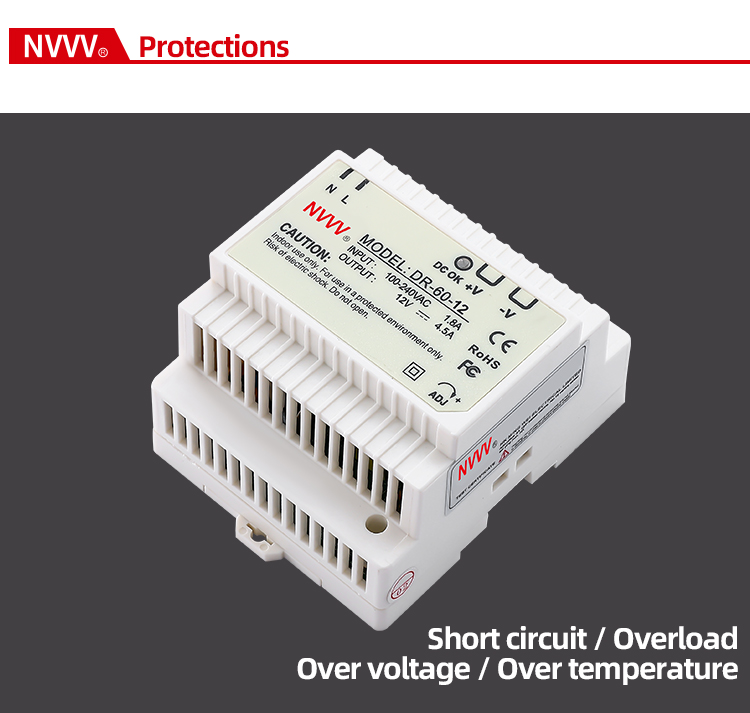

| Protections | Short Circuit Protection | 105%-150% protection mode: automatic recovery after abnormal conditions are removed (hiccup mode) | |
| Short Circuit Production | VO when the abnormal condition of output is released, it will recover automatically | ||
| Environmental | Working Temp. and Humidity | -10℃ ~ +50℃; 20% ~ 90% RH | |
| Storage Temp. and Humidity | -20℃ ~ +85℃; 10% ~ 95% RH | ||
| Security | Pressure Resistance | O/P-I/P, I/P-O/P: 3KVAC | |
| Isolation Resistance | I/P-O/P, O/P-Shell, O/P-Shell : 500VDC/100MΩ | ||

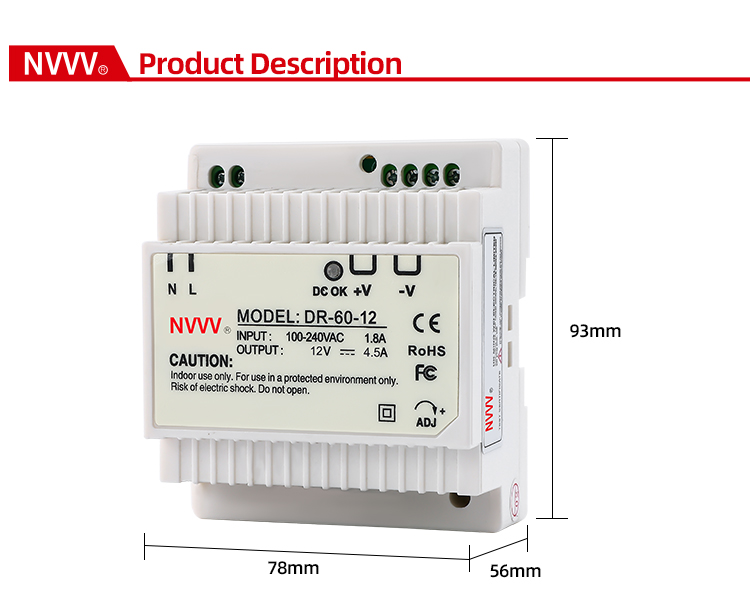

| Others | Size | 78*93*56mm | |
| Net/Gross Weight | 270/290g | ||
A: Yes, absolutely. We offer both OEM (your brand, logo, packaging) and ODM (we help design/develop products based on your ideas or samples). We have experience working with well-known companies in the industry, and we are confident we can bring that same quality and reliability to your projects. Your brand and ideas are safe with us.
A: We offer standard voltages including 12V, 24V, 36V, 48V, 60V, 68V, and 110V depending on the specific item. Customized voltage requirements are also welcome.
A: Yes, sample orders are welcome to test quality. Mixed samples are acceptable. We also have overseas warehouses, so you can receive samples faster.
A: Our MOQ is low. For sample checking, 30 pieces are available.
A: We work with reliable shipping logistics partners. Depending on your country, our sales team can recommend dedicated shipping routes for better service and lower prices. Specific delivery times can be provided upon request.
A: First, all our products go through a strict quality control system, so the defect rate is very low. Second, during the warranty period: For small quantities, we will include new products with your next order. For defective batches, we will repair and resend the products, or we can discuss a solution (including a credit or replacement) based on the actual situation.
