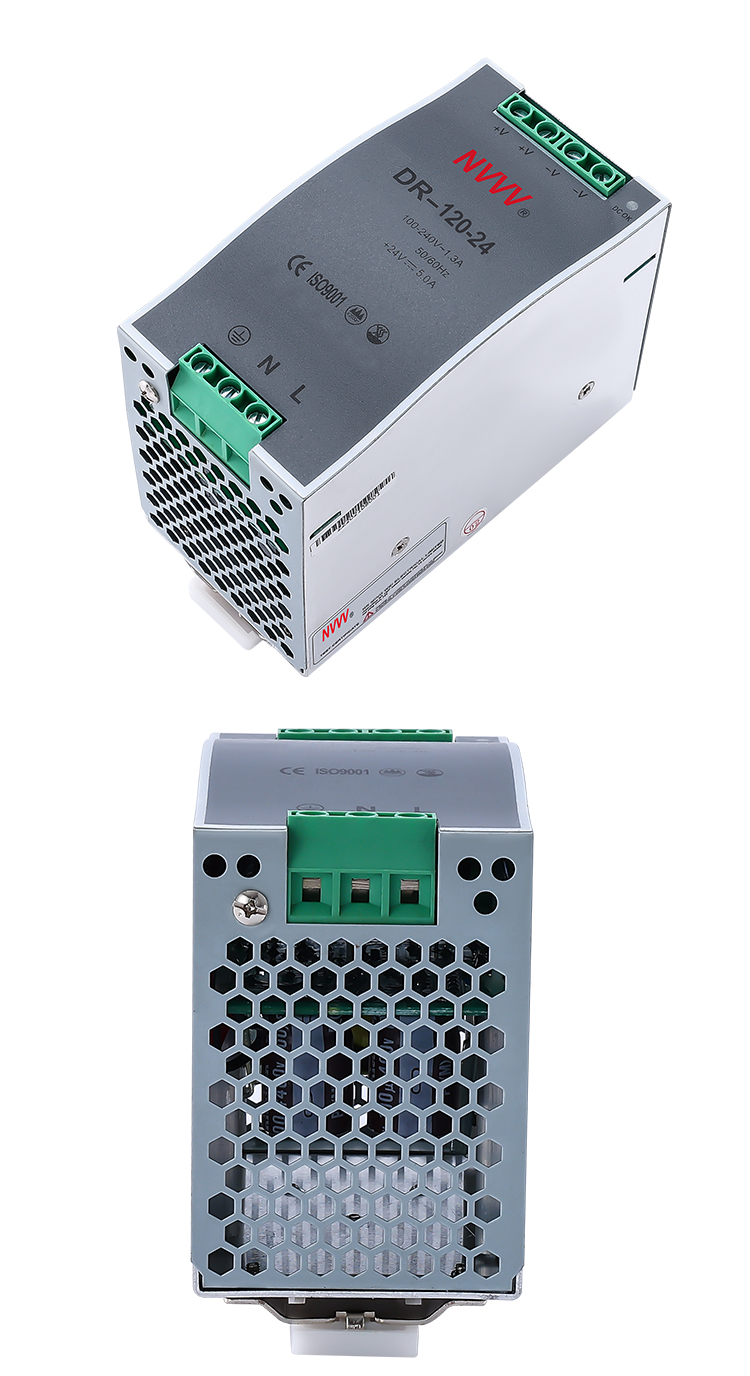

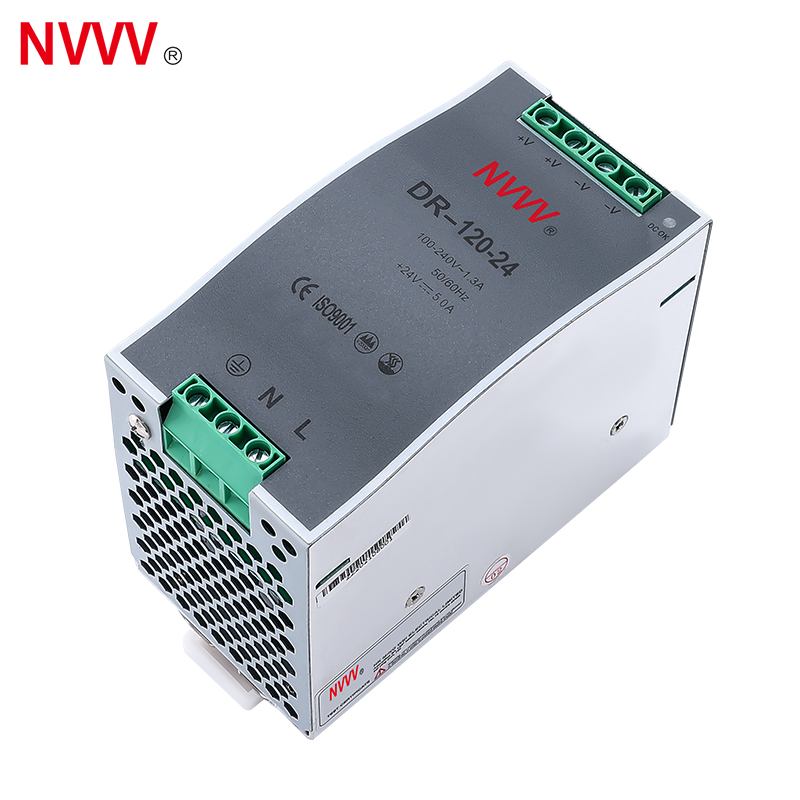

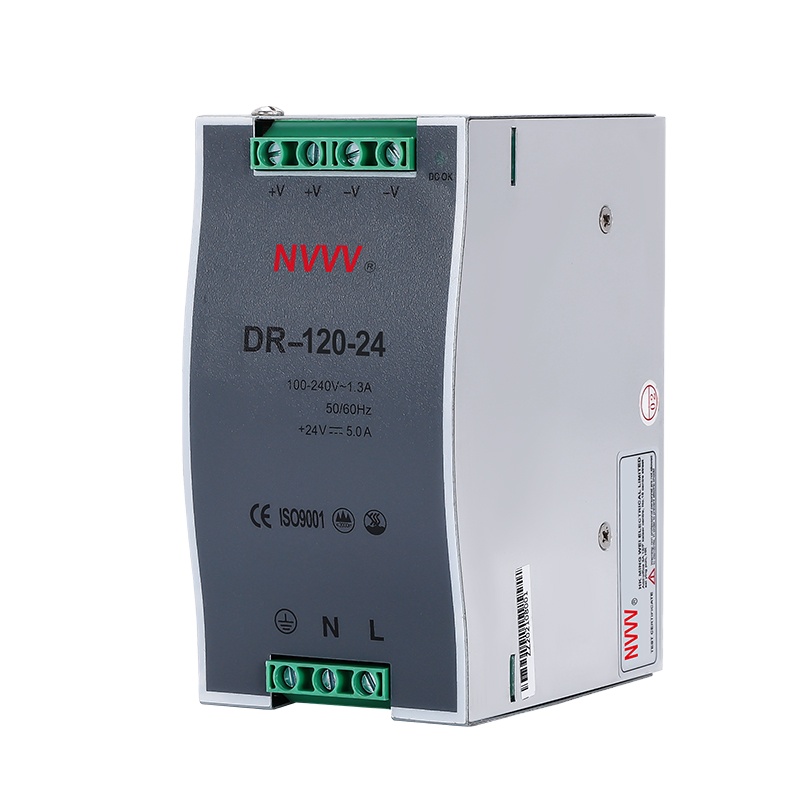

| Model | DR-120-24 | |
|---|---|---|
| OUTPUT | ||
| DC Voltage | 24V | |
| Rated Current | 5A | |
| Rated Power | 120W | |
| Ripple and Noise | <150mV | |
| Voltage Accuracy | ±1% | |
| Output Voltage Regulation Range | ±10% | |
| Linear Adjustment Rate | ±0.5% | |
| INPUT | ||
| Voltage Range | 85-264VAC 47Hz~63Hz (120VDC~370VDC) | |
| Efficiency (Typical) | >88% | |
| Working Current | <2.6A 110VAC / <1.6A 220VAC | |
| Shock Current | 110VAC 20A / 220VAC 40A | |
| Start, Rise, Hold Time | 500ms, 70ms, 32ms (110VAC) / 500ms, 70ms, 36ms (220VAC) | |

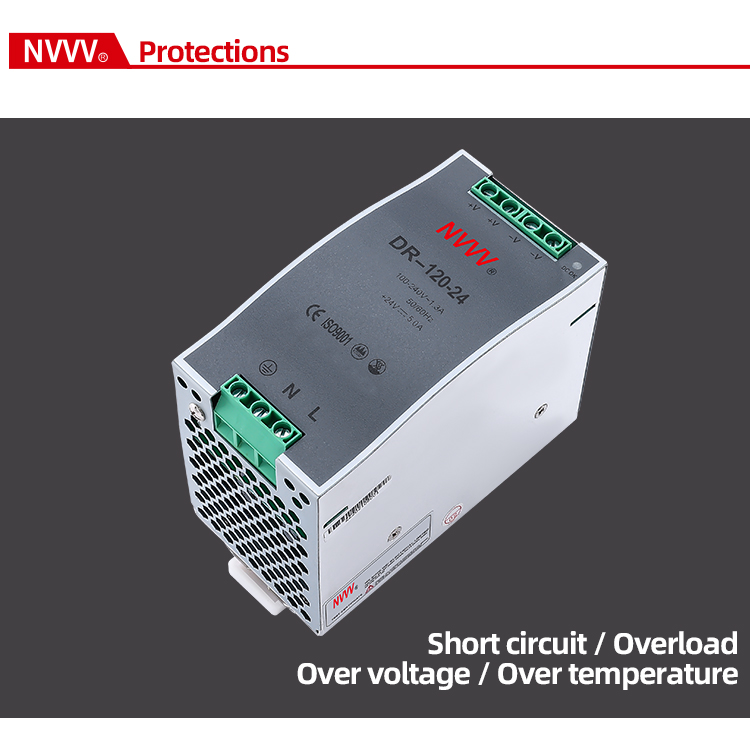

| PROTECTION | ||
| Short Circuit Protection | 105%-150% Hiccup mode, automatic recovery after abnormal condition is removed | |
| Overload Protection | Output Voltage >135%, auto recovery after abnormal condition is removed | |
| Short Circuit Protection | VO output abnormal condition auto recovery after removal | |
| ENVIRONMENT | ||
| Working Temp & Humidity | -10℃ ~ +50℃, 20% ~ 90% RH | |
| Storage Temp & Humidity | -20℃ ~ +85℃, 10% ~ 95% RH | |
| SECURITY | ||
| Pressure Resistance | I/P-O/P: 3KVAC / I/P-FG: 1.5KVAC / O/P-FG: 0.5KVAC | |
| Isolation Resistance | I/P-O/P, I/P-FG, O/P-Shell: 500VDC / 100MΩ | |
| OTHER | ||
| Dimension | 65.5 * 125.2 * 100mm (W * H * D) | |
| Net / Gross Weight | 790g / 815g | |
