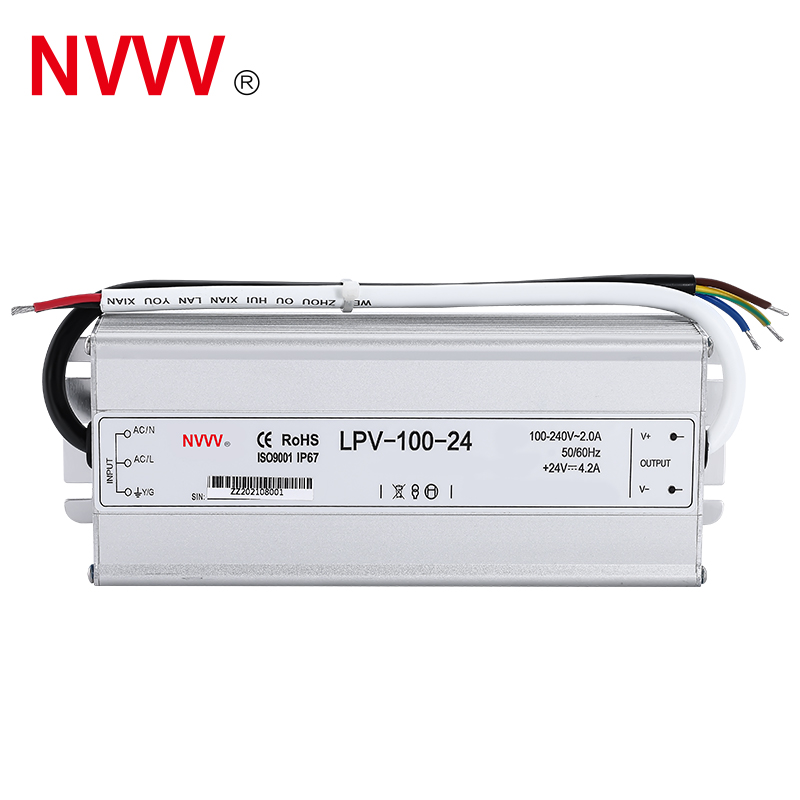

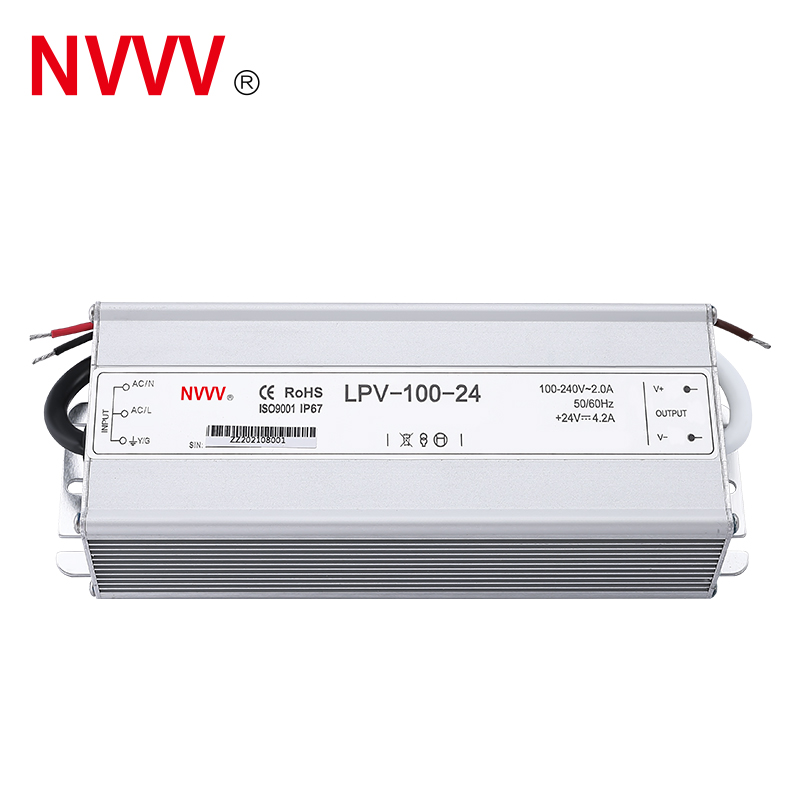

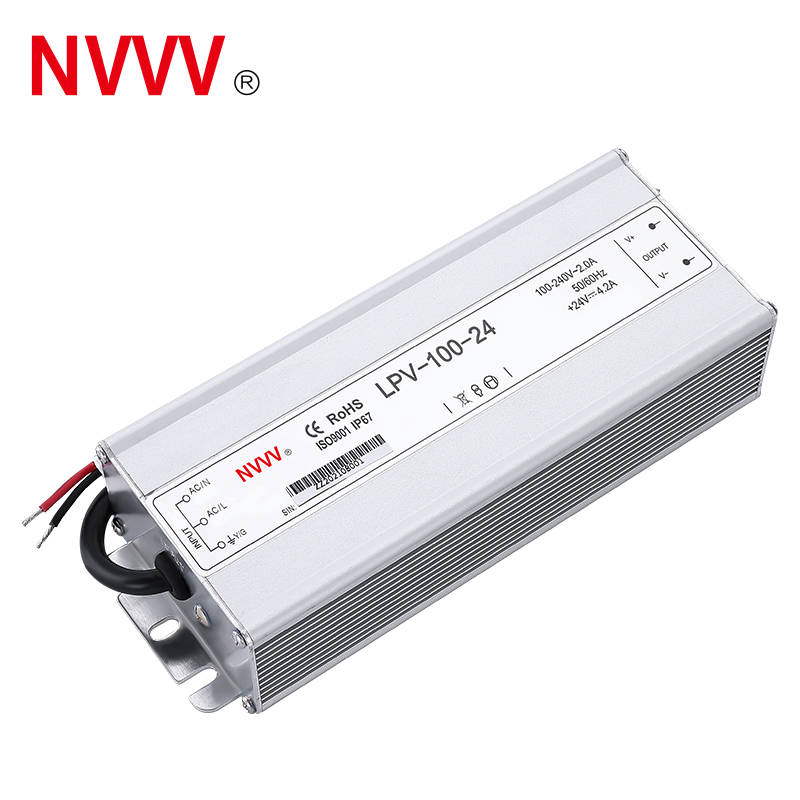

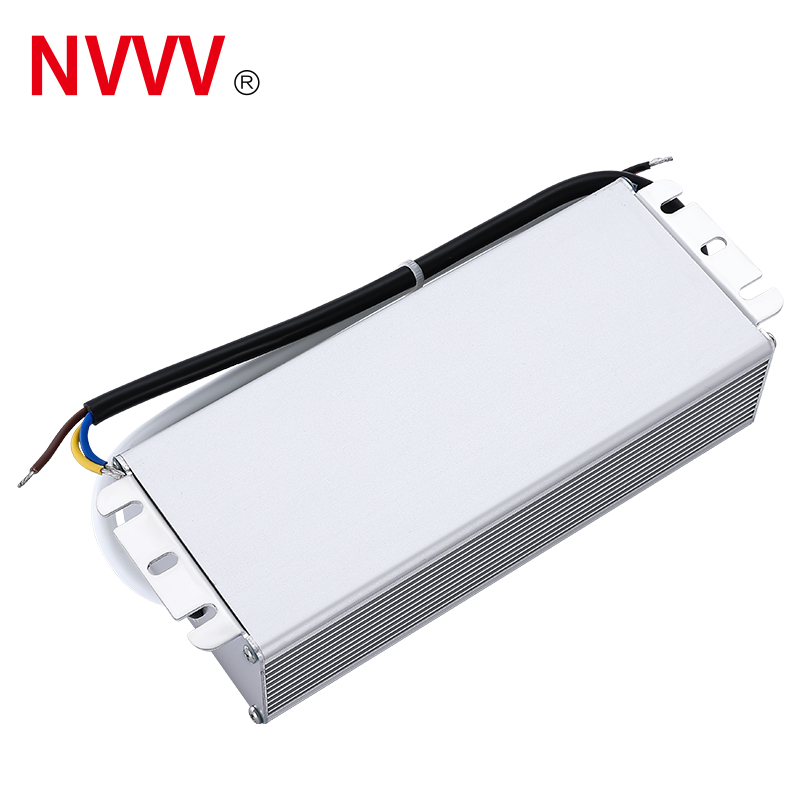

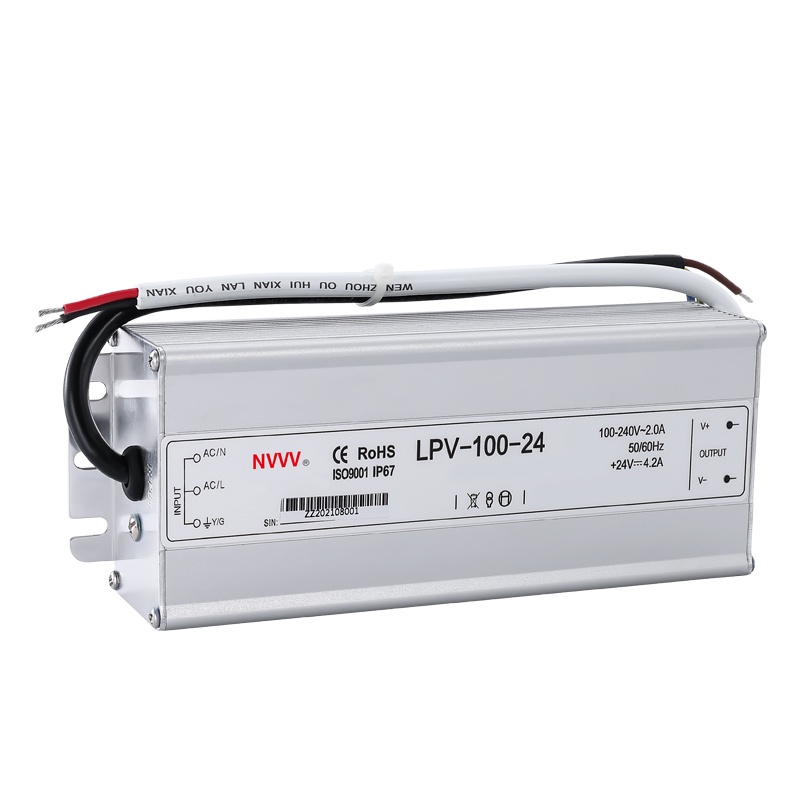

| LPV-100 100W Waterproof Irrigation Switch Power Supply | |||
|---|---|---|---|
| Project | Parameter | Technical Index | |
| Output | DC Voltage | 12V | 24V |
| Rated Current | 8.5A | 4.2A | |
| Rated Power | 102W | 100.8W | |
| Ripple and Noise | < 120mV | < 150mV | |
| Voltage Accuracy | ±5% | ||
| Load Adjustment Rate | ±2% | ||
| Linear Adjustment Rate | ±1% | ||
| Starting & Rising Time | 2000ms, 25ms, 15ms / 115VAC | 2000ms, 25ms, 50ms / 230VAC | ||
| Input | Voltage Range / Freq. | 90-264VAC, 47Hz - 63Hz | 127VDC - 370VDC | |
| Efficiency (typical) | > 85% | > 88% | |
| Working Current | 2.2A / 110VAC | 1.2A / 230VAC | ||
| Impulse Current | 220VAC: 60A | ||
| Protection | Overload Protection | 105%-135% Protection type: hiccup mode, auto-recovery after fault condition is removed | |
| Overvoltage Protection | ≥ 115% - 145% Protection type: shut down output, auto-recovery after restart | ||
| Environment | Working Temp. & Humidity | -30°C ~ +70°C | 20% ~ 90% RH | |
| Storage Temp. & Humidity | -40°C ~ +85°C | 10% ~ 95% RH | ||
| Safety | Withstand Voltage | Input-Output: 3KVAC for 1 minute | |
| Leakage Current | Input-Shell: < 2.5mA at 240VAC | ||
| Insulation Impedance | Input-Output, Input-Shell, Output-Shell: 500VDC / 100MΩ | ||
| Other | Size | 190 * 50 * 35mm | |
| Net / Gross Weight | 450g / 500g | ||
