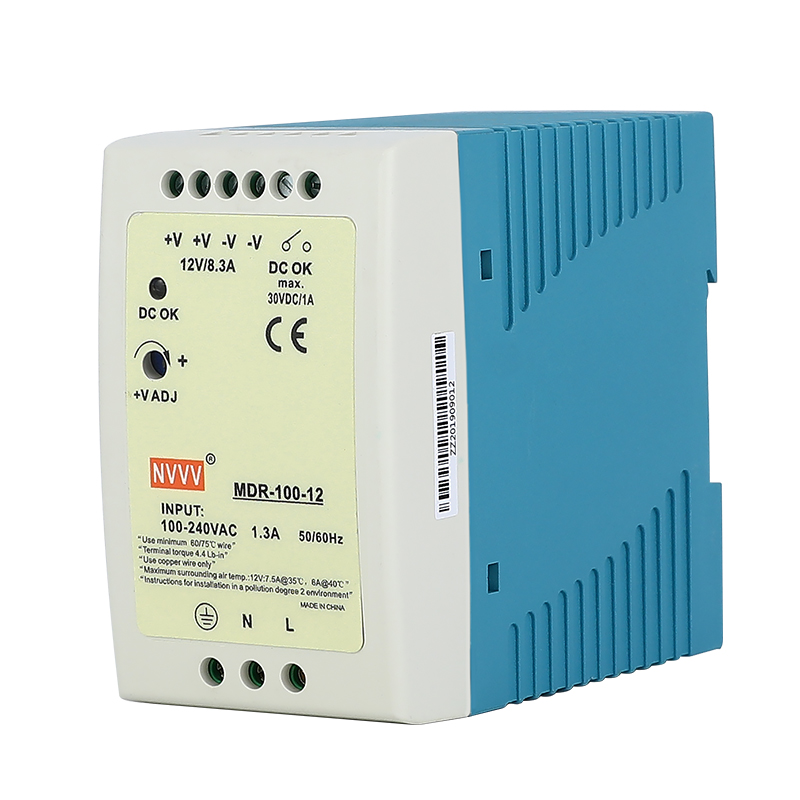

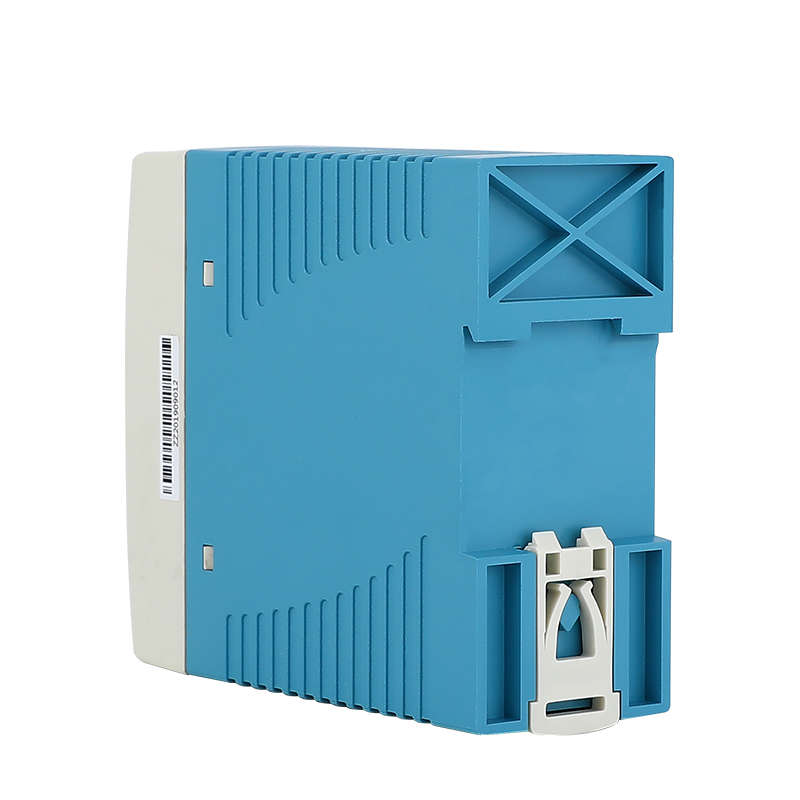

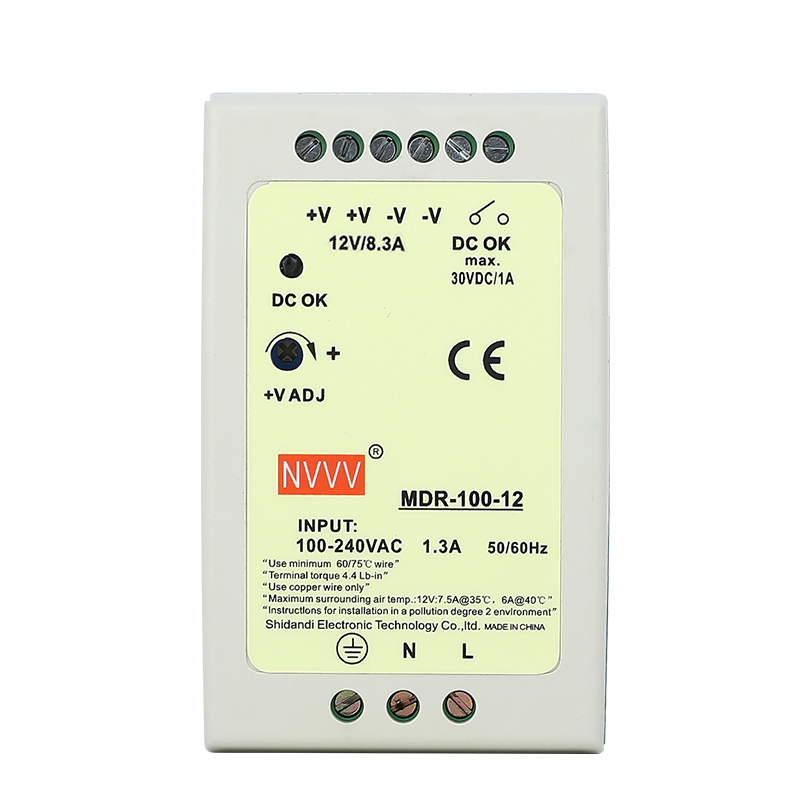

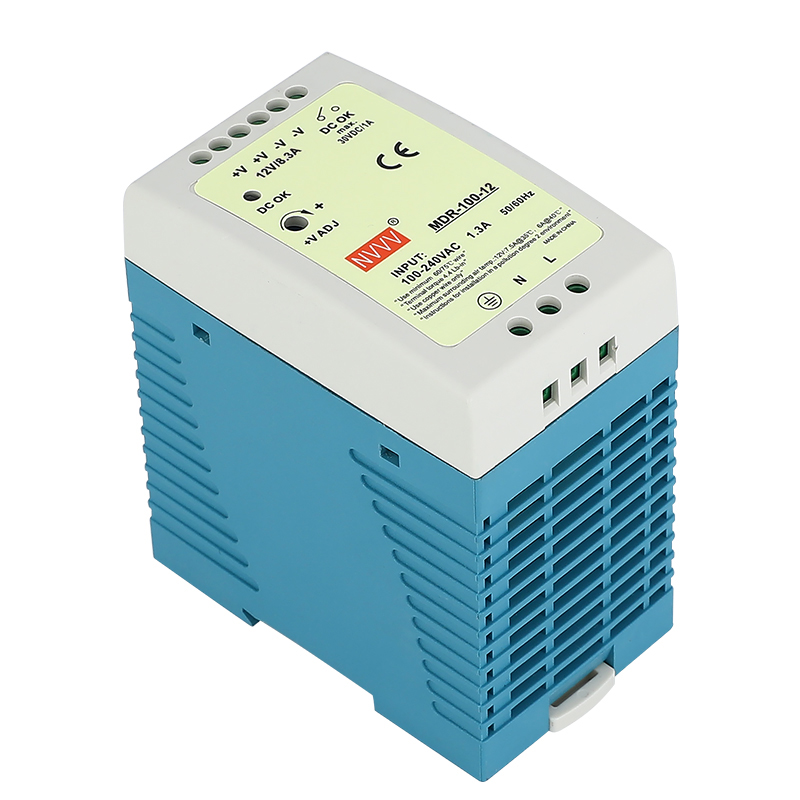

| MDR-100 100W Rail Type Switch Power Supply | |||
|---|---|---|---|
| Model | Technical Index | ||
| Output | DC Voltage | 12V | 24V |
| Rated Current | 7.5A | 4A | |
| Rated Power | 90W | 96W | |
| Ripple and Noise | <120mV | <150mV | |
| Voltage Precision | ±1% | ±1% | |
| Output Voltage Regulation Range | ±10% | ||
| Load Adjustment Rate | ±1% | ±1% | |
| Linear Adjustment Rate | ±1% | ||
| Input | Voltage Range | 85-264VAC 47Hz ~ 63Hz (120VDC ~ 370VDC) | |
| Efficiency (typical) | >83% | >86% | |
| Working Current | PF ≥ 0.95/230VAC PF ≥ 0.98/115VAC (full load) | ||
| Working Current | <1.3A 110VAC <0.8A 220VAC | ||
| Impulse Current | 110VAC 35A, 220VAC 70A | ||
| Start, Rise, Hold Time | 3000ms, 50ms, 20ms : 110VAC / 3000ms, 50ms, 50ms : 220VAC | ||
| Protection | Overload Protection | 105%-115% Protection type: burping mode, automatic return to normal after removing abnormal conditions | |
| Output Short Circuit Protection | ≥135% protection type: close output, restart and automatically return to normal | ||
| Function | Storage Temperature and Humidity | -20℃ ~ +70℃, 20% ~ 90% RH | |
| Withstand Voltage | -40℃ ~ +85℃, 10% ~ 95% RH | ||
| Safety Regulations | Leakage Current | Input output: 3kvac input shell: 1.5kvac output shell: 0.5kvac for 1 minute | |
| Isolation Resistance | Input output, input shell, output shell: 500VDC / 100M Ω 25 ℃ | ||
| Other | Size | 55*90*100mm | |
| Net / Gross Weight | 420/450g | ||
