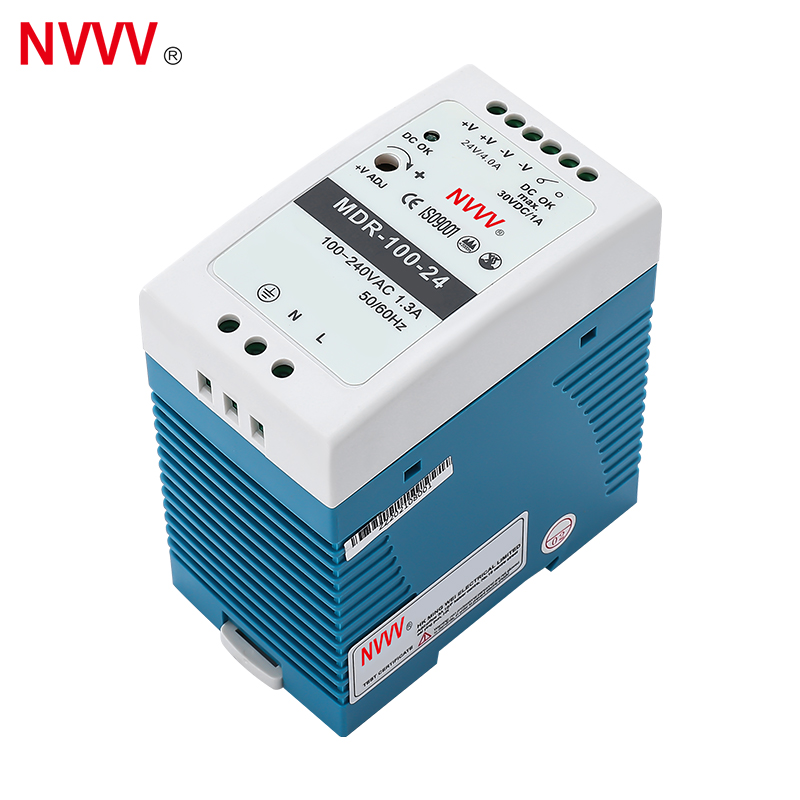

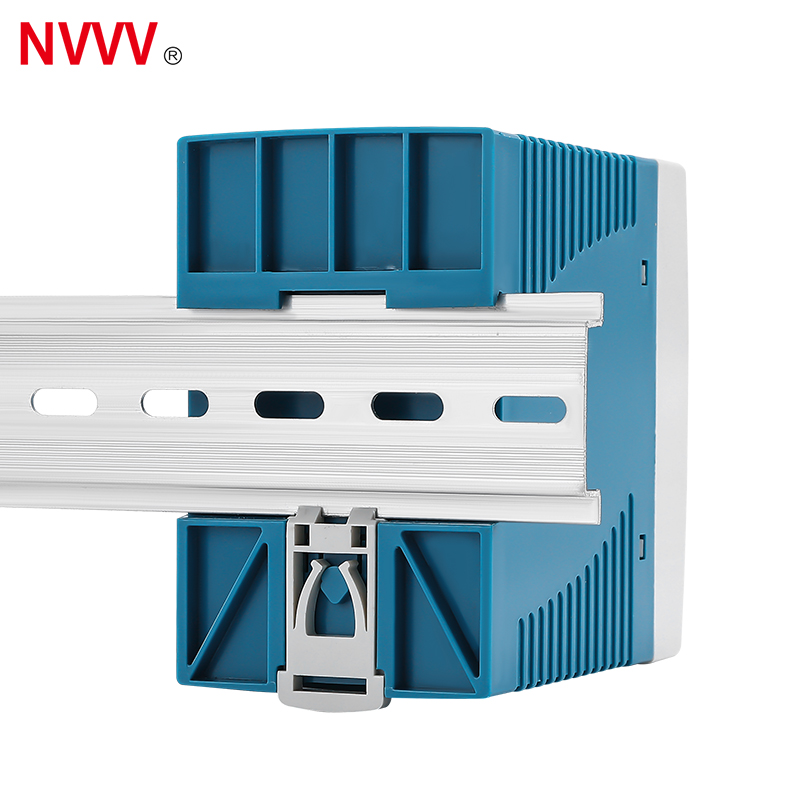

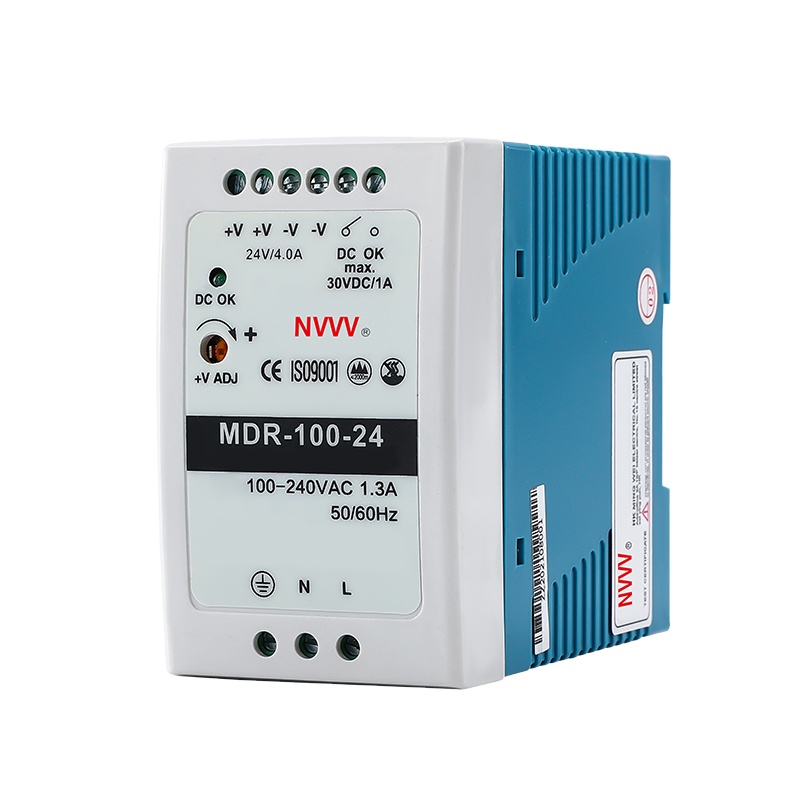

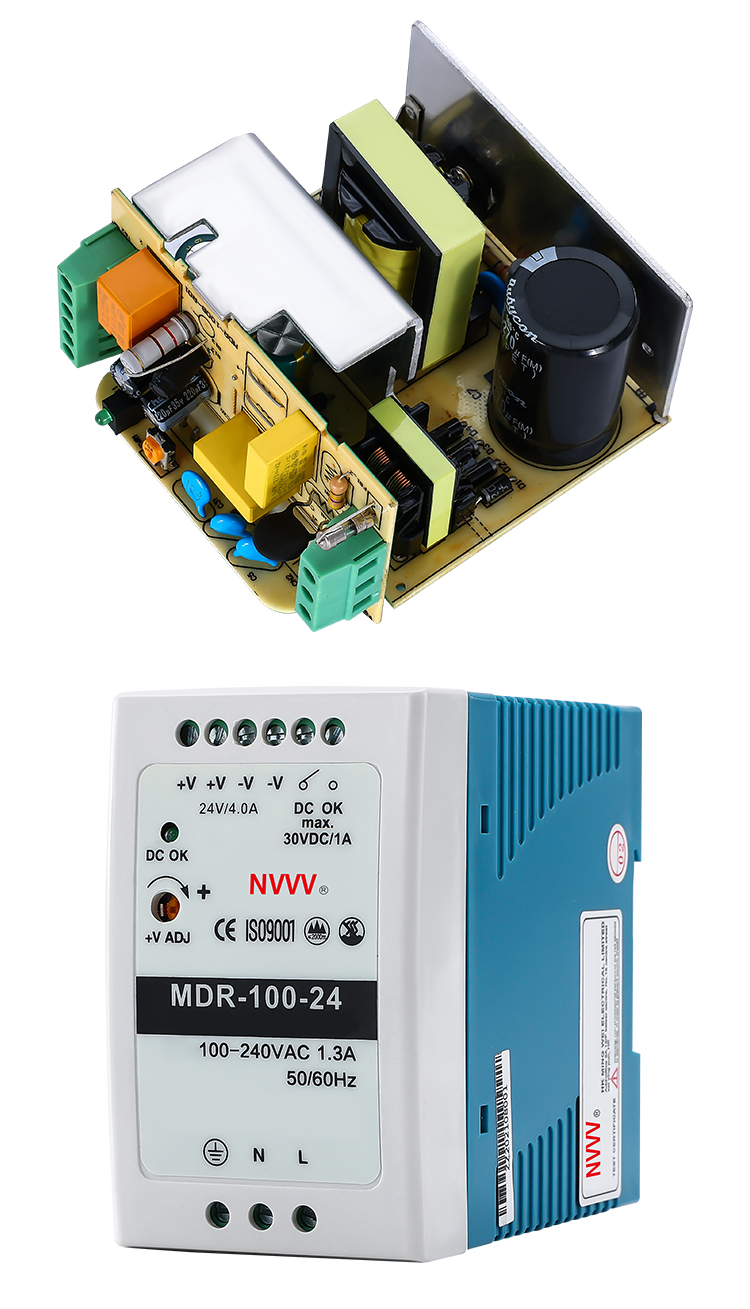

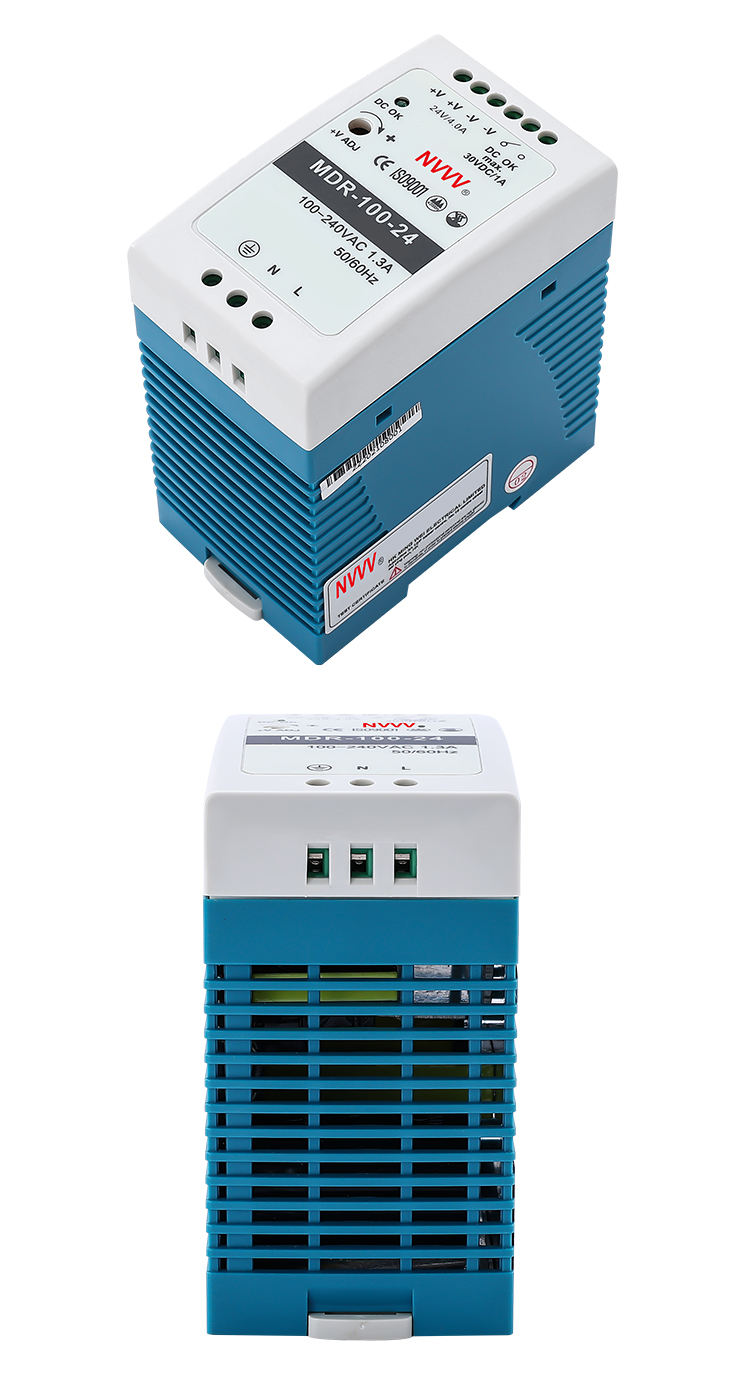

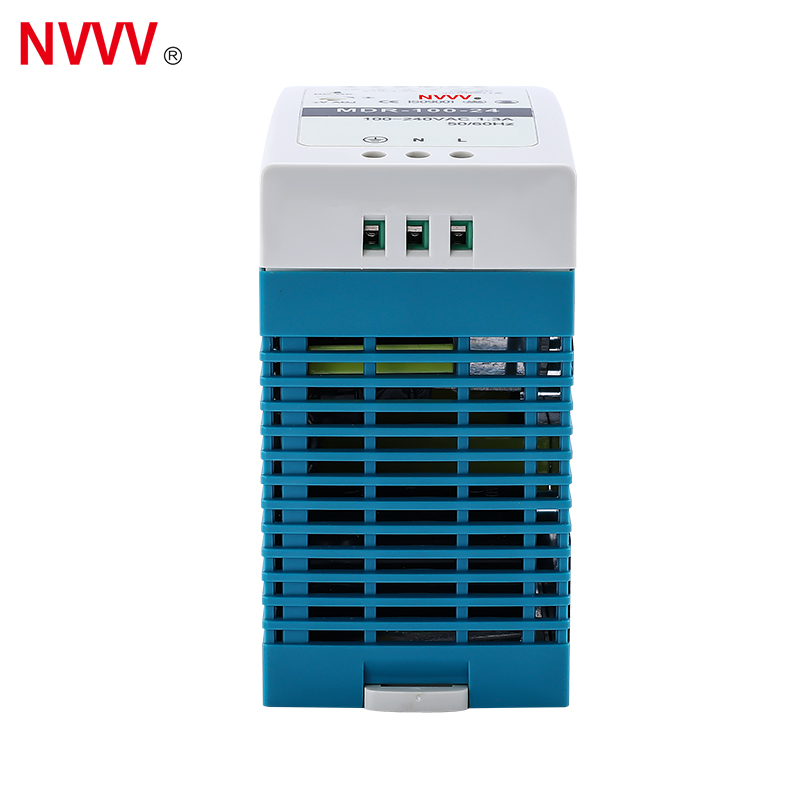

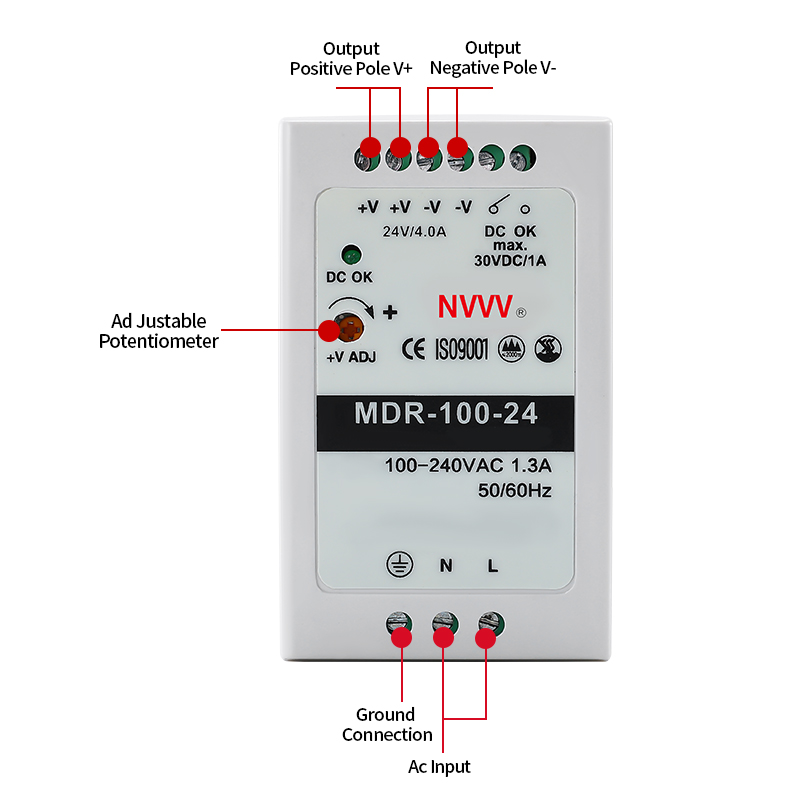

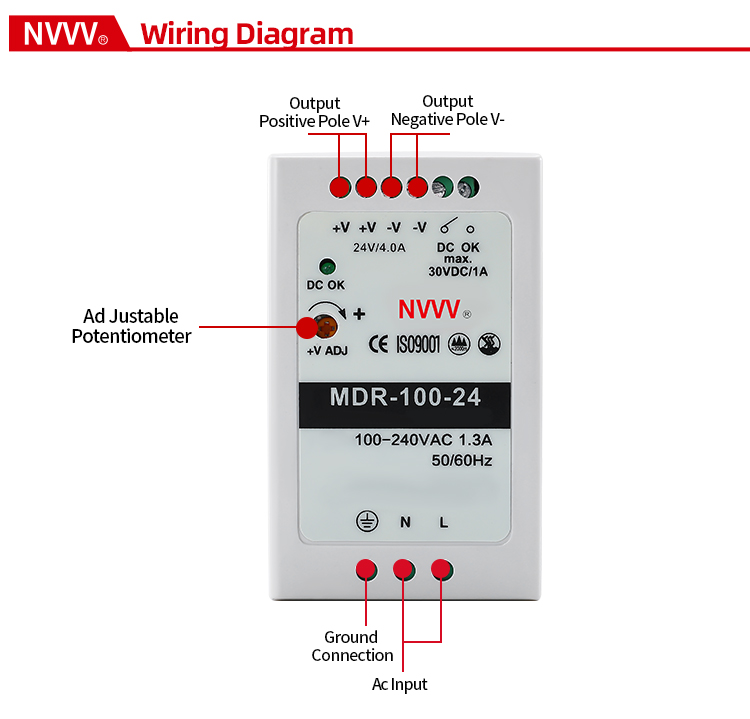

| MDR-100 100W Din Rail Switching Power Supply | |||
|---|---|---|---|
| Category | Technical Index / Parameter | 12V Model | 24V Model |
| Output Specifications | DC Voltage | 12V | 24V |
| Rated Current | 7.5A | 4A | |
| Rated Power | 90W | 96W | |
| Ripple & Noise | < 120mV | < 150mV | |
| Voltage Precision | ±1% | ±1% | |
| Output Voltage Regulation Range | ±10% | ||
| Load Adjustment Rate | ±1% | ±1% | |
| Linear Adjustment Rate | ±1% | ||
| Input Specifications | Voltage Range | 85-264VAC 47Hz-63Hz (120VDC-370VDC) | |
| Efficiency (typical) | > 83% | > 86% | |
| Power Factor (Working Current) | PF≥0.95/230VAC, PF≥0.98/115VAC (Full Load) | ||
| Working Current | < 1.3A / 110VAC, < 0.8A / 220VAC | ||
| Impulse Current | 110VAC 35A, 220VAC 70A | ||
| Start, Rise, Hold Time | 110VAC: 3000ms, 50ms, 20ms | 220VAC: 3000ms, 50ms, 50ms | ||

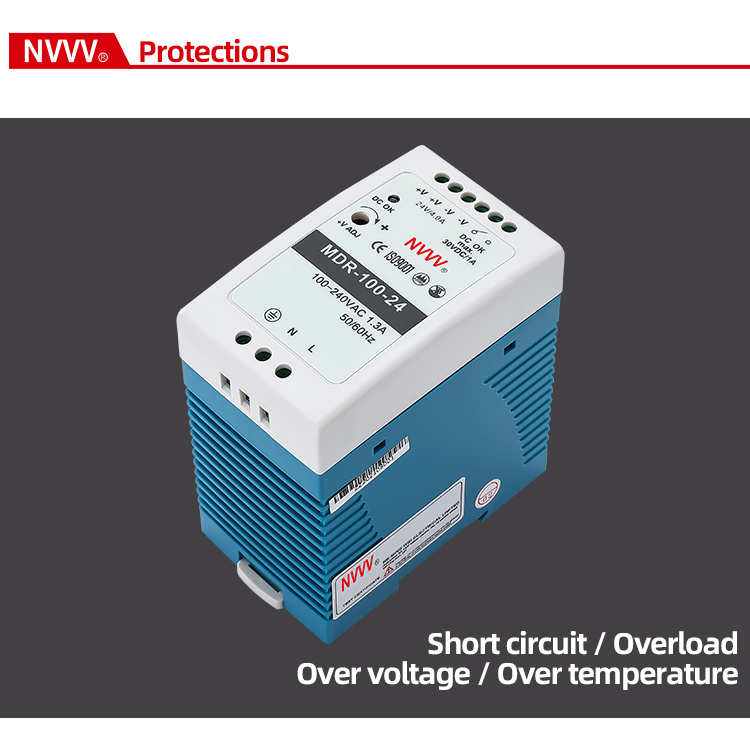

| Protection Functions | Overload Protection | 105%-150% (Hiccup mode, auto-recovery after abnormal conditions removed) | |
| Output Short Circuit Protection | ≥135% (Close output, restart to automatically recover) | ||
| Environment & Operating | Storage Temp & Humidity | -20℃ ~ +70℃ / 20% ~ 90% RH | |
| Withstand Voltage (Environment) | -40℃ ~ +85℃ / 10% ~ 95% RH | ||
| Safety Regulations | Leakage Current (Withstand) | I/P-O/P: 3KVAC, I/P-FG: 1.5KVAC, O/P-FG: 0.5KVAC for 1 minute | |
| Isolation Resistance | I/P-O/P, I/P-FG, O/P-FG: 500VDC / 100MΩ / 25℃ | ||

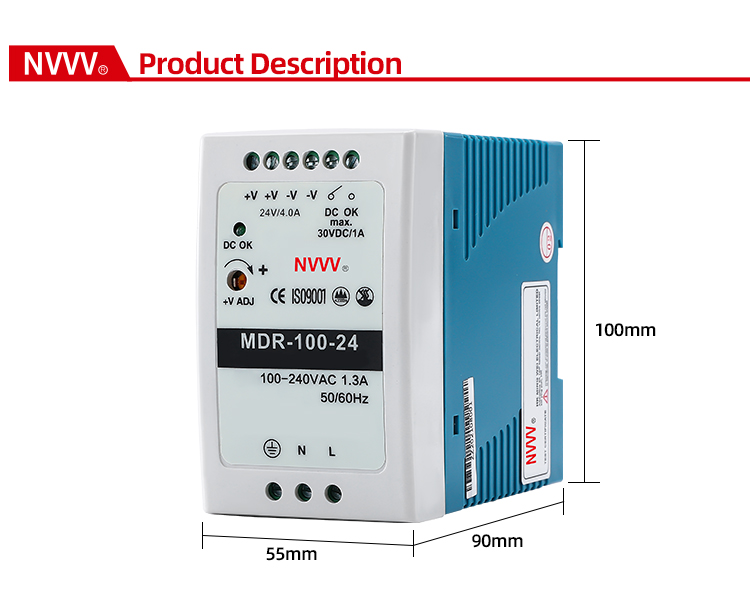

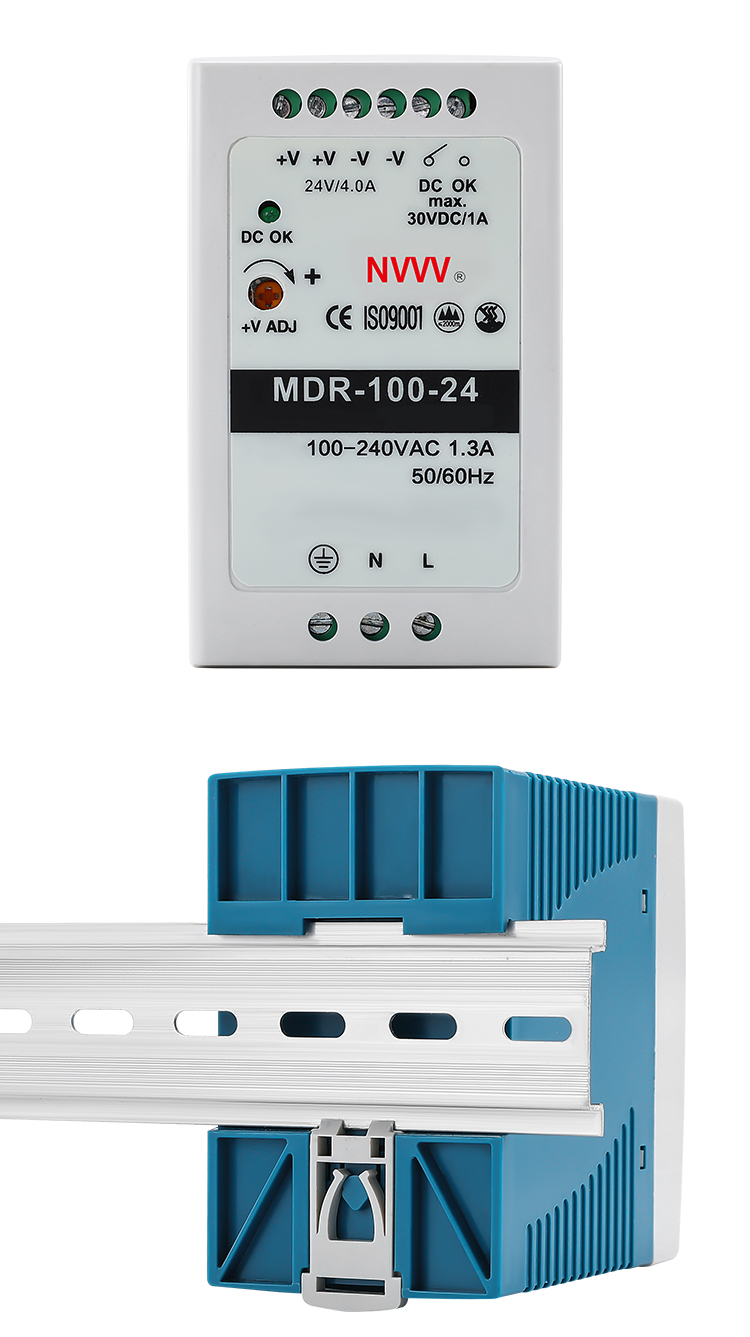

| Other Specifications | Size | 55*90*100mm | |
| Net / Gross Weight | 420g / 450g | ||
