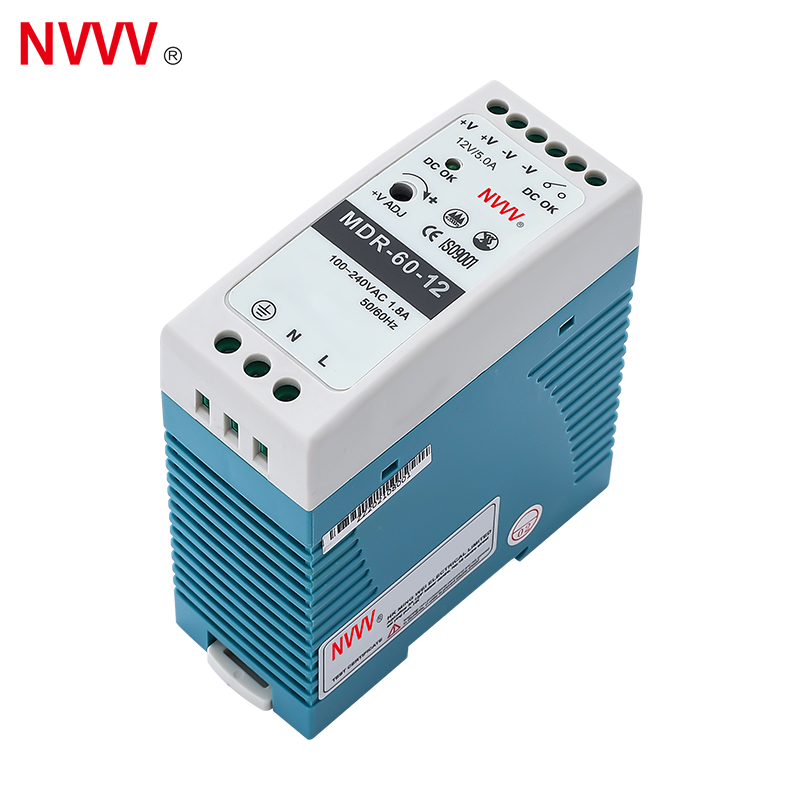

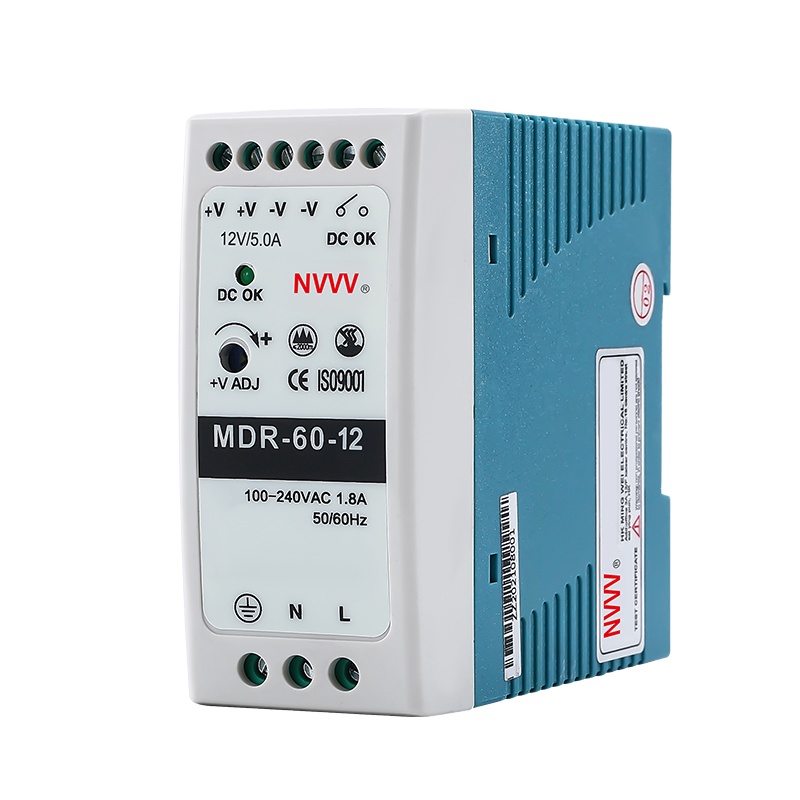

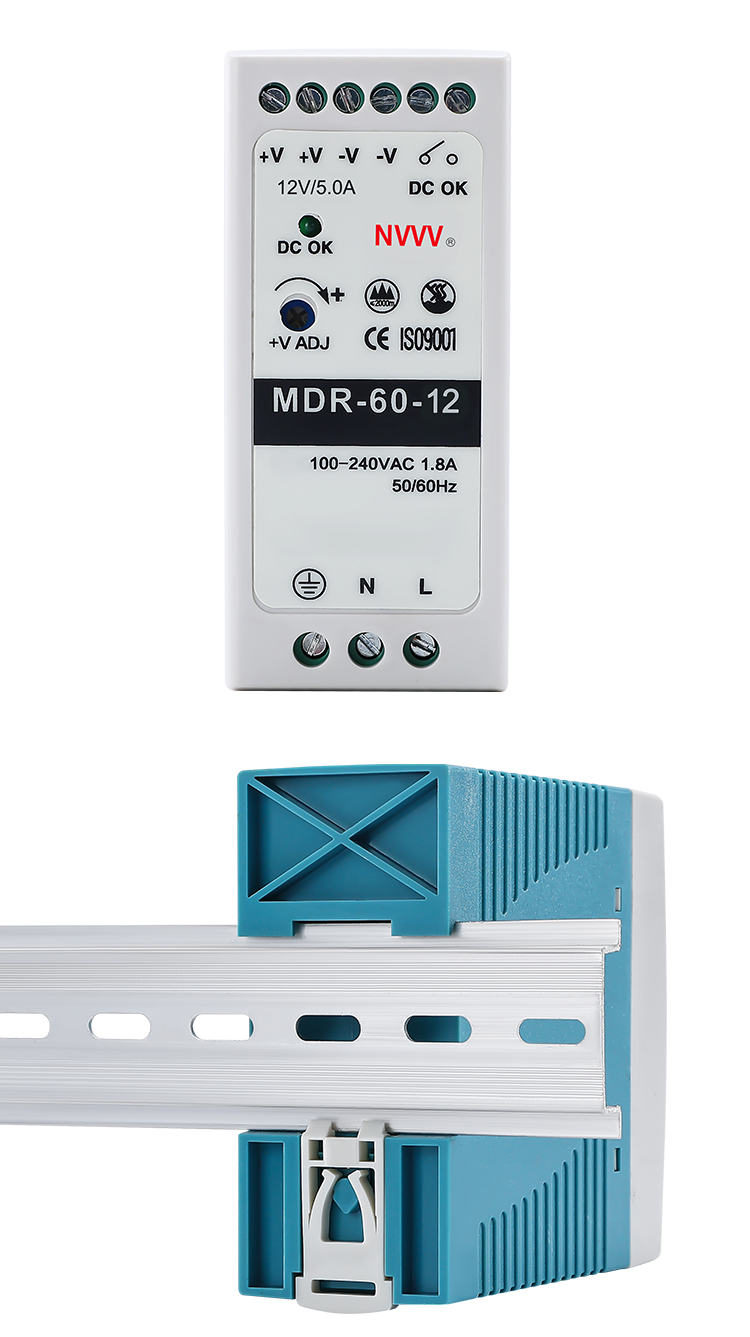

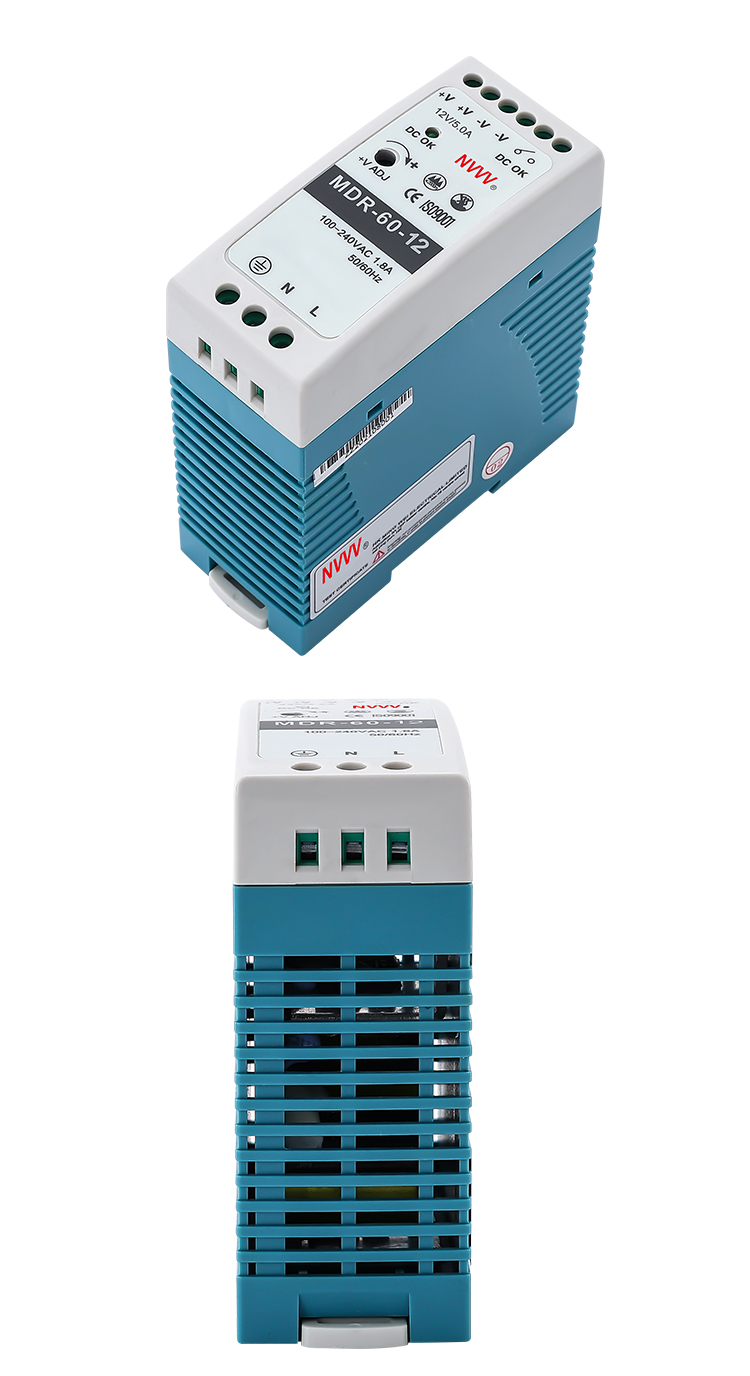

| MDR-60 60W Din Rail Switching Power Supply | |||
|---|---|---|---|
| Project | Technical Index | ||
| Output | DC voltage | 12V | 24V |
| Rated current | 5A | 2.5A | |
| Rated power | 60W | 60W | |
| Ripple and noise (1) | < 120mV | < 150mV | |
| Voltage accuracy | ±1% | ±1% | |
| Load adjustment rate | ±10% | ||
| Linear adjustment rate | ±1% | ±1% | |
| Starting and rising time | ±1% | ||
| Input | Voltage range / frequency | 85-264VAC 47Hz ~ 63Hz (120VDC ~ 370VDC) | |
| Efficiency (typical) (2) | >86% | >88% | |
| Working current | < 1.8A 110VAC / < 1A 220VAC | ||
| Impulse current | 110VAC 35A / 220VAC 70A | ||
| Overload protection | 500ms, 30ms, 25ms at 110VAC / 500ms, 30ms, 120ms at 220VAC | ||

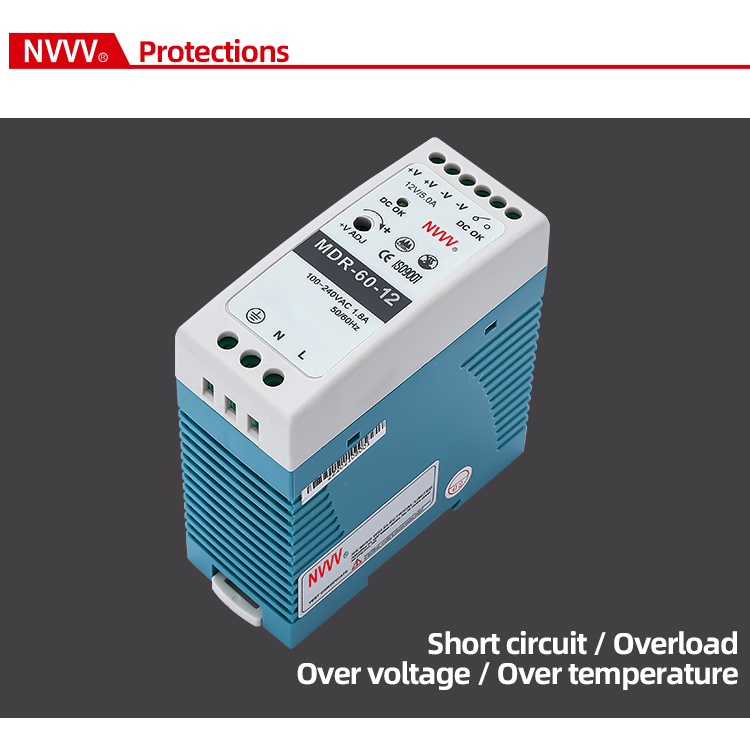

| Protect | Overvoltage protection | 105%-150% Protection type: burping mode, automatic return to normal after removing abnormal conditions | |
| Working temperature and humidity | >135% protection type: close output, restart and automatically return to normal | ||
| Function | Storage temperature and humidity | -20℃ ~ +70℃ / 20% ~ 90% RH | |
| Withstand voltage | -40℃ ~ +85℃ / 10% ~ 95% RH | ||
| Safety regulations | Leakage current | Input output: 0.5 kvac for 1 minute | |
| Insulation impedance | Input output, input shell, output shell: 500VDC / 100M Ω | ||

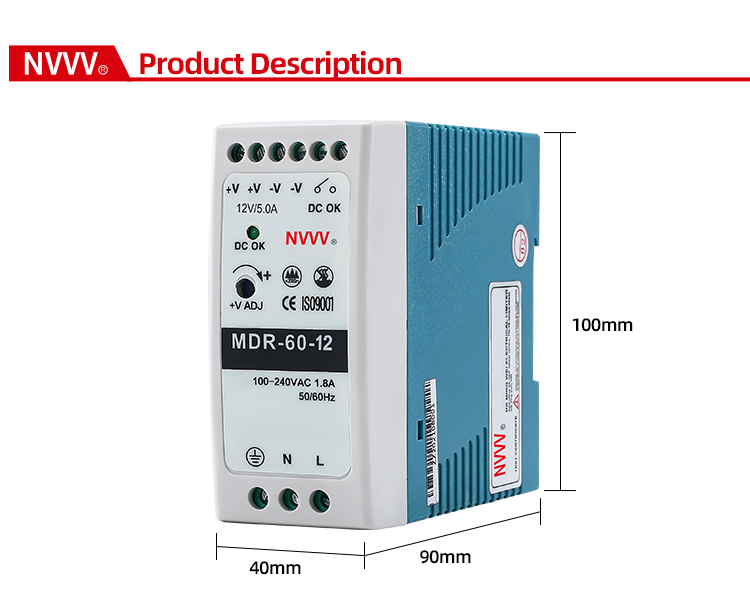

| Other | Size | 40*90*100mm | |
| Net weight / gross weight | 330/350g | ||
