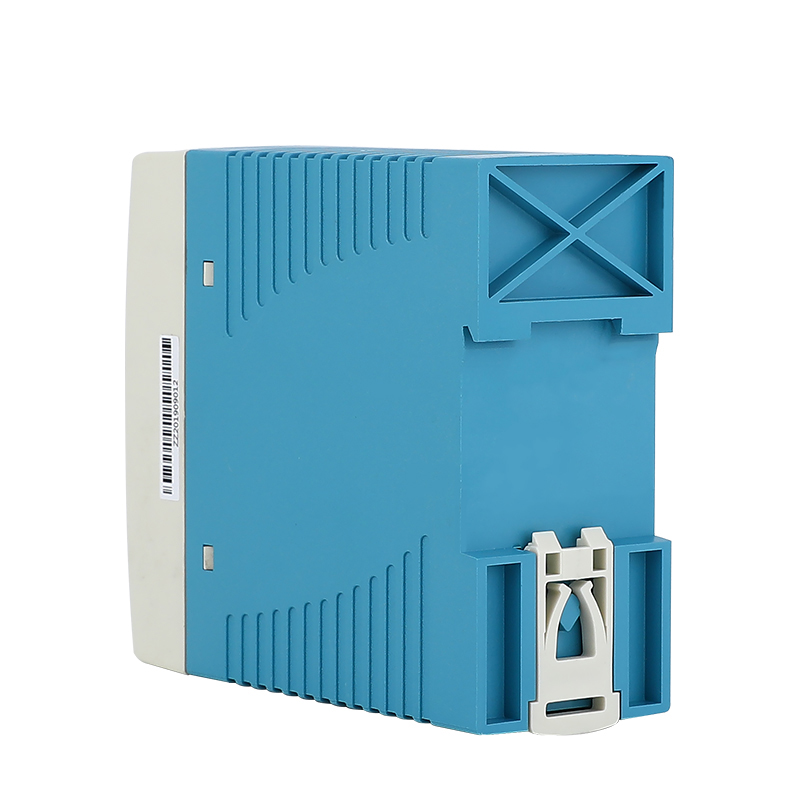

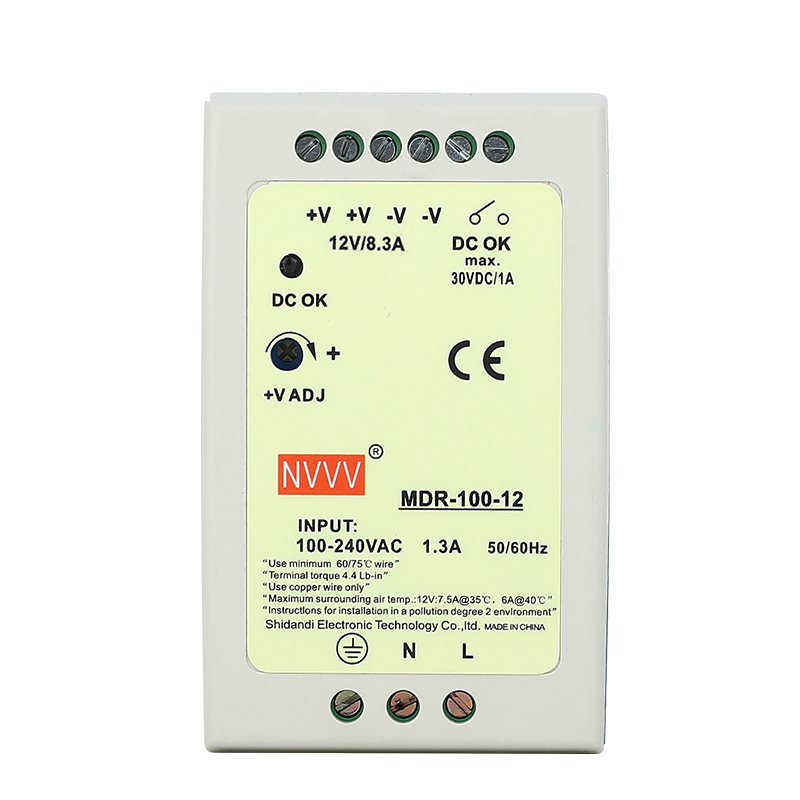

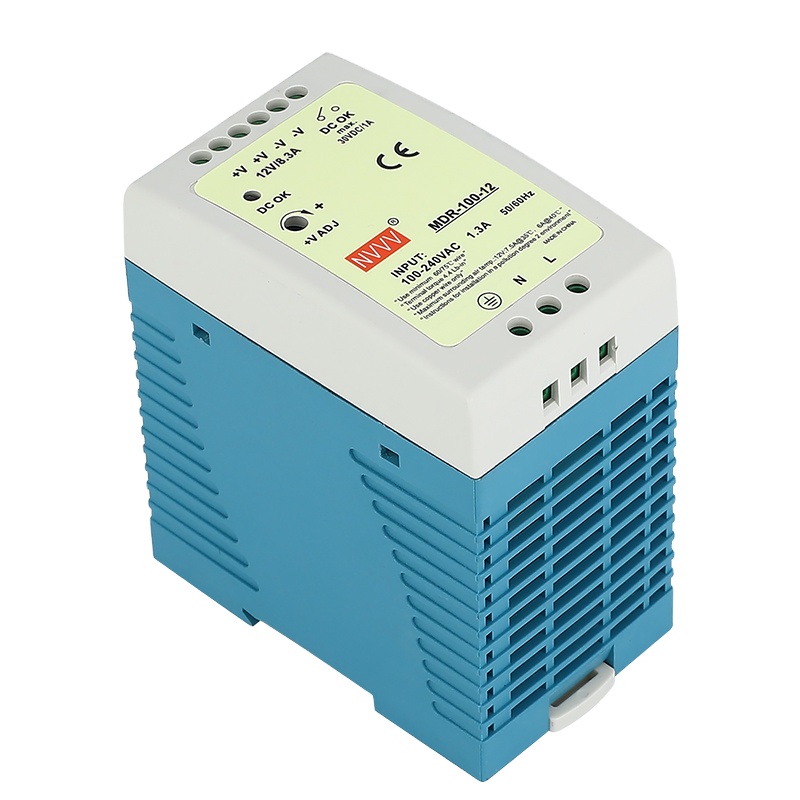

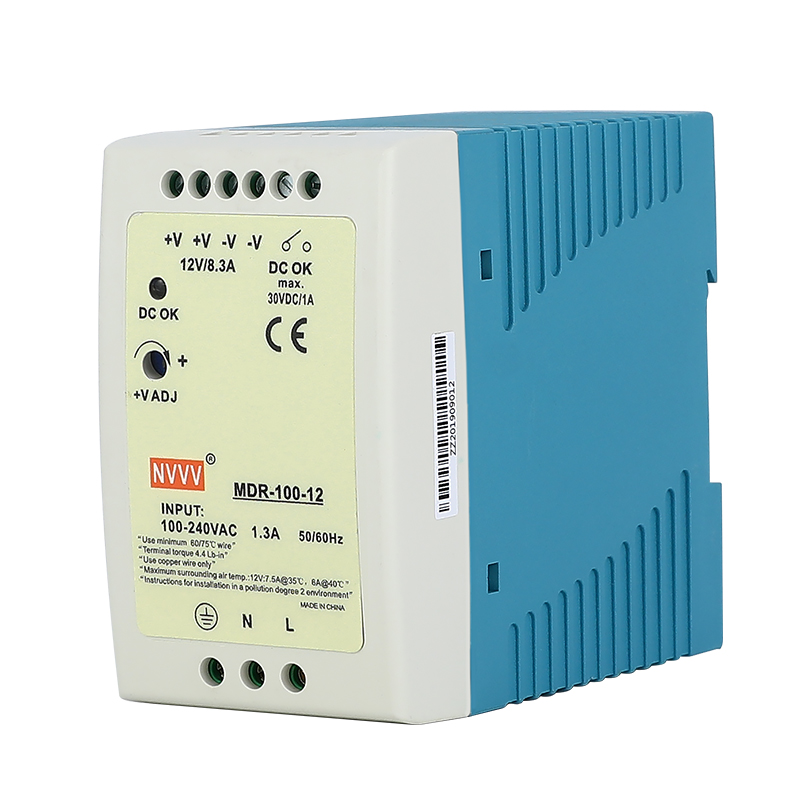

| MDR-100 100W Rail Type Switch Power Supply | |||
|---|---|---|---|
| Model / Parameter | 12V Version | 24V Version | |
| Output | DC Voltage | 12V | 24V |
| Rated Current | 7.5A | 4A | |
| Rated Power | 90W | 96W | |
| Ripple and Noise ① | <120mV | <150mV | |
| Voltage Precision | ±1% | ±1% | |
| Output Voltage regulation Range | ±10% | ||
| Load adjustment rate | ±1% | ±1% | |
| Linear adjustment rate | ±1% | ||
| Input | Voltage Range | 85-264VAC 47Hz~63Hz (120VDC~370VDC) | |
| Efficiency(typical) ② | >83% | >86% | |
| Working Current | PF≥0.95/230VAC PF≥0.98/115VAC (full load) | ||
| Working current | <1.3A 110VAC <0.8A 220VAC | ||
| Impulse current | 110VAC 35A, 220VAC 70A | ||
| Start, rise, hold time | 3000ms, 50ms, 20ms : 110VAC / 3000ms, 50ms, 50ms : 220VAC | ||
| Product | overload protection | 105%-115% Protection type: burping mode, automatic return to normal after removing abnormal conditions | |
| Output short circuit protection | ≥135% protection type: close output, restart and automatically return to normal | ||
| Function | Storage temperature and humidity | -20°C~+70°C; 20%~90RH | |
| Withstand voltage | -40°C~+85°C; 10%~95RH | ||
| Safety Regulations | Leakage current | Input output: 3kvac input shell: 1.5kvac output shell: 0.5kvac for 1 minute | |
| Isolation resistance | Input output, input shell,output shell: 500VDC / 100M Ω 25 °C | ||
| Other | Size | 55*90*100mm | |
| Net / Gross Weight | 420/450g | ||
