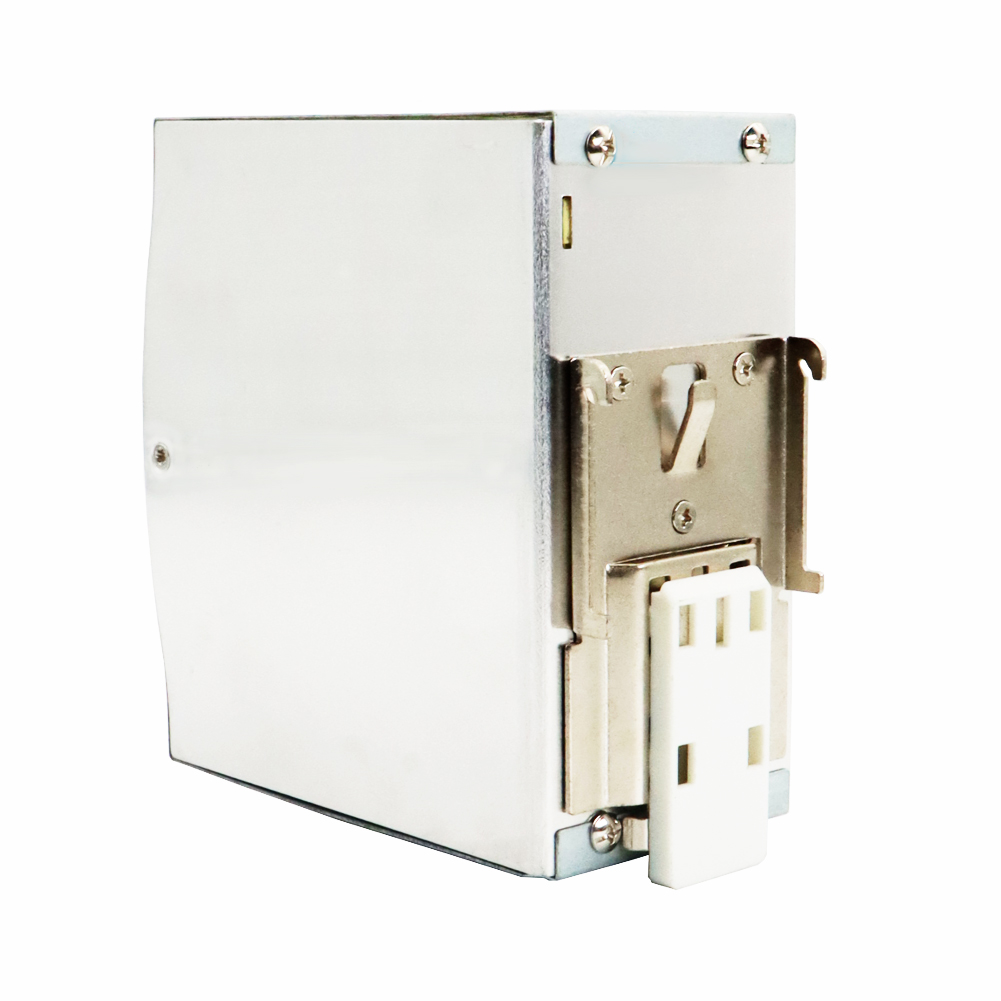

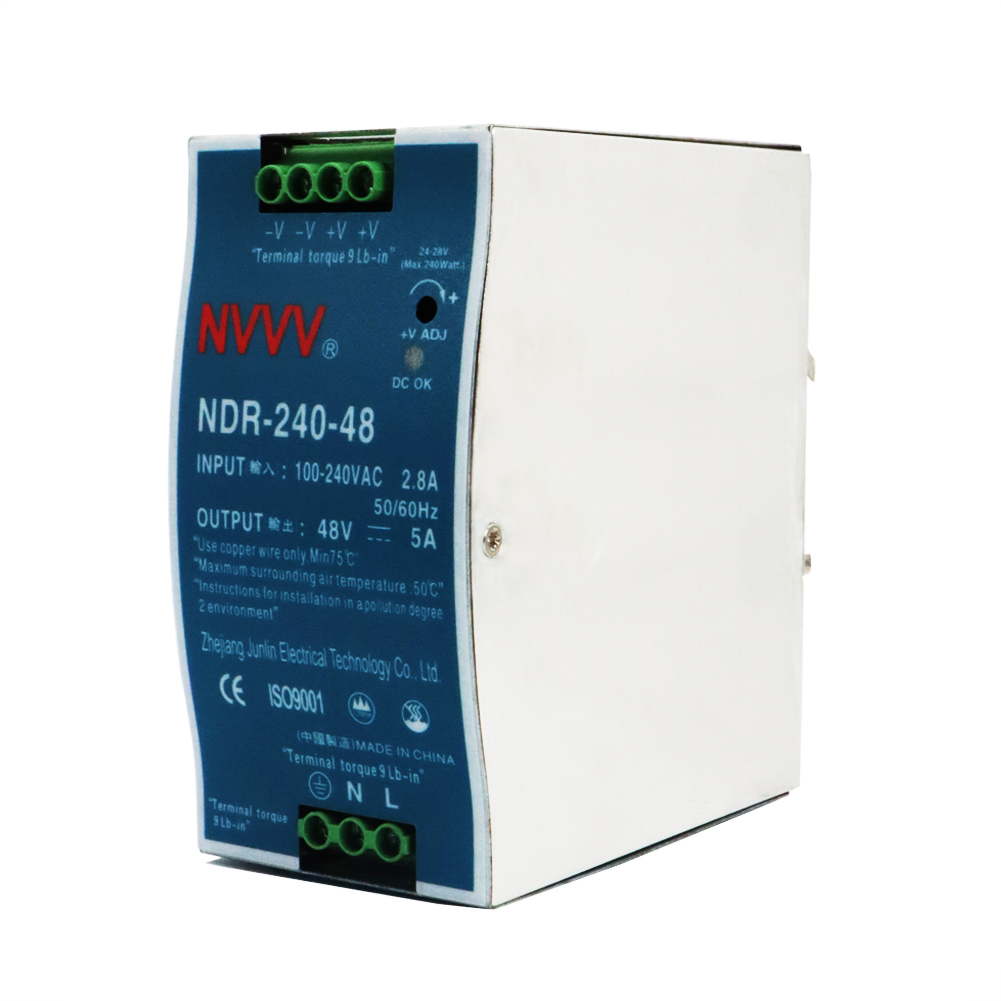

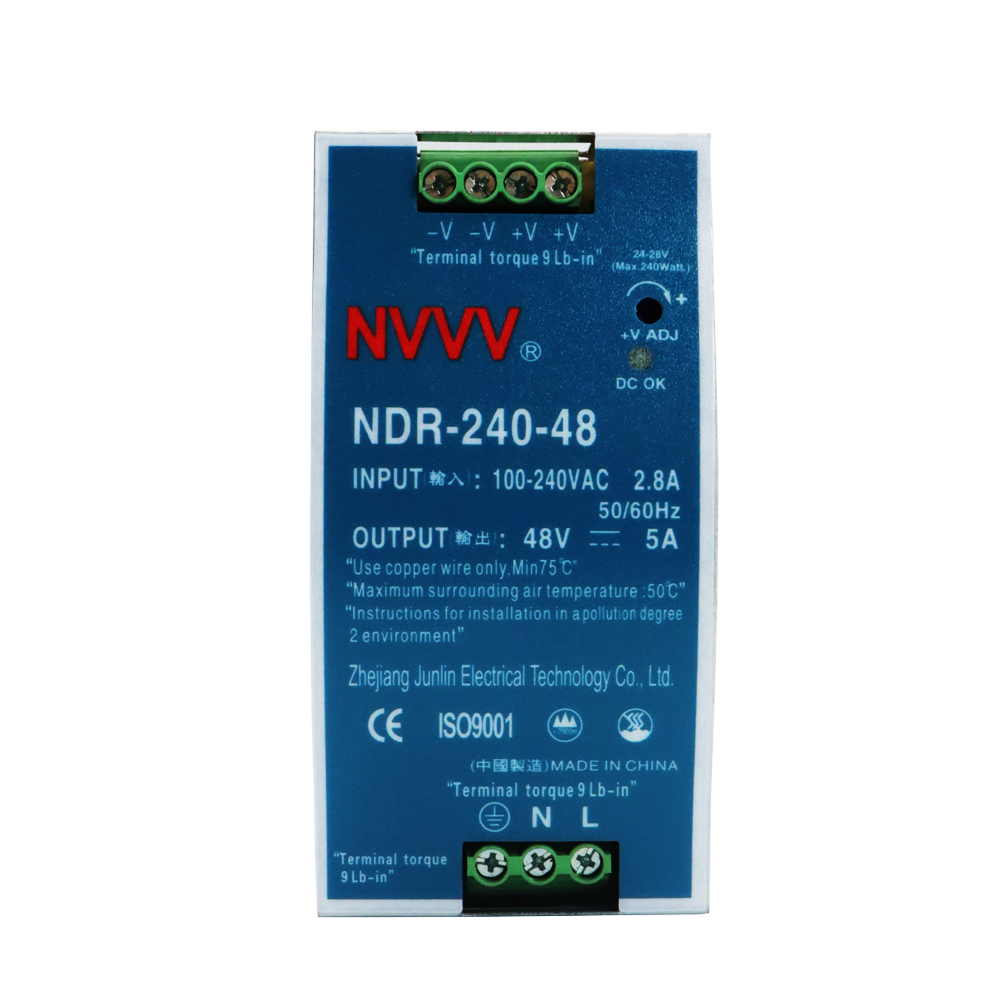

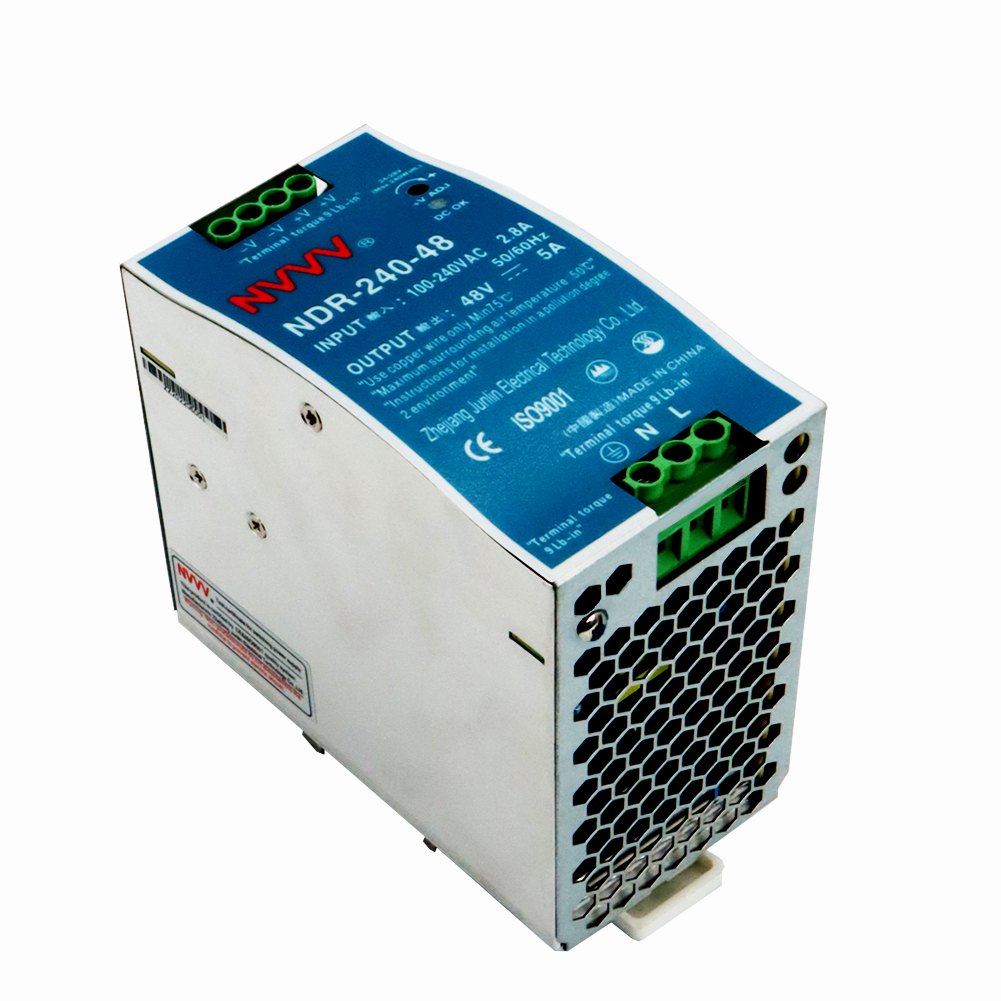

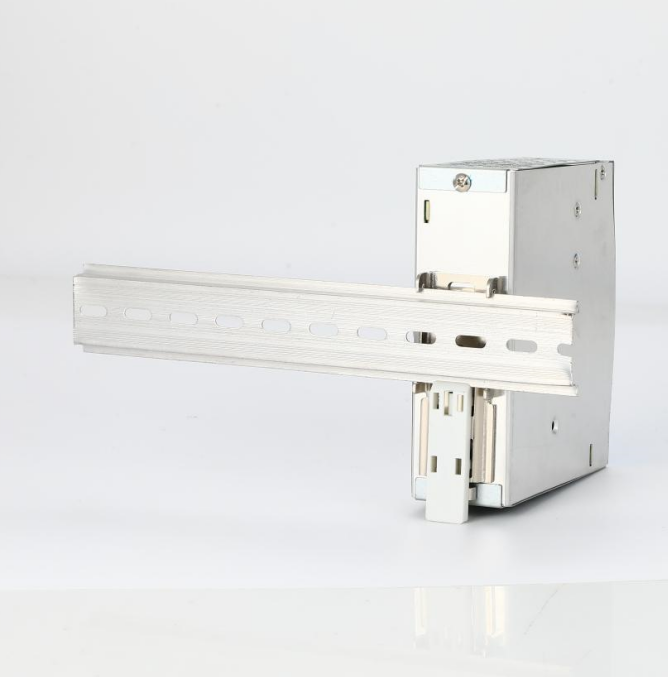

| NDR-240 240W Rail Type Switching Power Supply | ||
|---|---|---|
| Project | NDR-240-24 | NDR-240-48 |
| Output | ||
| DC Voltage | 24V | 48V |
| Rated Current | 10A | 5A |
| Current Range | 0~10A | 0~5A |
| Rated Power | 240W | 240W |
| Ripple & Noise | 150mVp-p | 150mVp-p |
| Voltage Adj. Range | 24~28V | 48~55V |
| Voltage Tolerance | ±1.0% | ±1.0% |
| Line Regulation | ±0.5% | ±0.5% |
| Load Regulation | ±1.0% | ±1.0% |
| Setup Rise Time | 1500ms, 100ms/230VAC | 3000ms, 100ms/115VAC at full load |
| Hold Up Time (Typ.) | 28ms/230VAC 22ms/115VAC at full load | |
| Input | ||
| Voltage Range | 90~264VAC 127~370VDC | |
| Frequency Range | 47~63Hz | |
| Power Factor (Typ.) | PF>0.98/115VAC, PF>0.95/230VAC at full load | |
| Efficiency (Typ.) | 88% | 89% |
| AC Current (Typ.) | 2.5A/115VAC 1.3A/230VAC | |
| Inrush Current (Typ.) | 20A/115VAC 35A/230VAC | |
| Leakage Current | <1mA / 240VAC | |
| Protection | ||
| Overload | 105 ~ 130% rated output power | |
| Over Voltage | 29~33V | 56~65V |
| Protection Type | Constant current limiting, recovers automatically after fault condition is removed | |
| Over Temperature | Shut down o/p voltage, recovers automatically after temperature goes down | |
| Environmental | ||
| Working Temp | -20℃ ~ +70℃ | |
| Working Humidity | 20-95% RH non-condensing | |
| Storage Temp, Humidity | -40℃ ~ +85℃, 10% ~ 95% RH | |
| Temp Coefficient | ±0.03%/℃ (0-50℃) | |
| Vibration | 10 - 500Hz, 2G 10min/1cycle, 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6 | |
| Safety | ||
| Safety Standards | UL508, TUV BS EN(EN62368-1), EAC TP TC 004, BSMI CNS14336-1 approved (meet BS EN/EN60204-1) | |
| Withstand Voltage | I/P-O/P: 3KVAC, I/P-FG: 2KVAC, O/P-FG: 0.5KVAC | |
| Other | ||
| MTBF | 230.2K hrs min. MIL-HDBK-217F (25℃) | |
| Dimension | 63*125*113mm (W*H*D) | |
| Packing | 1Kg; 12pcs/13Kg/1.22CUFT | |
