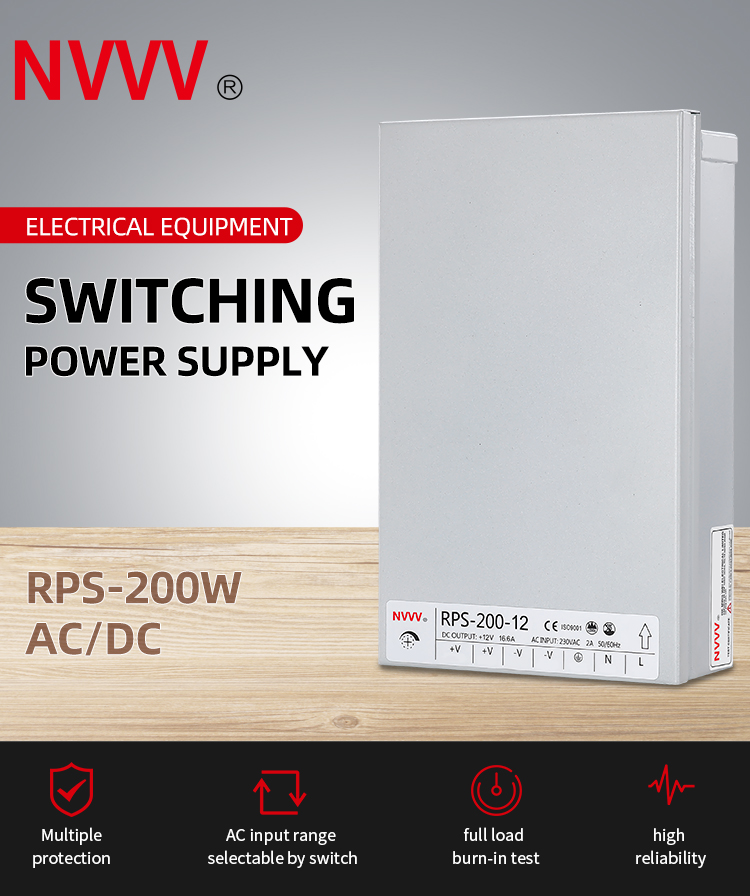

| RPS-200 200W Rainproof Switch Power Supply | ||||
|---|---|---|---|---|
| Project | Technical Index | 12V | 24V | 48V |
| Output | DC Voltage | 12V | 24V | 48V |
| Rated Current | 16.6A | 8.3A | 4.1A | |
| Rated Power | 199.2W | 199.2W | 196.8A | |
| Ripple and Noise | <120mV | <200mV | <240mV | |
| Voltage Accuracy | ±1% | |||
| Load Adjustment Rate | ±10% | |||
| Linear Adjustment Rate | ±1.2% | ±1.1% | ±0.5% | |
| Starting and Rising Time | 1500ms, 200ms, 20ms (at 230VAC) | |||
| Input | Voltage Range / Frequency | 90-264VAC 47Hz ~ 63Hz; 127VDC ~ 370VDC | ||
| Efficiency (Typical) | >81% | >83% | >84% | |
| Working Current | 2A/230VAC | |||
| Impulse Current | 220VAC: 50A | |||

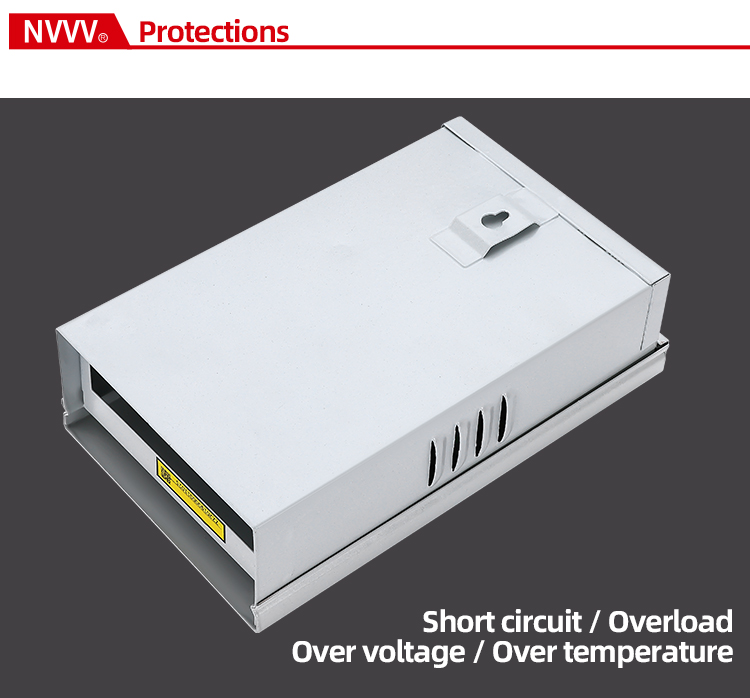

| Production | Overload Protection | 105%-135% Protection type: burping mode, automatic return to normal after removing abnormal conditions | ||
| Function | Working Temp. & Humidity | -10℃ ~ +50℃; 20% ~ 90% RH | ||
| Storage Temp. & Humidity | -20℃ ~ +85℃; 10% ~ 95% RH | |||
| Safety Regulations | Withstand Voltage | Input-Output: 3KVAC for 1 minute | ||
| Leakage Current | Input-Shell: <1.5mA (at 240VAC) | |||
| Insulation Impedance | Input-Output, Input-Shell, Output-Shell: 500VDC / 100MΩ | |||
| Other | Size | 196*118*55mm | ||
| Net Weight / Gross Weight | 750/800g | |||
