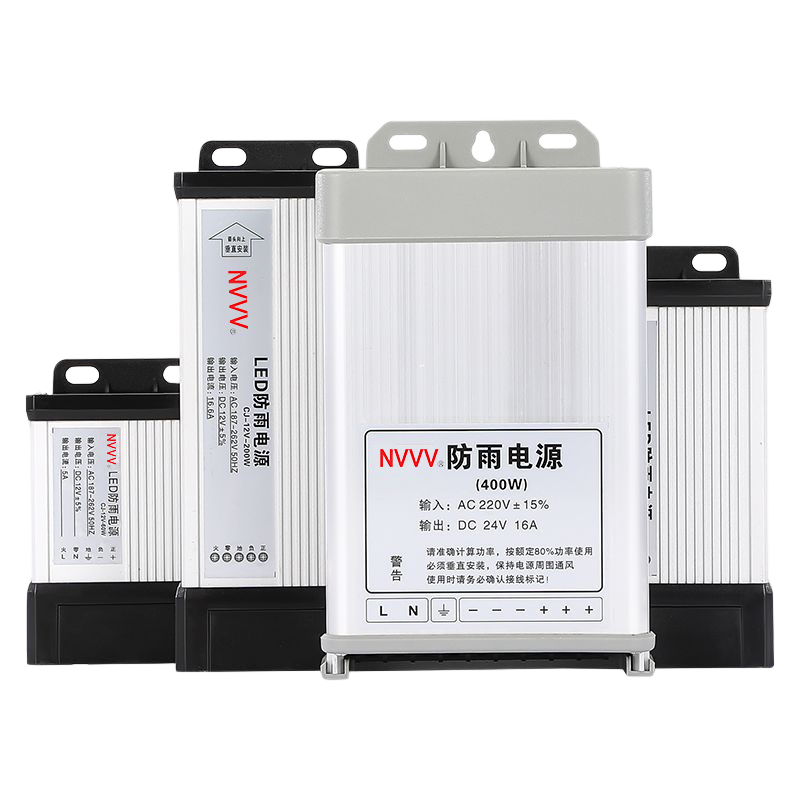

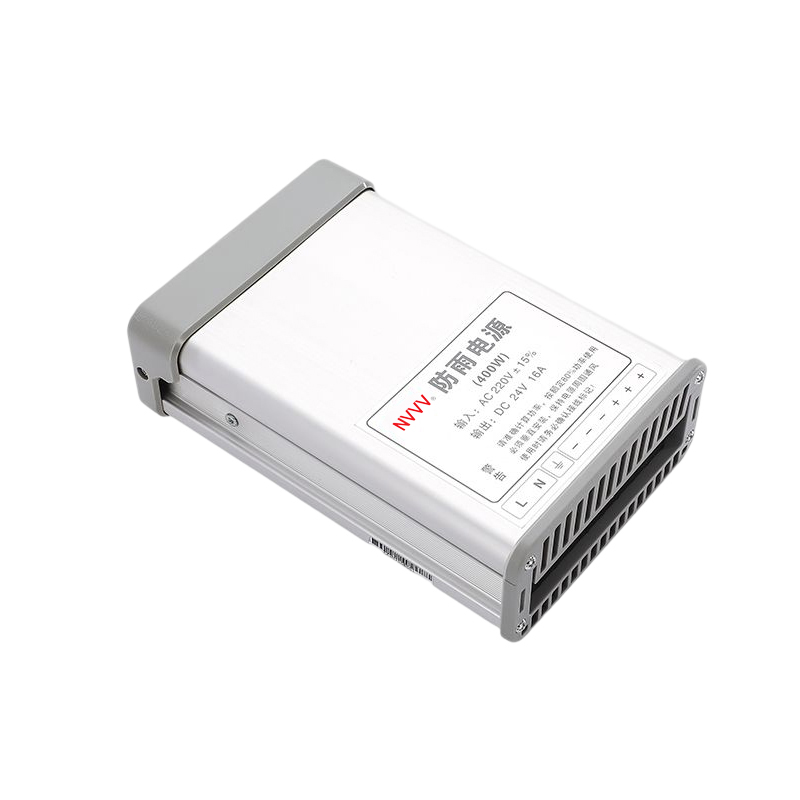

| SOR-400 400W Rainproof Module Led Power Supply | |||
|---|---|---|---|
| Category | Project | Technical Index | |
| Output | DC Voltage | 12V | 24V |
| Rated Current | 33.3A | 16.6A | |
| Rated Power | 400W | ||
| Ripple & Noise | < 150mV | < 240mV | |
| Voltage Accuracy | ±1% | ||
| Load Adjustment Rate | ±1.5% | ||
| Linear Adjustment Rate | ±1% | ||
| Start, Rise, Hold Time | 200ms, 100ms, 20ms at 230V AC | ||
| Input | Voltage Range | 190-250V AC | |
| Working Current | < 4A at 230V AC | ||
| Impulse Current | 230VAC: 50A | ||
| Protection | Overload Protection | When the output rated power is ≥105%-135%, the protection mode is hiccup mode, which can be recovered automatically after the abnormal conditions are removed. | |
| Environmental | Working Temp & Humidity | -10°C ~ +50°C / 20% ~ 90% RH | |
| Storage Temp & Humidity | -20°C ~ +85°C / 10% ~ 95% RH | ||
| Safety Regulation | Withstand Voltage | Input-Output: 3kVac for 1 minute | |
| Leakage Current | 2.5mA at Input - Case 240VAC | ||
| Isolation Resistance | Input-Output, Input-Shell, Output-Shell: 500VDC / 100MΩ | ||
| Other | Size | 173 * 114 * 53mm | |
| Net / Gross Weight | 497g / 500g | ||
