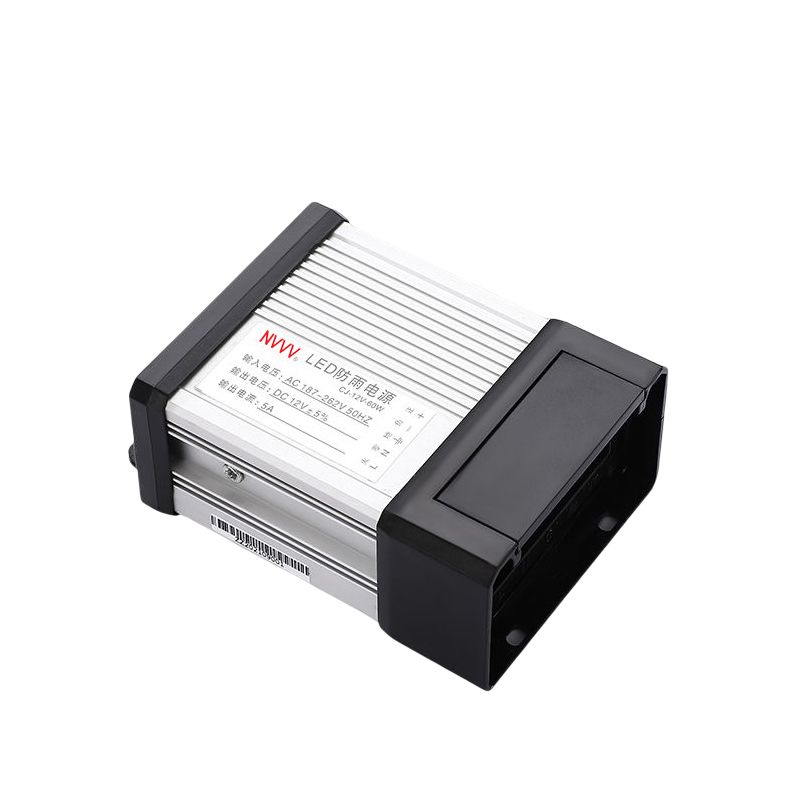

| SOR-60 60W Rainproof Module Led Power Supply | |||
|---|---|---|---|
| Project | Technical Index | ||
| Output | DC voltage | 12V | 24V |
| Rated current | 5A | 2.5A | |
| Rated power | 60W | 60W | |
| Ripple and noise | <100mV | <200mV | |
| Voltage accuracy | ±1% | ||
| Load adjustment rate | ±10% | ||
| Linear adjustment rate | ±1% | ||
| Start, rise, hold time | 200ms, 100ms, 20ms: 230V AC | ||
| Input | Voltage range | 190-250V AC | |
| Working current | <0.7A 230V AC | ||
| Impulse current | 230VAC: 50A | ||
| Protect | Overload protection | When the output rated power is ≥105%-135%, the protection mode is burping mode, which can be recoverd automatically after the abnormal conditions are removed. | |
| Environmental | Working temperature and humidity | -10℃ ~ +50℃, 20% ~ 90% RH | |
| Storage temperature and humidity | -20℃ ~ +85℃, 10% ~ 95% RH | ||
| Safety regulation | Withstand voltage | Input-output: 3kVac for 1 minute | |
| Leakage current | 2.5mA at input - Case 240VAC | ||
| Isolation resistance | Input-output, input shell, output shell: 500VDC/100MΩ | ||
| Other | Size | 98*75*45mm | |
| Net weight / gross weight | 192.9/200g | ||
