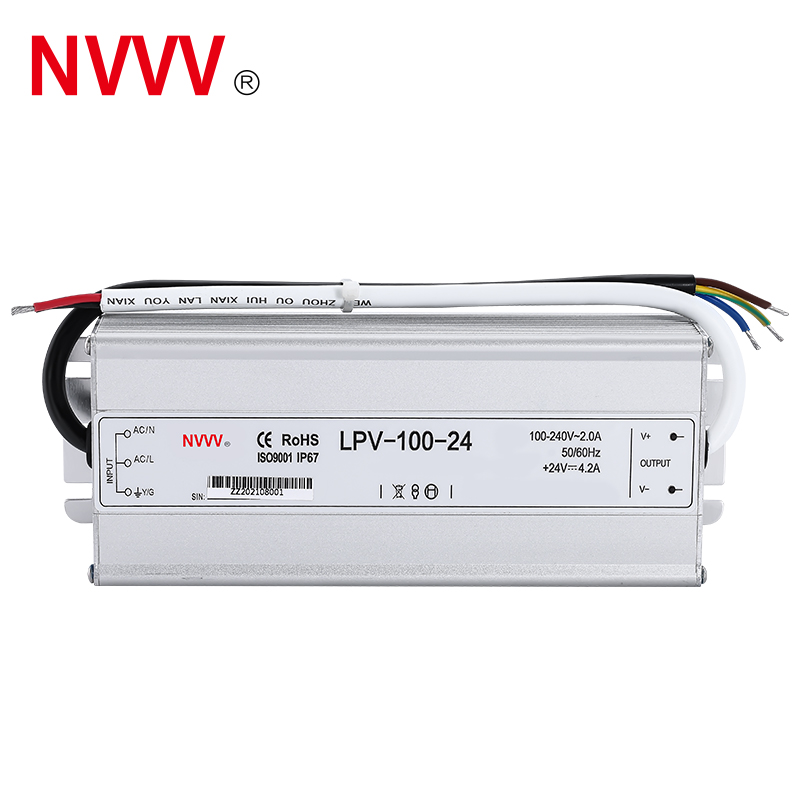

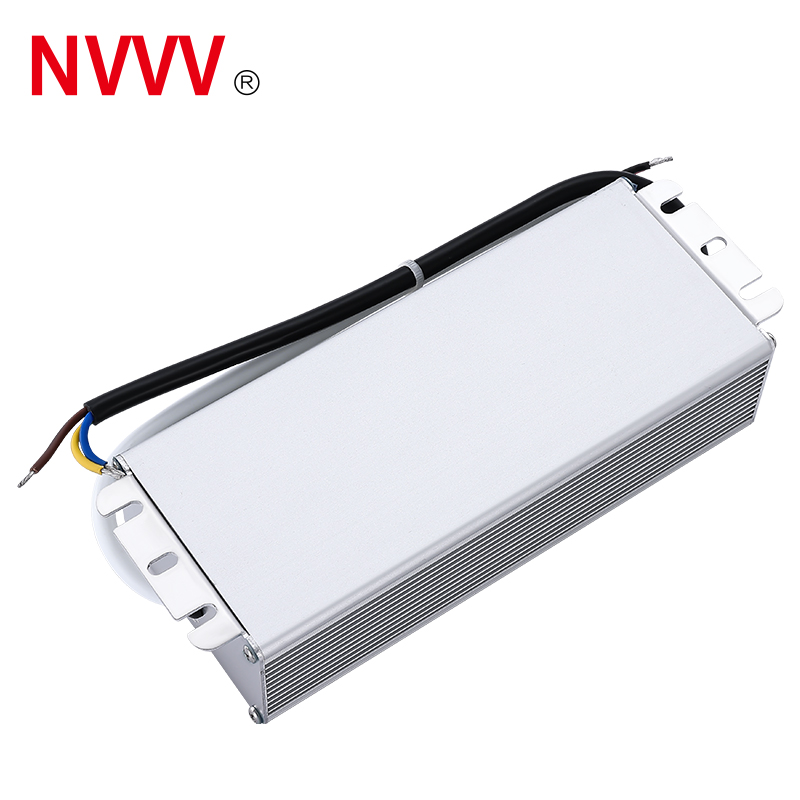

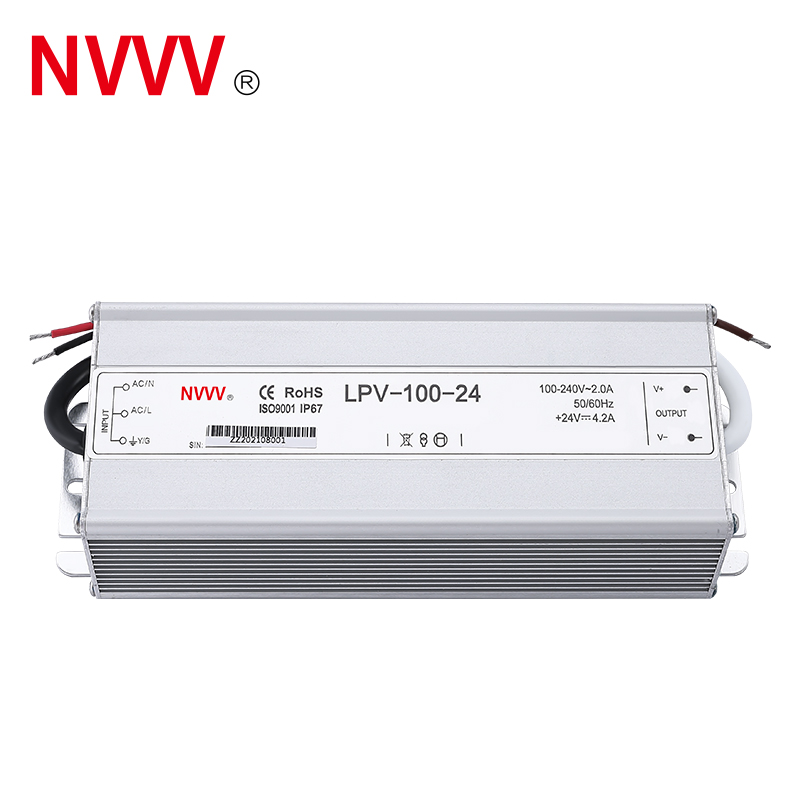

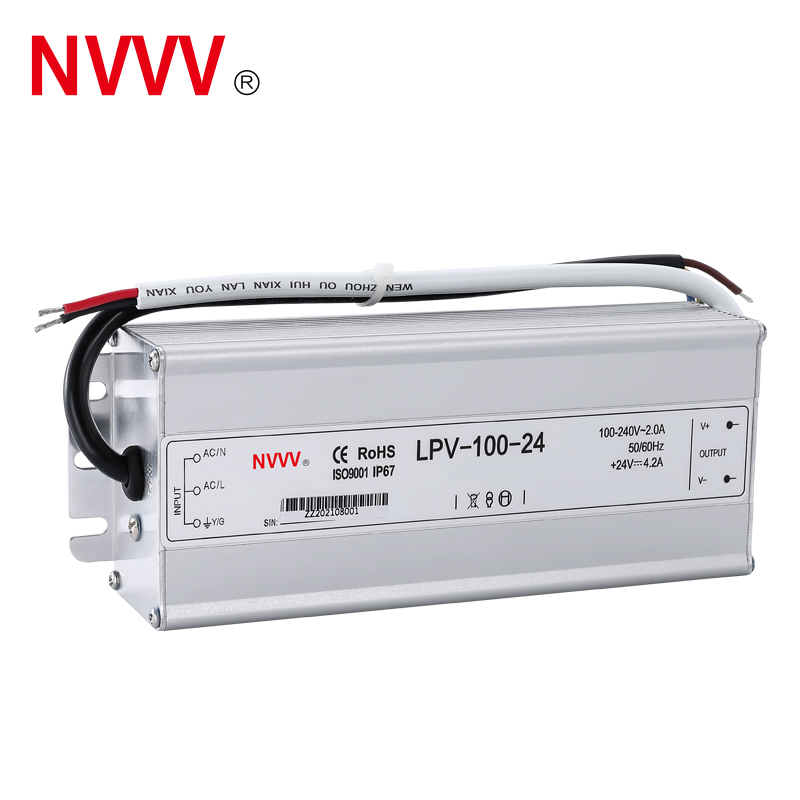

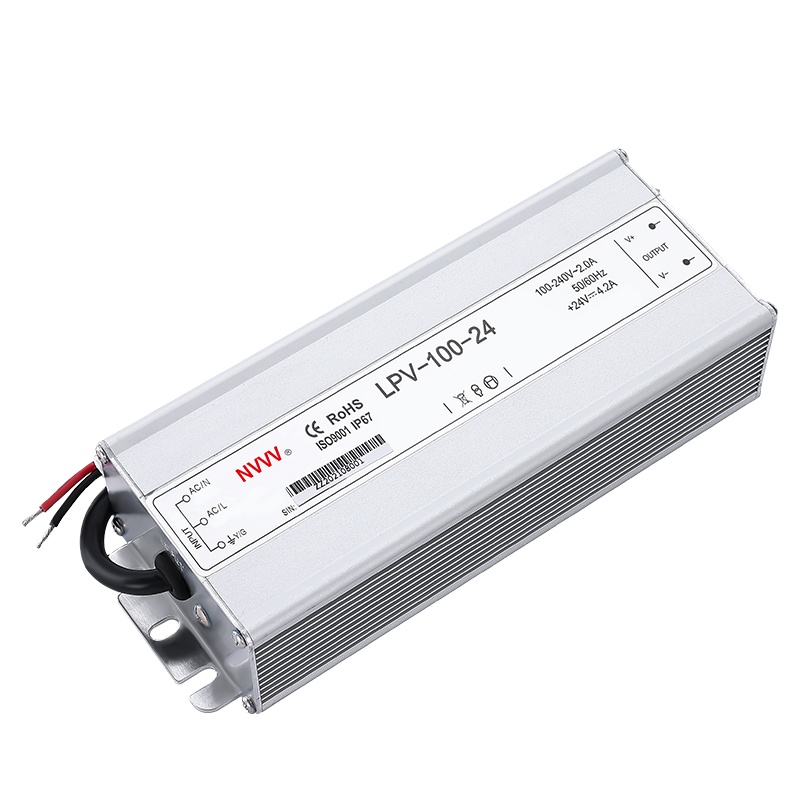

| LPV-100 100W Waterproof Irrigation Switch Power Supply | ||
|---|---|---|
| Output Technical Index | ||
| DC voltage | 12V | 24V |
| Rated current | 8.5A | 4.2A |
| Rated power | 102W | 100.8W |
| Ripple and noise (1) | < 120mV | < 150mV |
| Voltage accuracy | ±5% | |
| Load adjustment rate | ±2% | |
| Linear adjustment rate | ±1% | |
| Starting and rising time | 2000ms, 25ms, 15ms / 115VAC | 2000ms, 25ms, 50ms / 230VAC | |
| Input Technical Index | ||
| Voltage range / frequency | 90-264VAC 47Hz - 63Hz / 127VDC - 370VDC | |
| Efficiency (typical) (2) | > 85% | > 88% |
| Working current | 2.2A / 110VAC | 1.2A / 230VAC | |
| Impulse current | 220VAC: 60A | |
| Protection | ||
| Overload protection | 105%-135% Protection type: hiccup mode, automatic recovery after abnormal condition is removed | |
| Overvoltage protection | ≥ 115% - 145% Protection type: shut down output, restart and automatically recover | |
| Function & Environment | ||
| Working temperature & humidity | -30°C to +70°C / 20% to 90% RH | |
| Storage temperature & humidity | -40°C to +85°C / 10% to 95% RH | |
| Safety Regulations | ||
| Withstand voltage | Input-Output: 3KVAC for 1 minute | |
| Leakage current | Input-Shell: < 2.5mA at 240VAC | |
| Insulation impedance | Input-Output, Input-Shell, Output-Shell: 500VDC / 100MΩ | |
| Other Specifications | ||
| Size | 190 * 50 * 35mm | |
| Net weight / gross weight | 450g / 500g | |
