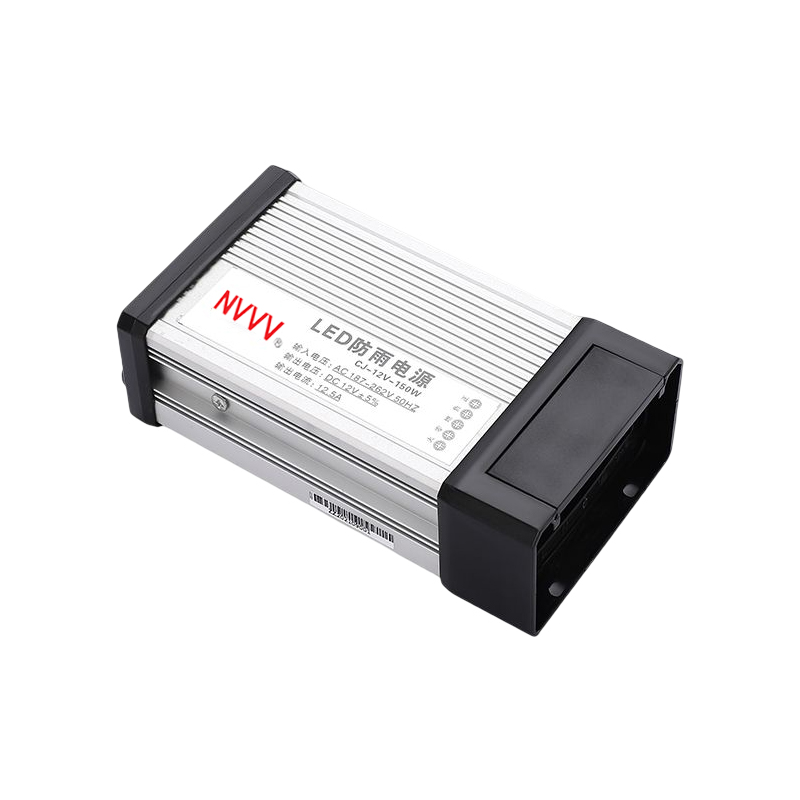

| SOR-150 150W Rainproof Module Led Power Supply | |||||
|---|---|---|---|---|---|
| Project | Technical Index | ||||
| Output | DC voltage | 12V | 24V | ||
| Rated current | 33.3A | 16.6A | |||
| Rated power | 150W | 150W | |||
| Ripple and noise | < 120mV | < 240mV | |||
| Voltage accuracy | ±1% | ||||
| Load adjustment rate | ±10% | ||||
| Linear adjustment rate | ±1.5% | ||||
| Start, rise, hold time | 200ms, 100ms, 20ms at 230V AC | ||||
| Input | Voltage range | 190-250V AC | |||
| Working current | < 1.5A 230V AC | ||||
| Impulse current | 230VAC: 50A | ||||
| Protection | Overload protection | When the output rated power is ≥ 105%-135%, the protection mode is burping mode, which can be recovered automatically after the abnormal conditions are removed. | |||
| Environmental | Working temperature and humidity | -10°C ~ +50°C / 20% ~ 90% RH | |||
| Storage temperature and humidity | -20°C ~ +85°C / 10% ~ 95% RH | ||||
| Safety Regulation | Withstand voltage | Input-output: 3kVac for 1 minute | |||
| Leakage current | 2.5mA at input - Case 240VAC | ||||
| Isolation resistance | Input-output, input shell, output shell: 500VDC / 100MΩ | ||||
| Other | Size | 136 * 76 * 45 mm | |||
| Net weight / gross weight | 287.29g / 300g | ||||
