| RPS-400W Rainproof Switch Power Supply | |||
|---|---|---|---|
| Model | Technical Index | ||
| Output Parameter | |||
| DC Voltage | 5V | 12V | 24V |
| Rated Current | 55A | 33.3A | 16.6A |
| Rated Power | 275W | 399.6W | 399.6W |
| Ripple and noise ① | <75mV | <150mV | <150mV |
| Voltage Precision | ±1% | ||
| Output Voltage regulation Range | ±10% | ||
| Load adjustment rate | ±1.5% | ±1.2% | ±1% |
| Linear adjustment rate | ±1% | ||
| Input Parameter | |||
| Voltage Range | 85-264VAC 47Hz~63Hz (120VDC~370VDC) | ||
| Efficiency(typical) ② | >78% | >81% | >83% |
| Working Current | 5A /230VAC | ||
| Shock Current | 220VAC 9A | ||
| Start,Rise,Hold time | 1500ms, 200ms, 20ms : 230VAC | ||
| Protections | |||
| Overload protection | 105%-135% type: Constant current output VO reduced to undervoltage point cut off output reset: power on again. | ||
| Short circuit production | Close output : reset: power on again | ||
| Environmental Science | |||
| Working temp. and humidity | -10℃ ~ +50℃, 20% ~ 90% RH | ||
| Storage temp. and humidity | -20℃ ~ +85℃, 10% ~ 95% RH | ||
| Security | |||
| Pressure Resistance | O/P-I/P, I/P-O/P: 1.5KVAC | ||
| Isolation Resistance | I/P-O/P, O/P-Shell, O/P-Shell : 500VDC/100MΩ | ||
| Others | |||

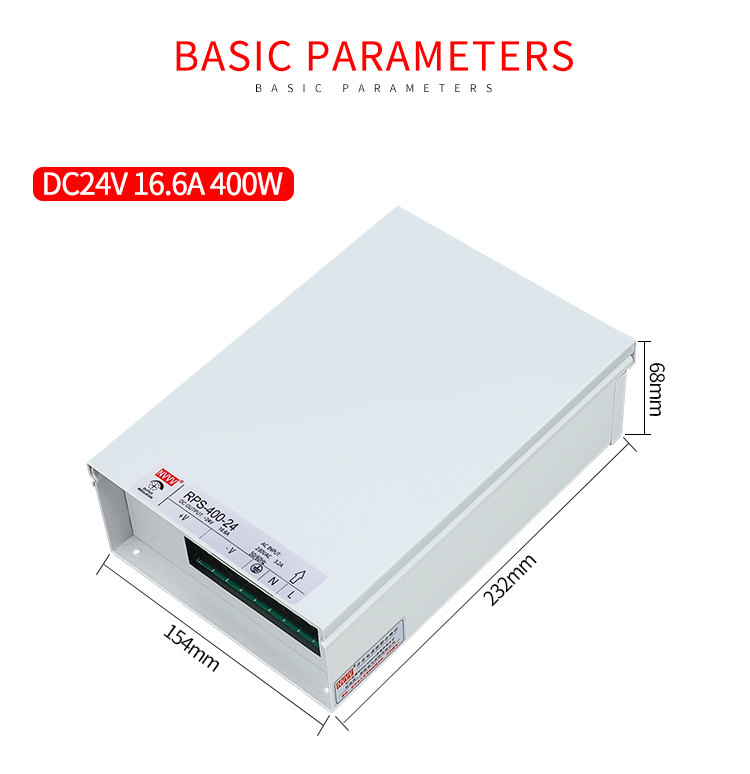

| Size | 232*154*68mm | ||
| Net/Gross Weight | 1166.2/1256.7g | ||
