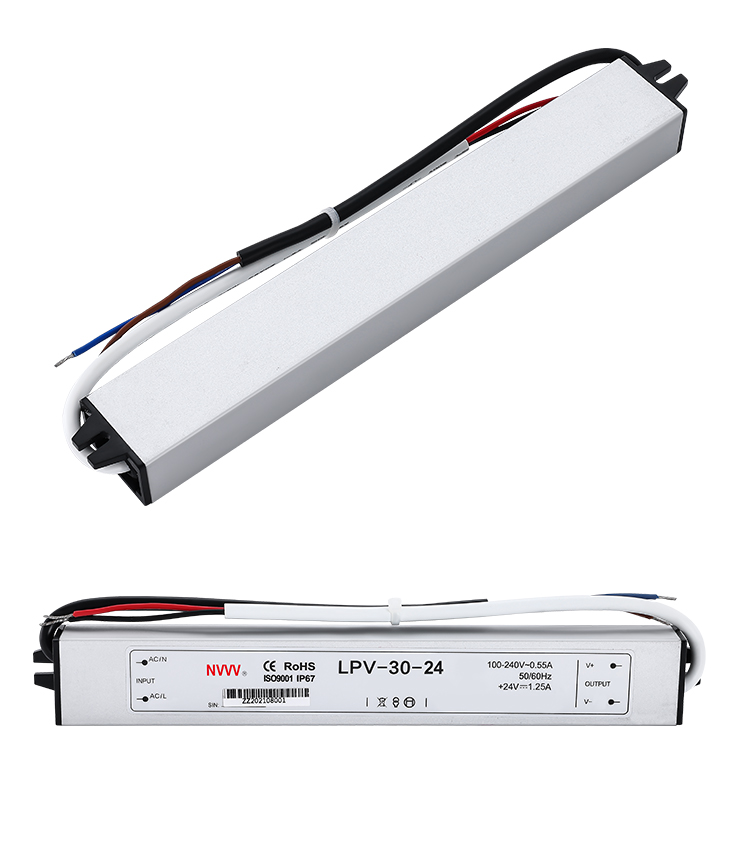

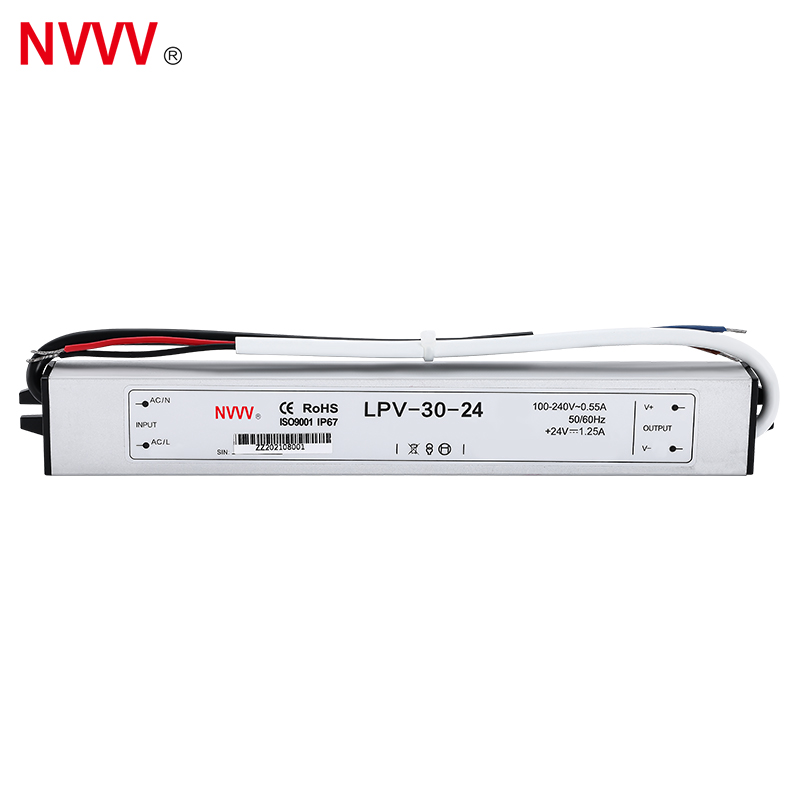

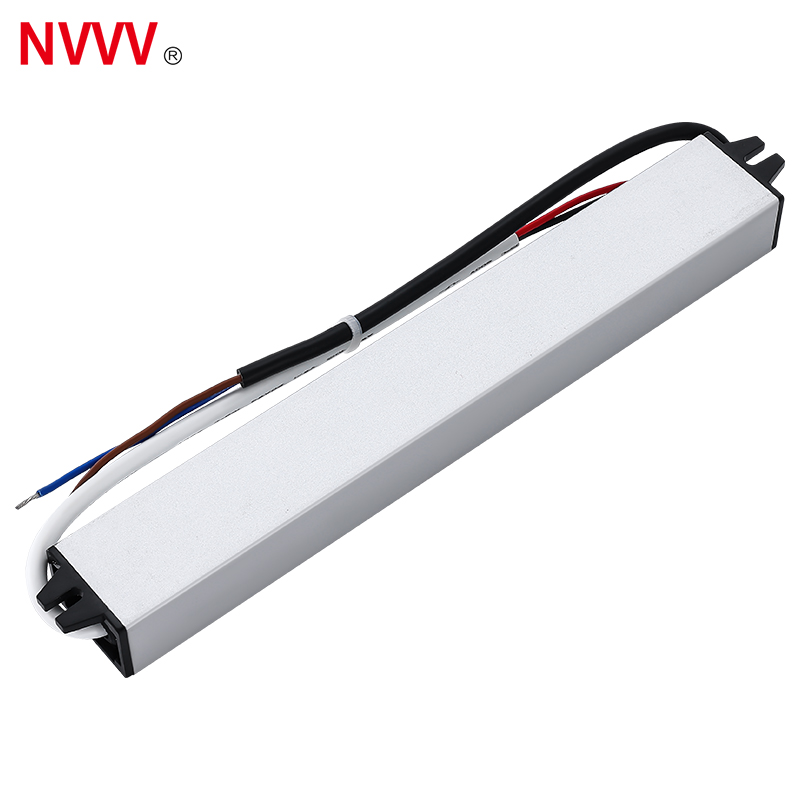

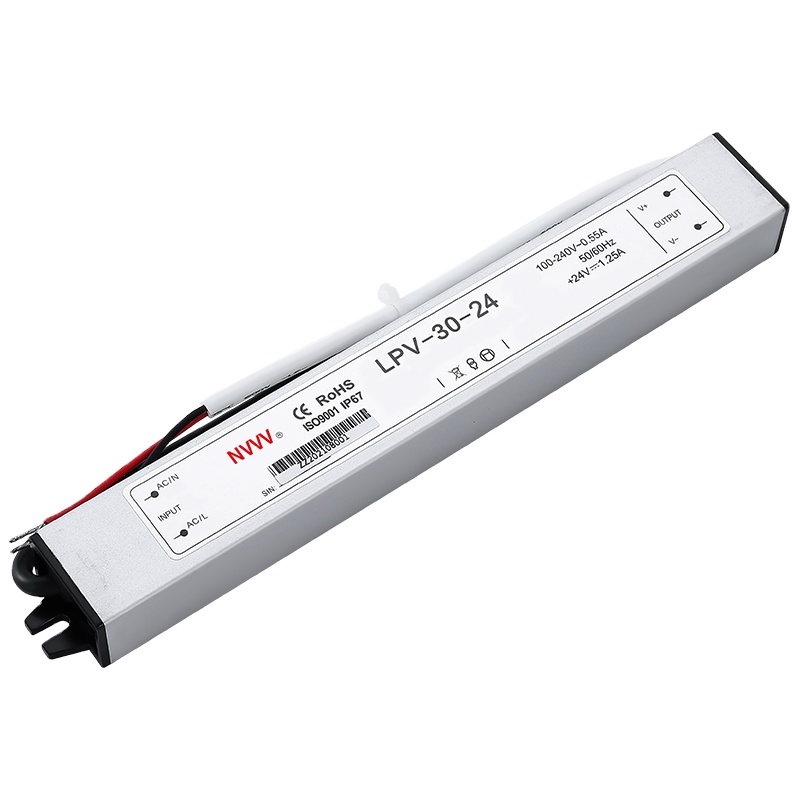

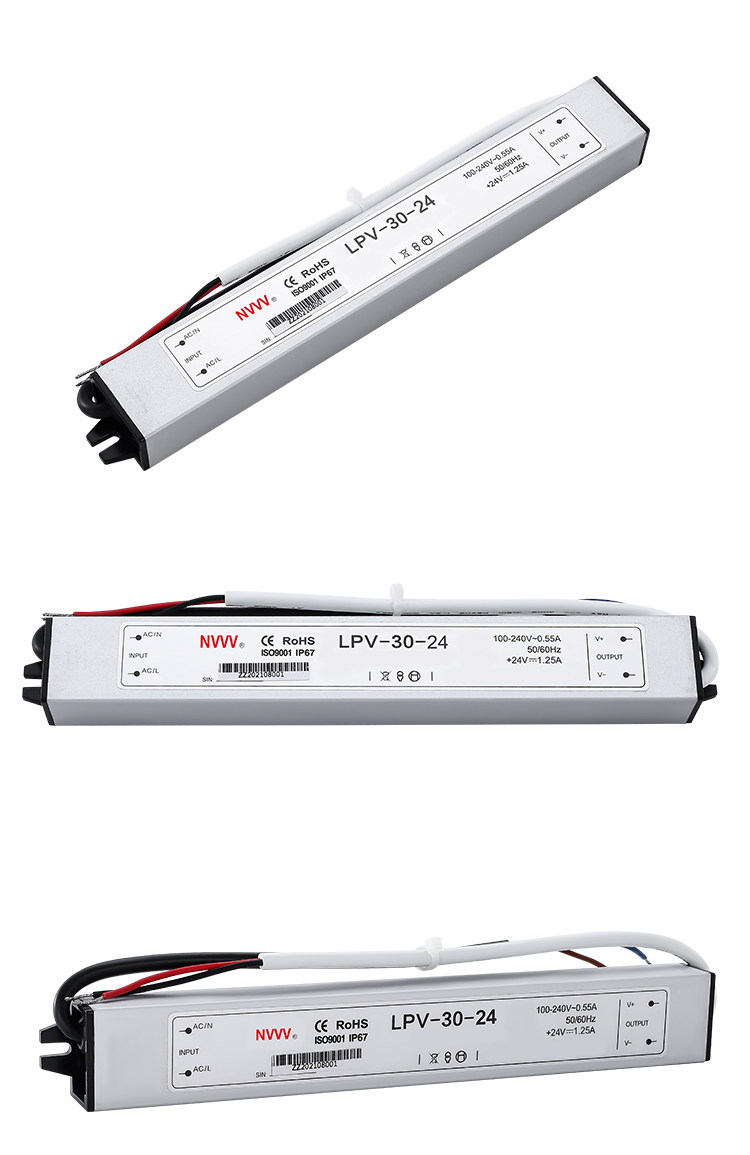

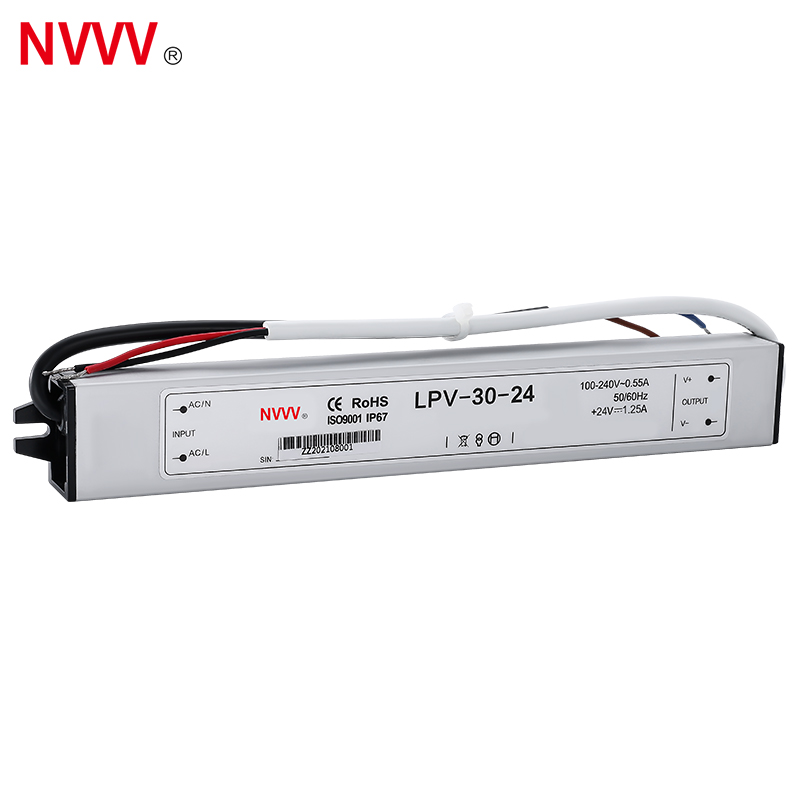

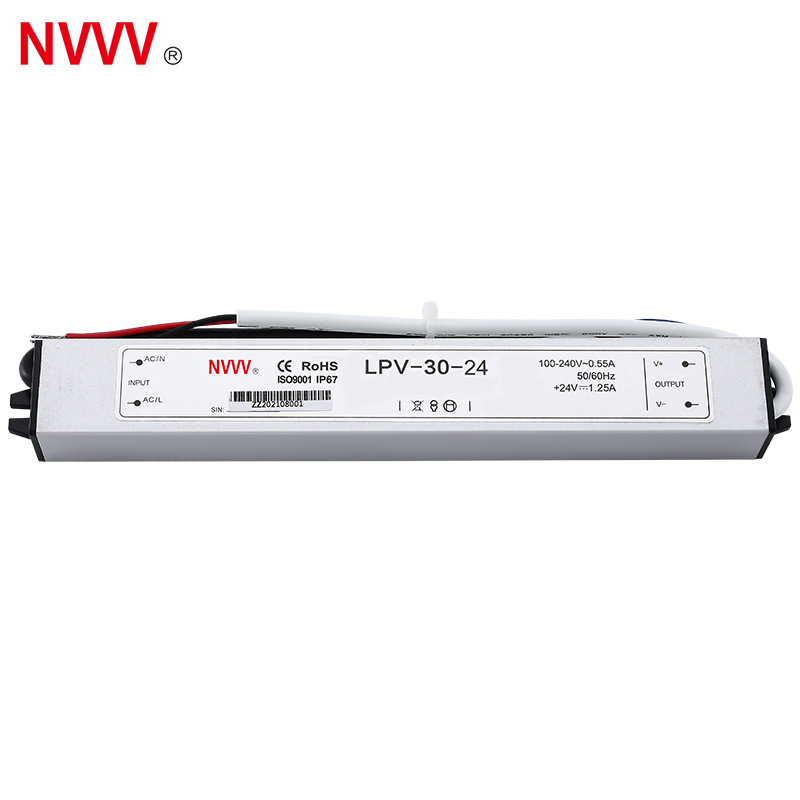

| LPV-30 30W Waterproof Irrigation Switch Power Supply | |||
|---|---|---|---|
| Project | Technical Parameter | 12V Output Model | 24V Output Model |
| Output | DC Voltage | 12V | 24V |
| Rated Current | 2.5A | 1.25A | |
| Rated Power | 30W | 30W | |
| Ripple and Noise ① | < 120mV | < 150mV | |
| Voltage Accuracy | ±5% | ||
| Load Adjustment Rate | ±2% | ||
| Linear Adjustment Rate | ±1% | ||
| Starting and Rising Time | 500ms, 20ms, 16ms : 115VAC / 500ms, 20ms, 50ms : 230VAC | ||
| Input | Voltage Range / Frequency | 90-264VAC 47Hz~63Hz / 127VDC~370VDC | |
| Efficiency (Typical) ② | > 81% | > 83% | |
| Working Current | 1A / 110VAC, 0.65A / 230VAC | ||
| Impulse Current | 220VAC: 60A | ||

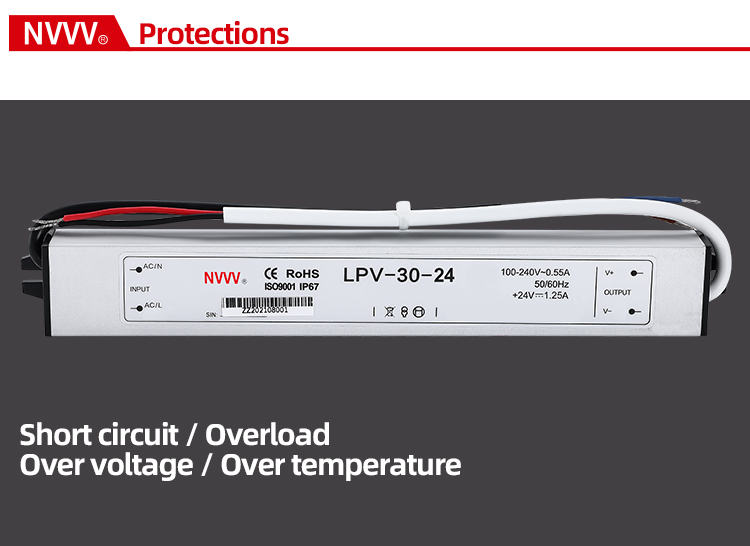

| Protect | Overload Protection | 105%-135% Protection type: burping mode, automatic return to normal after removing abnormal conditions | |
| Overvoltage Protection | ≥ 115% - 145% protection type: close output, restart and automatically return to normal | ||
| Function | Working Temp. & Humidity | -30℃ ~ +70℃, 20% ~ 90% RH | |
| Storage Temp. & Humidity | -40℃ ~ +85℃, 10% ~ 95% RH | ||
| Safety Regulations | Withstand Voltage | Input - Output: 3KVAC for 1 minute | |
| Leakage Current | Input shell: When 240VAC < 2.5mA | ||
| Insulation Impedance | Input-Output, Input-Shell, Output-Shell: 500VDC / 100M Ω | ||
| Other | Size | 201*29*20mm | |
| Net / Gross Weight | 250 / 260g | ||
