| RPS-300 300W Rainproof Switch Power Supply | ||||
|---|---|---|---|---|
| Project | Technical Index | |||
| Output | DC Voltage | 12V | 24V | 48V |
| Rated Current | 29A | 14.6A | 7.3A | |
| Rated Power | 199.2W | 199.2W | 350.4A | |
| Ripple and Noise ① | <120mV | <200mV | <240mV | |
| Voltage Accuracy | ±1% | |||
| Load Adjustment Rate | ±10% | |||
| Linear Adjustment Rate | ±1.2% | ±1.1% | ±0.5% | |
| Starting and Rising Time | 1500ms, 200ms, 20ms : 230VAC | |||
| Input | Voltage Range / Frequency | 180-264VAC 47Hz~63Hz; 254VDC~370VDC | ||
| Efficiency (Typical) ② | >81% | >83% | >84% | |
| Working Current | 4A/230VAC | |||
| Impulse Current | 220VAC: 90A | |||
| Production | Overload Protection | 105%-135% Protection type: burping mode, automatic return to normal after removing abnormal conditions | ||
| Function | Working Temp. & Humidity | -10℃~+50℃; 20%~90RH | ||
| Storage Temp. & Humidity | -20℃~+85℃; 10%~95RH | |||
| Safety | Withstand Voltage | Input output: 1.5kvac for 1 minute | ||
| Leakage Current | input shell When 240VAC <1.5mA | |||
| Insulation Impedance | Input output, input shell, output shell: 500VDC / 100M Ω | |||

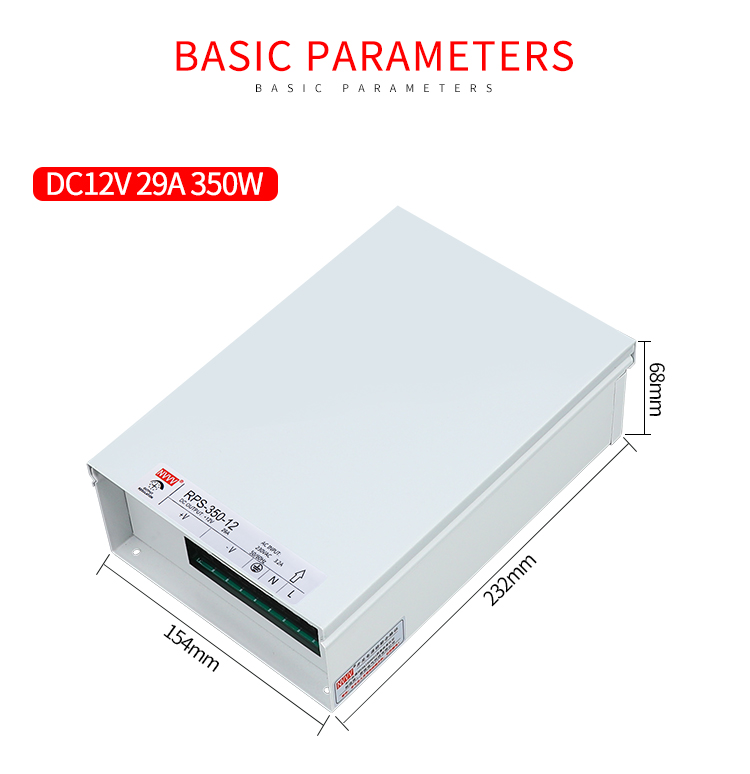

| Other | Size | 232*154*68mm | ||
| Net Weight / Gross Weight | 1166.2/1256.7g | |||
