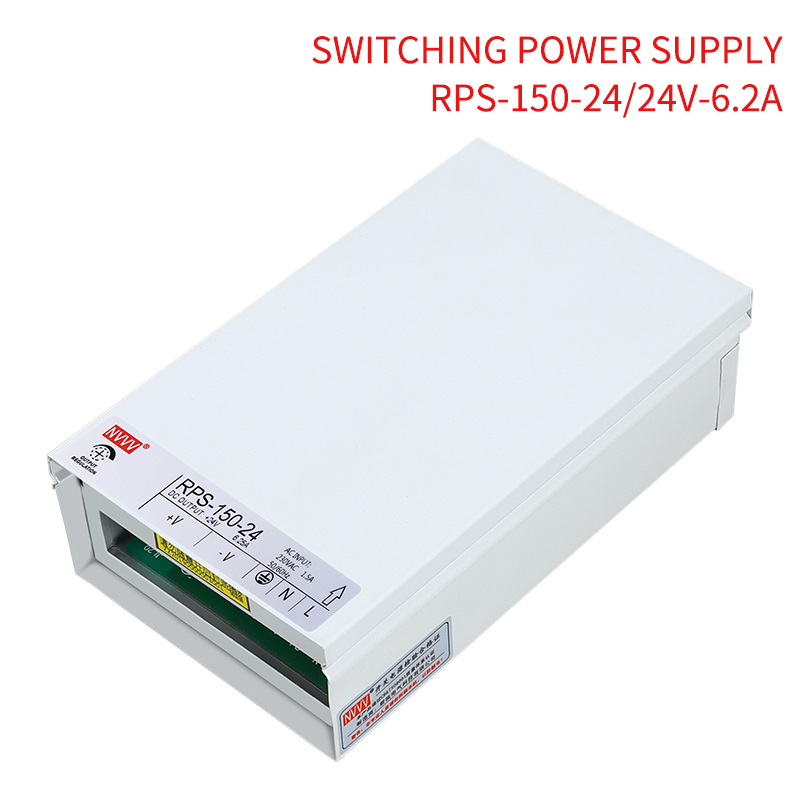

| RPS-150W Rainproof Switch Power Supply | ||||
|---|---|---|---|---|
| Model | Technical Index | |||
| Output | DC Voltage | 5V | 12V | 24V |
| Rated Current | 25A | 12.5A | 6.2A | |
| Rated Power | 125W | 150W | 148.8W | |
| Ripple and Noise | < 75mV | < 150mV | < 150mV | |
| Voltage Precision | ±1% | |||
| Output Voltage Regulation Range | ±10% | |||
| Load Adjustment Rate | ±1.5% | ±1.2% | ±1% | |
| Linear Adjustment Rate | ±1% | |||
| Input | Voltage Range | 85-264VAC 47Hz ~ 63Hz (120VDC ~ 370VDC) | ||
| Efficiency (Typical) | > 78% | > 81% | > 83% | |
| Working Current | 1.75A / 230VAC | |||
| Shock Current | 220VAC 45A | |||
| Start, Rise, Hold Time | 1500ms, 200ms, 20ms at 230VAC | |||
| Protection | Overload Protection | 105%-135% Type: Constant current output VO reduced to undervoltage point cut off output. Reset: Power on again. | ||
| Short Circuit Protection | Close output. Reset: Power on again. | |||
| Environment | Working Temp & Humidity | -10°C ~ +50°C; 20% ~ 90% RH | ||
| Storage Temp & Humidity | -20°C ~ +85°C; 10% ~ 95% RH | |||
| Security | Pressure Resistance | O/P-I/P, I/P-FG: 1.5KVAC | ||
| Isolation Resistance | I/P-O/P, O/P-Shell: 500VDC / 100MΩ | |||

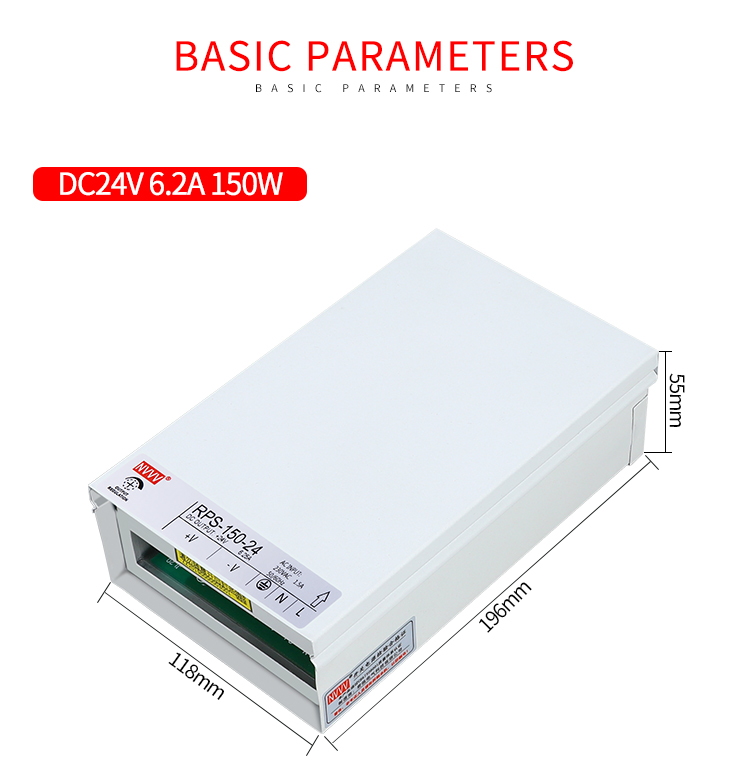

| Others | Size | 196 * 118 * 55mm | ||
| Net/Gross Weight | 750g / 800g | |||
